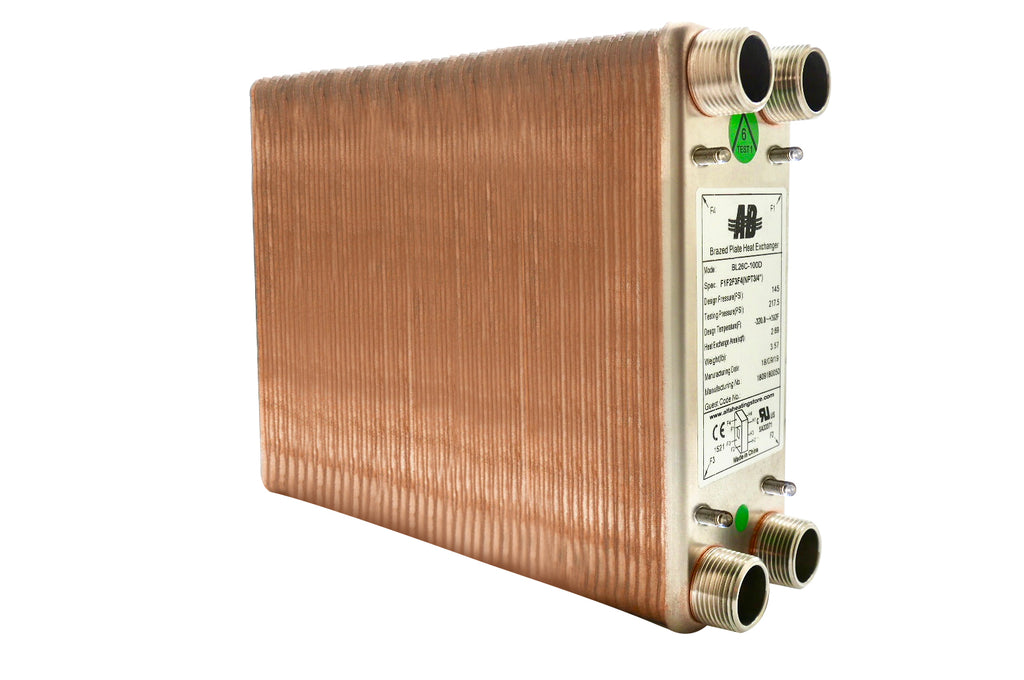

Brazed Plate Heat Exchanger - 100 Plates 5"x12" 1 1/4"MPT 1,320,000 Btu

WiseWater Brazed Plate Heat Exchanger has a lightweight and compact design that allows for easy installation and service. When compared to other types,the advantage of this heat exchanger is that it features corrugated plates that produce a highly turbulent flow which allows for a true counter-current exchange. A counter-current flow is the most efficient way of exchanging heat between two fluids. Because of this, and due to the smaller size and reduced material content, Brazed Plate Heat Exchangers can be the most economical heat transfer choice.

  • Made of stainless steel 316L, brazed with 99.9% copper
  • 1" male fittings, 5"x12" dimension
  • It produces up to 1320kBtu per hour depending on its applications.
  • 1-year warranty against manufacturer defects and is UL listed.

Product Information

BL26C-100D Fitting Size
1 1/4" MPT Materials
Stainless Steel 316L,
99.9% Copper


-310 F

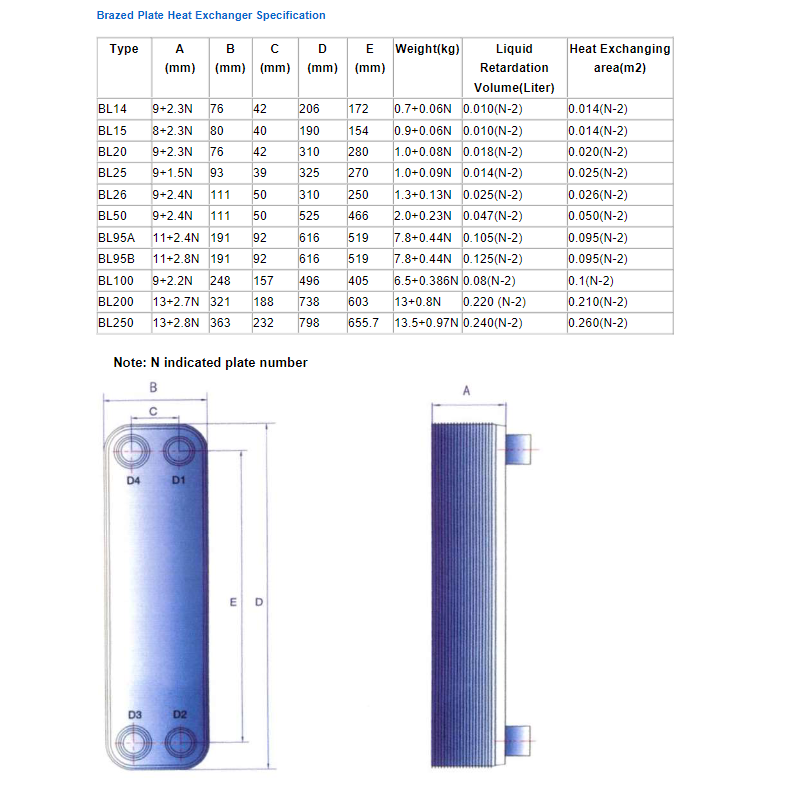

5" x 12.2" x 9.39"
Design Pressure


Test Pressure

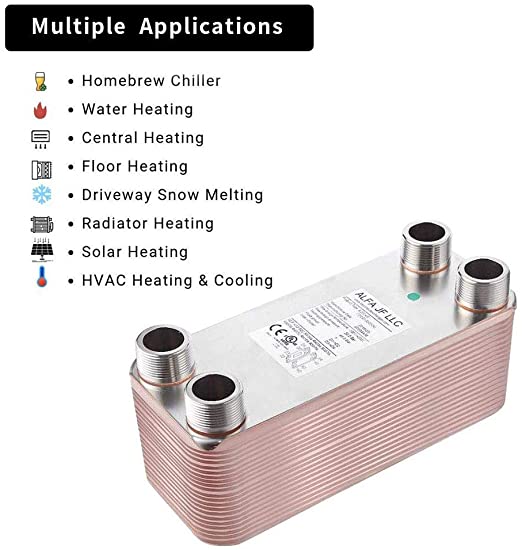

Application Specifications

Floor Heating

69 GPM / 69 GPM
(Boiler temp.: 180F
System temp.: 100F-130F)

BPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

Customized Service: If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Tips for welding:
Put a damp cloth around the connection to protect it from excessive heating.
It's recommended to use TIG or MIG welding on this product. Internal oxidation should be prevented with a small nitrogen flow.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at or call us at 833 328 6888 for help with your heating projects.
