Brazed Plate Heat Exchanger - 40 Plates 5"x12" 1 1/4"MPT 530,000 Btu

WiseWater Brazed Plate Heat Exchanger has a lightweight and compact design that allows for easy installation and service. It is made of stainless steel 316L, brazed with 99.9% copper, and has 1 1/4" male fittings. When compared to other types,the advantage of this heat exchanger is that it features corrugated plates that produce a highly turbulent flow which allows for a true counter-current exchange. A counter-current flow is the most efficient way of exchanging heat between two fluids. Because of this, and due to the smaller size and reduced material content, Brazed Plate Heat Exchangers can be the most economical heat transfer choice. Depending on the application, the capacity ranges from 380,000 - 530,000 Btu/hr. This product has a 1 year warranty against manufacturer defects and is UL listed.

Product Information

Model
BL26C-40D Fitting Size
1 1/4" MPT Materials
Stainless Steel 316L,
99.9% Copper

Min.
Operating
Temp.

-256 F

Max.
Operating
Temp.

482F

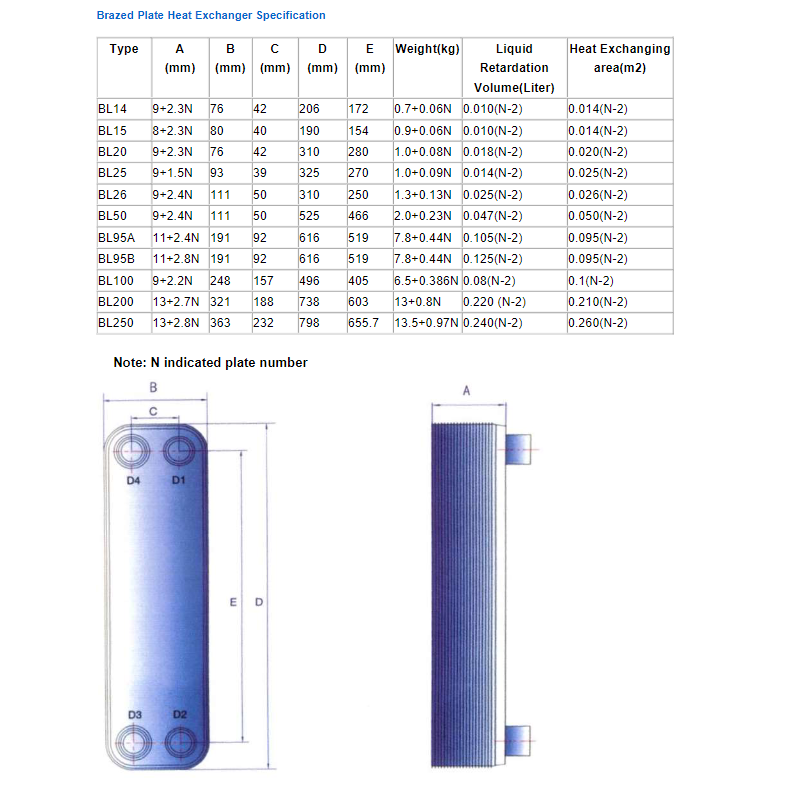

Dimensions
5" x 12.2" x 4"
Design Pressure

435psi



Test Pressure


653psi

    Weight


16.5lb

Application Specifications

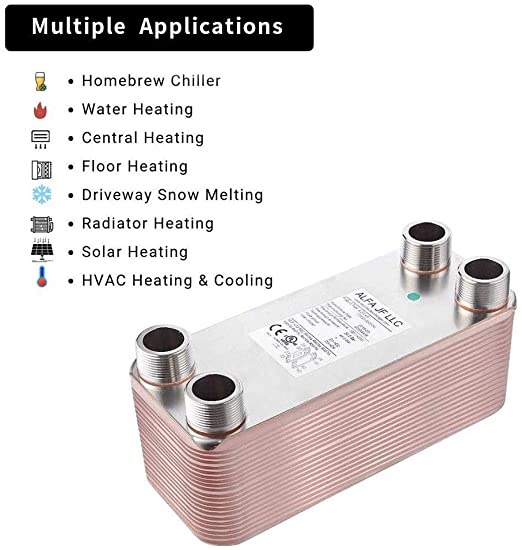

Floor Heating Domestic Hot Water Heating Snow Melting
530 kBtu/hr 430 kBtu/hr 380 kBtu/hr

26.2 GPM / 26.2 GPM
(Boiler temp.: 180F
System temp.: 100F-130F)

24 GPM / 7 GPM
(Boiler temp.: 180F
Pipes temp.: 40F-140F)
24 GPM / 27 GPM
(Boiler temp.: 180F
50% Glycol temp.: 110F-140F)

BPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
How to protect against freezing:
There are a few ways to help prevent freezing in your heat exchanger:
Using a freeze-protection thermostat and a flow switch in the spare connections (if available) to guarantee a constant water flow before, during, and after compressor operation; use a filter mesh ~1mm; use antifreeze when the evaporating temperature is close to liquid side freezing.
In addition to these freeze prevention tips, try to avoid operating the unit during pump downtime. This product can be used with glycol (50%) for antifreeze purposes.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833 328 6888 for help with your heating projects.
