Brazed Plate Heat Exchanger - 60 Plates 5"x12" 1 1/4"MPT 760,000 Btu

WiseWater Brazed Plate Heat Exchanger has a lightweight and compact design that allows for easy installation and service. When compared to other types,the advantage of this heat exchanger is that it features corrugated plates that produce a highly turbulent flow which allows for a true counter-current exchange. A counter-current flow is the most efficient way of exchanging heat between two fluids. Because of this, and due to the smaller size and reduced material content, Brazed Plate Heat Exchangers can be the most economical heat transfer choice.

  • Plate heat exchanger BL26C-60D made of SS316L, 99.9% copper brazed
  • 1 1/4" male fittings connections, 5"x12.2" dimension
  • Capacity ranges from 560,000 - 760,000 Btu per hour depending on its applications
  • 1-year warranty against manufacturer defects and is UL listed

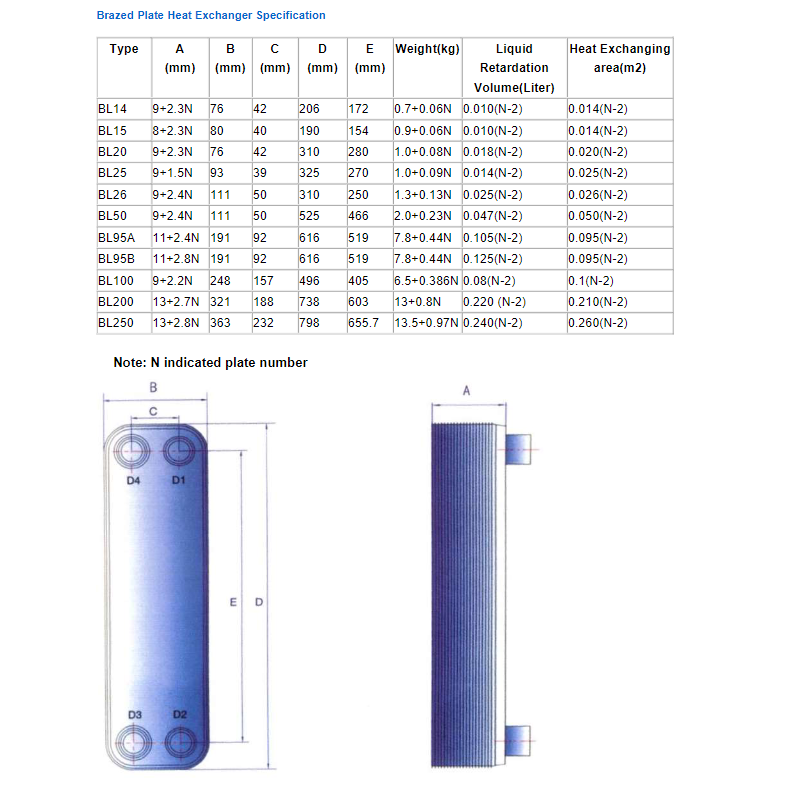

Product Information

BL26C-60D Fitting Size
1 1/4" MPT Materials
Stainless Steel 316L,
99.9% Copper


-256 F


5" x 12.2" x 5.8"
Design Pressure


Test Pressure




Application Specifications

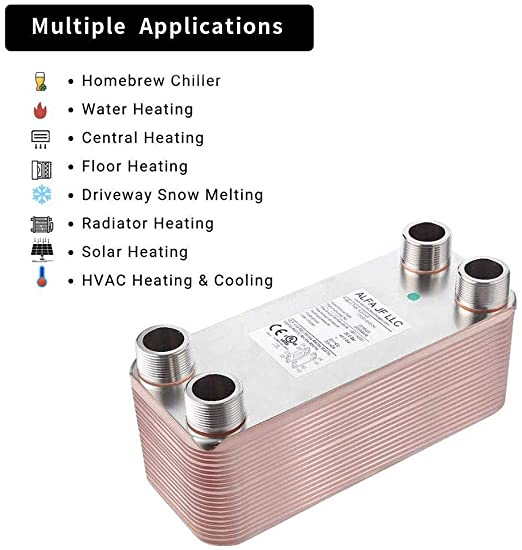

Floor Heating Domestic Hot Water Heating Snow Melting
760 kBtu/hr 730 kBtu/hr 560 kBtu/hr

36 GPM / 36 GPM
(Boiler temp.: 180F
System temp.: 100F-130F)

41 GPM / 12 GPM
(Boiler temp.: 180F
Pipes temp.: 40F-140F)
34 GPM / 38 GPM
(Boiler temp.: 180F
50% Glycol temp.: 110F-140F)

BPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Tips for mounting:
For Brazed Plate Heat Exchangers, it's recommended to mount them vertically. It's also recommended to use anti-vibration plates or steel clamps for larger models, as vibrations can cause damage to the connections. It's important that you never expose the unit to pulsations, excessive cyclic pressure, or temperature changes.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at or call us at 833 328 6888 for help with your heating projects.
