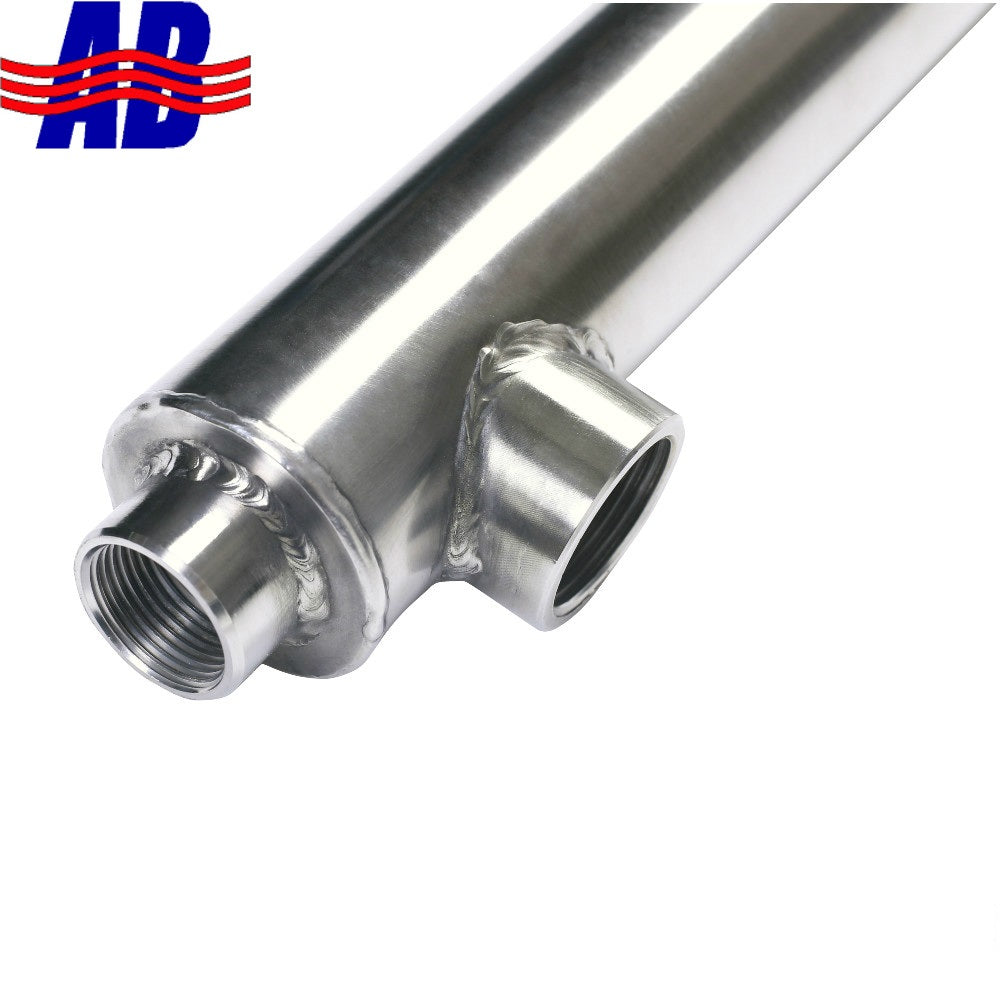

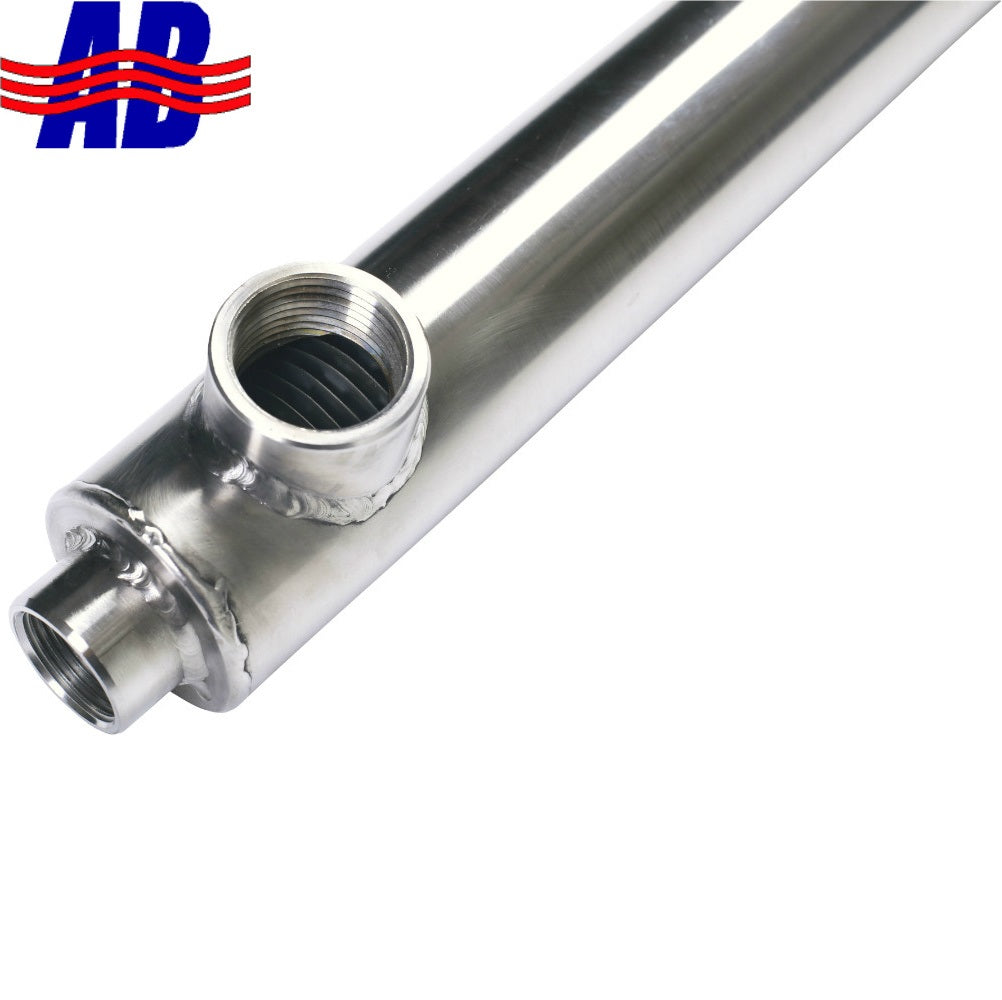

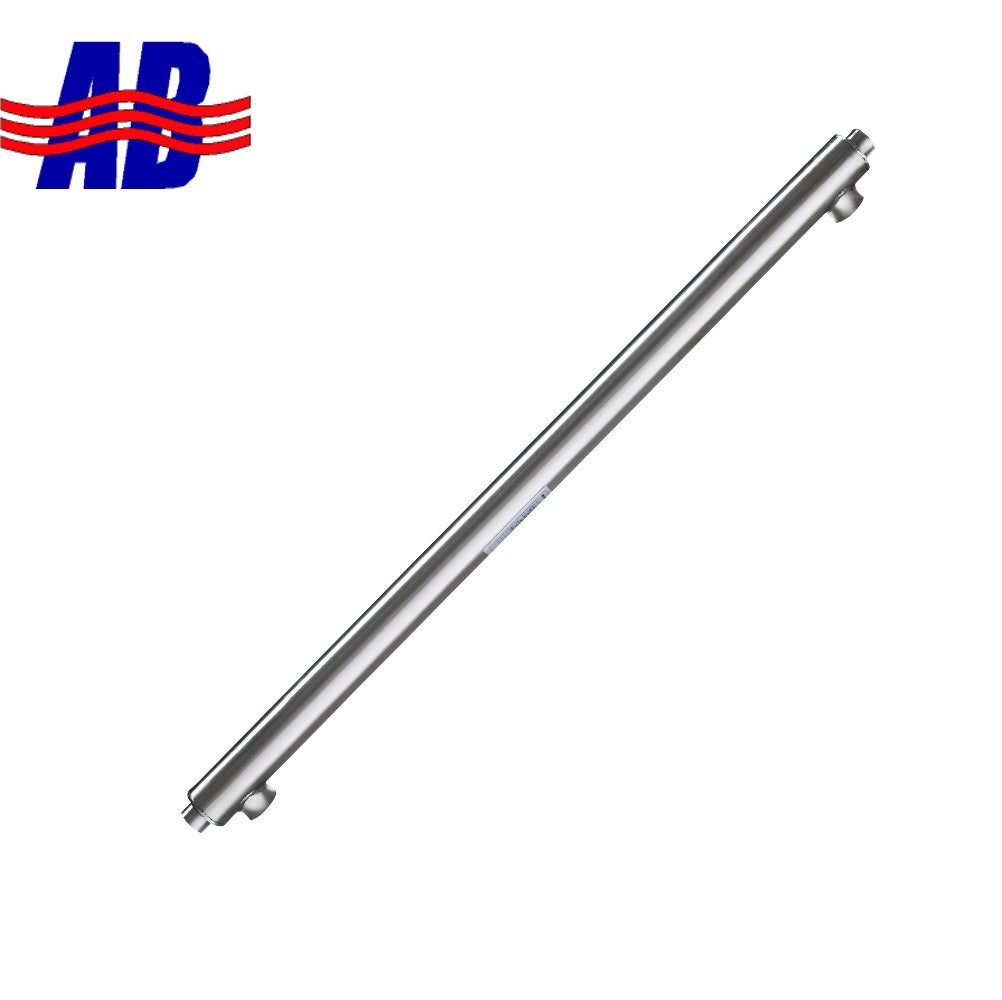

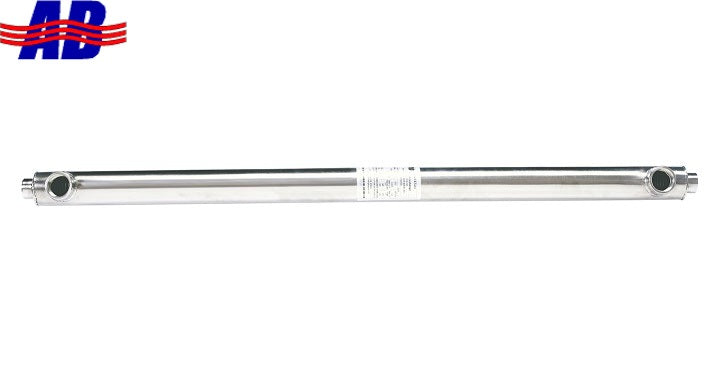

Side Arm Heat Exchanger - 33" Stainless Steel 3/4" & 1"NPT 19,000 Btu

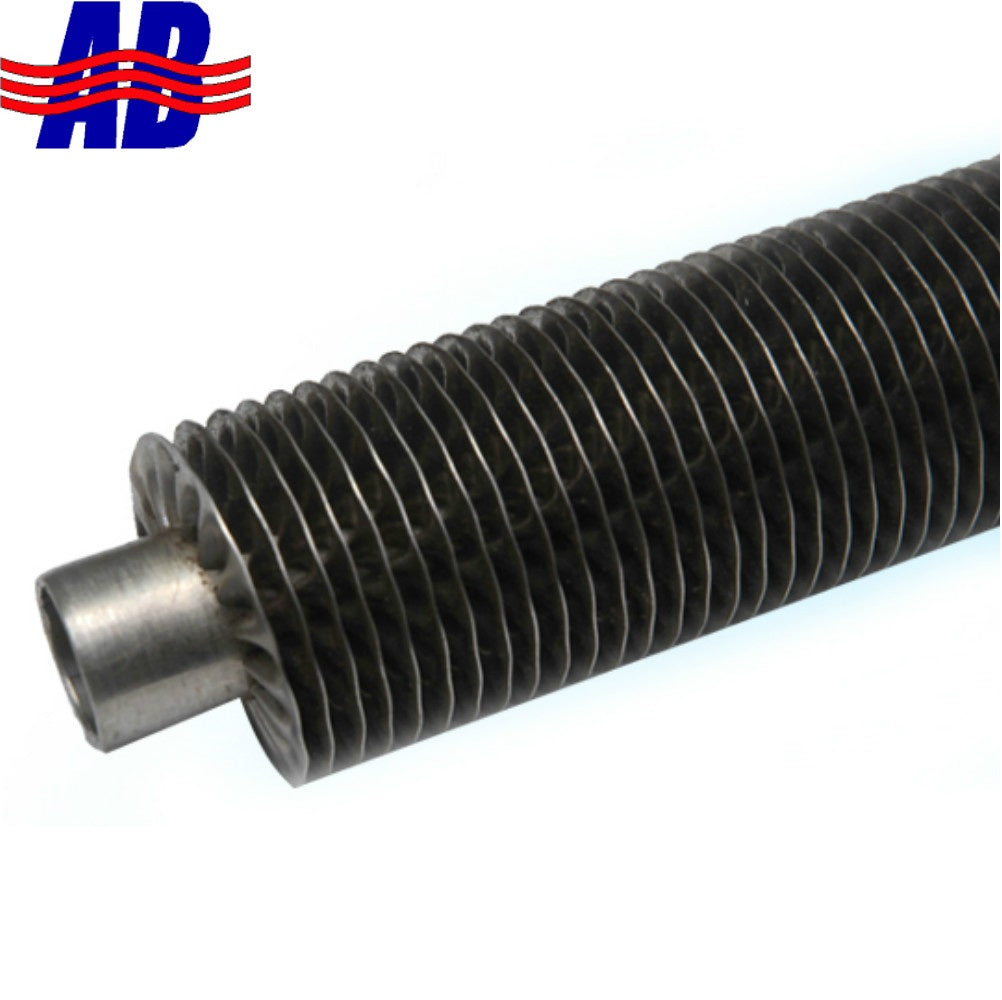

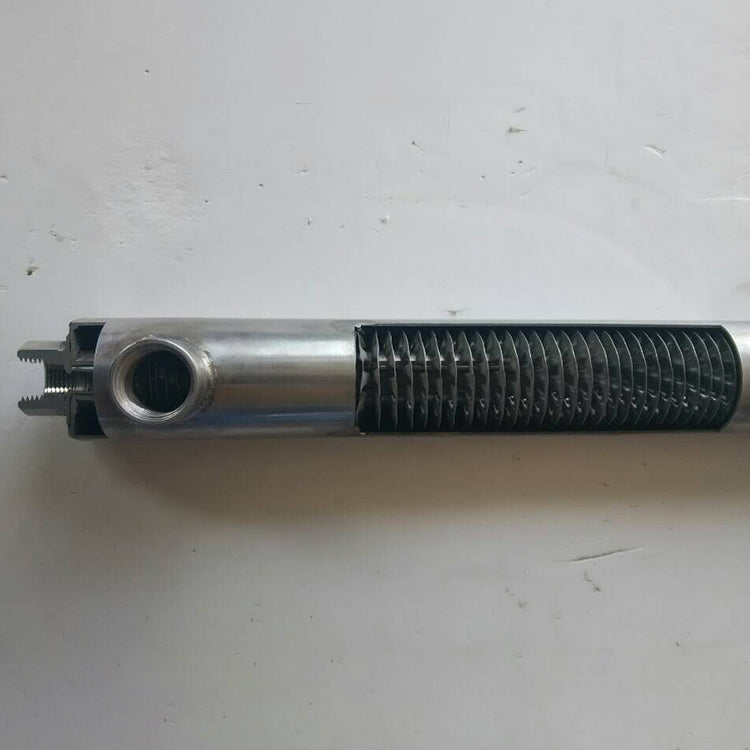

AB Side Arm Heat Exchangers have a compact, lightweight design that allows for a quick and easy installation. It is made with stainless steel 304 and has 3/4" (DHW side) and 1" (System side) NPT. Designed with natural thermosiphon heating technology, this heat exchanger is enhanced with fins to allow for higher heat transfer efficiency and to help reduce cross-contamination for potable water. This fin-enhanced design, which is 5-8 times bigger than the traditional bare tube design, produces both significant turbulence on the system side and faster heating at a greater capacity. This type of heat exchanger is recommended for smaller households of about 1-3 people or households with lower hot water usage. The capacity of this particular model is 19,000 Btu. This product has a 1.5-year warranty against manufacturer's defects and is UL listed.

This product provides a larger capacity and a faster heating rate using a shorter unit compared to a typical copper version. The fin-enhanced design also helps prevent cross contamination in potable water. With thermosiphon technology circulating the domestic hot water, using a circulation pump with this product can greatly increases the heat recovery by 3 to 4 times.

Product Information

FES-95 Capacity
19,000 Btu Connection Size
(DHW / System)
3/4" / 1"
Water to
Heat Transfer
3.16ft2 C-C Distance
Works with
(Tank Size)

40gal Heat Recovery
3.4 Hours Materials
304 Stainless Steel

150psi Test
225psi Dimensions
33.1" x 2"
Min. Operating
18F Max. Operating
406F     Weight

FAQ and Support
Sizing Guide:

33" works with 40gal. water heaters.
38" works with 60gal. water heaters.
38" Double Wall works with 40gal. water heaters.

The difference between single wall and double wall models is that the second wall helps prevent contamination in the water if a leak should happen. These heat exchangers are recommended for households of 1-3 people or households that don't use as much hot water.
