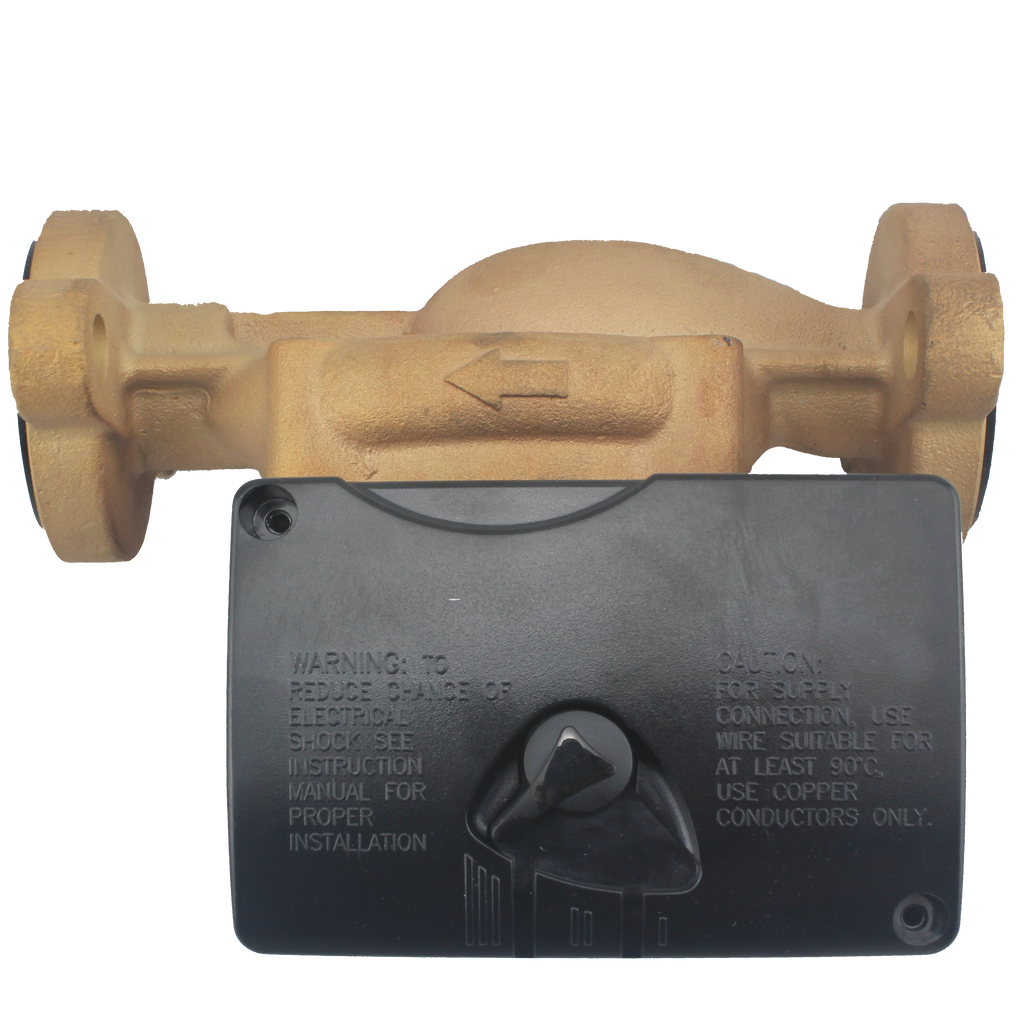

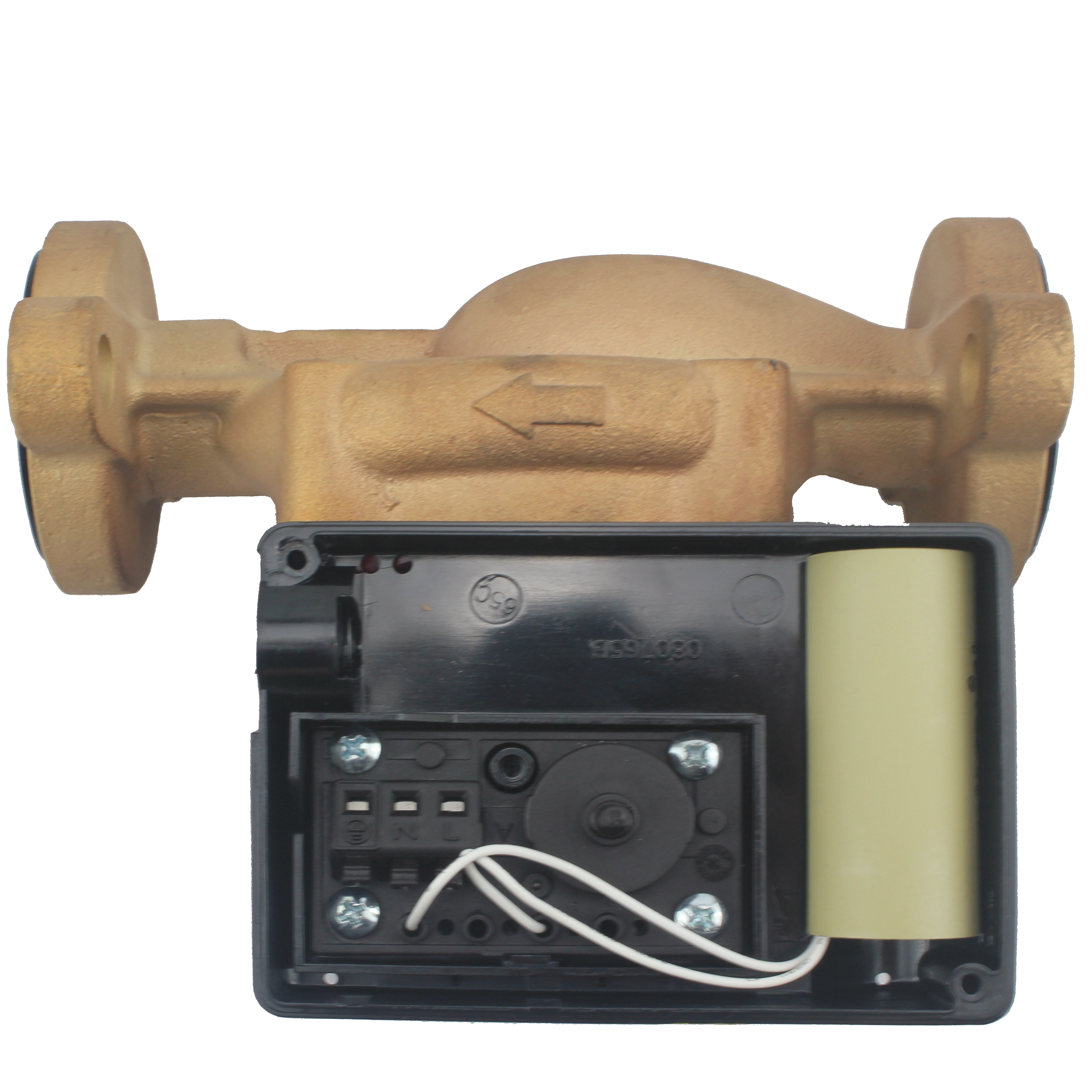

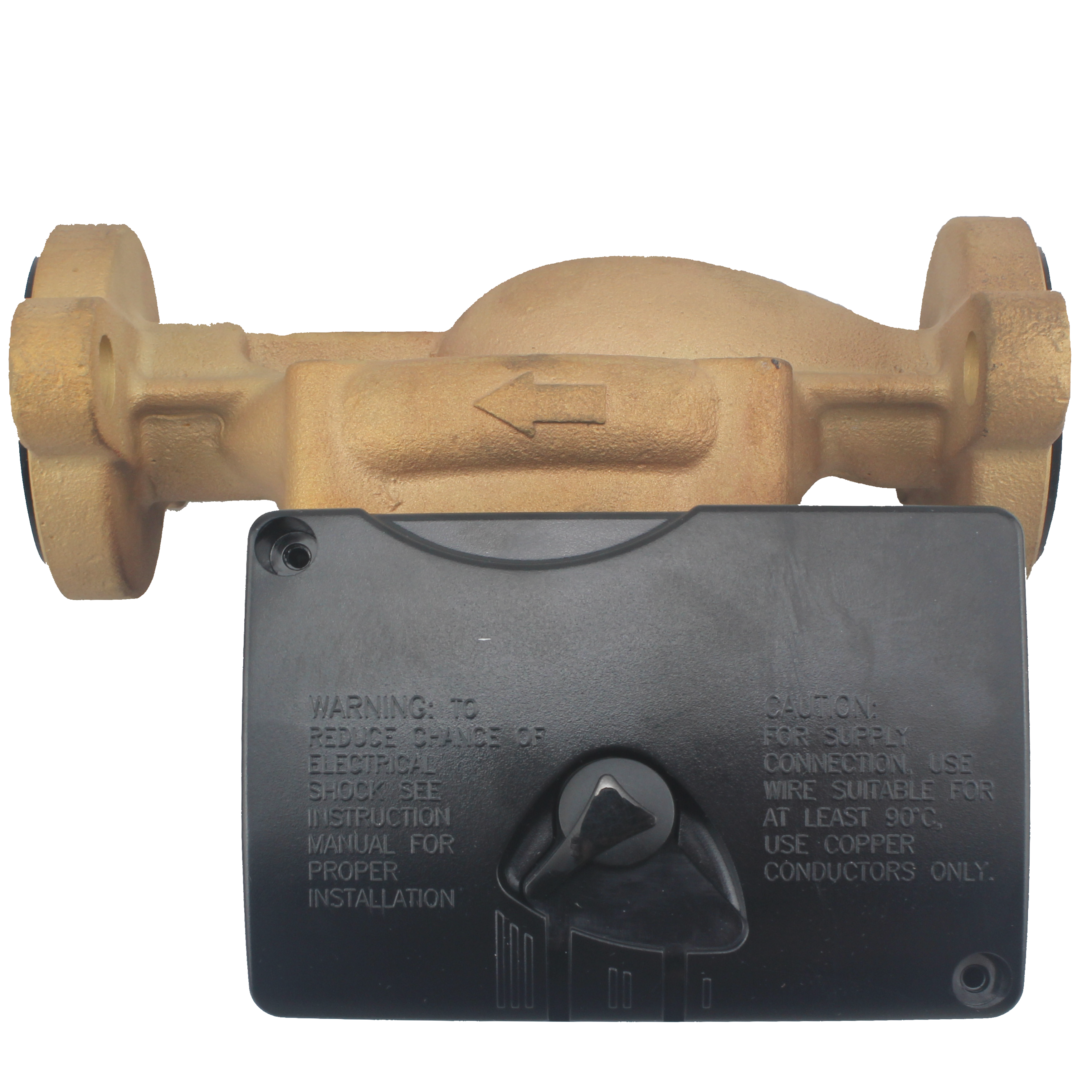

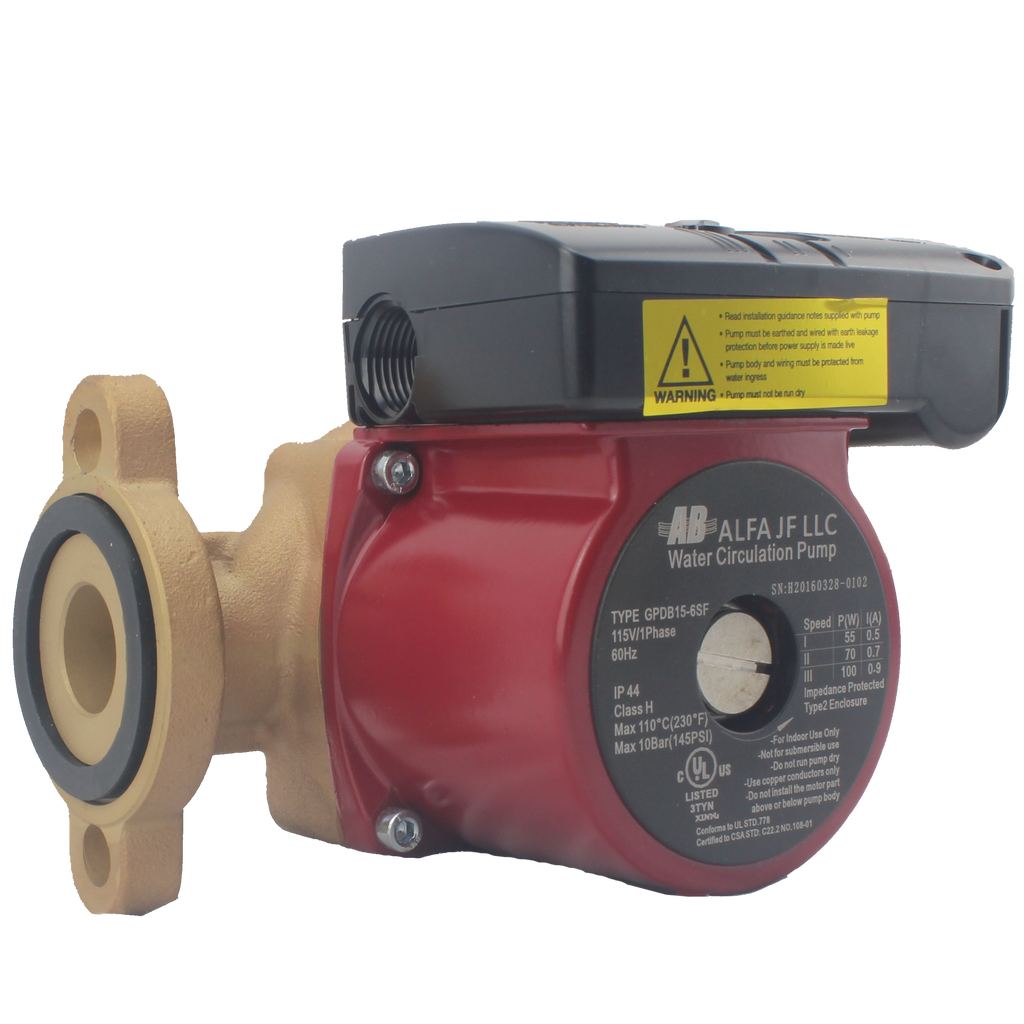

Wisewater Circulation Pump 18.5GPM 3 Speed 115V 60Hz 3/4"NPT Water Pumps GPD15-6SF-1

The Circulation Pumps are designed for efficient circulation of liquids in heating and air conditioning systems for residential and commercial applications. Our pumps come with 3-speed settings, allowing you to adjust the pump speed to meet the needs of your system and thereby reducing energy consumption and saving money. Our pumps, featuring a self-lubricating wet rotor design, operate whisper-quiet and maintenance-free. The bronze material helps prevent corrosion. This product has a 1-year warranty against manufacturer's defects and is UL listed. This listing is for the pump (with gaskets) only; flanges and bolts are not included.

Working Condition:
  • Rated at 115V 60Hz single phase AC
  • Pressure of system < 1.0MPa
  • Pressure of water inlet > 0.1 MPa
  • Pumped liquid shouldn't include solid impurities exceeding 0.2mm

    Installation Notes:
    -For indoor use only
    -Not for submersible use
    -Do not run pump dry
    -Use copper conductors only
    -Do not install the motor part above or below the pump body

  • Product Information
    Model GPD15-6SF-1 Phase 1 Maximum Pressure 145psi
    Capacitance 10µF Voltage 115 (60 Hz) Connection Size 3/4" NPT
    Input Power
    (High/Med./Low; Watts)
    120 / 78 / 57 Rated Current
    (High/Med./Low; Amps.)
    0.9 / 0.7 / 0.5 Materials Bronze
    Head Range
    0 - 18.7'
    Maximum
    Temperature
    230F Dimensions,
    Weight
    6" x 6" x 8", 7.8lb
