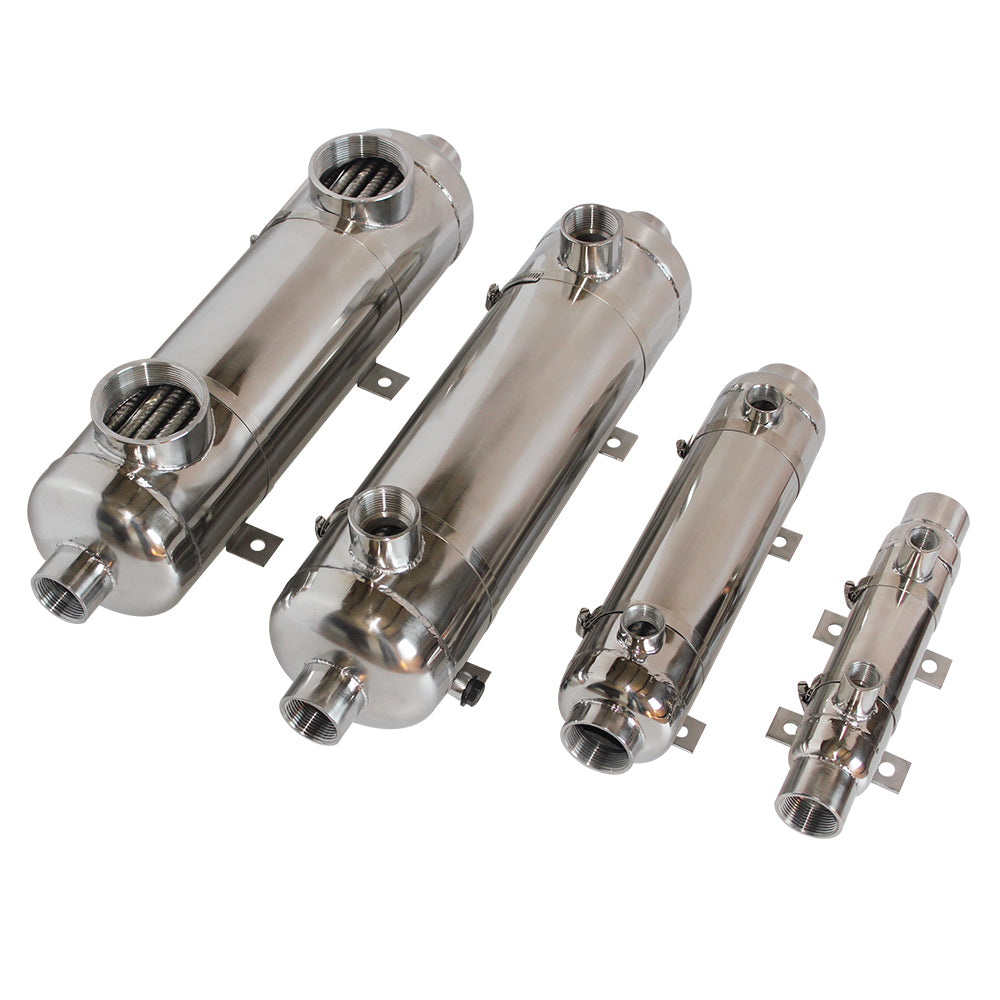

Air to Water Intercooler SS316L Cooler for Engine Exhaust Gas Cooling, Turbo Charged Air Cooling

To ensure the combustion performance of the internal combustion engine, the charge air needs to be cooled by intercoolers. Alfa Air to Water Intercoolers are ideal for cooling marine engines as well as various land engines such as generator sets, combined heat and power plants and fire pumps. They are also suitable for facilitating engine testing and development procedures. In addition, Alfa air-water intercooler has high cooling efficiency, compact size, and stainless steel 316L material has corrosion resistance which is suitable for seawater environment. Stainless steel material is resistant to corrosion than white copper.

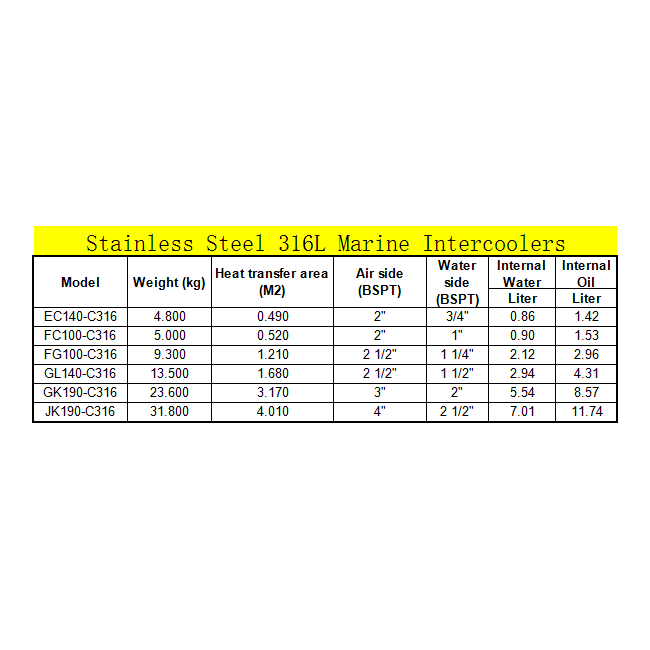

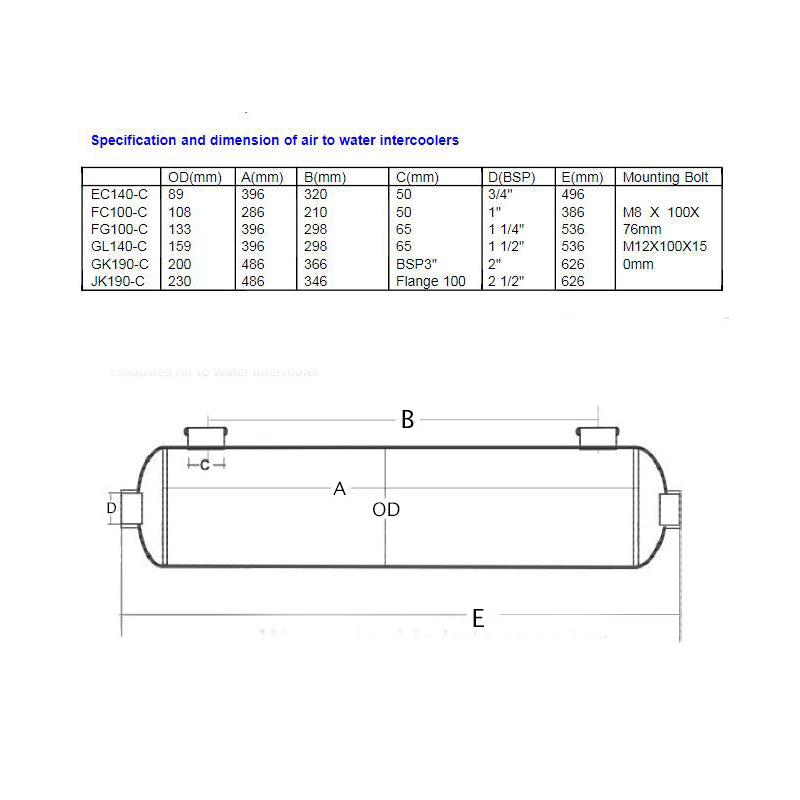

Specifications

  1. Material: Stainless Steel 316L
  2. Max Working Pressure on Air side: 3.5MPa(508PSI)
  3. Max Working Pressure on Water side: 3.5MPa(508PSI)
  4. Max Air Inlet Temperature: 400 degrees C
Type Engine Power(KW) Engine Power(HP) Charge Air Flow(Kg/min) Pressure Drop(kPa) Water Flow(Lit/min) Pressure Drop(kPa) Heat Rejection(kW)
EC140-C 65 86 2.5 12.5 60 25.3 8
FC100-C 110 146 6.7 7.5 100 24.3 15
FG100-C 190 253 11 9.3 130 25.6 25
GL140-C 240 320 14 9.4 160 13.9 32
GK190-C 370 493 21 12.6 180 9.7 48
JK190-C 650 866 35 15.0 220 8.2 85

*Customization Service

Available in materials suitable for cooling with fresh or saltwater.

We produce customized applications on different working pressure and temperature
