Hydraulic Oil Coolers JK Shell and Tube Heat Exchangers 2 1/2" & 2 1/2" BSPT

Hydraulic Oil Coolers JK Shell and Tube Heat Exchangers 2 1/2" & 2 1/2" BSPT

$2,156.00 USD
$2,156.00 USD
Sale Sold out
Hydraulic oil coolers are suitable for heat transfer fluids, lubricating and quenching oils. They are high-quality products incorporating the best materials and the latest technical features. The stainless steel shell and head are satisfactory with fresh water. For use with contaminated freshwater or seawater, stainless steel 316L construction for tubes and heads and high anti-corrosive titanium material for tubes and heads.

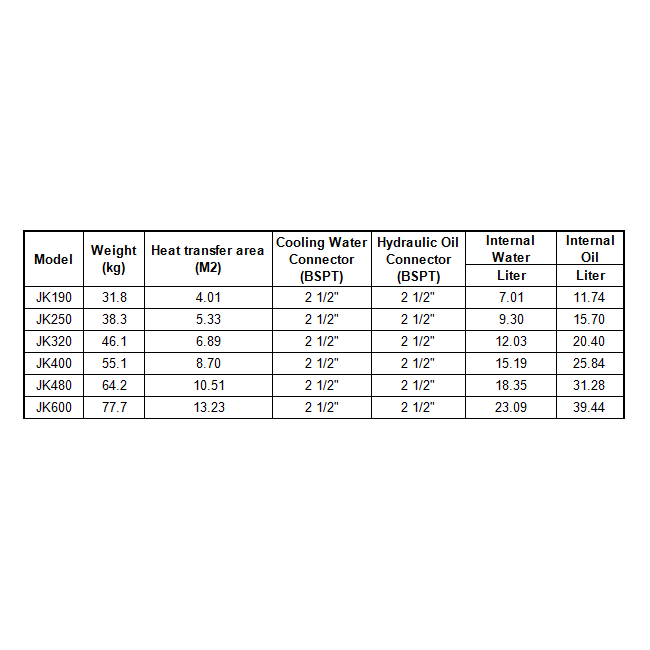

Specifications
  1. Materials: Stainless Steel 316L, Stainless Steel 304, Titanium
  2. Max Working Temperature: 200 degrees C
  3. Design Temperature: 120 degrees C(250°F), 150 degrees C(300°F), 200degrees C(390°F)
  4. Max Working Pressure on Water Side:3.5MPa(508PSI)
  5. Max Working Pressure on Oil Side:3.5MPa(508PSI)
  6. Cooling Water Connector(BSPT): 2 1/2"
  7. Hydraulic Oil Connector(BSPT): 2 1/2"

*Customization Service

We produce customized applications on different working pressure and temperature.

Hydraulic Oil Cooler Catalog& Quick Size Table.pdf

Limited Warranty of Heat Exchanger.pdf

FAQ and Support

We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833-328-6888 for help with your heating projects.

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
Stainless Steel 316L / 145kWJK190-H316
Stainless Steel 316L / 145kWJK190-H316
$2,156.00/ea		 $0.00
$2,156.00/ea $0.00
Stainless Steel 316L / 186kWJK250-H316
Stainless Steel 316L / 186kWJK250-H316
$2,319.00/ea		 $0.00
$2,319.00/ea $0.00
Stainless Steel 316L / 232kWJK320-H316
Stainless Steel 316L / 232kWJK320-H316
$2,599.00/ea		 $0.00
$2,599.00/ea $0.00
Stainless Steel 316L / 283kWJK400-H316
Stainless Steel 316L / 283kWJK400-H316
$2,923.00/ea		 $0.00
$2,923.00/ea $0.00
Stainless Steel 316L / 335kWJK480-H316
Stainless Steel 316L / 335kWJK480-H316
$3,247.00/ea		 $0.00
$3,247.00/ea $0.00
Stainless Steel 316L / 401kWJK600-H316
Stainless Steel 316L / 401kWJK600-H316
$3,732.00/ea		 $0.00
$3,732.00/ea $0.00
Titanium / 145kWJK190-HTAI
Titanium / 145kWJK190-HTAI
$4,680.00/ea		 $0.00
$4,680.00/ea $0.00
Titanium / 186kWJK250-HTAI
Titanium / 186kWJK250-HTAI
$5,599.00/ea		 $0.00
$5,599.00/ea $0.00
Titanium / 232kWJK320-HTAI
Titanium / 232kWJK320-HTAI
$6,687.00/ea		 $0.00
$6,687.00/ea $0.00
Titanium / 283kWJK400-HTAI
Titanium / 283kWJK400-HTAI
$7,942.00/ea		 $0.00
$7,942.00/ea $0.00
Titanium / 335kWJK480-HTAI
Titanium / 335kWJK480-HTAI
$9,198.00/ea		 $0.00
$9,198.00/ea $0.00
Titanium / 401kWJK600-HTAI
Titanium / 401kWJK600-HTAI
$11,072.00/ea		 $0.00
$11,072.00/ea $0.00
Stainless Steel 304 / 145kWJK190-H304
Stainless Steel 304 / 145kWJK190-H304
$1,872.00/ea		 $0.00
$1,872.00/ea $0.00
Stainless Steel 304 / 186kWJK250-H304
Stainless Steel 304 / 186kWJK250-H304
$2,014.00/ea		 $0.00
$2,014.00/ea $0.00
Stainless Steel 304 / 232kWJK320-H304
Stainless Steel 304 / 232kWJK320-H304
$2,257.00/ea		 $0.00
$2,257.00/ea $0.00
Stainless Steel 304 / 283kWJK400-H304
Stainless Steel 304 / 283kWJK400-H304
$2,538.00/ea		 $0.00
$2,538.00/ea $0.00
Stainless Steel 304 / 335kWJK480-H304
Stainless Steel 304 / 335kWJK480-H304
$2,820.00/ea		 $0.00
$2,820.00/ea $0.00
Stainless Steel 304 / 401kWJK600-H304
Stainless Steel 304 / 401kWJK600-H304
$3,241.00/ea		 $0.00
$3,241.00/ea $0.00
Stainless Steel 304 / Mounting BracketsMounting Brackets
Stainless Steel 304 / Mounting BracketsMounting Brackets
$18.00/ea		 $0.00
$18.00/ea $0.00
Stainless Steel 316L / Mounting BracketsMounting Brackets
Stainless Steel 316L / Mounting BracketsMounting Brackets
$18.00/ea		 $0.00
$18.00/ea $0.00
Titanium / Mounting BracketsMounting Brackets
Titanium / Mounting BracketsMounting Brackets
$18.00/ea		 $0.00
$18.00/ea $0.00
