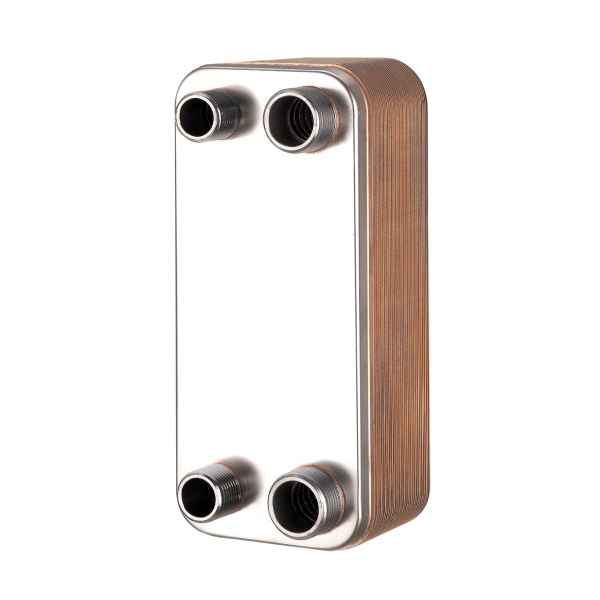

Plate Heat Exchanger BL200 for Air Dryers 99.9% Copper Brazed

Alfa Brazed Plate Heat Exchanger is used as an evaporator in the air dryer. Its main role is to recycle the cold capacity carried by the compressed air after being cooled by the evaporator. Meanwhile, use the cold capacity(or refrigerants) to cooling the higher temperature compressed air which carries a large amount of water vapor down to the dew point temperature 2~10℃, and remove the moisture in the air through the air-water separator to reduce the heat load of the refrigerating and drying system of the chiller and save energy. And compared with traditional air dryers, alfa plate heat exchanger for air dryers are smaller and easier to install.


  1. Material: Stainless Steel 316L (99.9% Copper Brazed)
  2. Max working temp: 250 degrees C
  3. Max working pressure: 3.0MPa
  4. Test pressure: 4.5 MPa

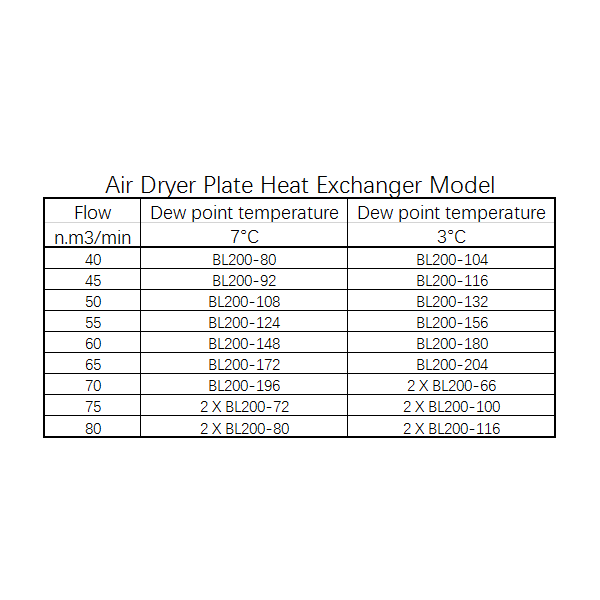

  5. Dew point temperature: 3 degrees C/ 7 degrees C
  6. Flow: 0.3 to 1.5 n.m3/min

*Customized Service

To improve heat transfer efficiency and functioning within your system, we provide customized service and calculation support if you have special needs.

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf


Please refer to the Manual for cleaning, installation, and welding.

Brazed Plate Heat Exchanger Manual.pdf
