Condensers BL200 Brazed Plate Heat Exchangers for Condensation 4" NPT Soldering 80mm

Due to the condensation temperature of the water-cooled condenser is relatively low, which is beneficial to the refrigeration capacity of the compressor and it's economic to operate. This type of condenser is widely used in most refrigeration systems.

Furthermore, the cooling water used in the condenser can be passed through once or recycled. When using circulating water, a cooling water tower or cooling pool must be built to re-cool after the water leaving the condenser for reuse.

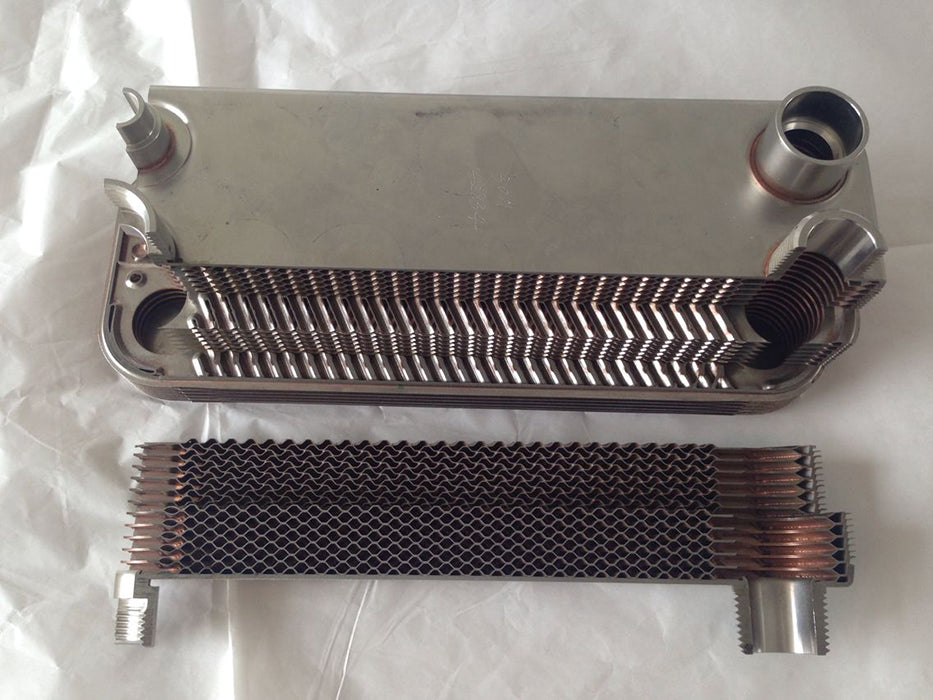

The stainless steel 316L materials of Alfa Heating Brazed Heat Exchanger provide exceptional corrosion resistance. They feature corrugated plates that produce highly turbulent flow in a true counter-current direction. This results in high efficiency and a very compact heat exchanger design.

Specifications

  1. Material: SS316 ( 99.9% Copper brazed)
  2. Condensation Capacity: from 2.5kW to 250kW
  3. Max working temp: 250 degrees C
  4. Max working pressure: 3.0MPa
  5. Test pressure: 4.5 MPa
  6. R22 inlet/out: Soldering 80mm
  7. Water inlet/out: NPT4”

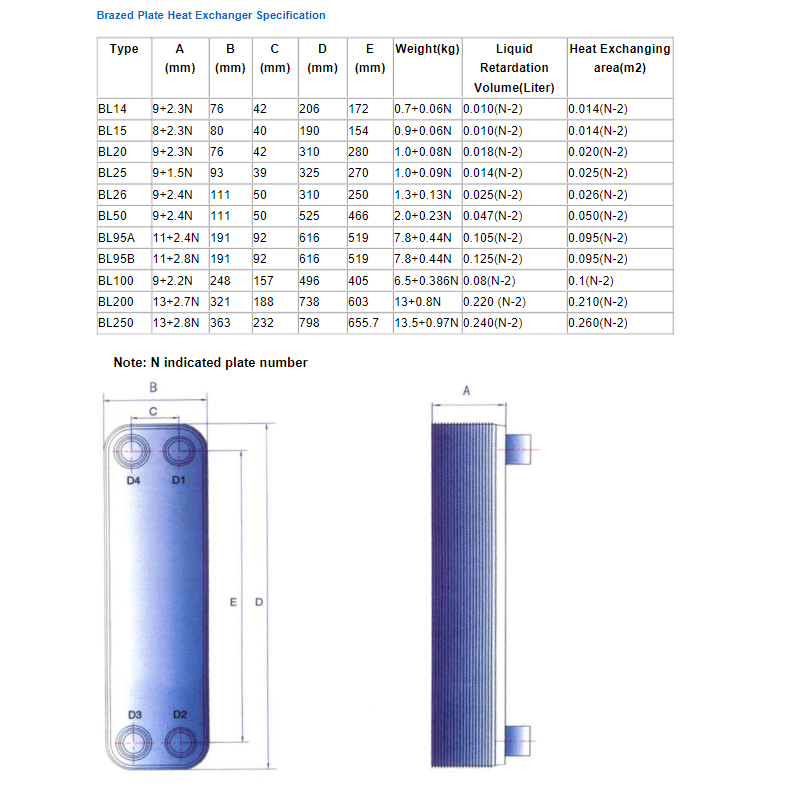

  8. Dimension (*N indicated quantity of plate)
    For example BL200-54D, the plate quantity is 54

    Type A(mm) B(mm) D(mm) Liquid Retardation Volume(Liter) Heat Exchanging Area(m2)
    BL200 13+2.7N 321 738 0.22(N-2) 0.21(N-2)

Applications

1.Ground Source Heat Pump
2.Air Conditioning Energy
3.Refrigeration Cycle

*Customization Service

Max working pressure up to 4.5 MPa for R407c

Mounting/support base is available.clamp, bolt, stand

Technical calculation support and Temperature sensor port(evaporator) are available.

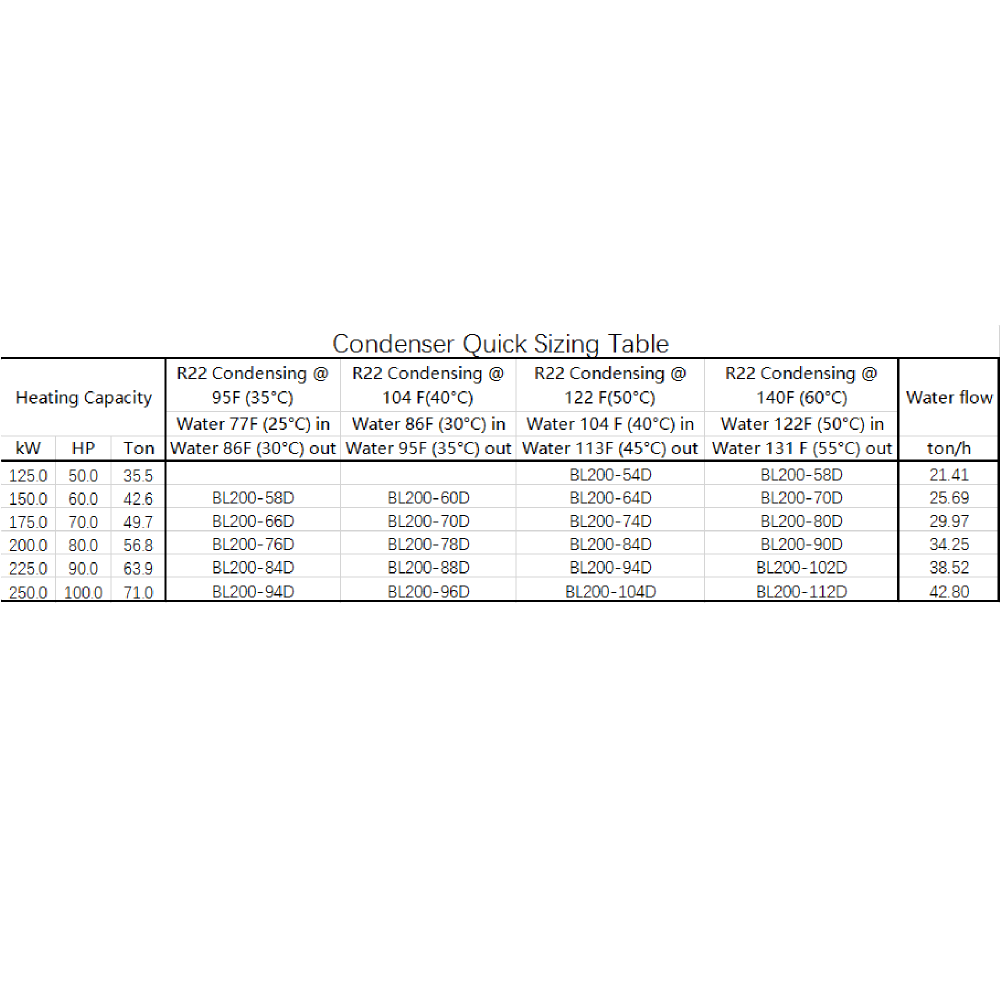

Condenser Quick Sizing Table.pdf

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf

Tips

Please refer to the Manual for cleaning, installation, and welding.

Brazed Plate Heat Exchanger Instruction Manual.pdf

We have worked with heating systems for over 10 years,and specialized in the manufacturing, designing and marketing of heat exchangers and oil coolers for industrial and commercial applications. If you don't know how to choose, please send a working schematic diagram and your working condition to us. We will recommend model to you. Feel free to contact us if you have any questions.
