Description
The BL26 Brazed Plate Condenser is designed for refrigeration, air conditioning, and heat pump systems. Water-cooled condensers operate at relatively low condensation temperatures, which can support refrigeration capacity and efficient compressor operation. This type of condenser is widely used in refrigeration systems.
Cooling water can be used in either once-through or circulating systems. For circulating water applications, a cooling tower or cooling pool can be used to re-cool the water after it leaves the condenser before returning it to the system.

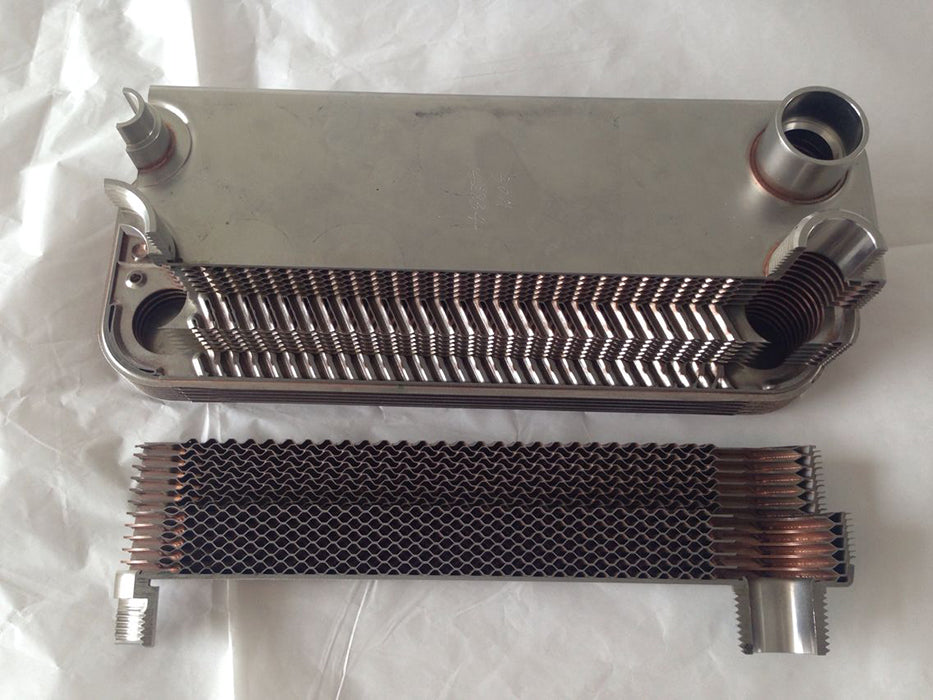

The BL26 uses 316L stainless steel plates with 99.9% copper brazing, providing corrosion-resistant construction for refrigeration applications. Corrugated plates create highly turbulent flow in a true counter-current direction, supporting efficient heat transfer in a compact heat exchanger design.
Specification
- Material: SS316 ( 99.9% Copper brazed)
- Condensation Capacity: from 2.5kW to 250kW
- Max working temp: 250 degrees C
- Max working pressure: 3.0MPa
- Test pressure: 4.5 MPa
- R22 inlet/out: Soldering 7/8"(24mm)
- Water inlet/out: NPT1"

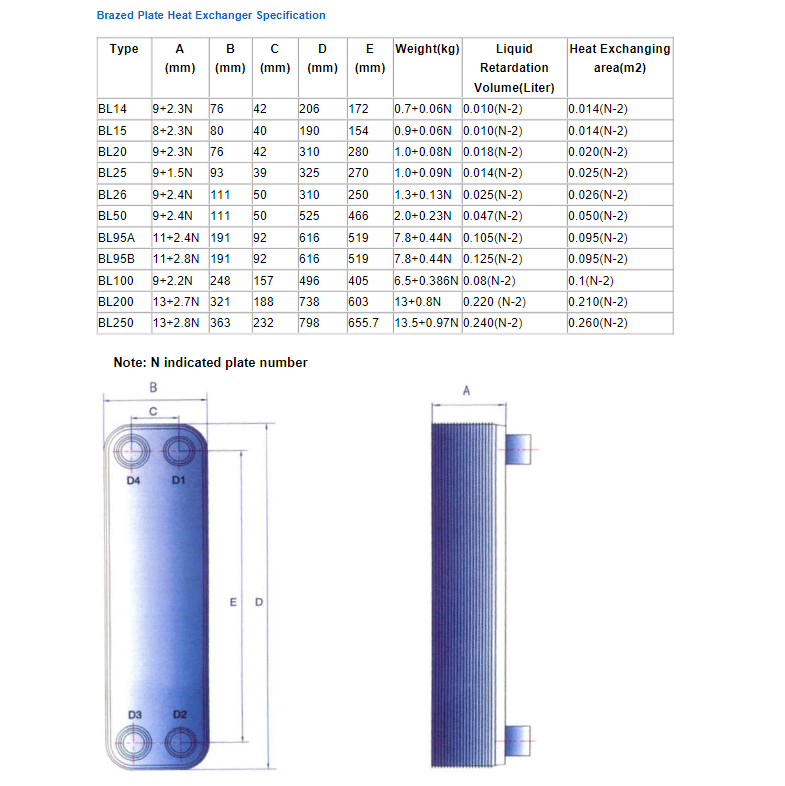

- Dimension(*N indicated quantity of plate)
For example BL26-12D, the plate quantity is 12
Type A(mm) B(mm) D(mm) Liquid Retardation Volume(Liter) Heat Exchanging Area(m2) BL26 9+2.4N 111 310 0.025(N-2) 0.026(N-2)
Applications
- Ground-source heat pump systems
- Air conditioning systems
- Refrigeration systems
*Customization Service
Max working pressure up to 4.5 MPa for R407c
Mounting/support base is available.
Technical calculation support and Temperature sensor port(evaporator) are available.

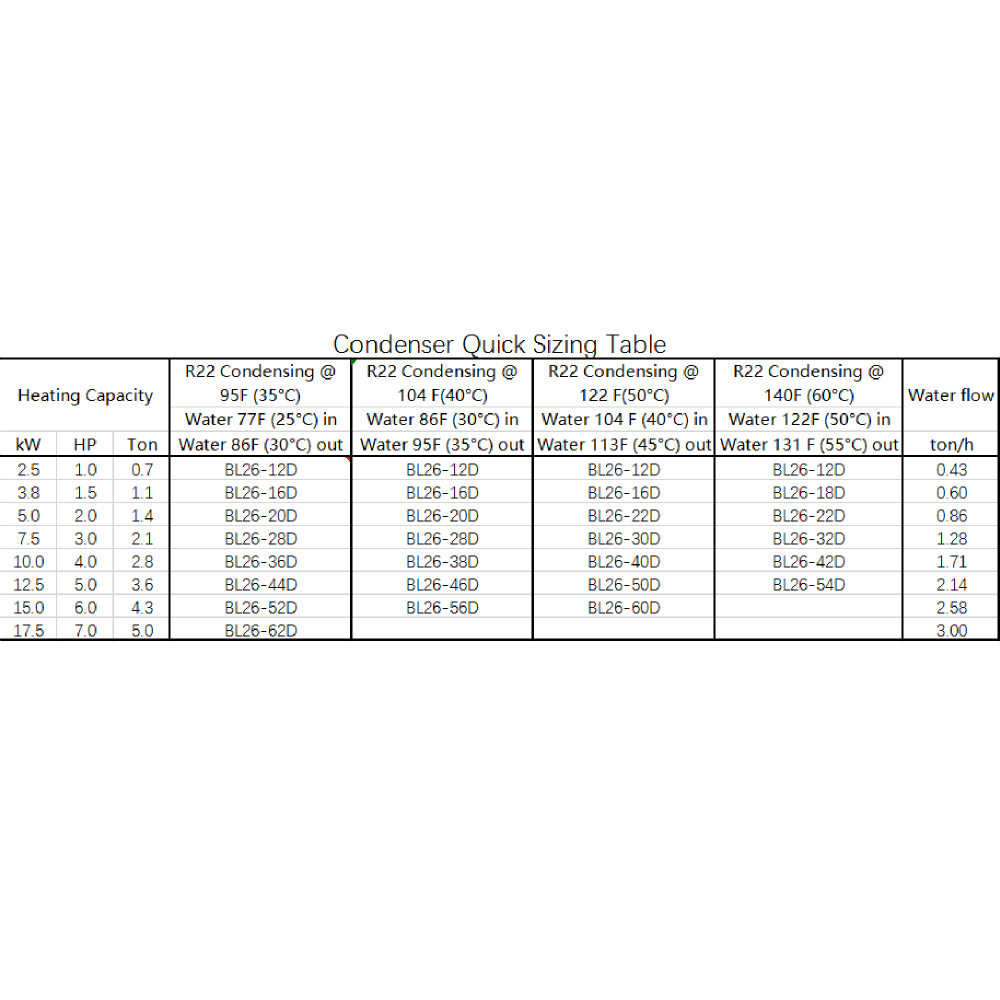

BL26 Condenser Sizing
The BL26 series is available in multiple plate configurations with condensation capacities from 2.5 kW to 250 kW. Refer to the condenser quick sizing table or contact Alfa Heating for assistance selecting a suitable configuration based on refrigerant, water flow rate, operating temperatures, and required capacity.
Condensers Quick Sizing Table.pdf
Heat Exchanger Quote Form Download.pdf
Limited Warranty of Heat Exchanger.pdf
Tips
Please refer to the instruction manual for cleaning, installation, and welding.
Brazed Plate Heat Exchanger Instruction Manual.pdf
We have worked with heating systems for over 10 years,and specialized in the manufacturing,designing and marketing of heat exchangers and oil coolers for industrial and commercial applications. Feel free to contact us if you have any questions.
