Description

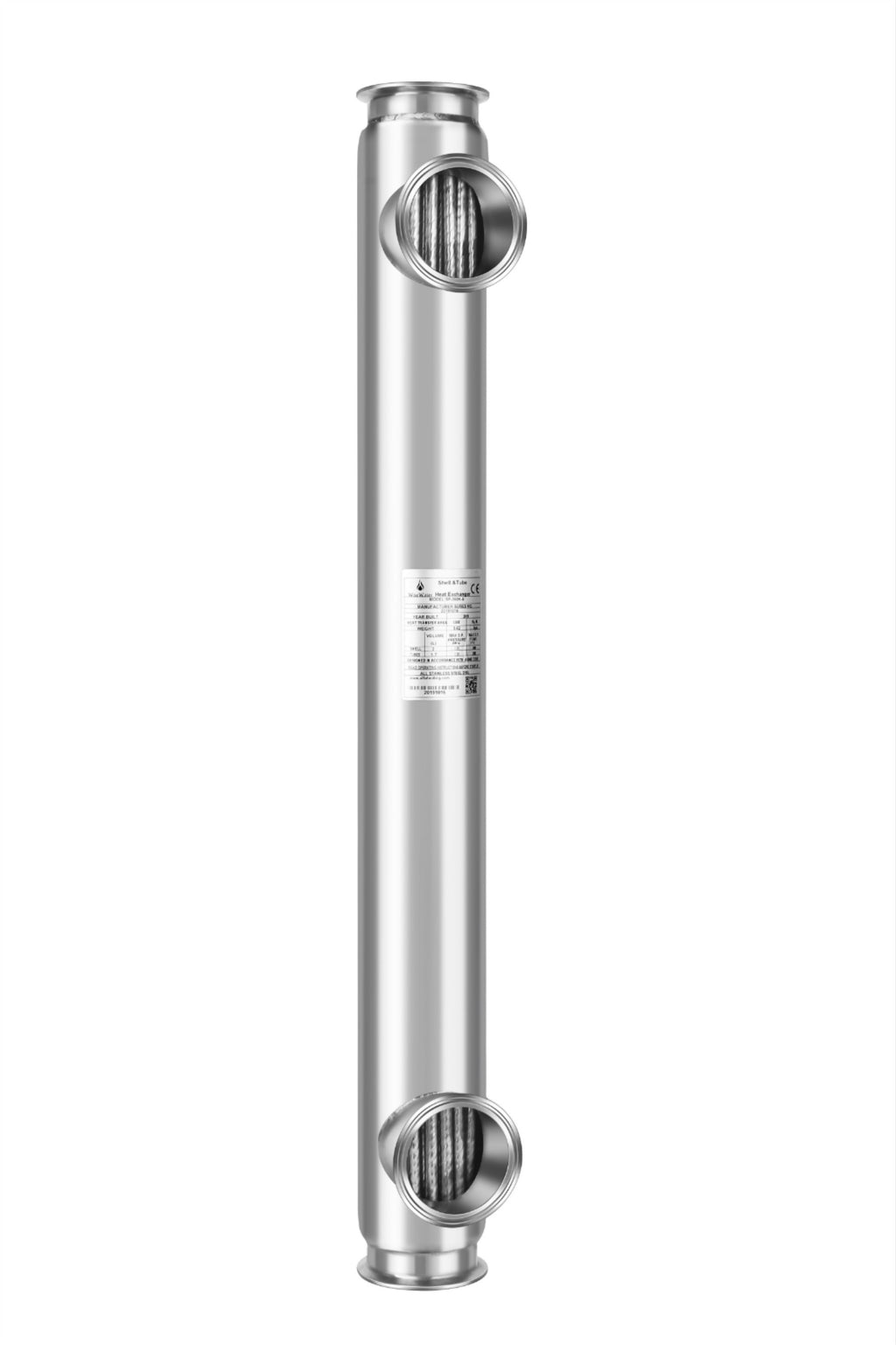

Shell & Tube Heat Exchangers have an innovative spiral-corrugated tube design. The tube's design ensures high velocities inside the unit, an efficient and cost-effective way to transfer heat indirectly between any hot water circuit, steam circuit, and medicine, food, milk, beverage processing. This product is made of stainless steel 316L. It has stronger resistance to various chemical agents that might damage or corrode 304 stainless steel. It can tolerate fatty acids, sulfuric acid, tartaric acid, and chlorides, even at high temperatures. That makes it ideal for applications in food-related products and various aspects of pharmaceutical production.
Key Features
Sanitary Tri-Clamp Connections
Easy installation with direct sanitary connection design, enabling compact piping layout and reduced installation spacing requirements.
Easy Tube-Side Cleaning
Single-side tube access allows convenient cleaning using a fine wire tube brush, suitable for removing deposits inside shell & tube heat exchanger tubes, and for routine maintenance, improving serviceability and reducing downtime.
Basic Models of Custom Unit: SP-210K-TC, SP-300K-TC, SP-360K-TC, SP-600K-TC, SP-1200K-TC, SP-2400K-TC, SP-3600K-TC. SP-4500K-TC，SP-6000K-TC，Customized port on tri-clamps 3/4" to 3".
|
Model |
SP-210K-TC |
SP-300K-TC |
SP-360K-TC |
SP-600K-TC |
SP-1200K-TC |
SP-2400K-TC |
SP-3600K-TC |
SP-4500K-TC |
SP-6000K-TC |
|
Heat Transfer Area |
4.769 ft² |
6.889 ft² |
9.128ft² |
16.695 ft² |
21.582 ft² |
45.963 ft² |
69.107 ft²
|
90.635 ft²
|
114.53 ft² |
|
Design Pressure |
145 psi |
||||||||
|
Maximum Temperature |
392°F |
||||||||
IF CUSTOMIZATION ON THE PORTS, PLEASE EMAIL TO SUPPORT@ALFAHEATING.COM. WE CAN DO FREE CUSTOMIZATION.
Default: Same Side Connections
This product has a 1-year warranty against manufacturer's defects and is UL listed.
*Customize order can not cancel /return in the midway.
Please submit a cancellation request within 12 hours if need cancel.
