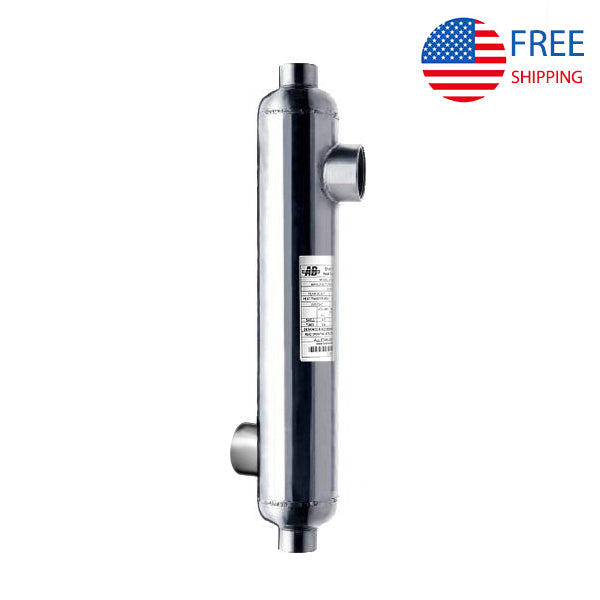

Swimming Pool Heat Exchanger - 3600K SS316L Opposite Side 4" & 2 1/2" FPT

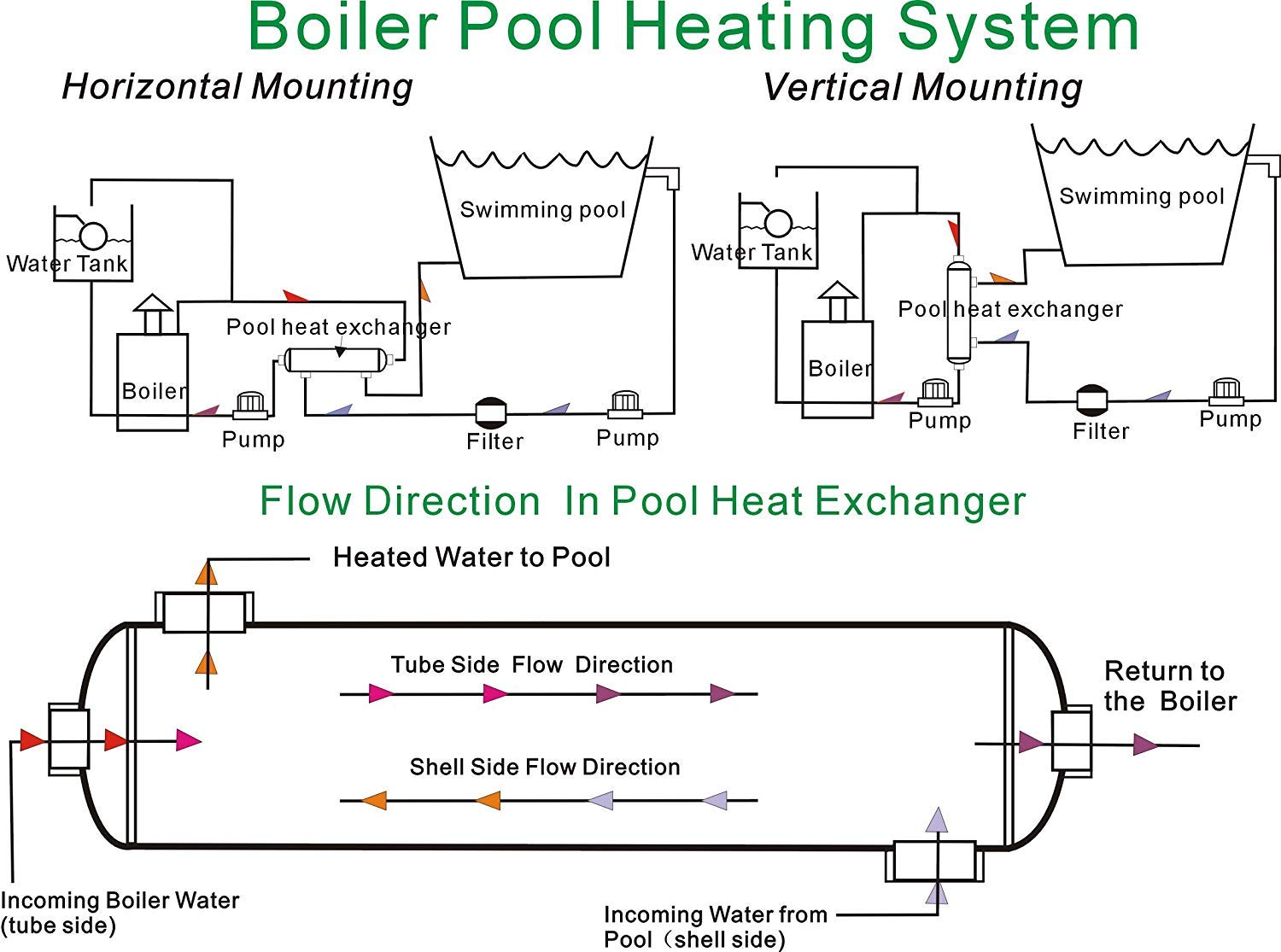

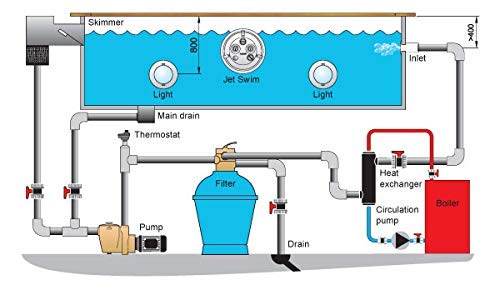

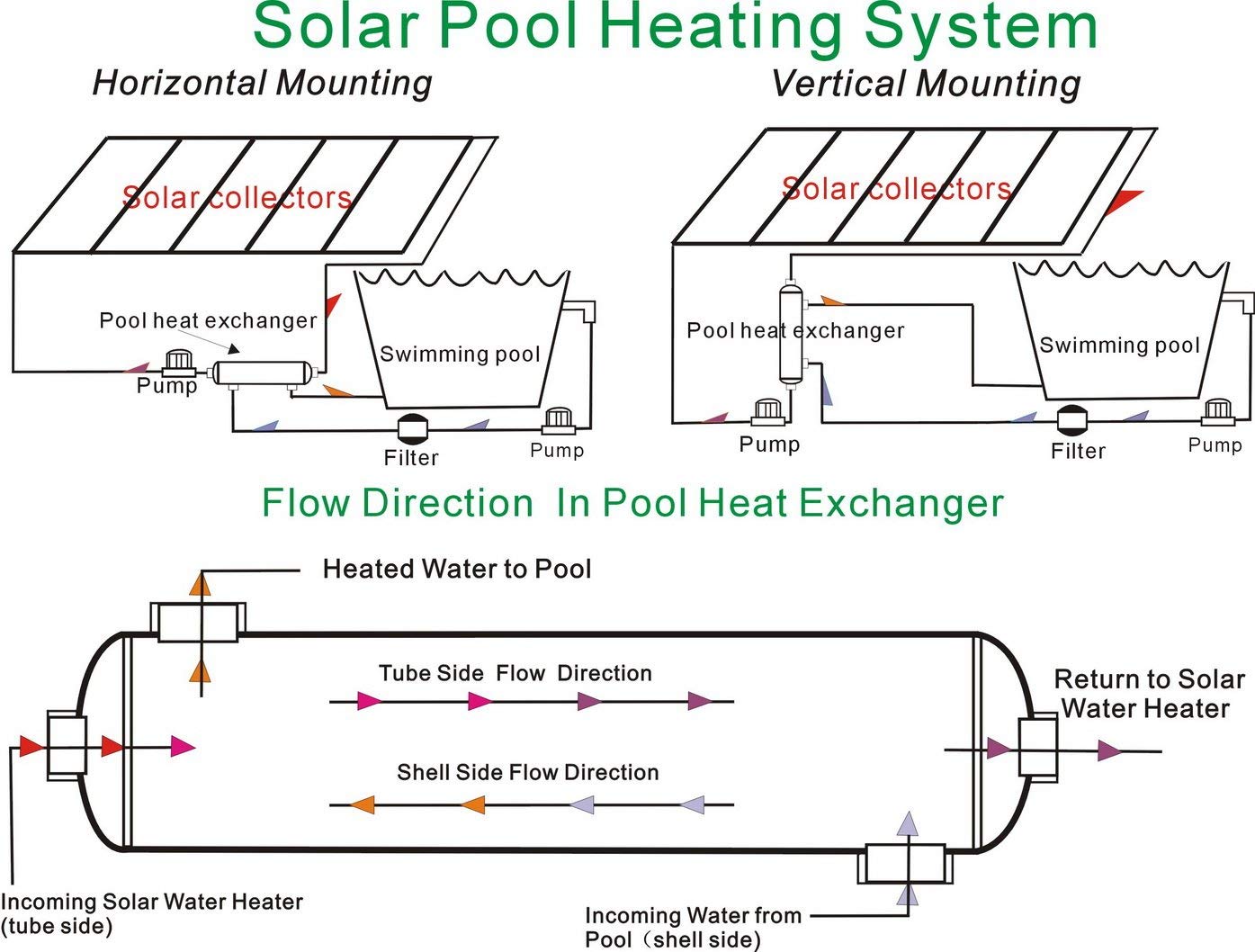

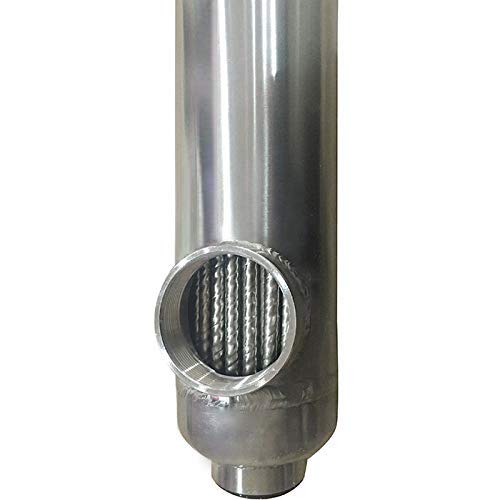

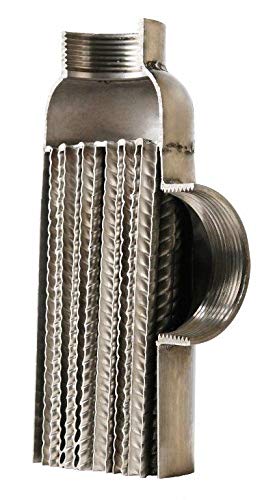

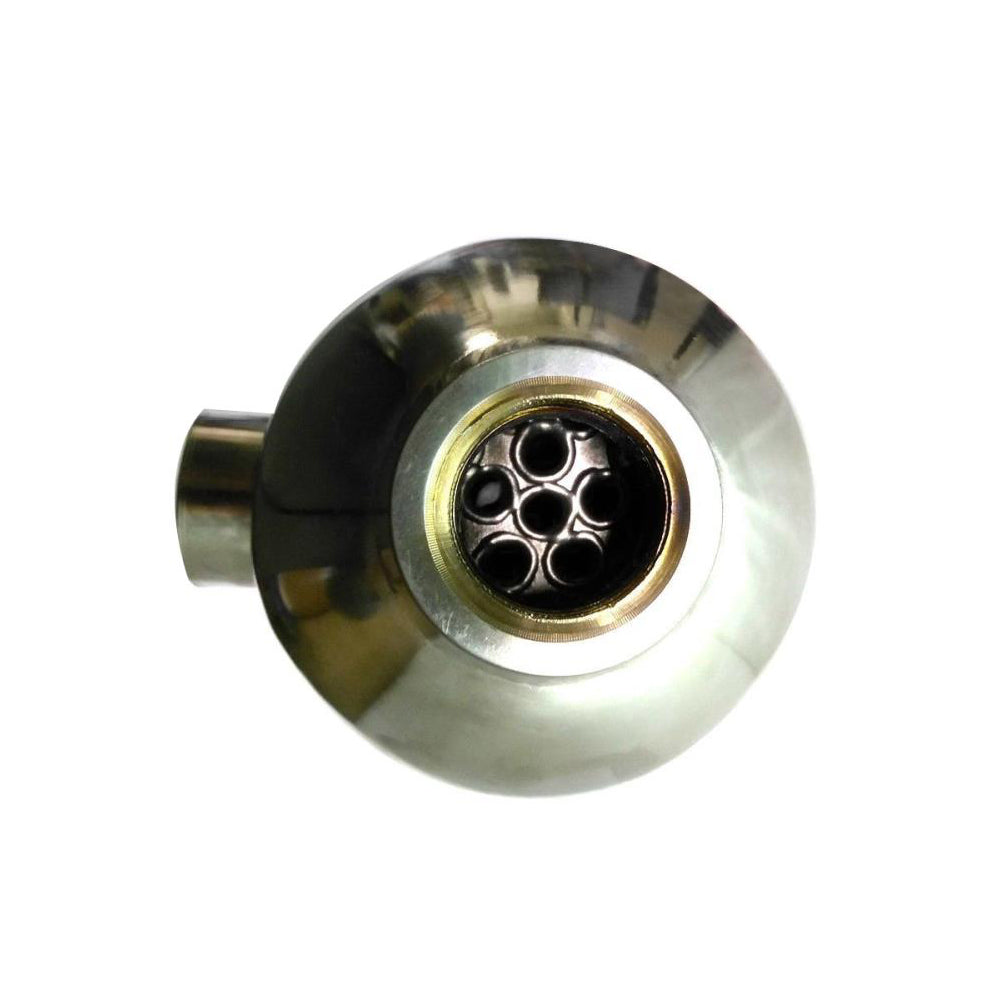

AB Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of stainless steel 316L and has 4" and 2 1/2" FPT. The capacity of this particular model is 3,600,000 Btu. This product has a 1.5 year warrantyagainst manufacturer's defects and is UL listed.

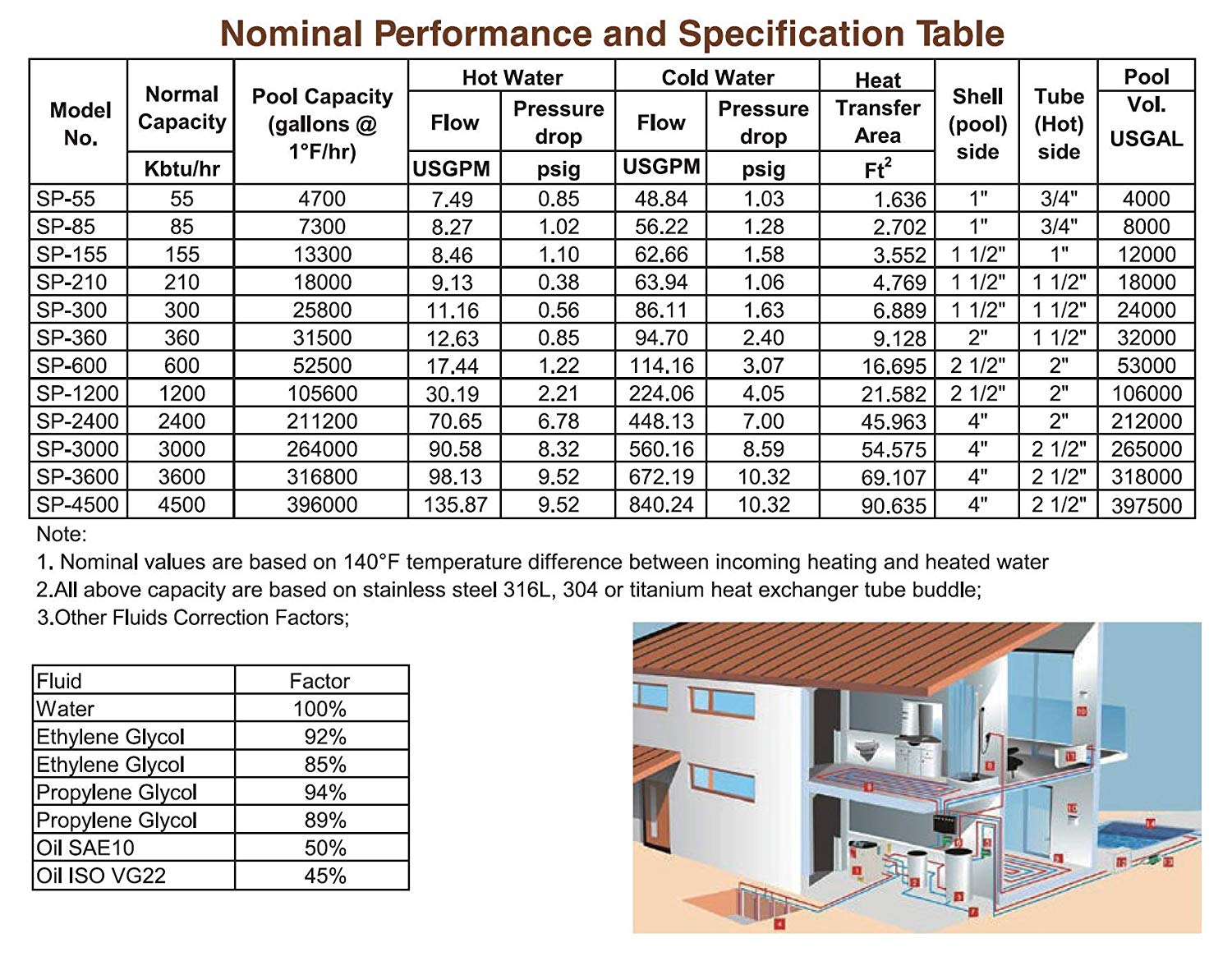

 Product Information

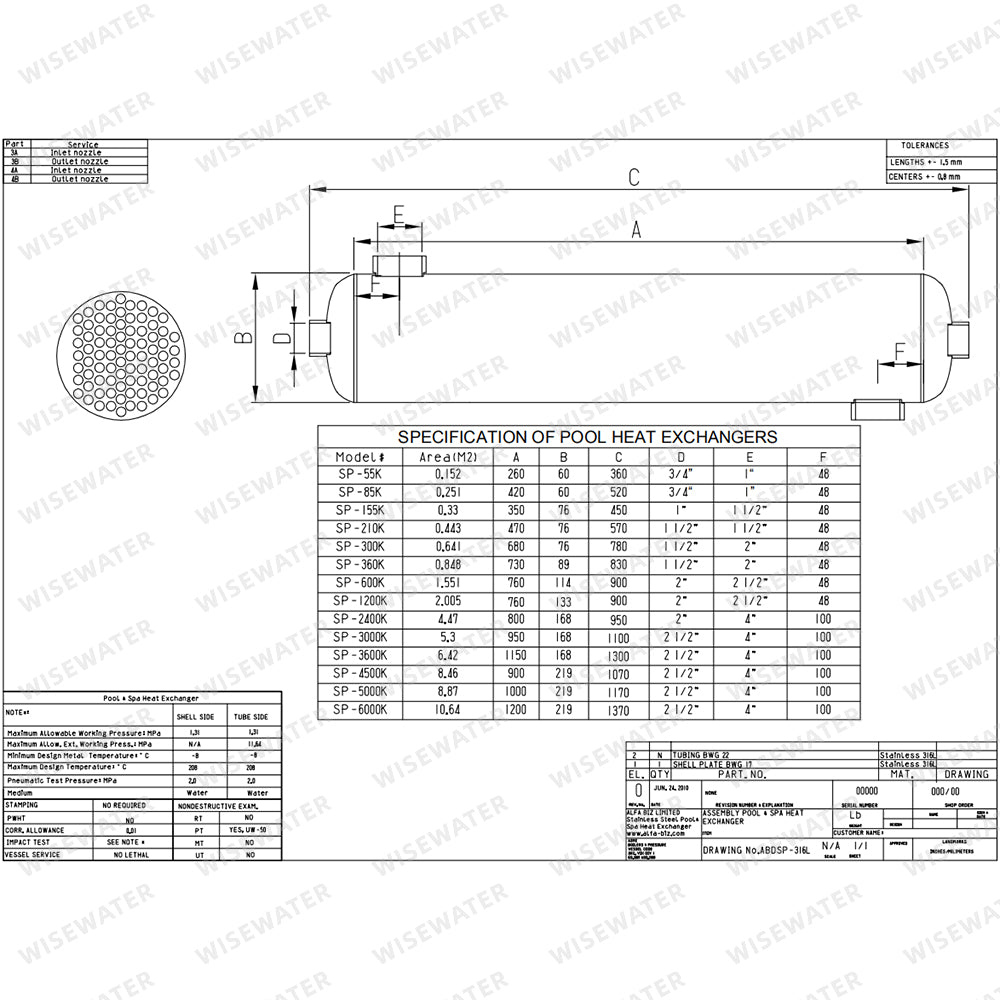

Model SP-3600K Capacity 3,600,000 Btu Pool Capacity
(Gal. @ 1F/hr)
316,800 Gal
Wattage 352kW Heat Transfer Area 69.107 ft2 Shell (Pool) / Tube (Hot)
Connections
4" / 2 1/2"
Hot Water
Flow Volume
98.13 GPM Hot Water
Pressure Drop
9.52psig   Materials Stainless Steel 316L
Cold Water
Flow Volume
672.19 GPM Cold Water
Pressure Drop
10.32psig Dimensions 51.18" x 6.61"
Minimum Temperature -19F Maximum Temperature 406F
Design Pressure 190psi Test Pressure 285psi

SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf
If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf
