Why Choose Brazed Plate Heat Exchangers
Brazed plate heat exchangers (BPHE) are widely used for their compact design, high efficiency, and reliable performance across various thermal systems.
Key advantages include:
- Compact footprint – Provides superior heat transfer performance in a much smaller size compared to traditional shell-and-tube systems
- High thermal efficiency – Optimized plate design enhances heat transfer while reducing energy loss
- Gasket-free construction – Fully brazed structure eliminates gasket failure risks and improves system reliability
- Reduced maintenance – Simplified design minimizes servicing needs and lowers operating costs
- High durability – Built to withstand high pressure and temperature conditions for long-term performance
- Versatile applications – Ideal for HVAC systems, heat pumps, and industrial thermal processes where efficiency and space-saving are essential
Typical Applications
Brazed plate heat exchangers are designed to support a wide range of thermal transfer applications across residential, commercial, and industrial systems.
How Brazed Plate Heat Exchangers Work

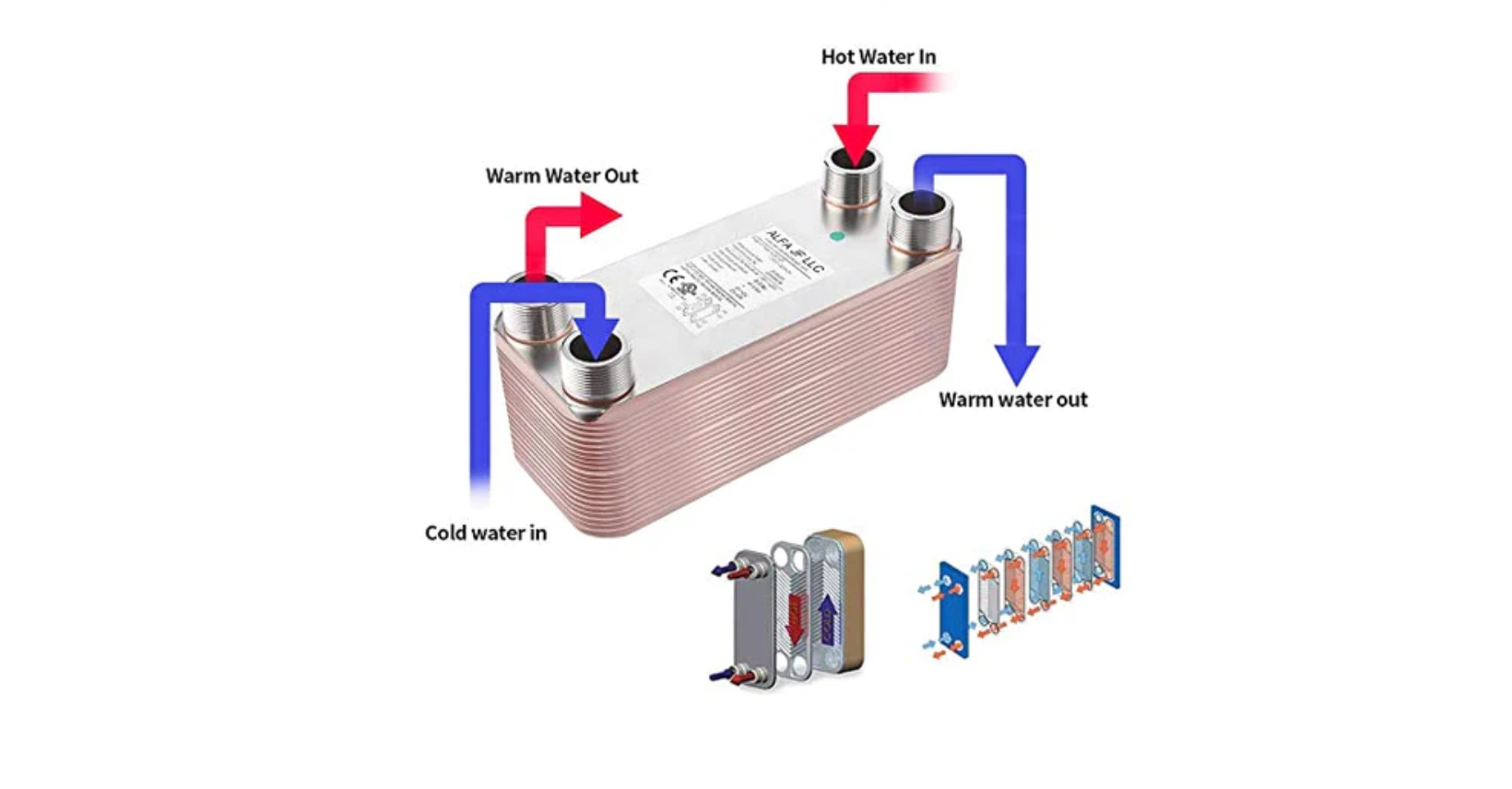

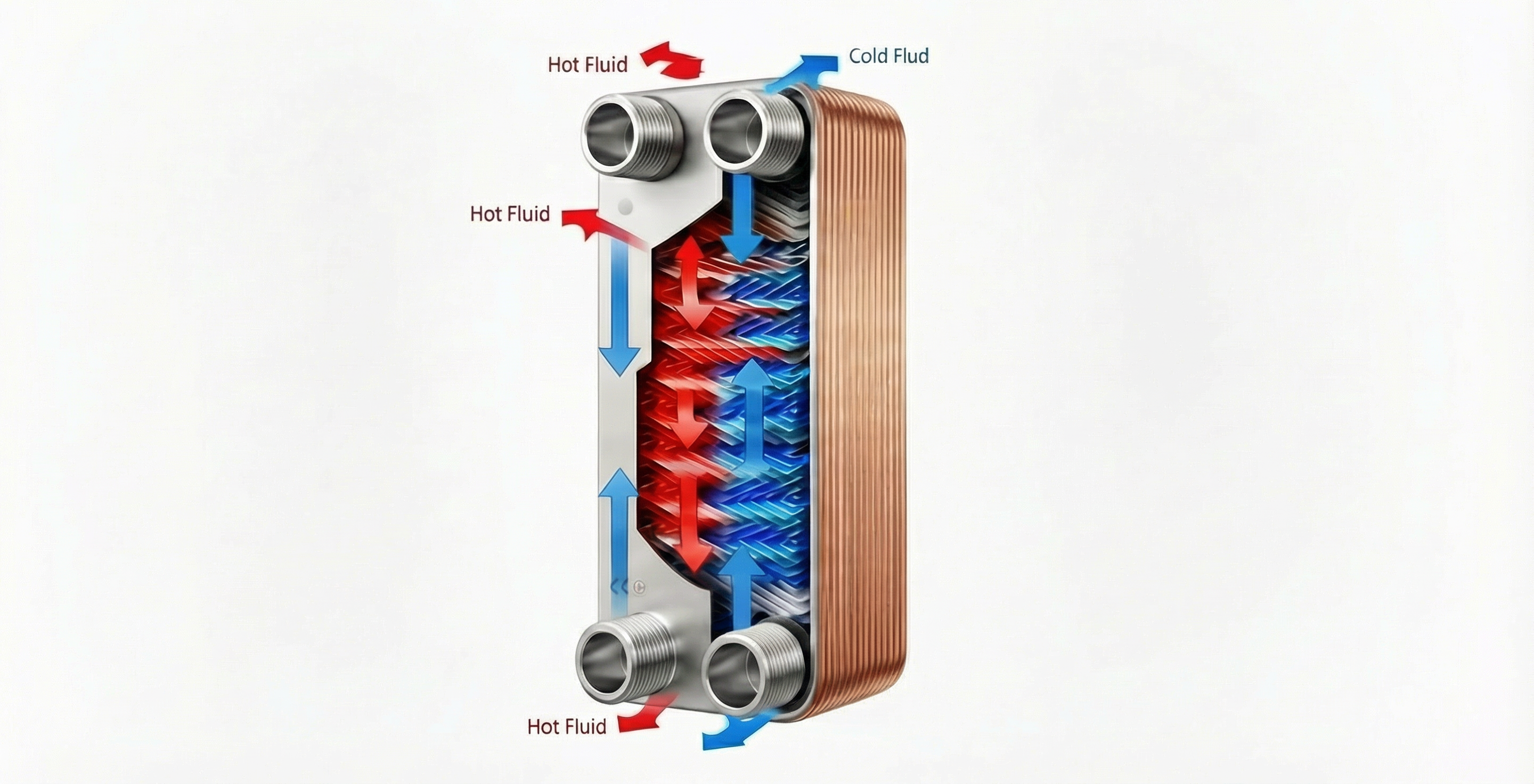

Brazed plate heat exchangers operate by allowing two fluid streams to flow through alternating channels formed by corrugated metal plates. These plates are vacuum-brazed together, creating a sealed structure that enables efficient heat transfer without mixing the fluids.
The corrugated surface design increases turbulence, improving heat exchange efficiency while minimizing energy loss. This results in faster thermal transfer and more stable system performance, even under demanding operating conditions.
Key Considerations When Selecting a BPHE
Selecting the right brazed plate heat exchanger depends on several critical factors related to your system requirements and operating conditions.
Key considerations include:
- Heat transfer capacity and required thermal load
- Flow rate and pressure drop limitations
- Fluid type (water, refrigerant, glycol, etc.)
- Operating temperature and pressure range
- Connection size and installation space
- Application type (condenser, evaporator, or general heat exchange)
Proper selection ensures optimal efficiency, longer service life, and reliable system performance.
FAQ
A Brazed Plate Heat Exchanger (BPHE) is a compact and highly efficient heat transfer device made from multiple corrugated stainless steel plates that are permanently bonded together using a brazing material such as copper or nickel.
Unlike traditional gasketed heat exchangers, BPHEs do not use rubber seals. This gasket-free design provides enhanced durability, allowing the unit to operate reliably under high pressure and high temperature conditions.
The corrugated plate structure creates turbulent flow between channels, significantly improving heat transfer efficiency while maintaining a compact footprint.
Brazed plate heat exchangers are widely used in applications such as HVAC systems, refrigeration, hydronic heating, domestic hot water systems, and various industrial processes.
The four main types of heat exchangers, based on their construction, are shell and tube, plate, double pipe, and finned tube heat exchangers. These systems transfer heat between fluids (liquids or gases) through a solid surface, ensuring efficient thermal exchange without mixing the fluids.
- Shell and Tube Heat Exchanger
This type consists of a bundle of tubes enclosed within a cylindrical shell. One fluid flows through the tubes, while the other circulates around them inside the shell. It is highly durable and commonly used in large-scale industrial applications such as power generation and chemical processing. - Plate Heat Exchanger (PHE)

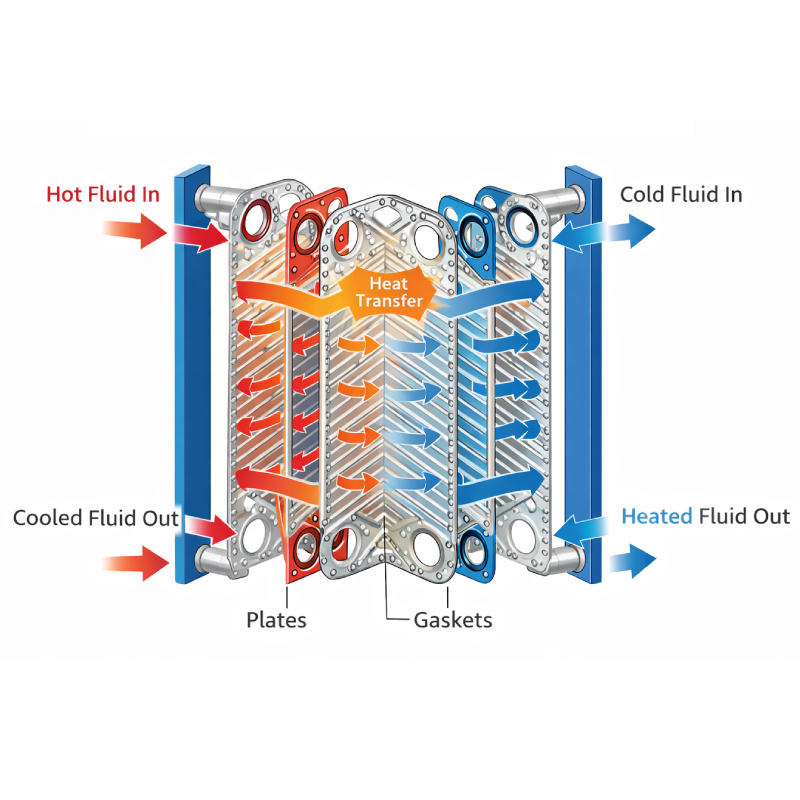

Plate heat exchangers use multiple thin, corrugated metal plates stacked together to transfer heat between two fluids. Their compact design and high efficiency make them ideal for HVAC systems, food processing, and general heat transfer applications. - Double Pipe Heat Exchanger
This is the simplest design, featuring one pipe placed inside another. One fluid flows through the inner pipe, while the second fluid flows through the outer annular space. It is typically used in small-scale or low-capacity applications. - Finned Tube Heat Exchanger (Air-Cooled)
This type uses tubes with extended fins to increase the heat transfer surface area. It is especially effective for heat exchange between liquids and gases, such as air, and is commonly used in air conditioning systems and air-cooled equipment.
The primary advantage of plate heat exchangers is their exceptionally high heat transfer efficiency relative to their size. By using multiple thin plates, they provide a much larger heat transfer surface area per unit volume compared to traditional designs such as shell and tube heat exchangers.
This compact and efficient structure allows for improved thermal performance, reduced energy consumption, and space-saving installation. As a result, plate heat exchangers are widely used in HVAC systems, water heating, heat pumps, refrigeration, and various industrial applications, particularly in small to medium-sized systems.
