Thermal Expansion Tank 39.6gal 3/4" Port - Alfa Heating Supply

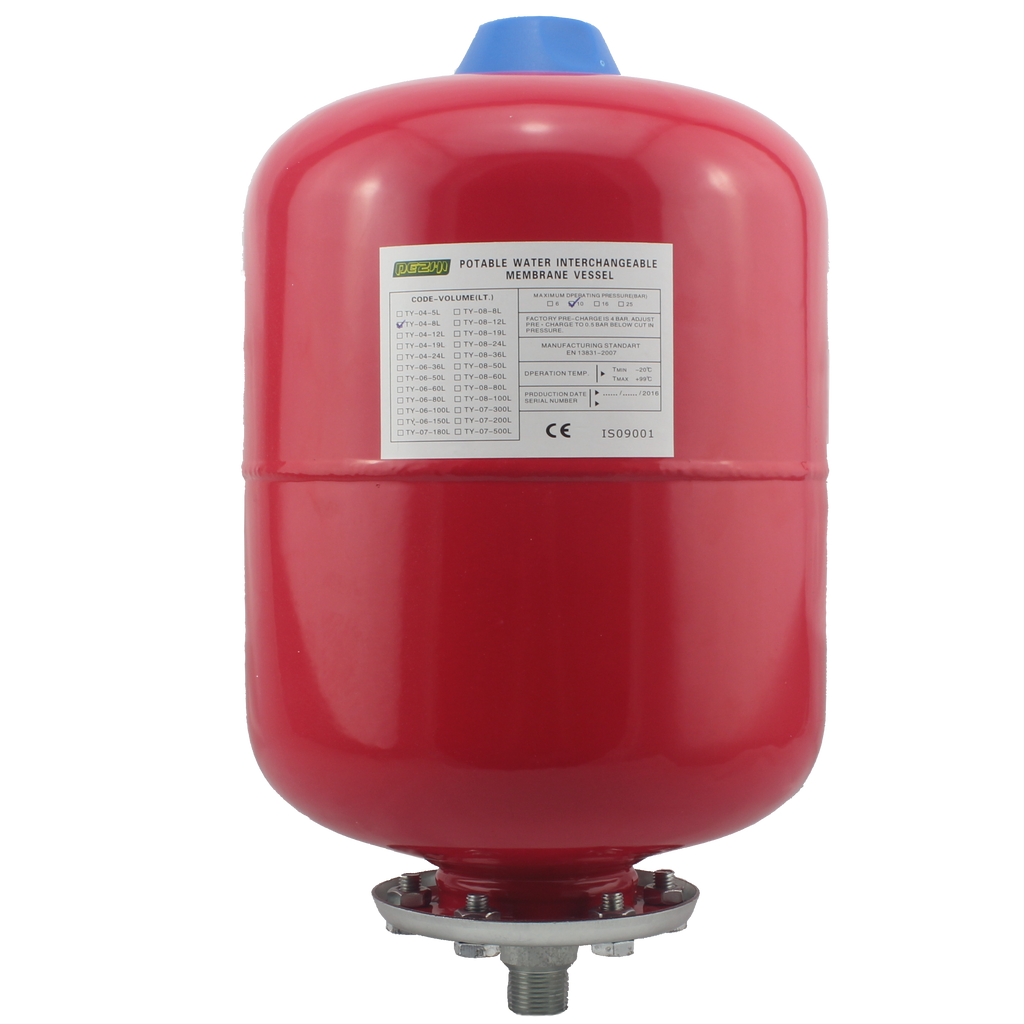

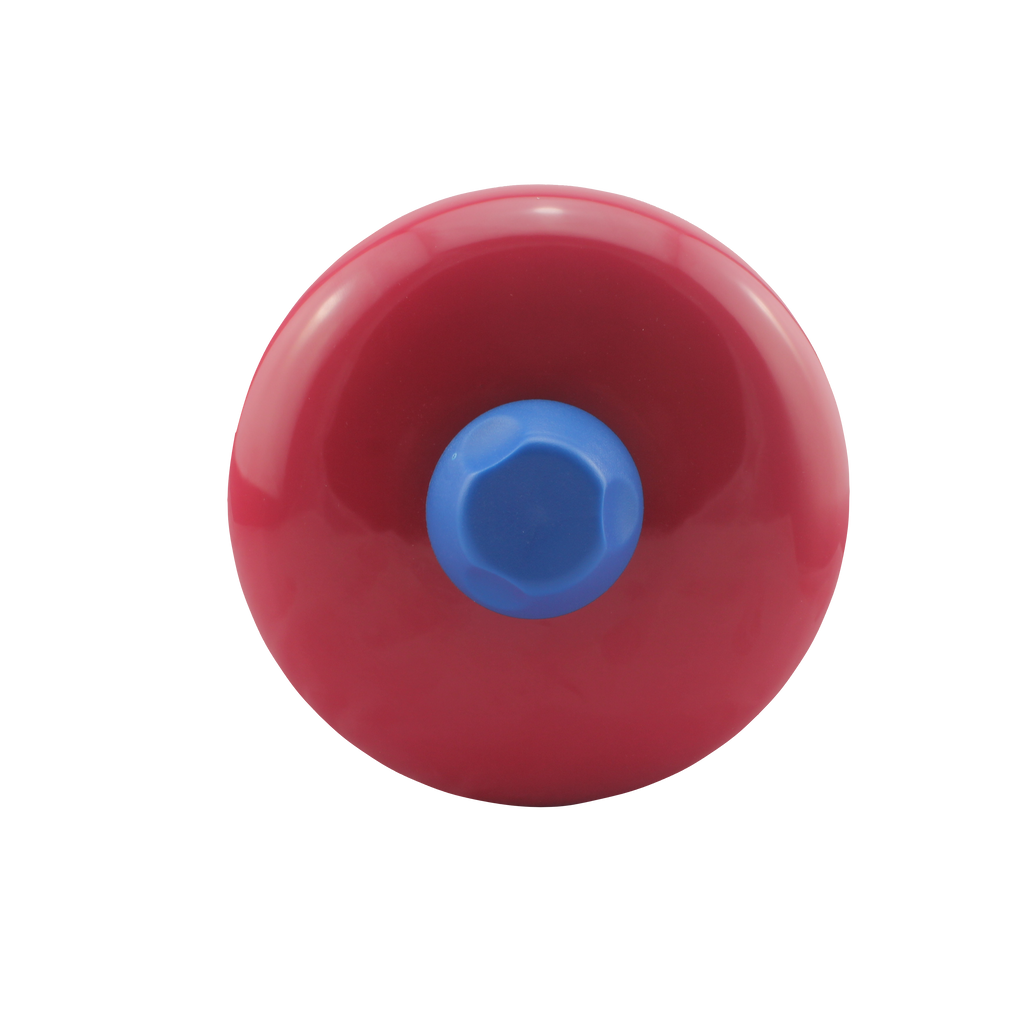

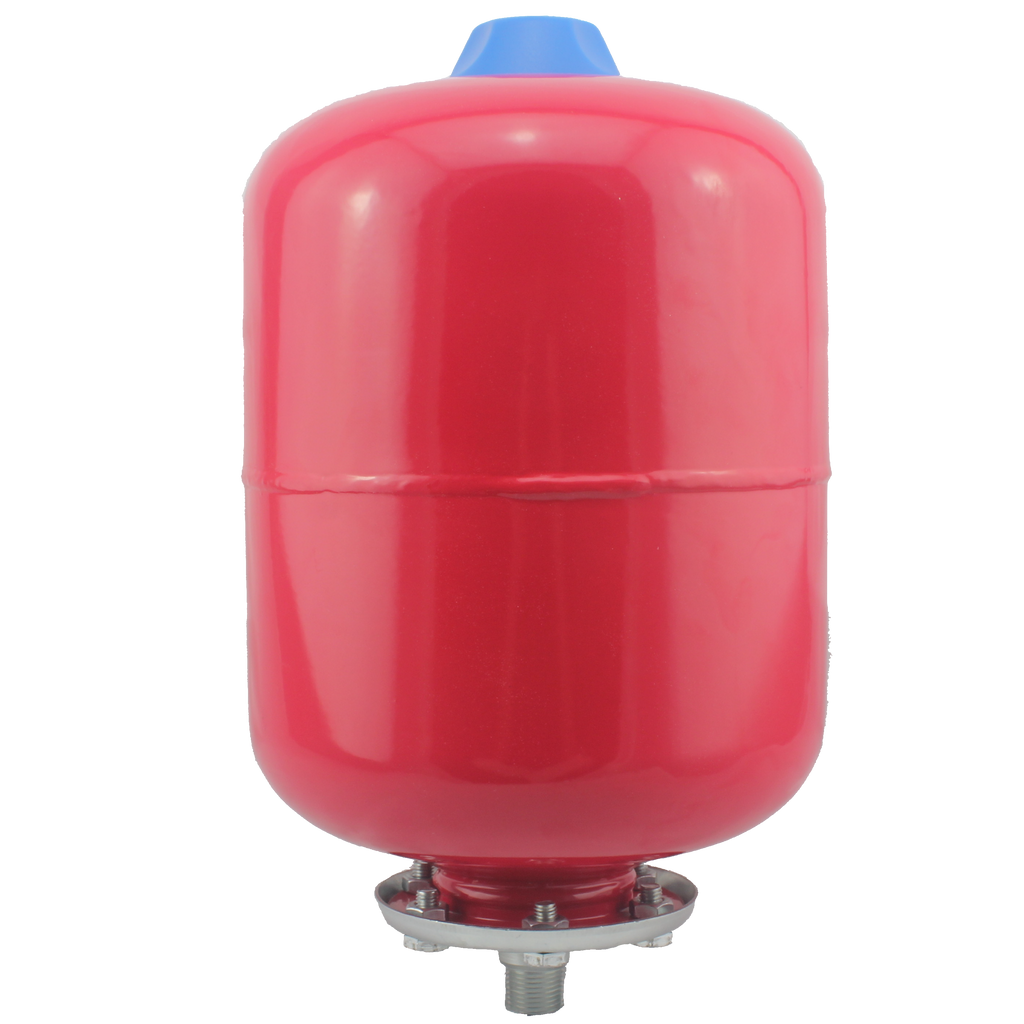

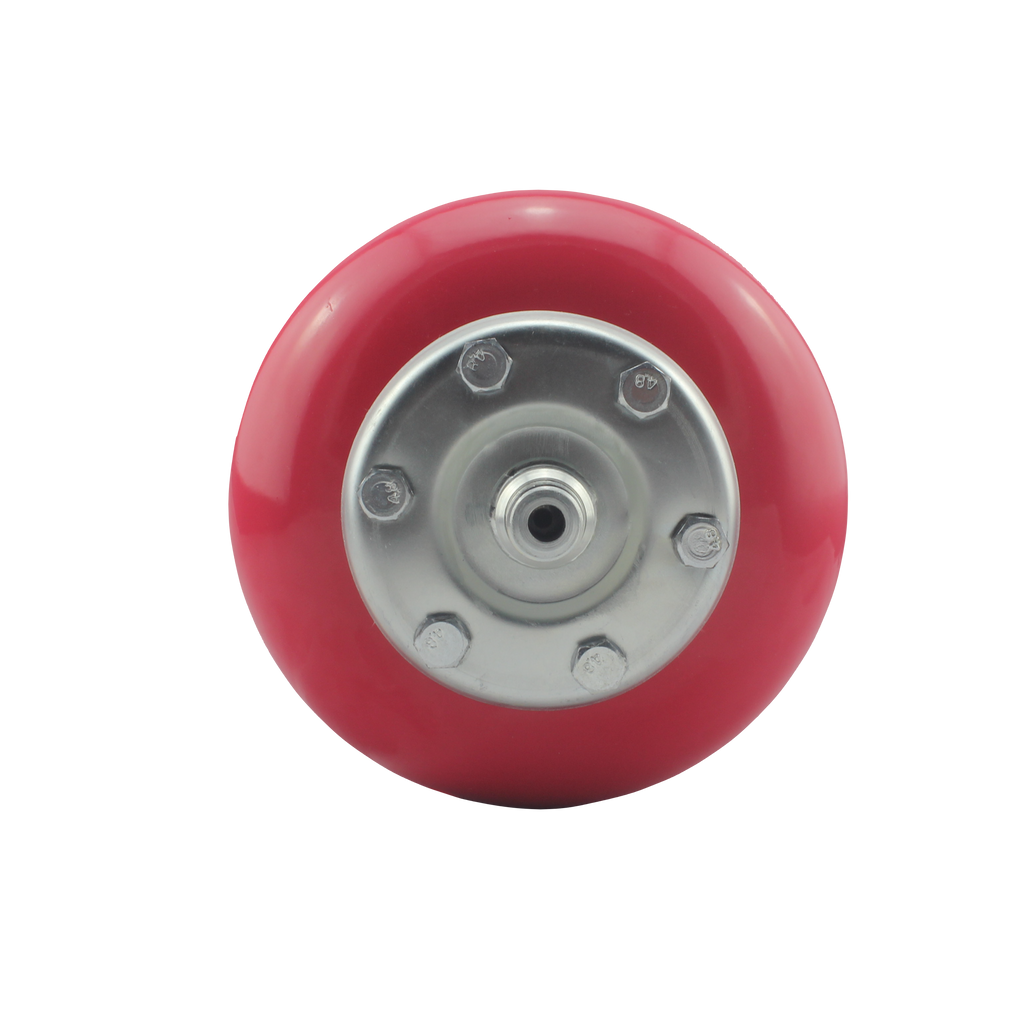

Thermal Expansion Tank 39.6gal 3/4" Port

Name: Alfa Heating
Address: 7529 Standish Place, Suite340 Derwood, MD, 20855, US
Telephone: 833-328-6888

$348.99

Expansion tanks are a vital part of the water heating system. Water pressure, caused by thermal expansion, is taken care of by the expansion tank, which works as a pressure relief unit. Without expansion tanks, the pipes, pumps, and other components of the heating system could burst. The rubber diaphragm of an expansion tank helps keep unwanted oxygen out of the system, resulting in less system corrosion over time. This product should be installed supply side and/or higher point of return side. Our Expansion Tanks can be used for commercial and residential applications, as well as water booster systems, solar water applications, and potable water storage systems.

Product Information

Model	BQ-07-150L	Capacity	39.6Gal. / 150L	Port Size	3/4" NPT
Min. - Max. Temperature (Potable / Solar)	-21.2 - 212F / -21.2 - 181F	Max. Pressure	145psi	Dimensions	22" x 45.2"

FAQ and Support

We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833-328-6888 for help with your heating projects.
