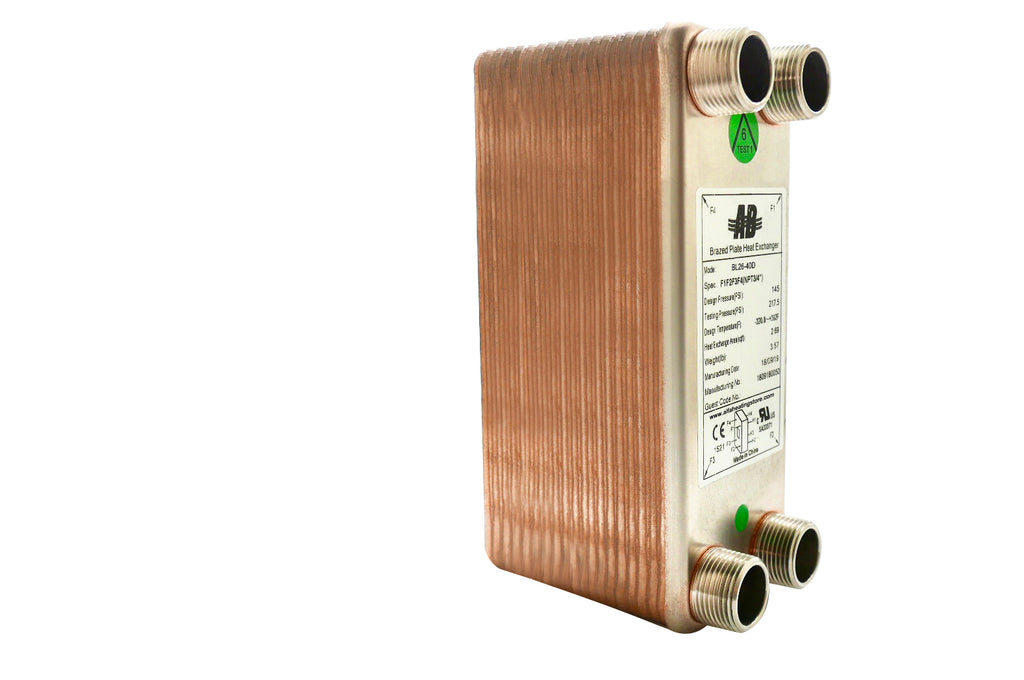

Brazed Plate Heat Exchanger - 40 Plates 4"x12" 1"MPT 380,000 Btu

WiseWater Brazed Plate Heat Exchanger has a lightweight and compact design that allows for easy installation and service. It is made of stainless steel 316L, brazed with 99.9% copper, and has 1" male fittings. When compared to other types,the advantage of this heat exchanger is that it features corrugated plates that produce a highly turbulent flow which allows for a true counter-current exchange. A counter-current flow is the most efficient way of exchanging heat between two fluids. Because of this, and due to the smaller size and reduced material content, Brazed Plate Heat Exchangers can be the most economical heat transfer choice. Depending on the application, the capacity ranges from 350,000 - 380,000 Btu/hr. This product has a 1 year warranty against manufacturer defects and is UL listed.

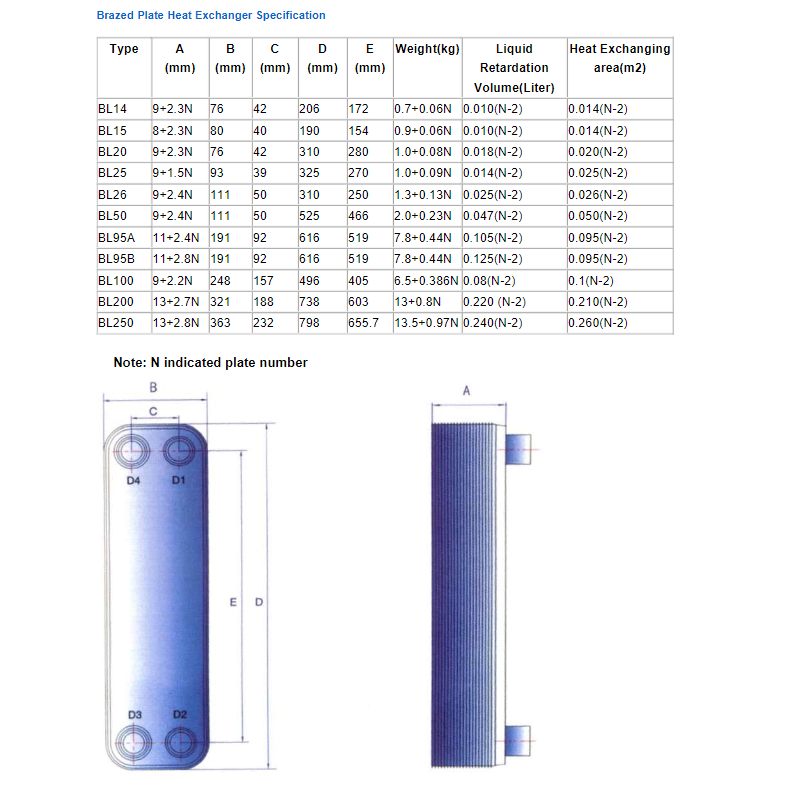

Product Information

BL26-40D Fitting Size
1" MPT Materials
Stainless Steel 316L,
99.9% Copper


-310 F


4" x 12.2" x 4"
Design Pressure


Test Pressure




Application Specifications


Floor Heating Domestic Hot Water Heating Snow Melting
380 kBtu/hr 350 kBtu/hr 350 kBtu/hr

26.2 GPM / 26.2 GPM
(Boiler temp.: 180F
System temp.: 100F-130F)

24 GPM / 7 GPM
(Boiler temp.: 180F
Pipes temp.: 40F-140F)
24 GPM / 27 GPM
(Boiler temp.: 180F
50% Glycol temp.: 110F-140F)

BPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Tips for welding:
Put a damp cloth around the connection to protect it from excessive heating.
It's recommended to use TIG or MIG welding on this product. Internal oxidation should be prevented with a small nitrogen flow.
