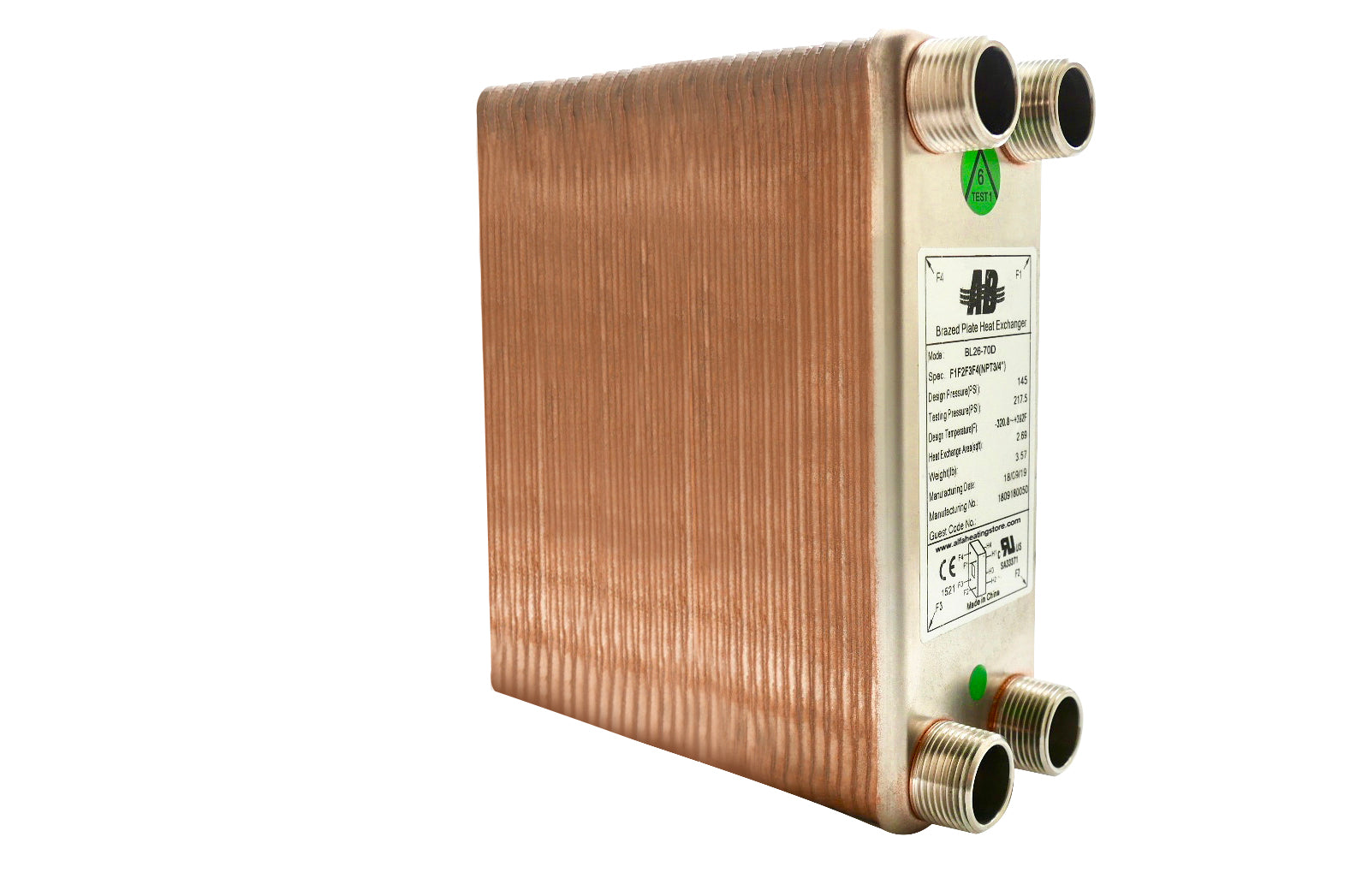

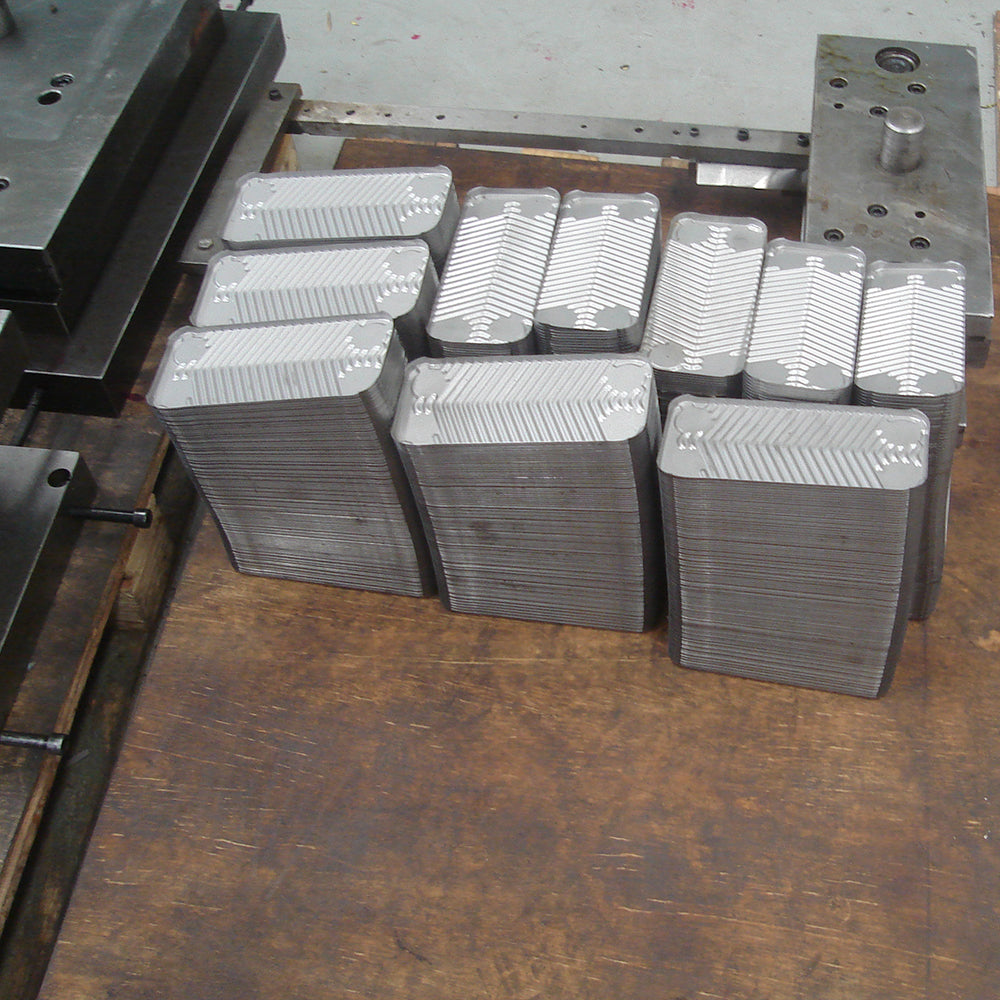

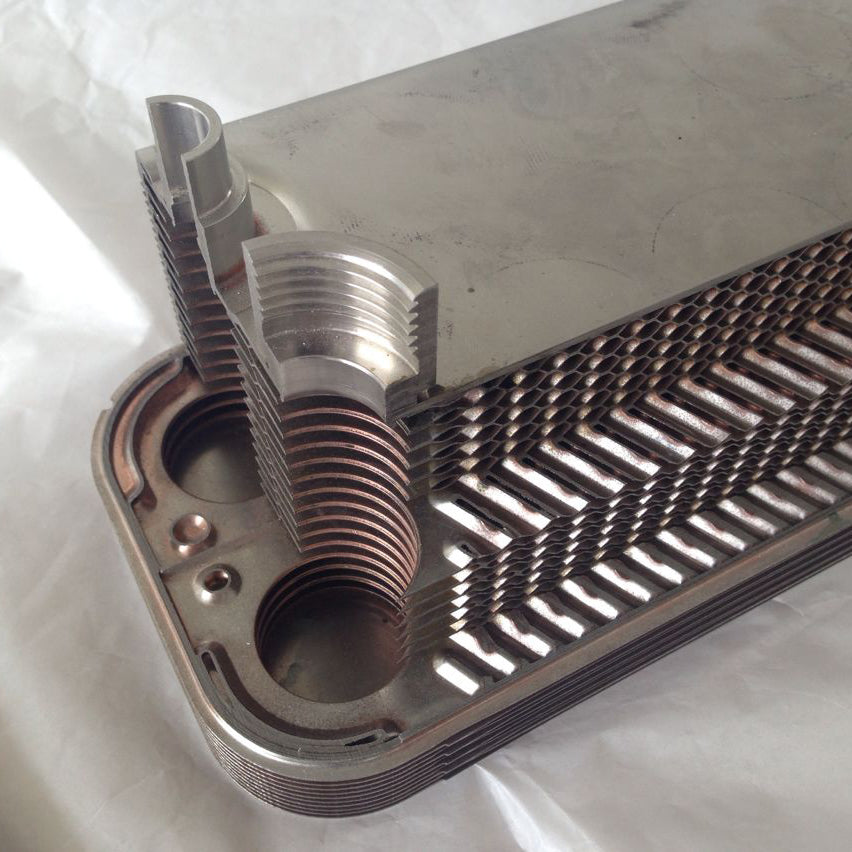

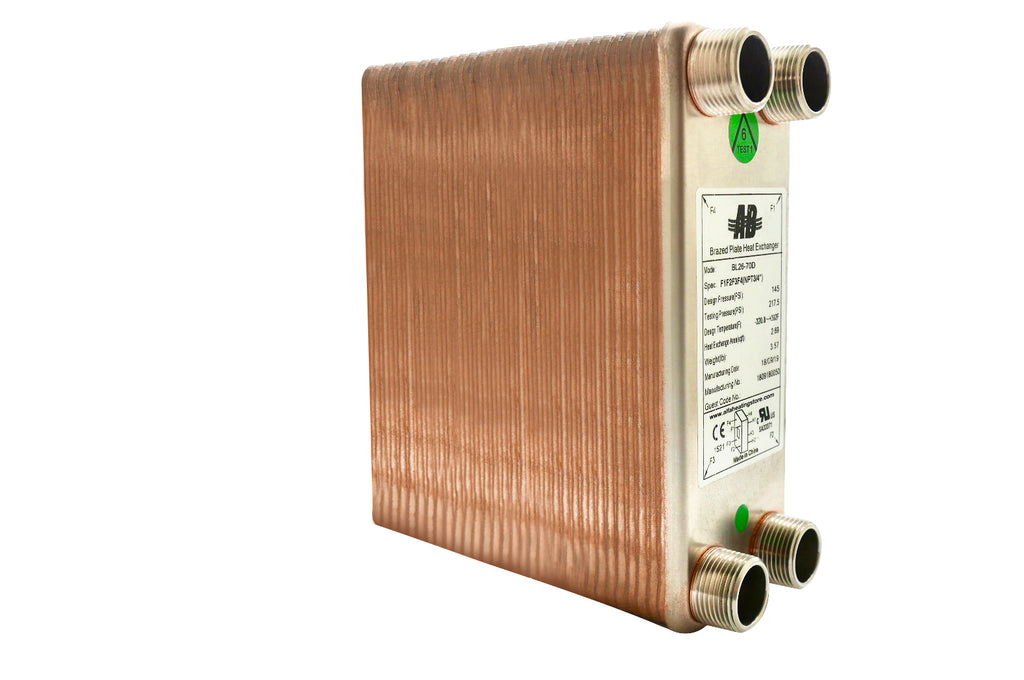

WiseWater Brazed Plate Heat Exchanger has a lightweight and compact design that allows for easy installation and service. It is made of stainless steel 316L, brazed with 99.9% copper, and has 1" male fittings. When compared to other types,the advantage of this heat exchanger is that it features corrugated plates that produce a highly turbulent flow which allows for a true counter-current exchange. A counter-current flow is the most efficient way of exchanging heat between two fluids. Because of this, and due to the smaller size and reduced material content, Brazed Plate Heat Exchangers can be the most economical heat transfer choice. Depending on the application, the capacity ranges from 550,000 - 580,000 Btu/hr. This product has a 1 year warranty against manufacturer defects and is UL listed.
FAQ and Support Tips for welding: Put a damp cloth around the connection to protect it from excessive heating. It's recommended to use TIG or MIG welding on this product. Internal oxidation should be prevented with a small nitrogen flow. We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at firstname.lastname@example.org or call us at 833 328 6888for help with your heating projects.
