$199.00

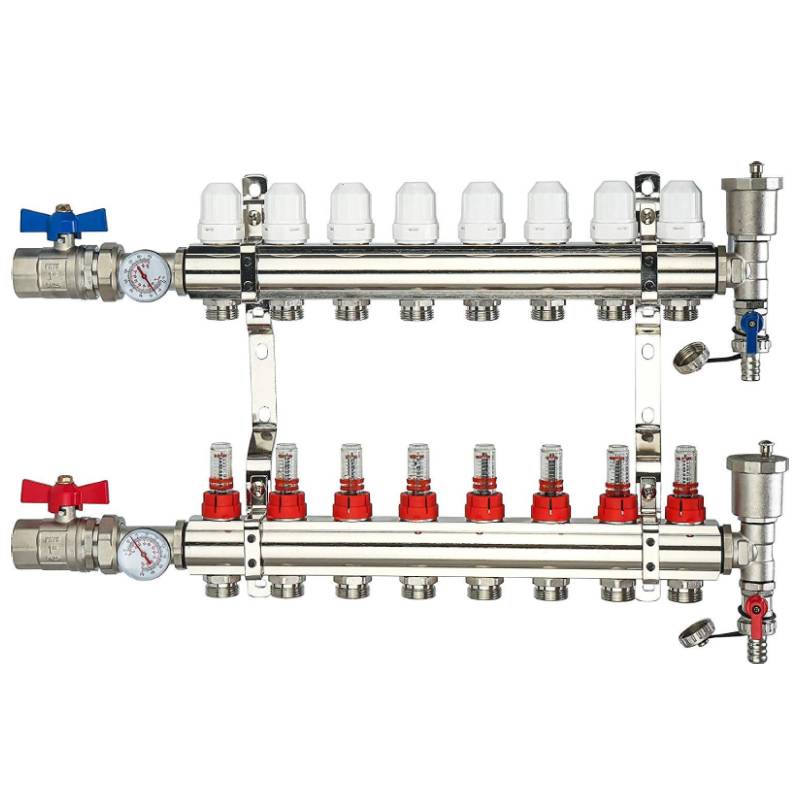

This product provide a central control for hot and cold water that feeds flexible PEX supply lines to individual fixtures. Compared to rigid pipe plumbing systems, using this model is cheaper because of its size and ability to control many different zones from one place. Our product allows you to monitor the water's temperature and flow rate, set up automatic flow controls, drain the system, and more. This particular model is made of brass 57-3, has nickel-plating on the ball valve and air vent valve, and has 1" supply/return ports and 1/2" branch ports (can be converted to 3/4" ports by using adapters).
This product has a 1-year warranty against manufacturer's defects.
Product Features and Usage
Product Information
Loops/Ways |
8 | Connection Size (Supply / Branch outlet) |
1" NPT / 1/2" NPT |
Flow Rate |
Up to 1.6 GPM |
Branch outlet-outlet distance |
1.96" |
Materials |
Brass, Nickel (plating for valves) |
FAQ and Support
Tips for operation:

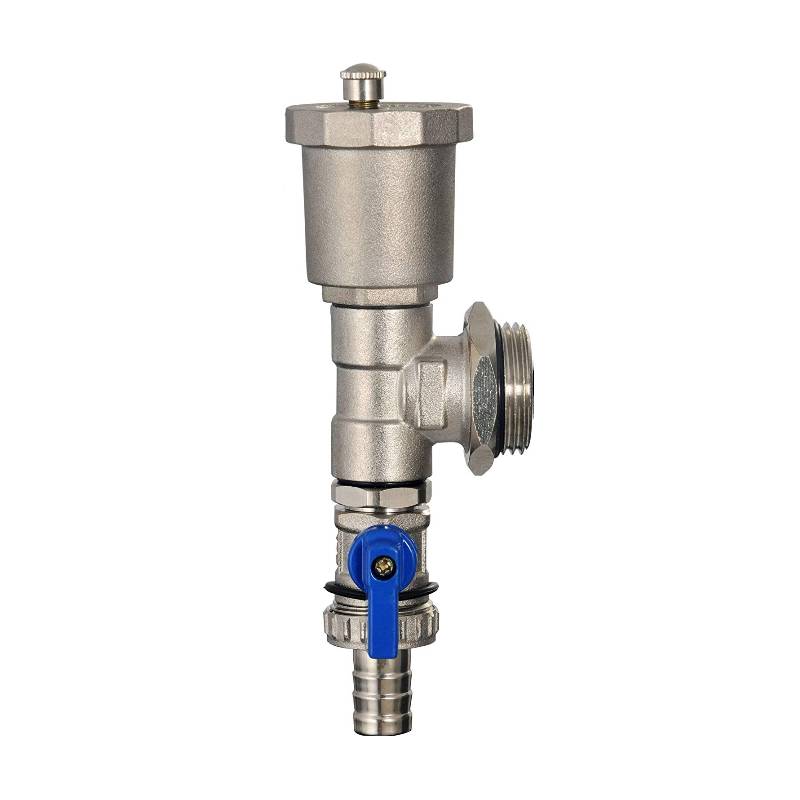

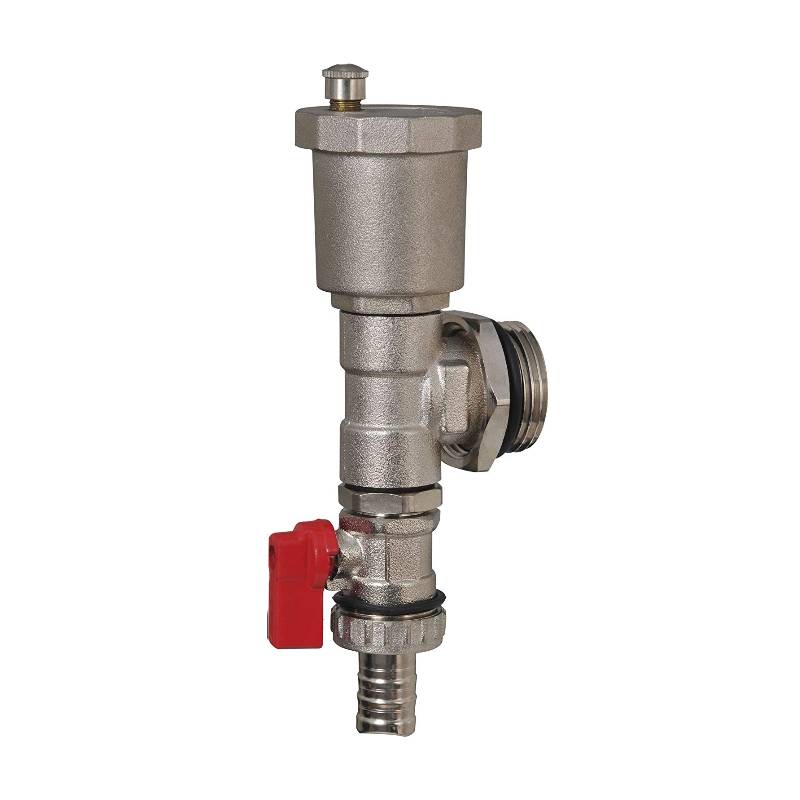

Before using your manifold, be sure to release the air in the product by using the air relief valve. This will keep unwanted air out of your water system.
