Condensers BL95B Plate Exchangers for Condensation 2" NPT Soldering 53mm

Brazed Plate Condenser BL95B Series Soldering 53mm - Alfa Heating Supply

Condensers BL95B Plate Exchangers for Condensation 2" NPT Soldering 53mm

$999.00

Due to the condensation temperature of the water-cooled condenser is relatively low, which is beneficial to the refrigeration capacity of the compressor and it's economic to operate. This type of condenser is widely used in most refrigeration systems.

Furthermore, the cooling water used in the condenser can be passed through once or recycled. When using circulating water, a cooling water tower or cooling pool must be built to re-cool after the water leaving the condenser for reuse.

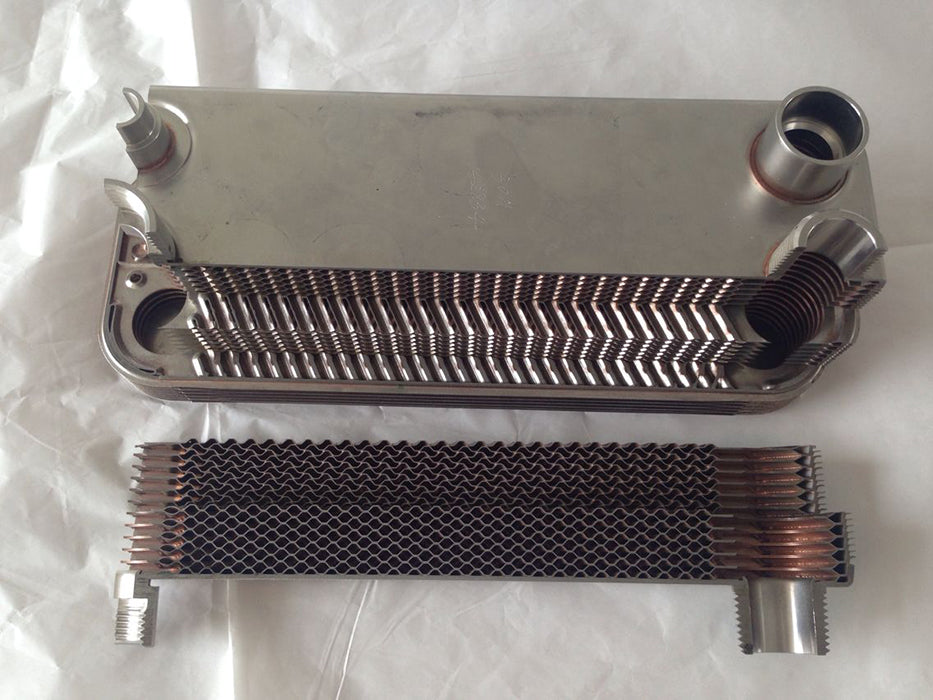

The stainless steel 316L materials of Alfa Heating Brazed Heat Exchanger provide exceptional corrosion resistance. They feature corrugated plates that produce highly turbulent flow in a true counter-current direction. This results in high efficiency and a very compact heat exchanger design.

Specification

Material: SS316 ( 99.9% Copper brazed)
Condensation Capacity: from 2.5kW to 250kW
Max working temp: 250 degrees C
Max working pressure: 3.0MPa
Test pressure: 4.5 MPa
Water inlet/out: NPT2”
R22 inlet/out: soldering 53mm

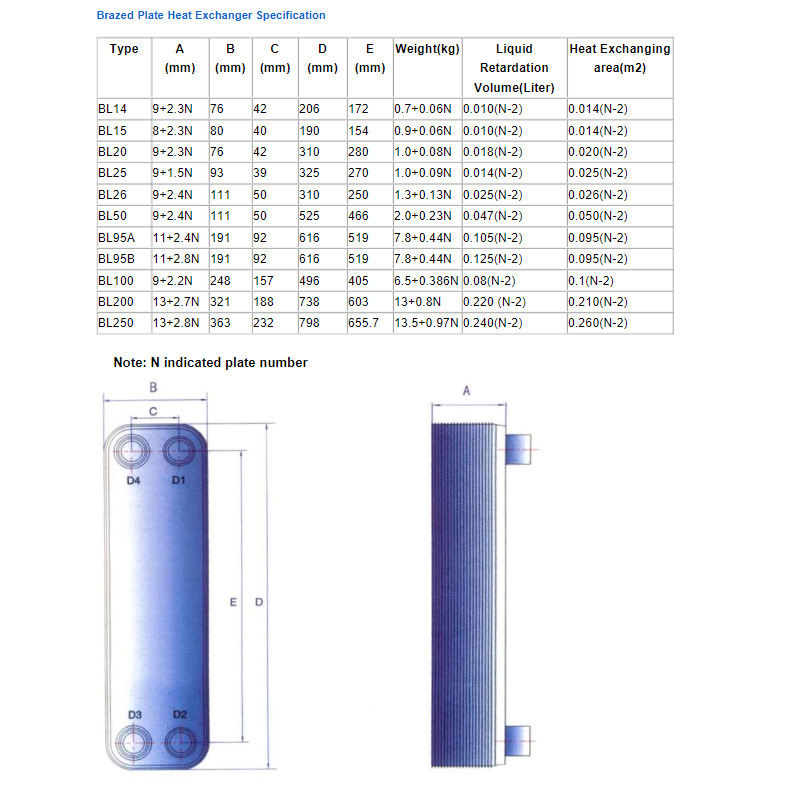

Dimension(*N indicated quantity of plate)
For example Bl95B-42D, N is 42

Type A(mm) B(mm) D(mm) Liquid Retardation Volume(Liter) Heat Exchanging Area(m2)

BL95B 11+2.8N 191 616 0.125(N-2) 0.095(N-2)

Applications
1.Ground Source Heat Pump
2.Air Conditioning Energy
3.Refrigeration Cycle

*Customization Service

Max working pressure up to 4.5 MPa for R407c

Mounting/support base is available.

Technical calculation support and Temperature sensor port(evaporator) are available.

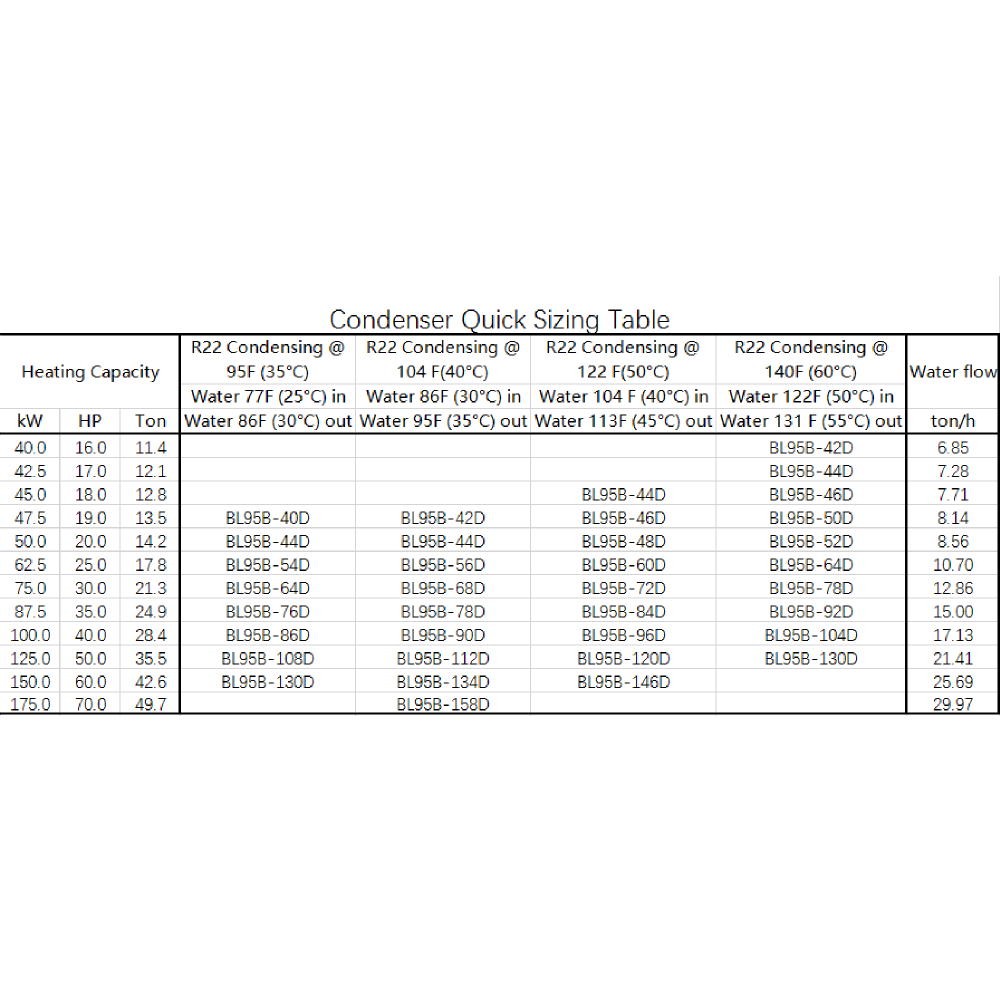

Condensers Quick Sizing Table.pdf

Heat Exchanger Quote Form Download.pdf

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf

Tips

Please refer to the Manual for cleaning, installation, and welding.

Brazed Plate Heat Exchanger Manual.pdf

We have worked with heating systems for over 10 years,and specialized in the manufacturing,designing and marketing of heat exchangers and oil coolers for industrial and commercial applications. Feel free to contact us if you have any questions. Feel free to contact us if you have any questions.
