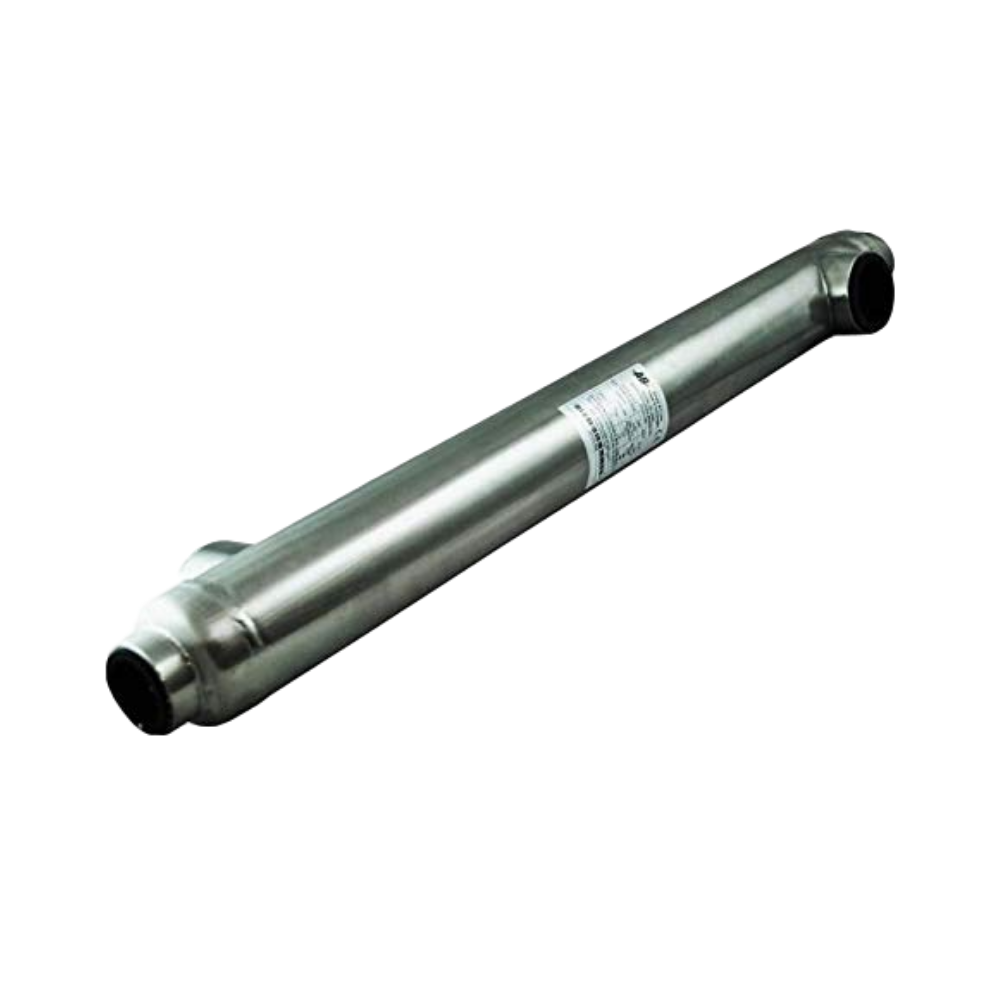

Swimming Pool Heat Exchanger - 155K Titanium Opposite Side 1 1/2" & 1" FPT

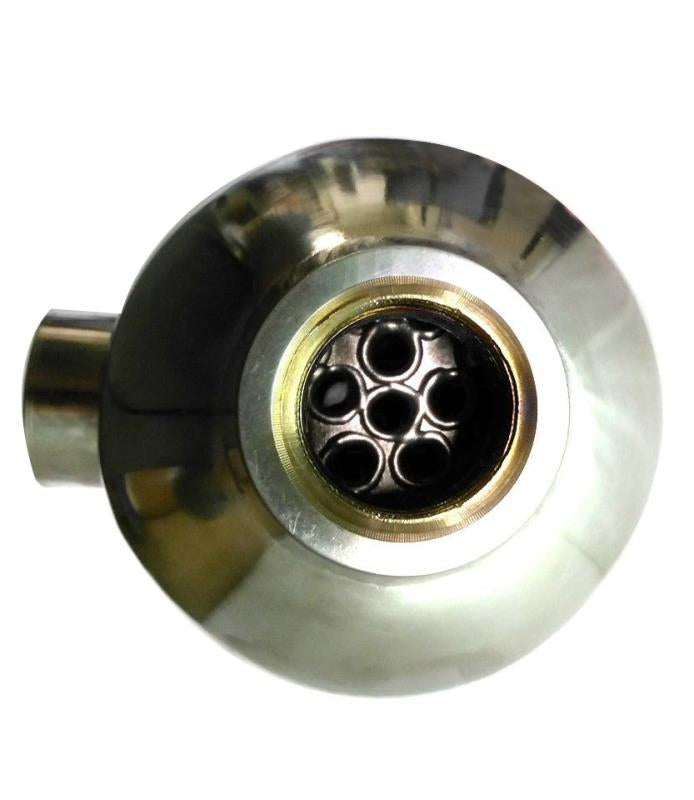

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of titanium and has 1 1/2" and 1" FPT. The capacity of this particular model is 155,000 Btu. This product has a 6 year warrantyagainst manufacturer's defects and is UL listed. We also have this model with same side ports available. Titanium is highly recommended for salt water systems, as it is the only SPHE material that can withstand that type of water.

 Product Information

Model SP-155Kti Capacity 155,000 Btu Pool Capacity
(Gal. @ 1F/hr)
13,300 Gal
Wattage 45kW Heat Transfer Area 3.552 ft2 Shell (Pool) / Tube (Hot)
Connections
1 1/2" / 1"
Hot Water
Flow Volume
8.46 GPM Hot Water
Pressure Drop
1.10psig   Materials Titanium
Cold Water
Flow Volume
62.66 GPM Cold Water
Pressure Drop
1.58psig Dimensions 17.32" x 2.99"
Minimum Temperature -19F Maximum Temperature 406F     Weight 3.8lb
Design Pressure 190psi Test Pressure 285psi
SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf



FAQ and Support
Tips for installation:
Vibrations can cause damage to the heat exchanger. Attaching the heat exchanger to a wall, ceiling, or floor by using wall brackets will steady it against vibrations.
