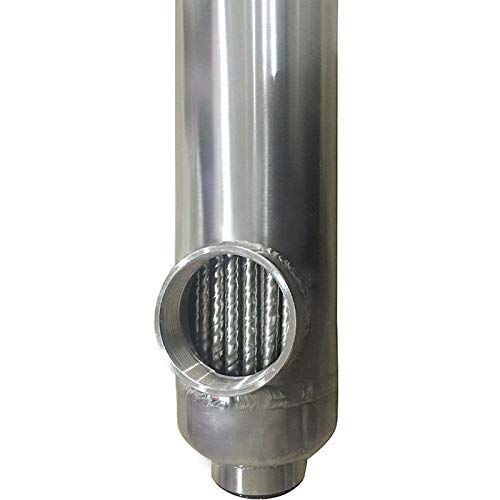

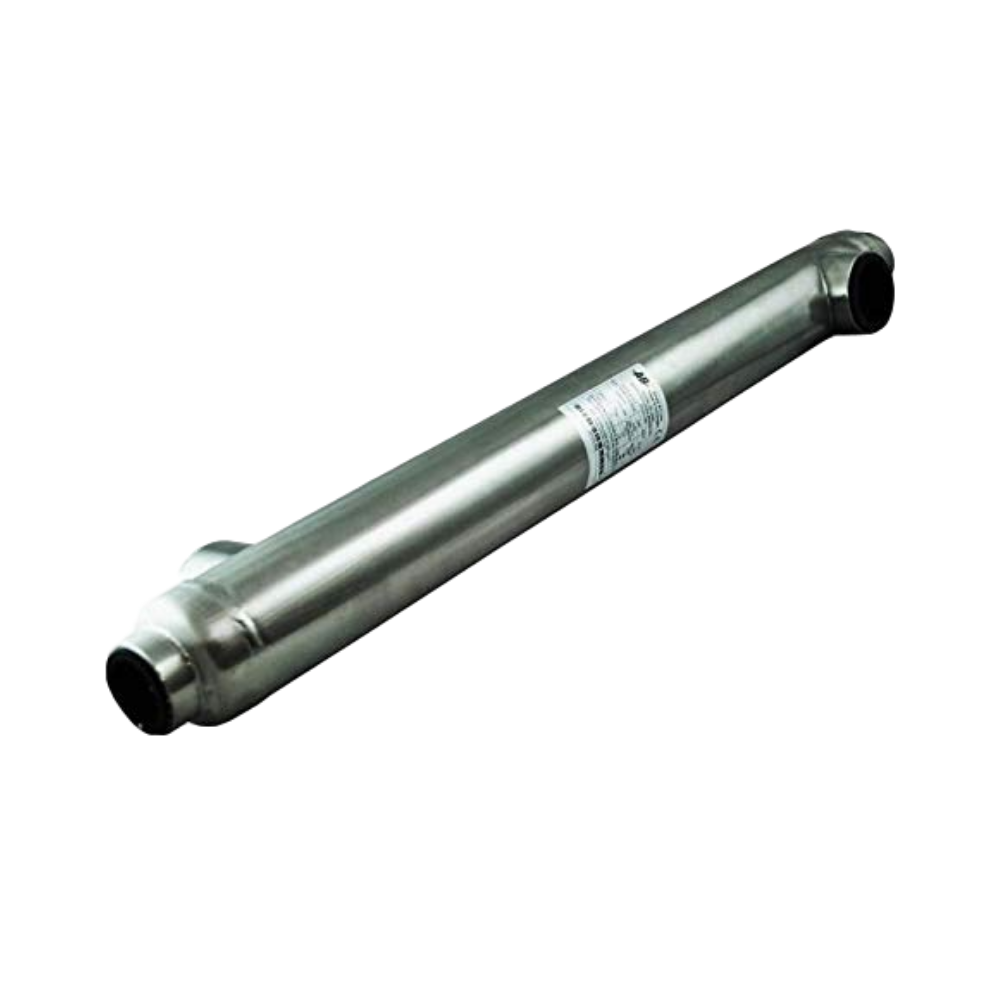

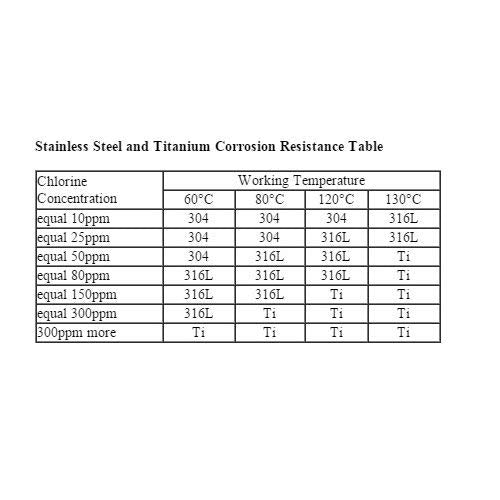

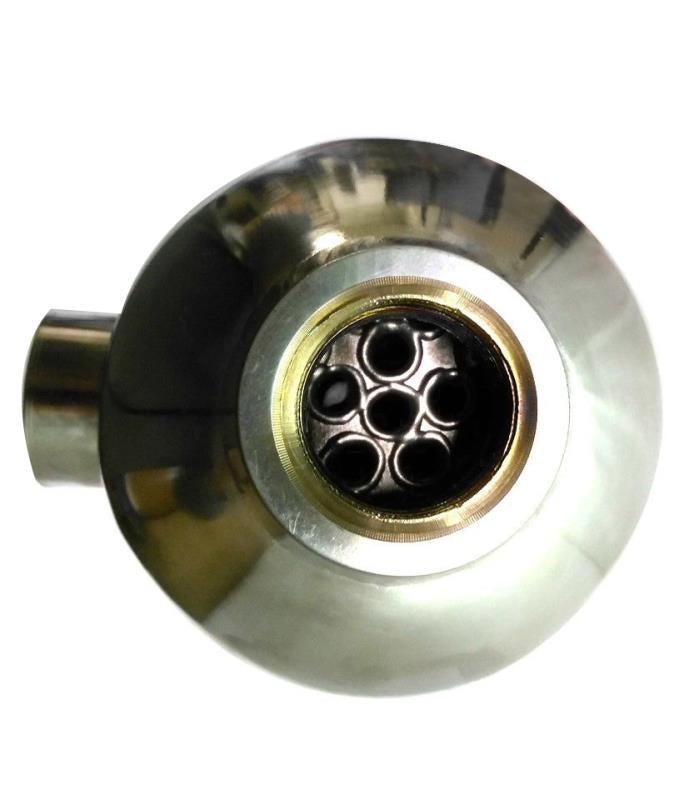

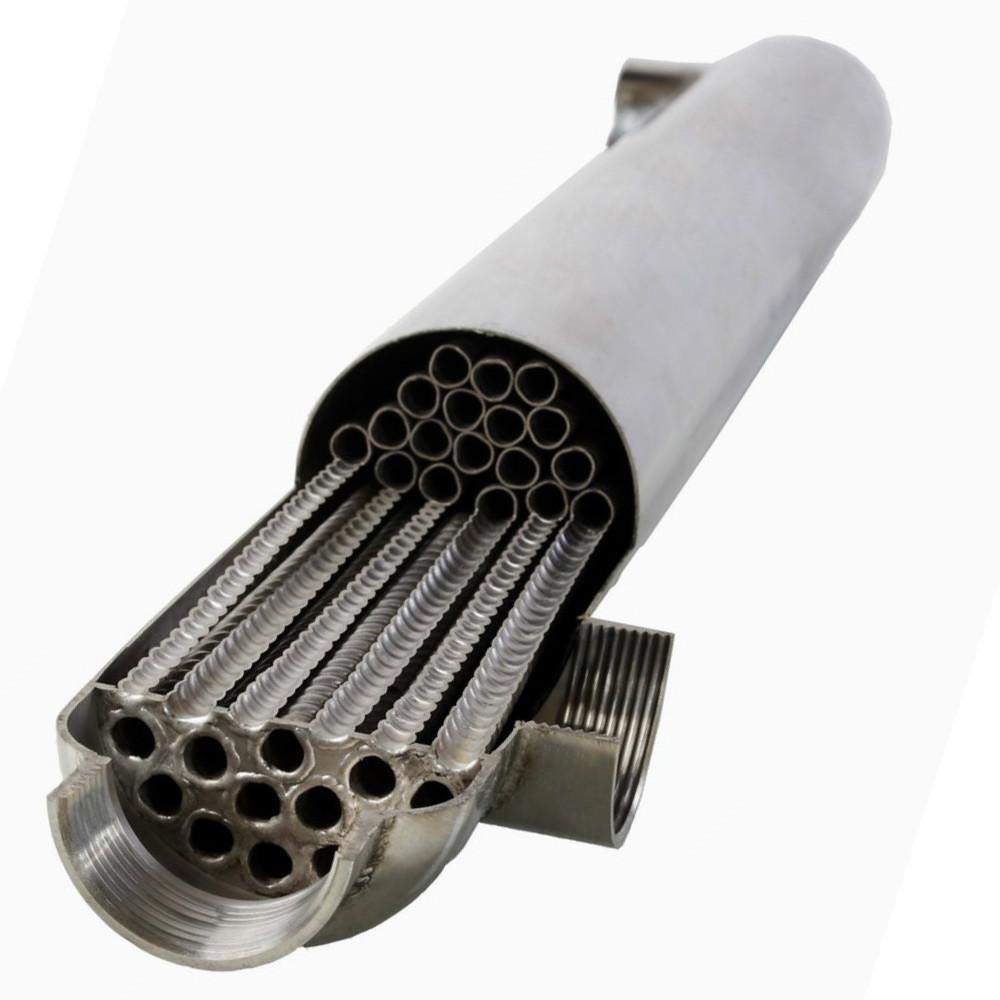

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of titanium and has 2" and 1 1/2" FPT. The capacity of this particular model is 300,000 Btu. This product has a 6 year warrantyagainst manufacturer's defects and is UL listed. We also have this model with same side ports available. Titanium is highly recommended for salt water systems, as it is the only SPHE material that can withstand that type of water.

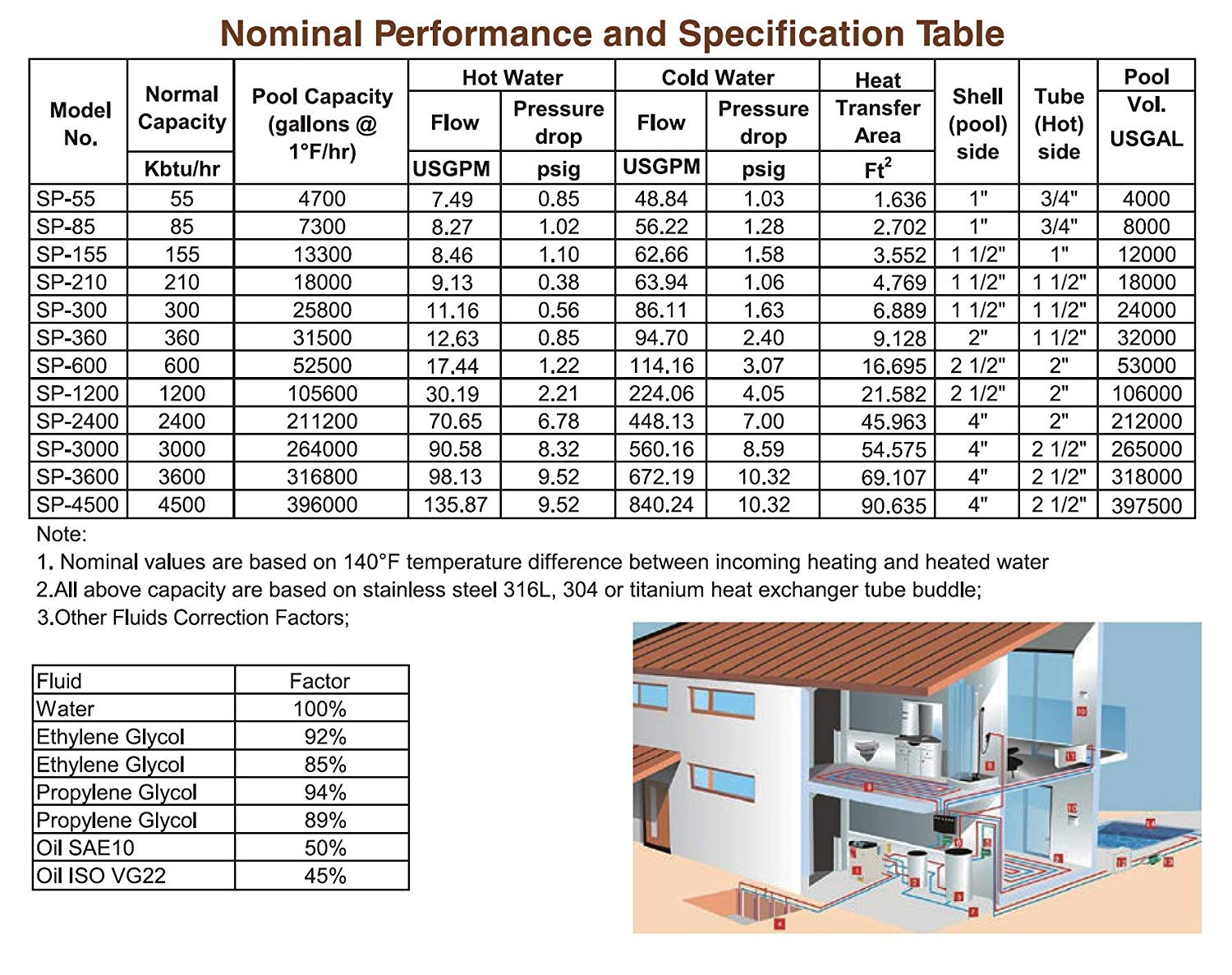

|Model||SP-300Kti||Capacity||300,000 Btu||Pool Capacity
(Gal. @ 1F/hr)
|Wattage||88kW||Heat Transfer Area||6.889 ft2||Shell (Pool) / Tube (Hot)
|2" / 1 1/2"|
|11.16 GPM||Hot Water
|86.11 GPM||Cold Water
|1.63psig||Dimensions||30.15" x 2.99"|
|Minimum Temperature||-19F||Maximum Temperature||406F||Weight||5.9lb|
|Design Pressure||190psi||Test Pressure||285psi|
FAQ and Support
Tips for installation:

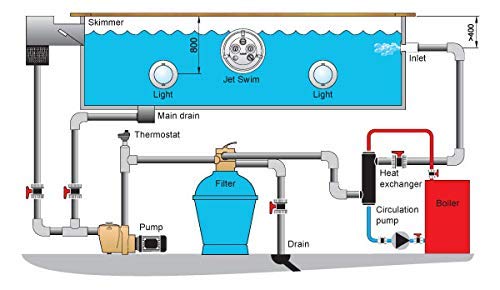

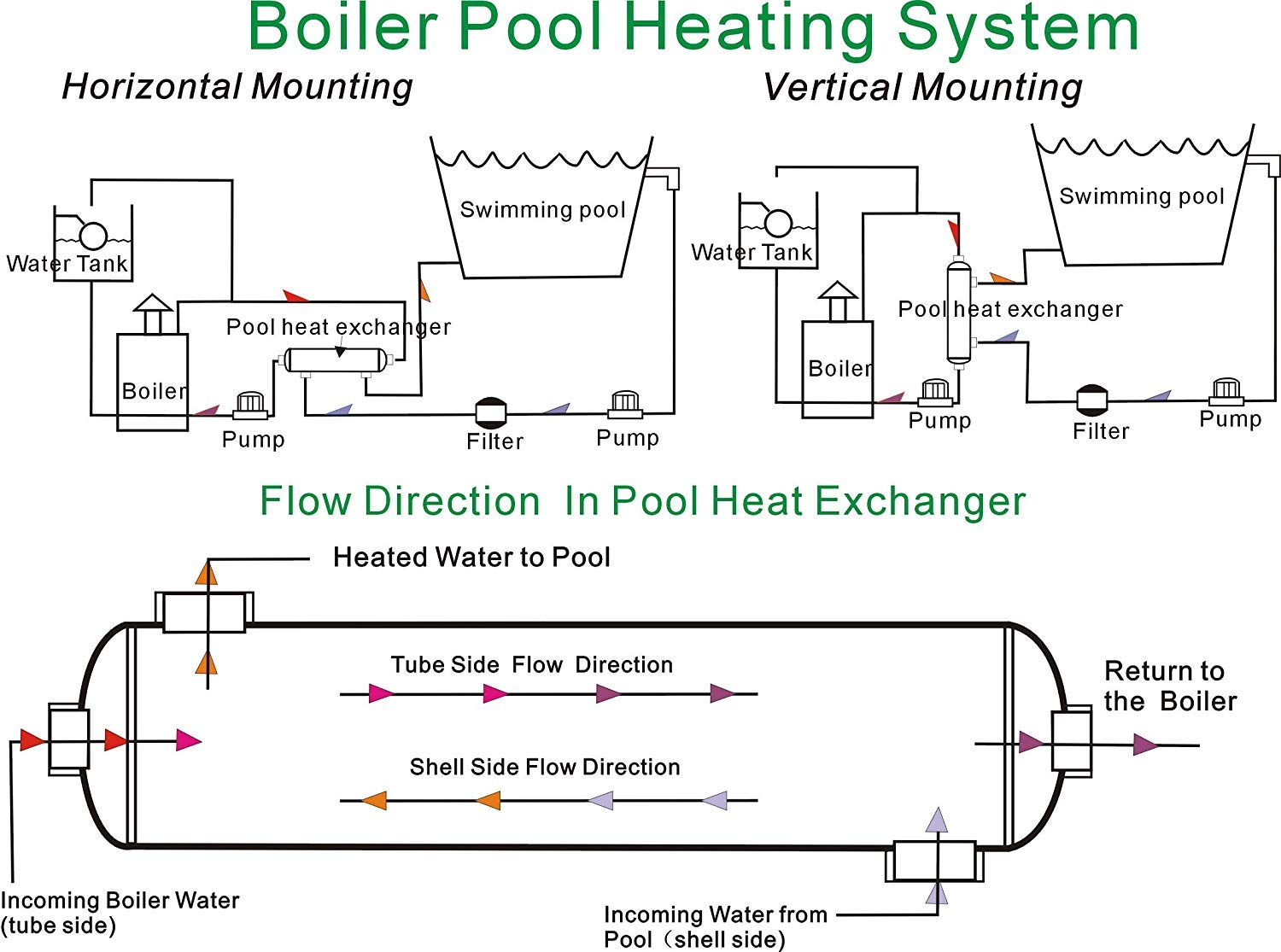

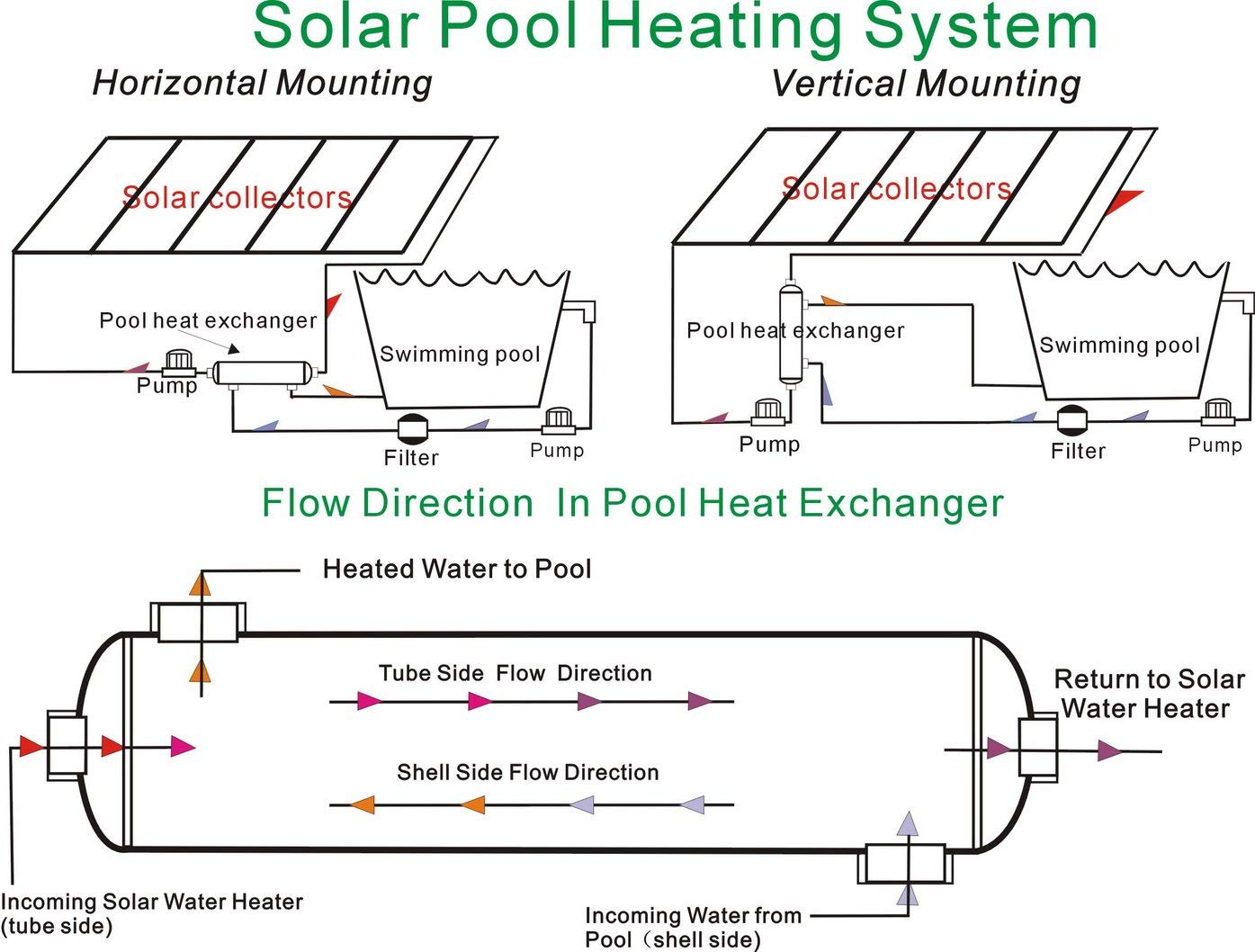

This product can be installed either vertically or horizontally. Also, be sure to install it in a way that allows a counter flow pattern for maximum heat efficiency. Click here for a reference picture on how to mount your Swimming Pool Heat Exchanger.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at firstname.lastname@example.org or call us at 833-328-6888 for help with your heating projects.
