Swimming Pool Heat Exchanger - 6000K SS316L Opposite Side 4" & 2 1/2" FPT

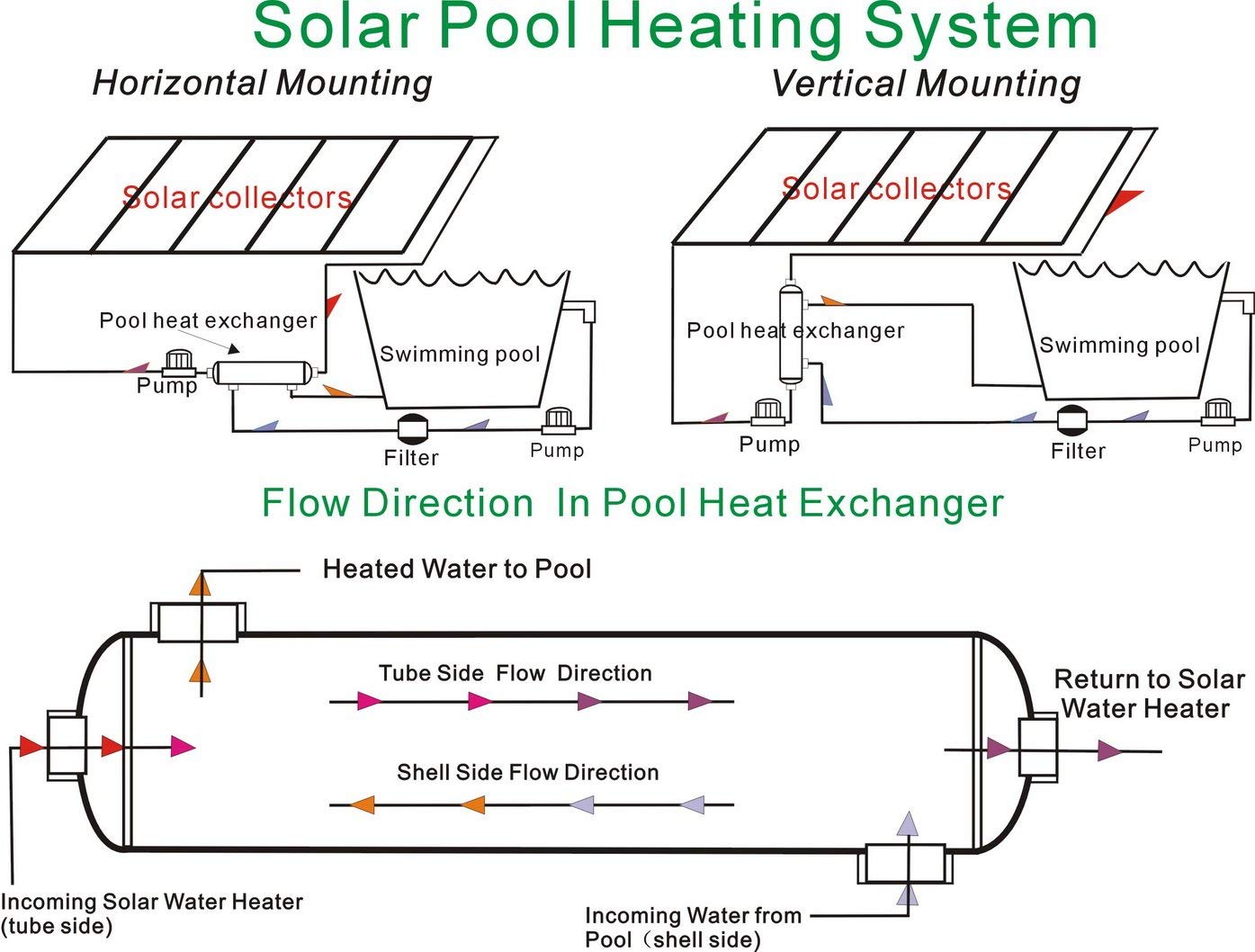

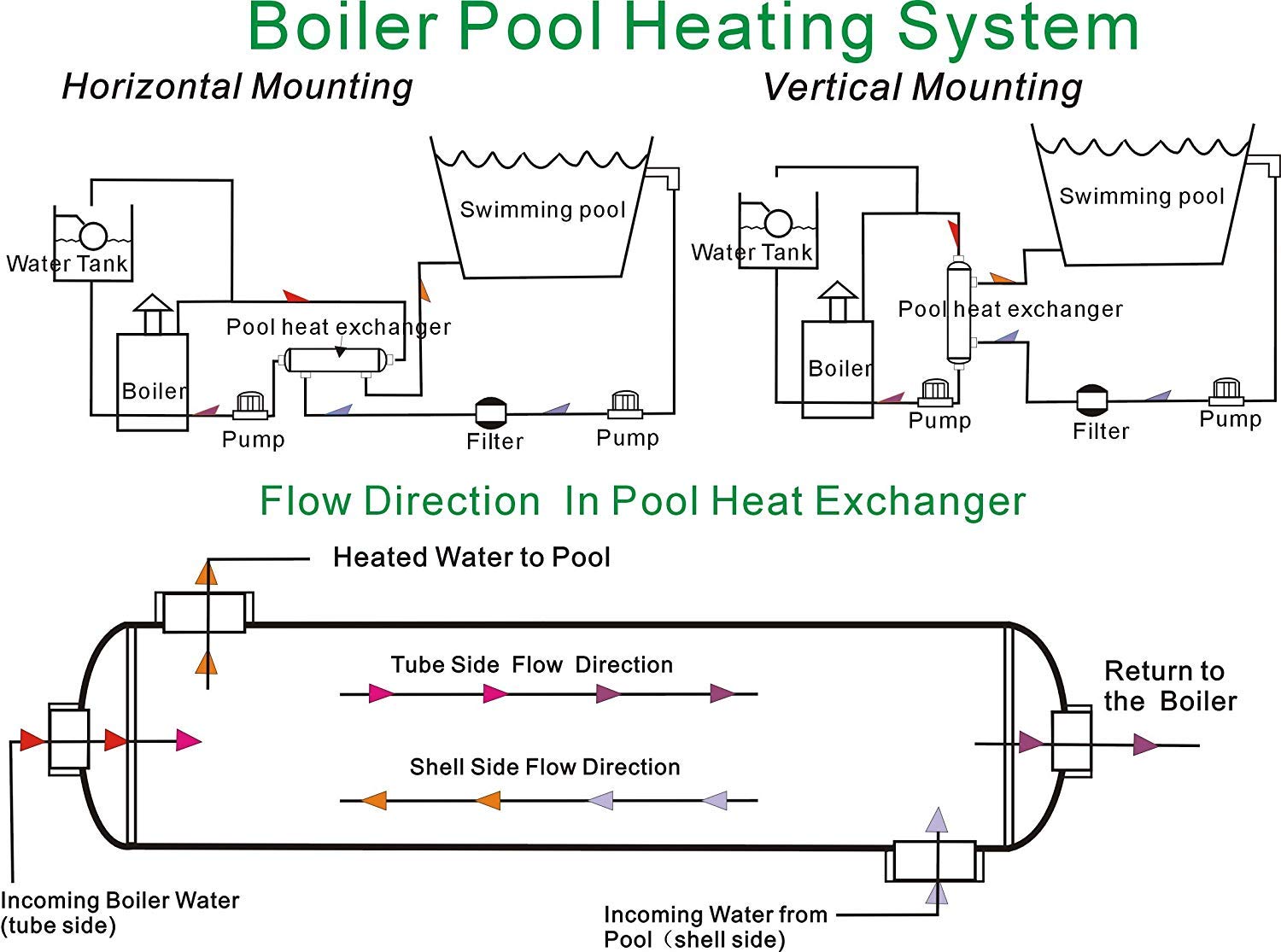

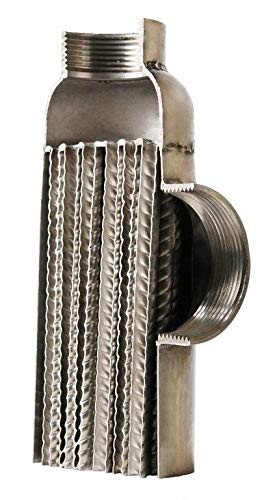

AB Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of stainless steel 316L and has 4" and 2 1/2" FPT. The capacity of this particular model is 6,0000,000 Btu. This product has a 1.5 year warrantyagainst manufacturer's defects and is UL listed.

 Product Information

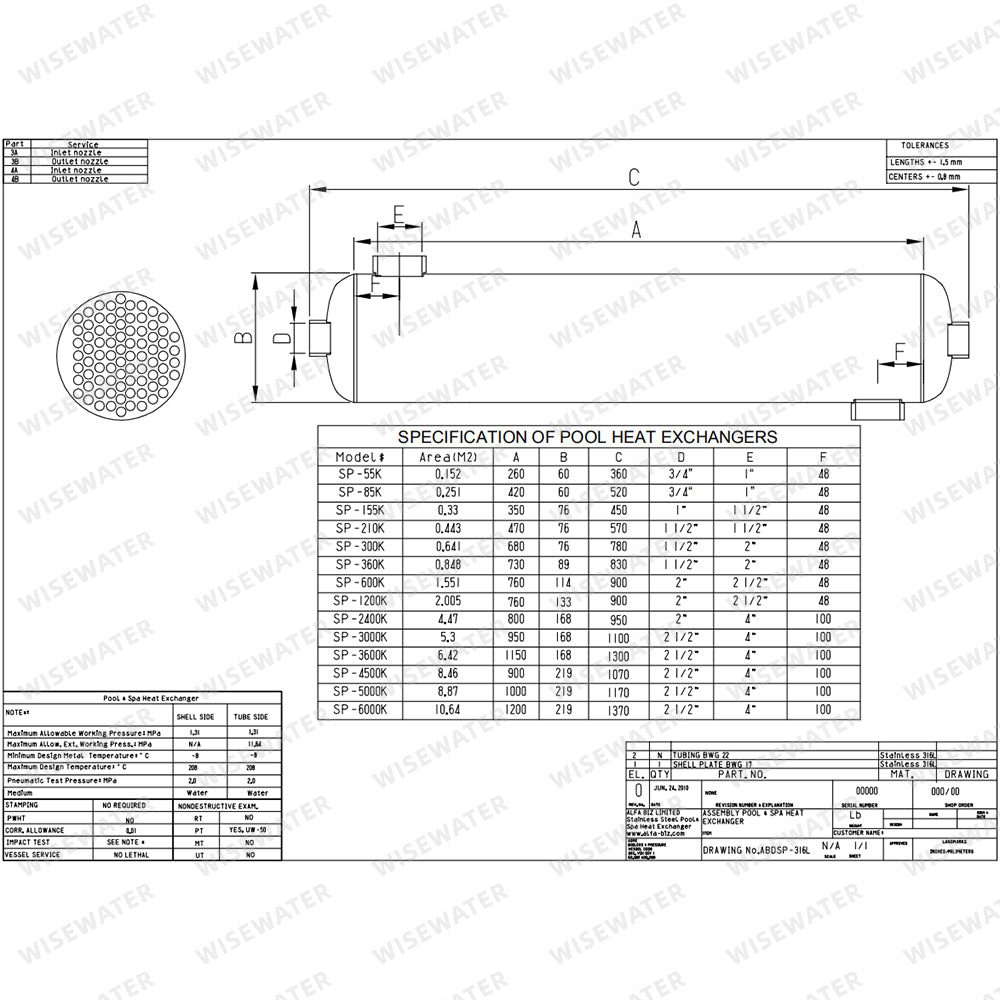

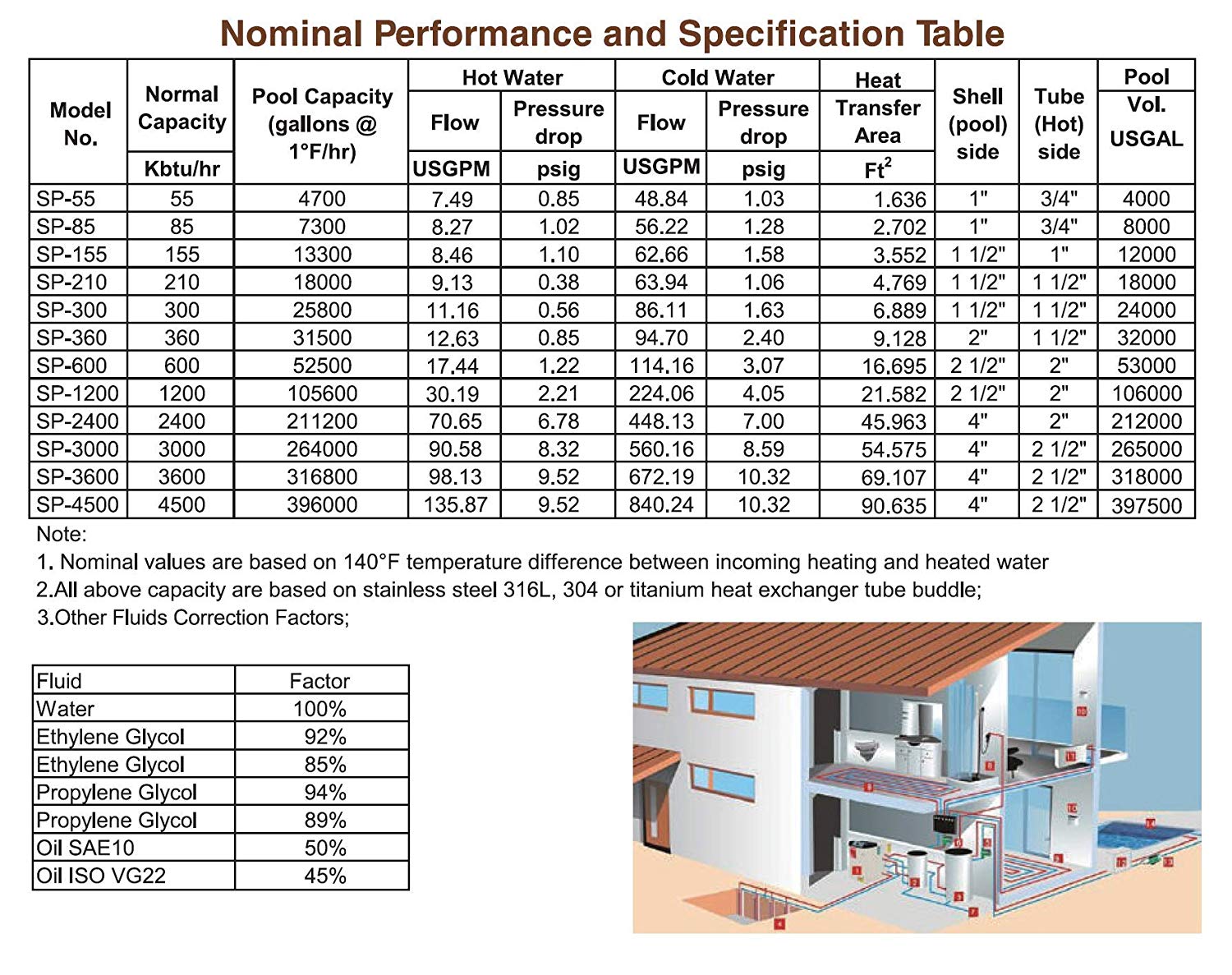

Model SP-6000K Capacity 6,000,000 Btu Shell (Pool) / Tube (Hot)
Connections
4" / 2 1/2"

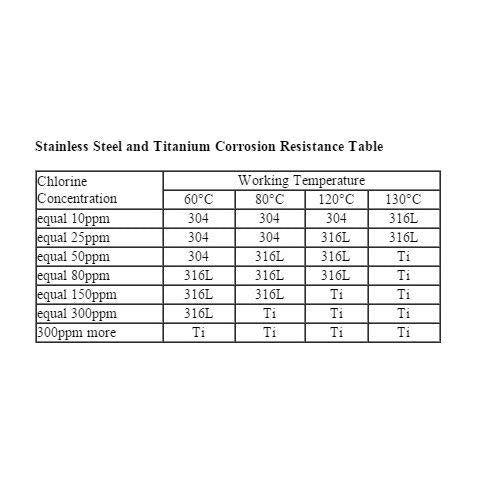

Minimum Temperature -19F Maximum Temperature 406F Materials Stainless Steel 316L
Design Pressure 190psi Test Pressure 285psi Dimensions 48" x 8.62"

SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the
Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833-328-6888 for help with your heating projects.
