Description
This kit includes 5 pcs 1/2" PEX to 1/2" FNPT swivel elbow adapters along with matching stainless steel clamps and copper crimp rings. It is designed for PEX piping systems requiring a swivel connection to FNPT threaded components.
All fittings are manufactured using DZR brass and meet NSF/ANSI 61 standards for potable water applications.
Suitable for standard 1/2" PEX tubing systems and 1/2" FNPT threaded plumbing components.

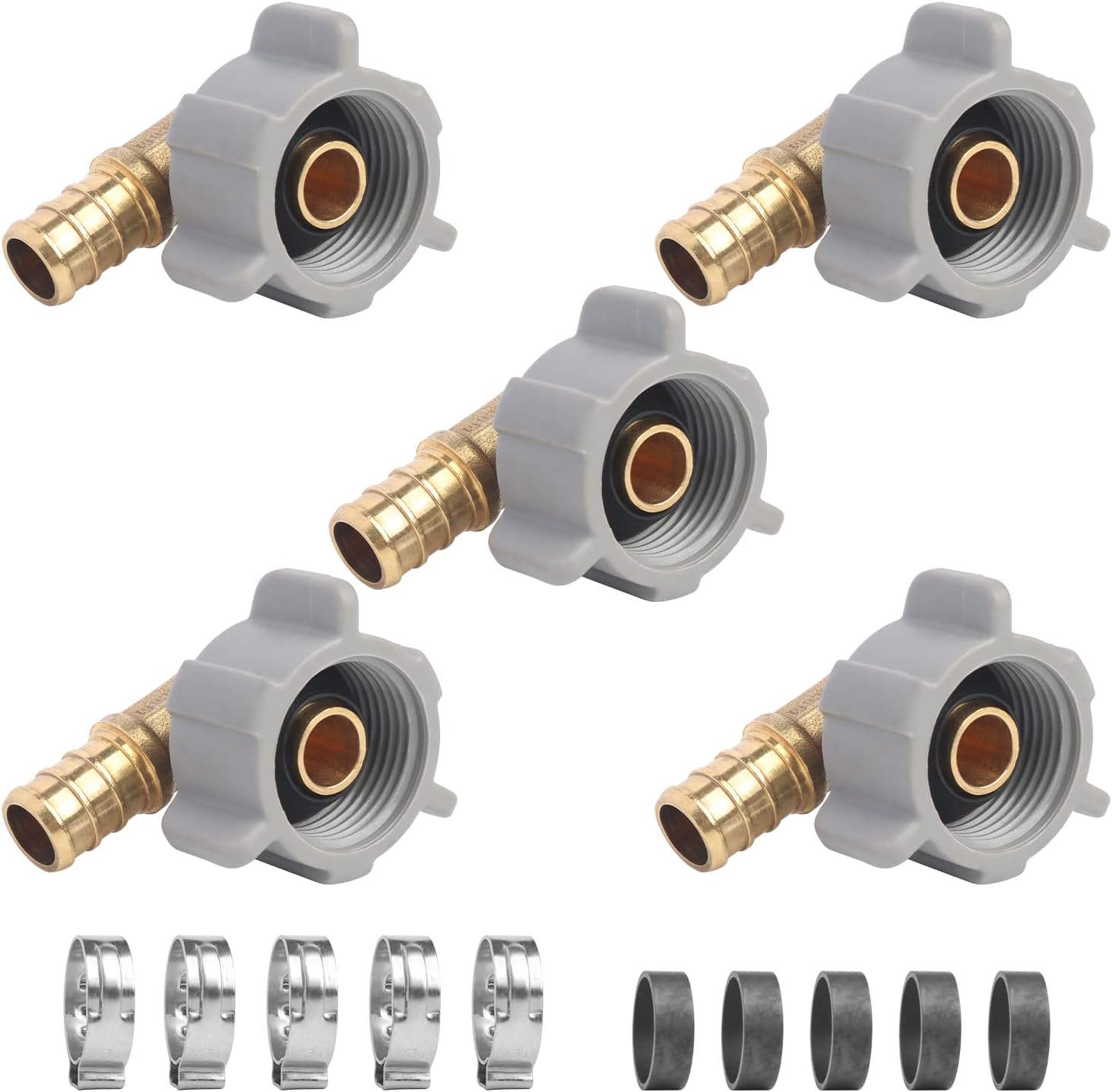

Kit Contents
- 5 × 1/2" PEX to 1/2" FNPT swivel elbow adapters
- 5 × stainless steel clamps
- 5 × copper crimp rings
Material & Construction
- Body material: DZR brass (dezincification resistant brass)
- Swivel nut: PA66 nylon
- Sealing: Internal rubber gasket
- Surface: Standard brass finish
Designed for corrosion resistance in typical residential and light commercial water systems.

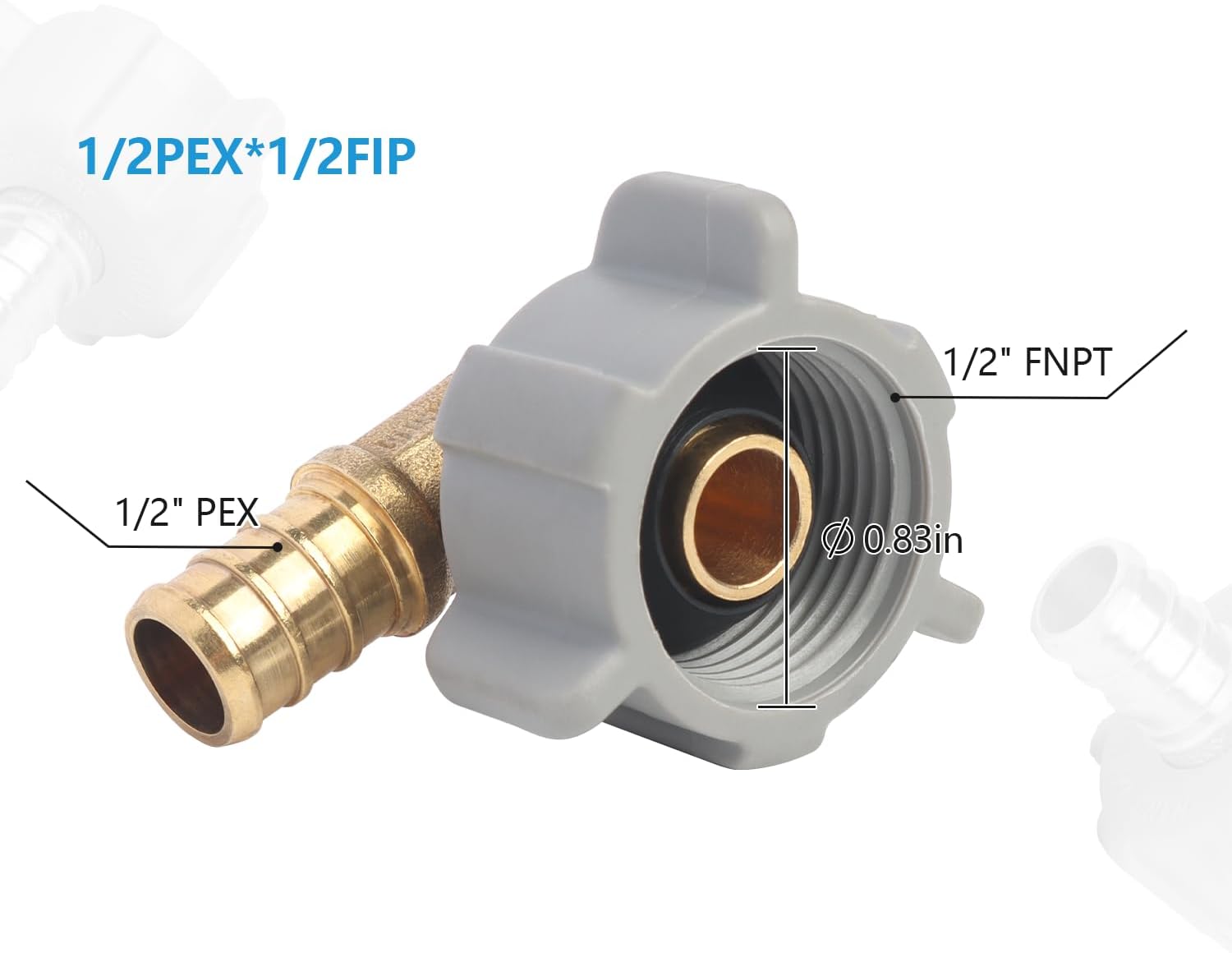

Connection Type
- PEX side: Crimp connection (standard PEX tubing)
- Thread side: 1/2" FNPT swivel connection
- Swivel function: 360° rotation for alignment during installation

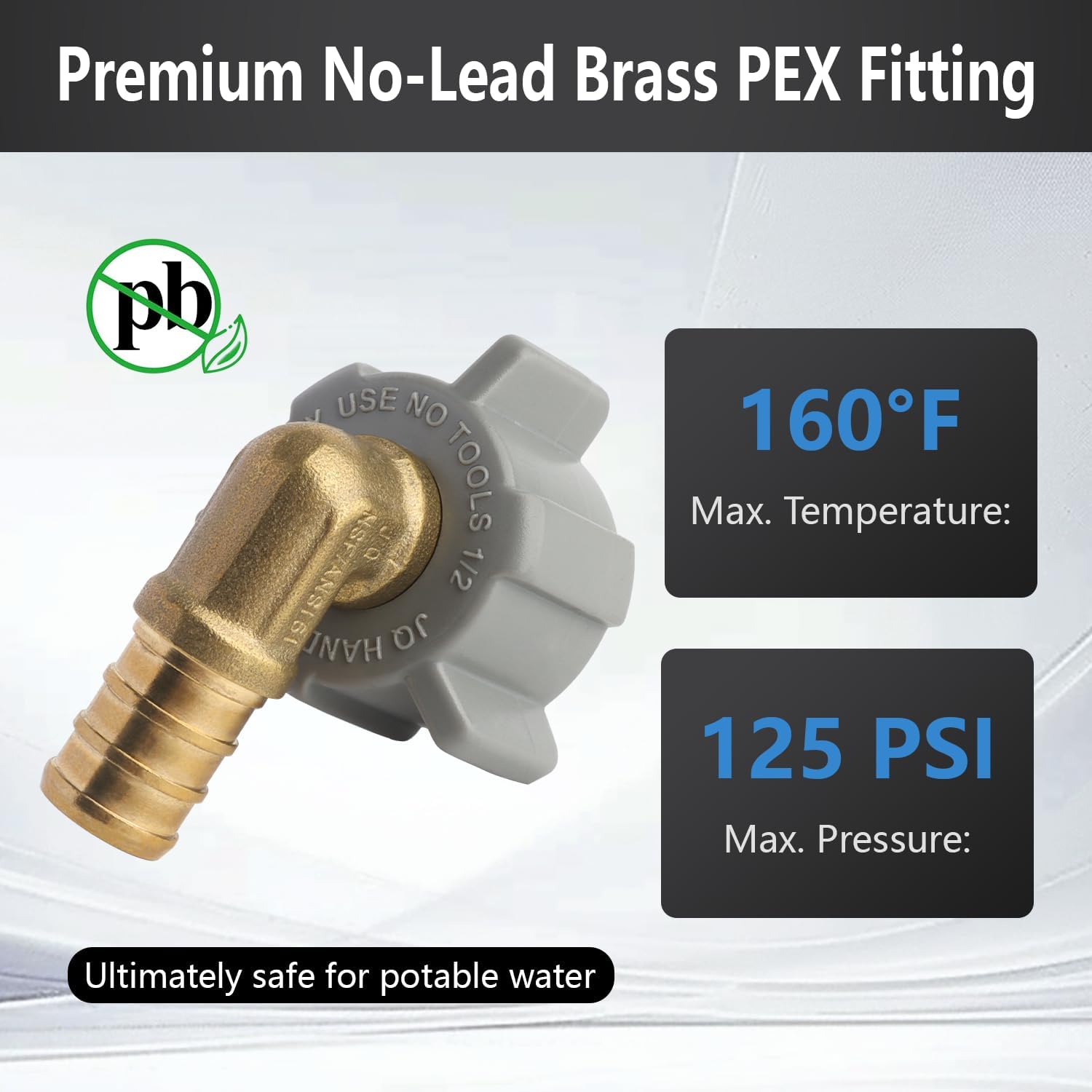

Standards & Rating
- Certified to NSF/ANSI 61 for drinking water system use
- Temperature rating: up to 160°F (71°C)
- Pressure rating: up to 125 PSI

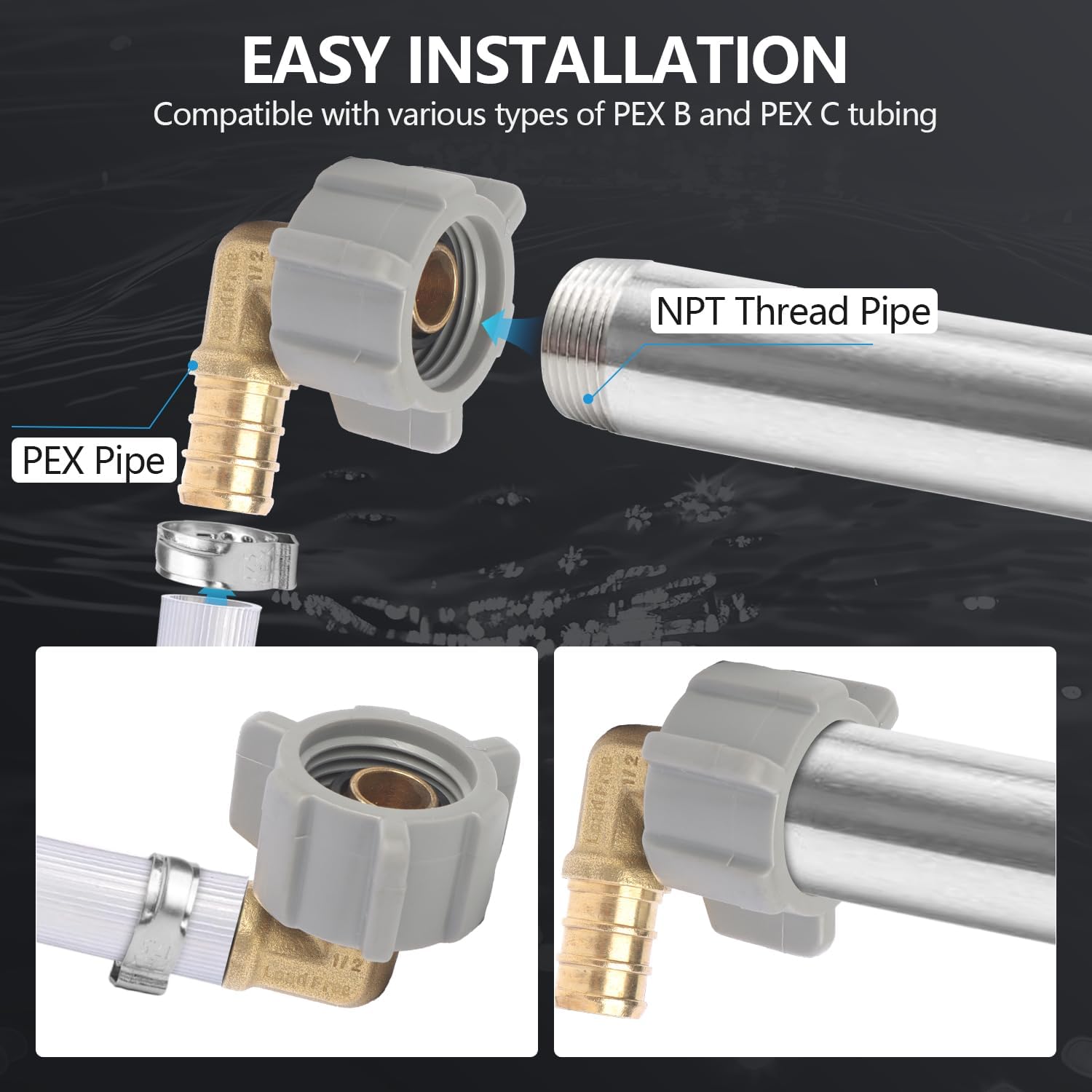

Installation Notes
- Requires standard PEX crimp tools (not included)

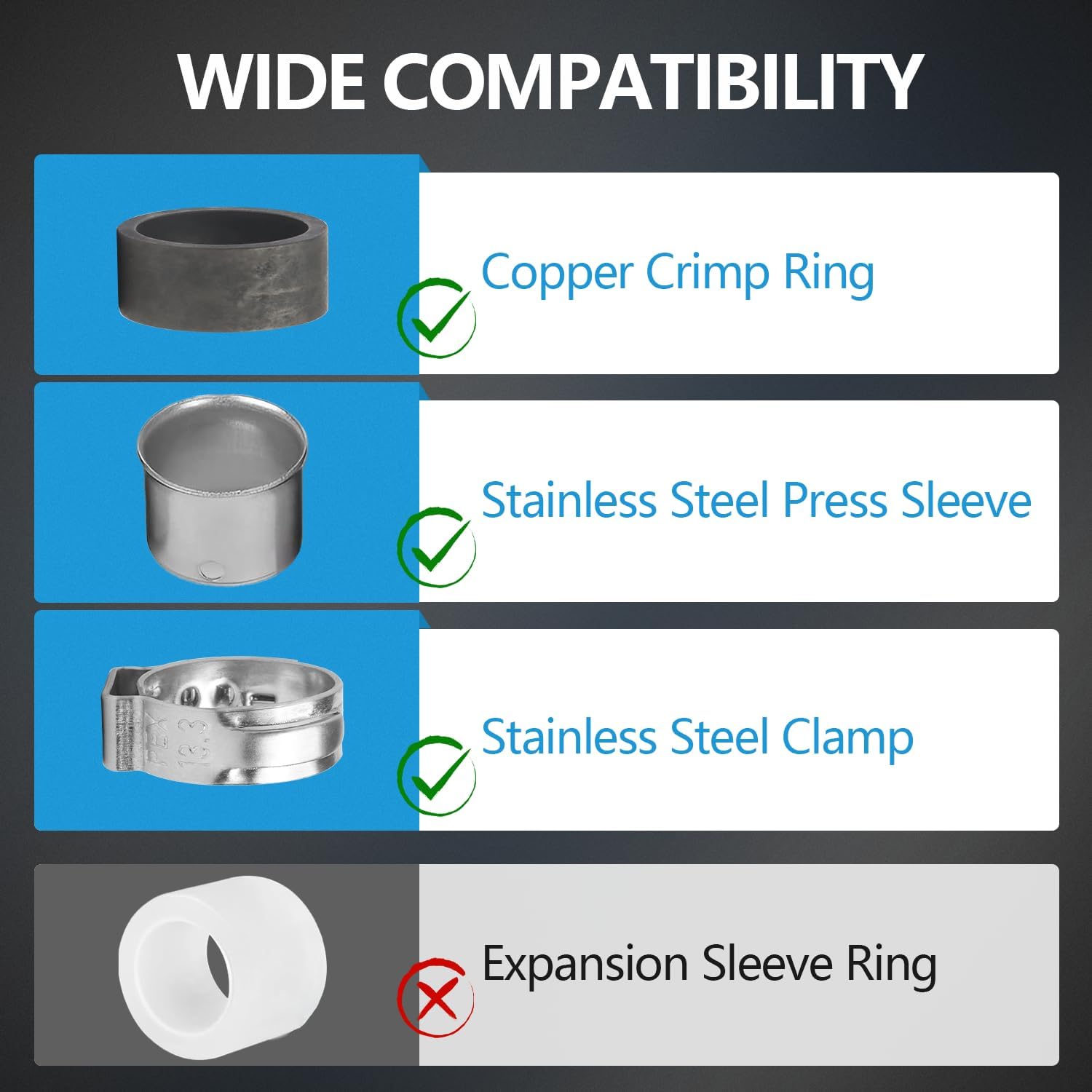

- Crimp rings and clamps are compatible with standard PEX crimp systems
- Swivel nut allows positioning before final tightening to threaded connection
- No soldering or adhesive required

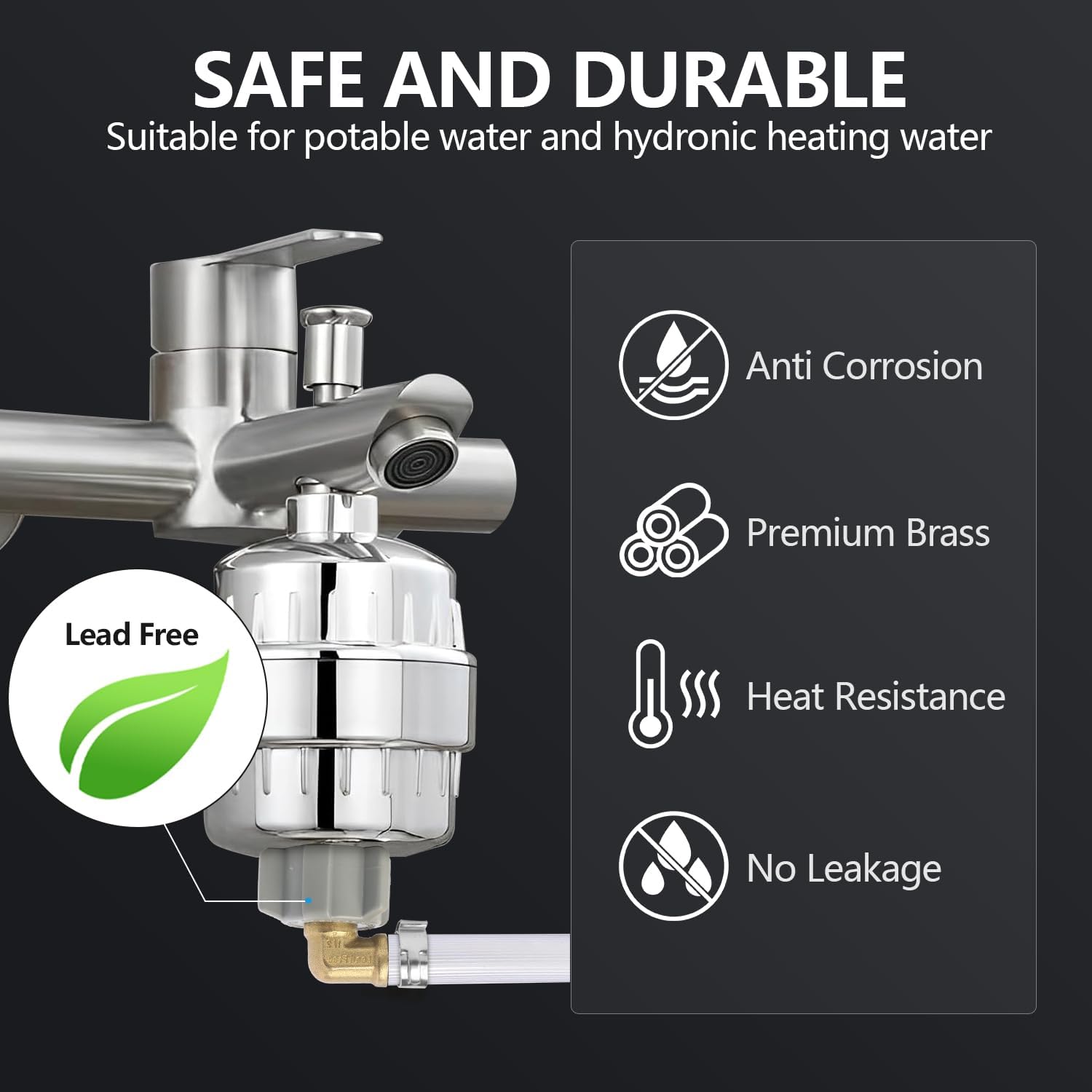

Typical Applications
- Residential plumbing systems
- PEX manifold installations
- Faucet and fixture connections
- Under-sink water line routing
- Water softener connections
- RV plumbing systems
- Toilet supply lines
