Description

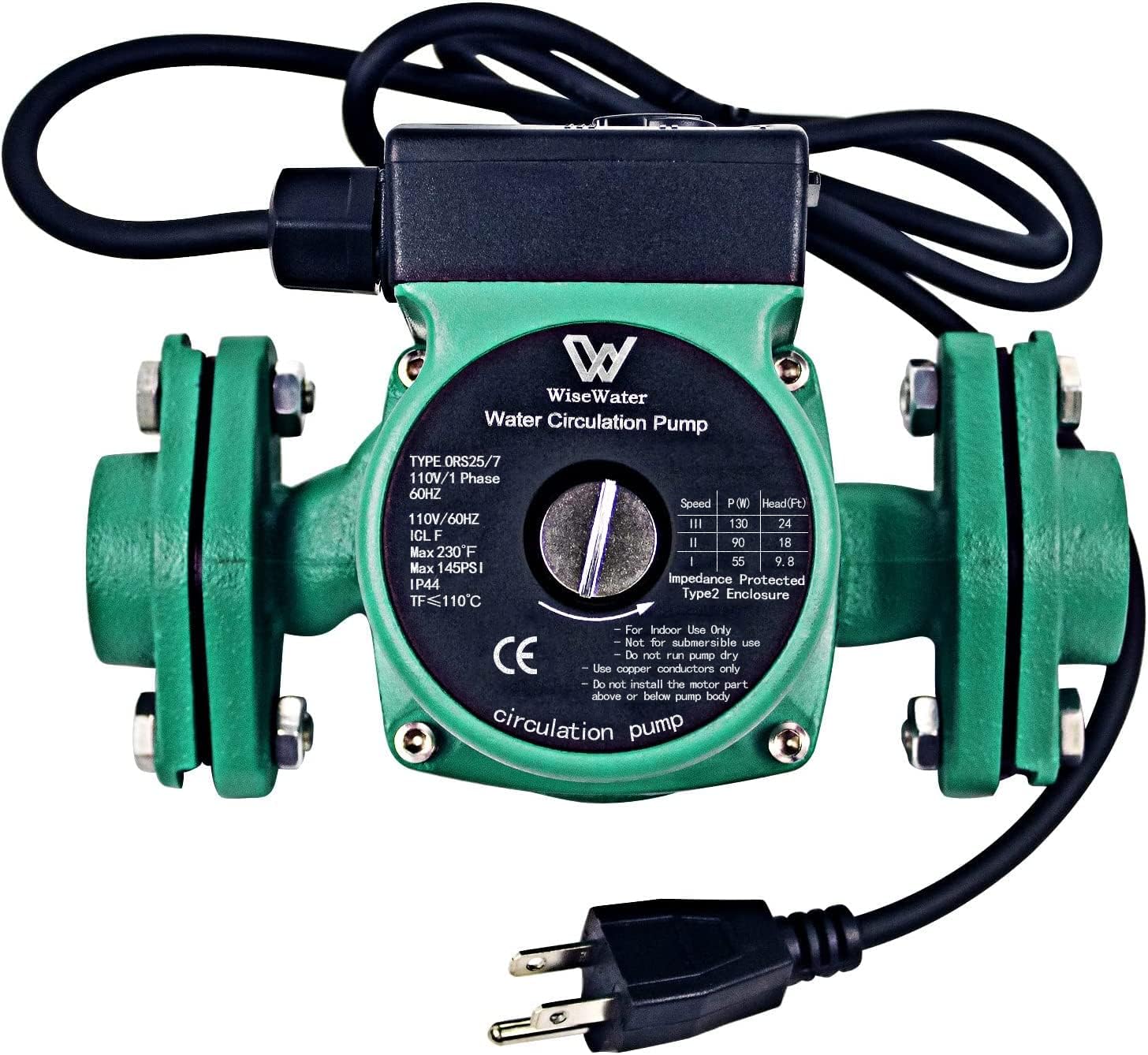

The WiseWater 110V hot water recirculating pump is designed for water circulation in closed-loop heating systems. It is suitable for residential and light commercial applications including hydronic radiant floor heating, boiler systems, domestic hot water recirculation, solar water heating, sidearm heat exchangers, heating manifolds, and swimming pool heating loops.
The pump features a three-speed manual selector with operating power options of 55W, 90W, and 130W, allowing the circulation rate to be adjusted according to different system requirements. At the highest setting, the pump provides a maximum flow rate of 13 GPM with a maximum head of 24 ft.
|
Brand Name |
WiseWater |
Model Number |
25PBG-7_Green |
|
Maximum Lifting Height |
24 Feet |
Voltage |
110 Volts (AC) |
|
Color |
Green |
Item Dimensions L x W x H |
5.9"L x 5.1"W x 4.7"H |
|
Material Type |
Cast Iron |
Item Weight |
7 Pounds |
Three-Speed Manual Control
The built-in speed selector allows manual adjustment without additional controllers.
- Speed I: 55W
- Speed II: 90W
- Speed III: 130W
Head performance varies with each speed:
- 9.8 ft
- 18 ft
- 24 ft
This allows the pump to be matched to different piping layouts and heating system requirements.
Wet Rotor Construction
The pump uses a wet rotor design in which circulating water lubricates the internal bearing during operation. This design eliminates mechanical seals and does not require routine lubrication under normal operating conditions.
The ceramic bearing is suitable for continuous hot water circulation and is designed for resistance to wear and elevated temperatures.
Pump Construction
The pump housing and pump head are manufactured from cast iron for closed-loop water circulation systems.
The impeller is made from PES engineering plastic, providing dimensional stability under elevated water temperatures.

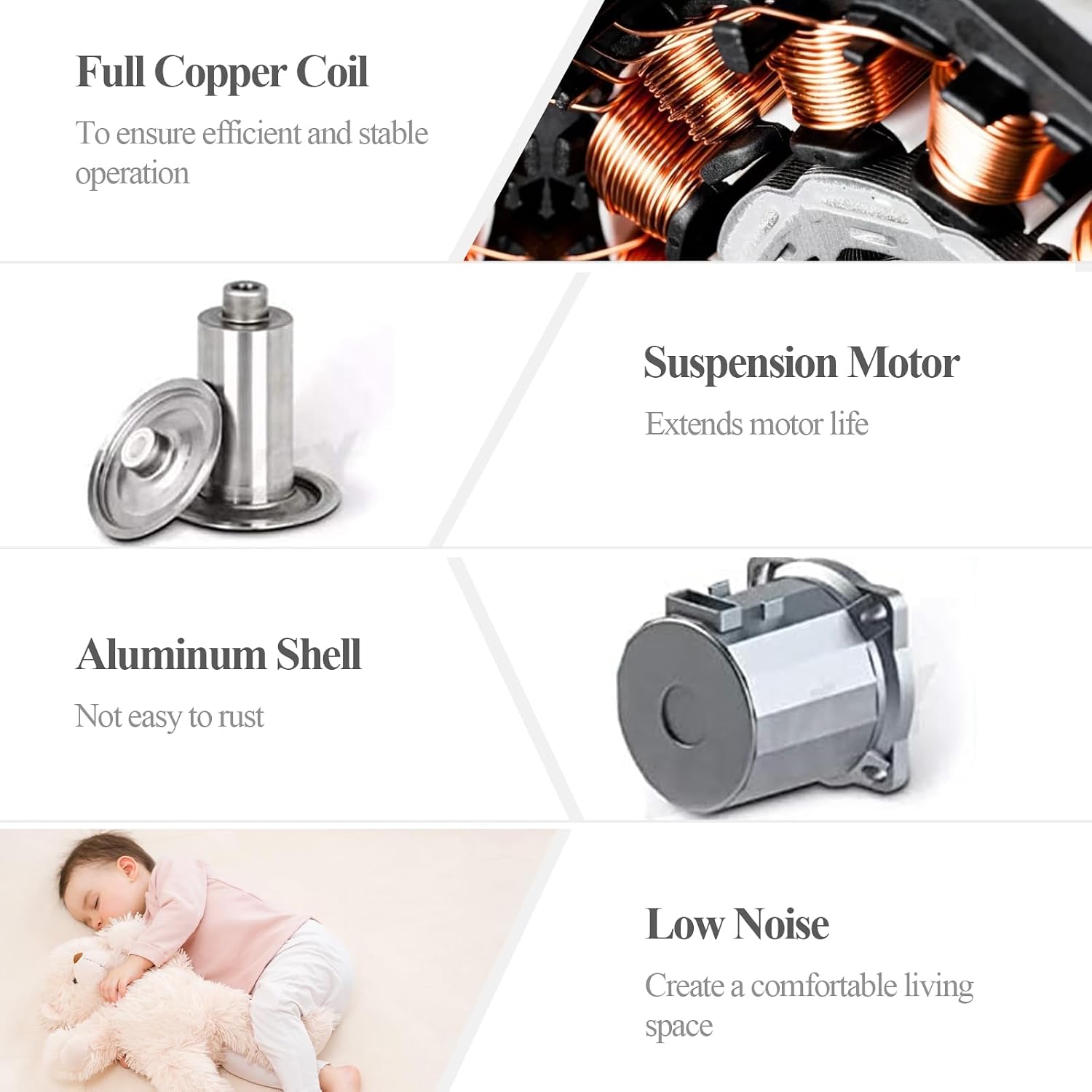

The motor uses copper windings and operates on a standard 110V power supply with a 3.46 ft power cord and U.S. plug.

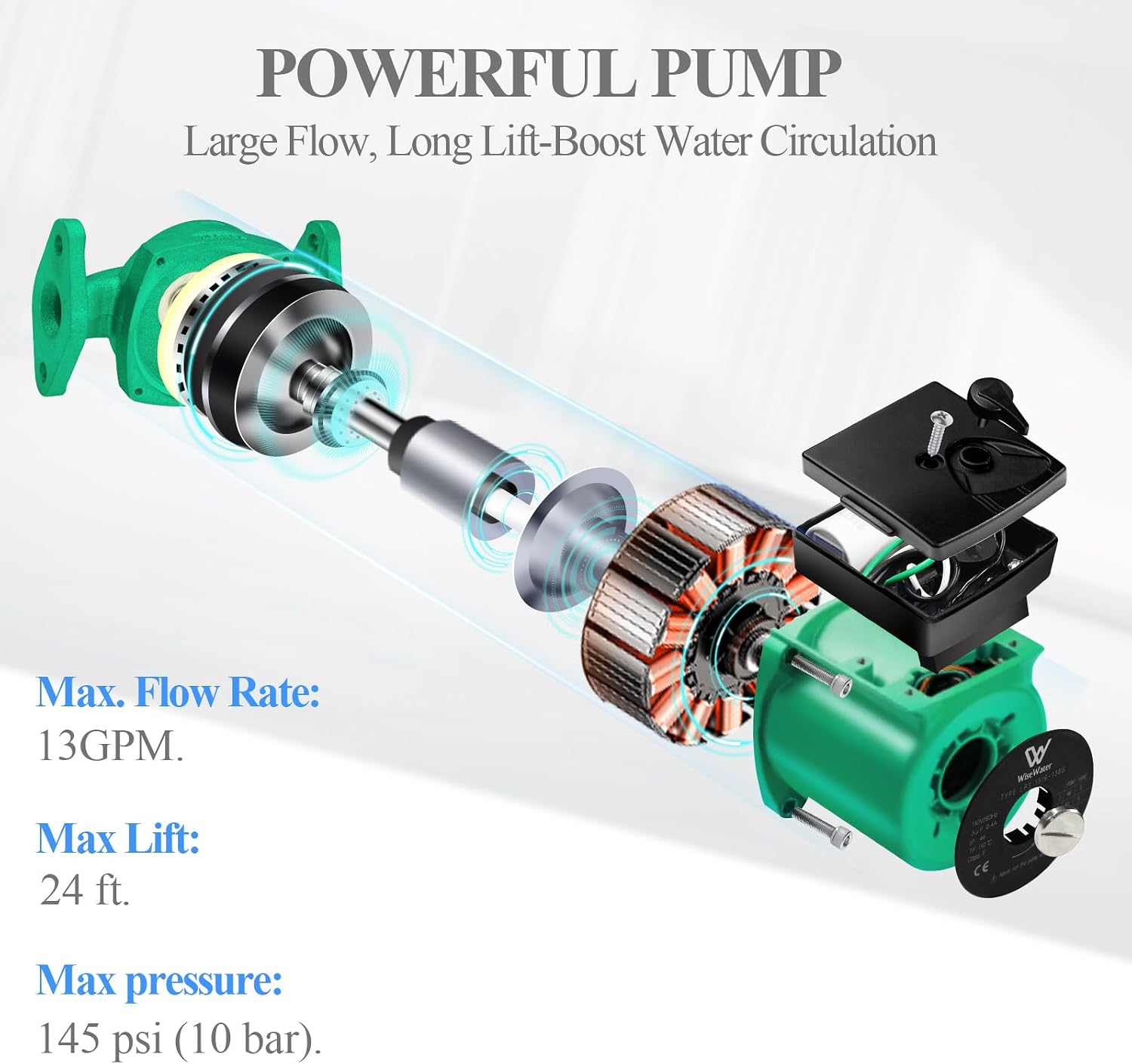

Operating specifications include:
- Maximum flow rate: 13 GPM
- Maximum head: 24 ft
- Maximum working pressure: 145 psi (10 bar)
- Maximum water temperature: 230°F (110°C)
Ceramic Bearing：The pump uses a ceramic bearing designed for circulating water applications. Ceramic material provides good resistance to corrosion, wear, and elevated operating temperatures while supporting long-term circulation performance.
PES Impeller：The impeller is manufactured from PES engineering plastic. The material maintains dimensional stability under high-temperature water circulation and is suitable for continuous heating system operation.
Power Cord：The pump includes a standard U.S. plug with a 3.46 ft power cord, allowing direct connection to compatible 110V power outlets.
Typical Applications
This circulation pump is suitable for clean water circulation in closed-loop heating systems, including:
- Hydronic radiant floor heating
- Boiler circulation
- Domestic hot water recirculation
- Solar water heating systems
- Sidearm heat exchangers
- Heating manifolds
- Snow melting systems
- Swimming pool heating loops
- Fan coil heating systems
- HVAC hot water circulation
- Closed-loop plumbing systems
Installation

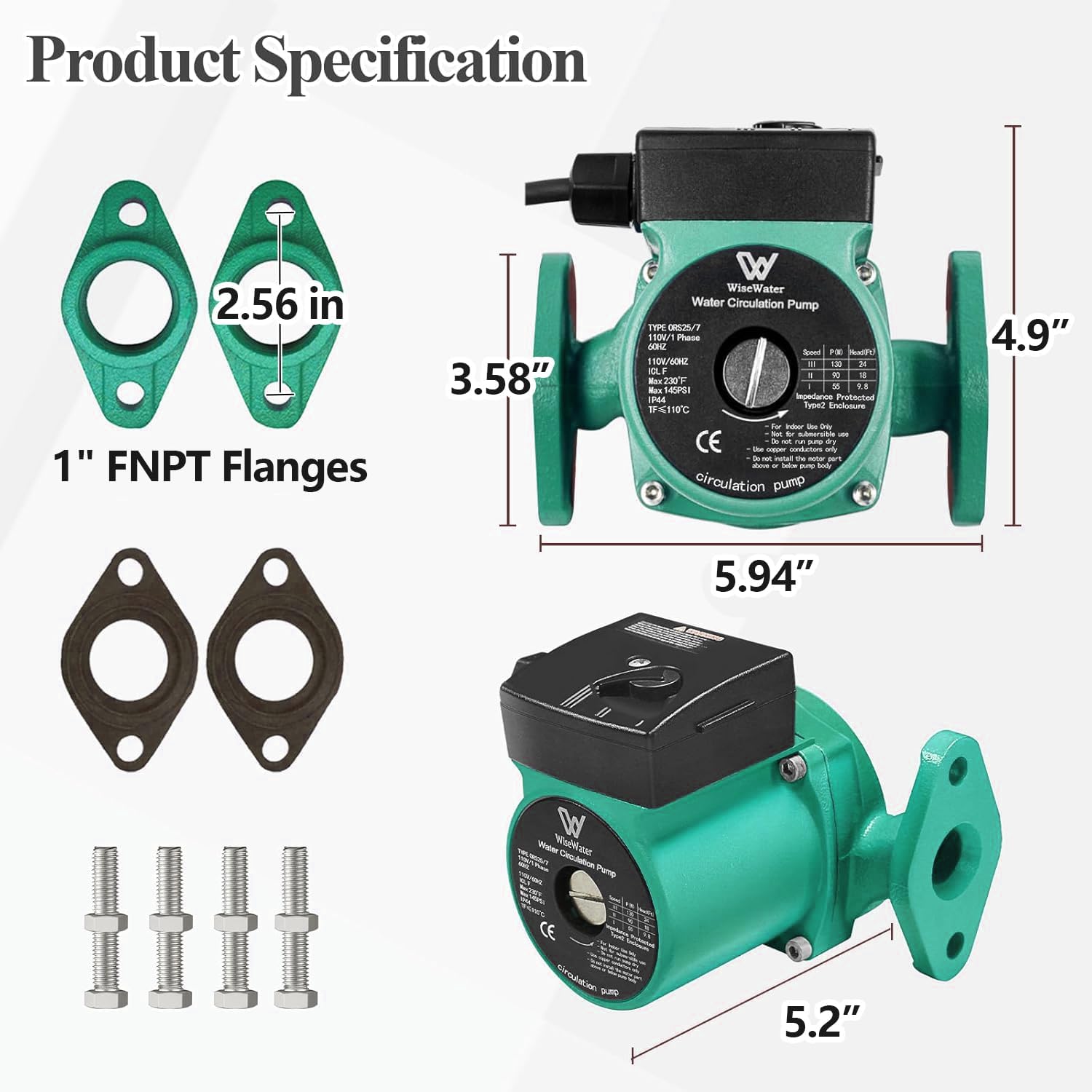

The pump includes the hardware required for installation with standard 1-inch FNPT connections.
Included in the package:
- Two 1" FNPT flanges
- Two sealing gaskets
- Four bolts
- Four nuts
The supplied fittings allow installation into compatible hydronic piping systems using common installation tools.
Installation Notes:
1. Pump shaft must be installed horizontally, don't install
inverted or vertically.
2. Before installing, make sure the pipeline is connectedwell and cleaned to avoid impurities or welding debrisfrom entering the pump.
3. The direction of water flow should be aligned with the
arrow on the pump body.
