Description
Upgrade your traditional water pump with the WiseWater Smart Pump Controller. Designed to automatically start and stop your pump based on water demand, this intelligent controller provides stable water pressure, real-time pressure monitoring, and advanced protection features to improve pump performance and extend equipment life.
Compatible with most residential, agricultural, and light commercial water pumps, it is an ideal solution for booster systems, garden irrigation, water supply, and pressure management.
Automatic Smart Pump Control：The controller automatically detects water demand and starts or stops the pump accordingly, eliminating manual operation while maintaining consistent water pressure.

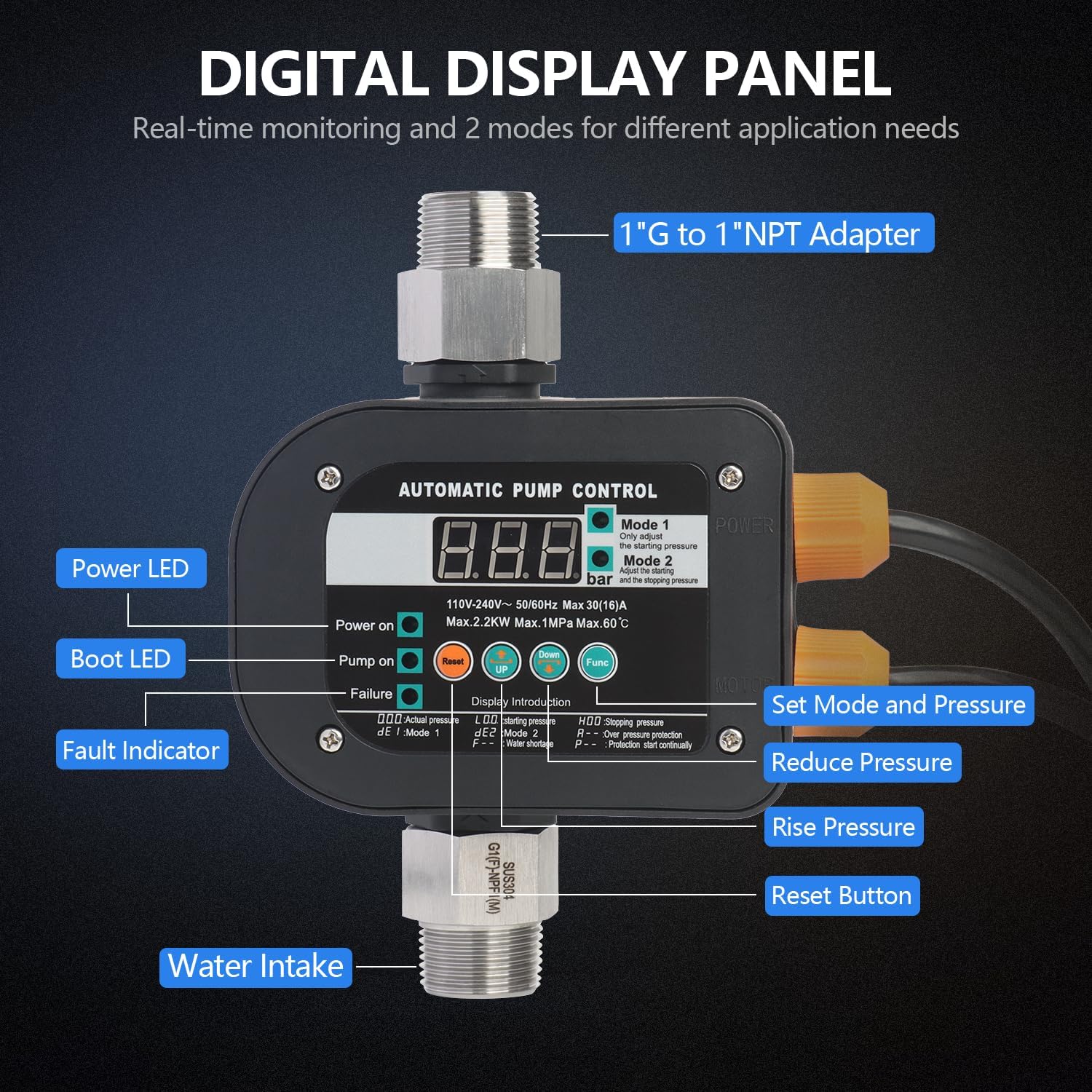

Intelligent Digital Pressure Display：Monitor your system at a glance with the built-in digital display showing real-time operating pressure.

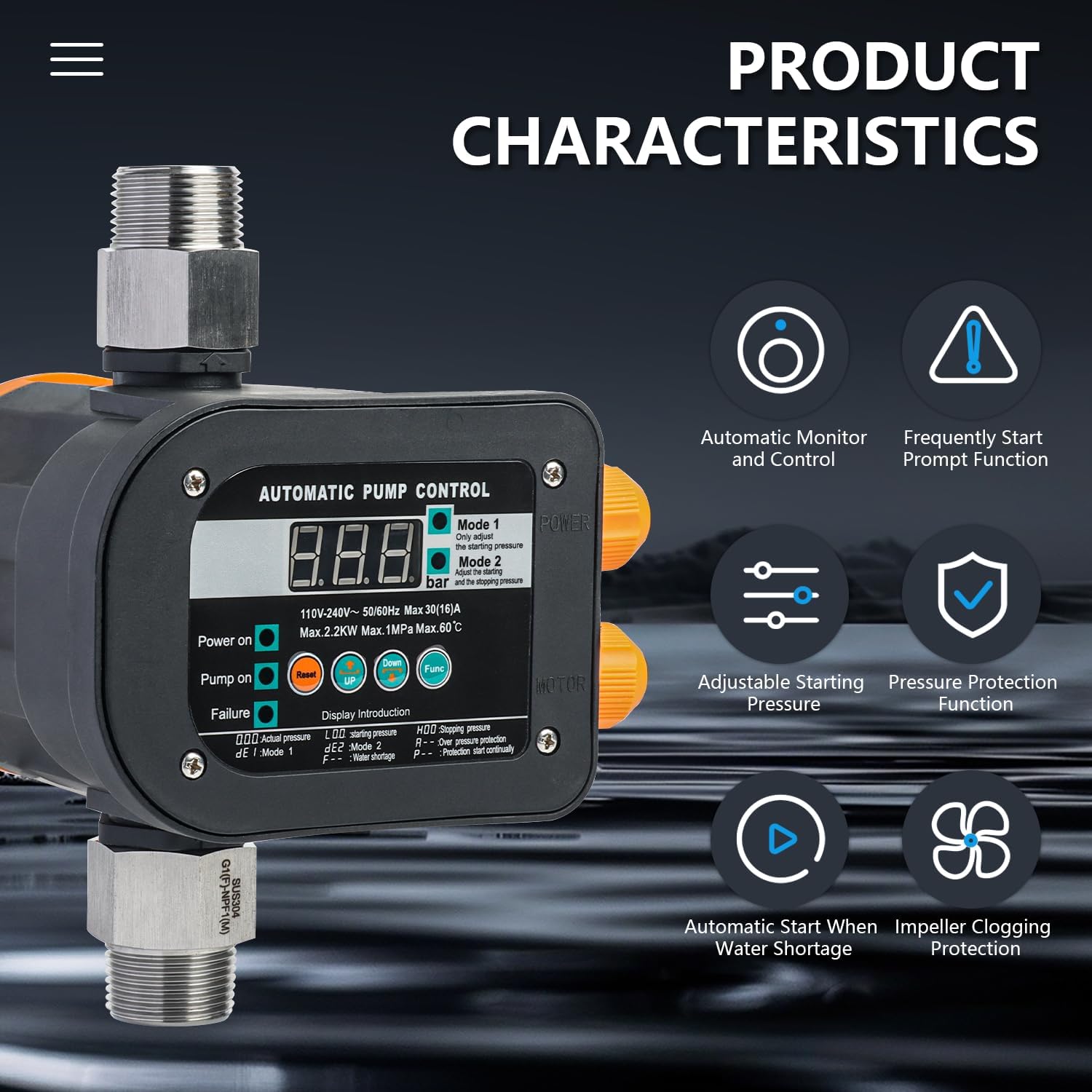

Additional intelligent functions include:
- Pressure protection
- Dry-run protection
- Frequent start warning
- Automatic restart after water recovery

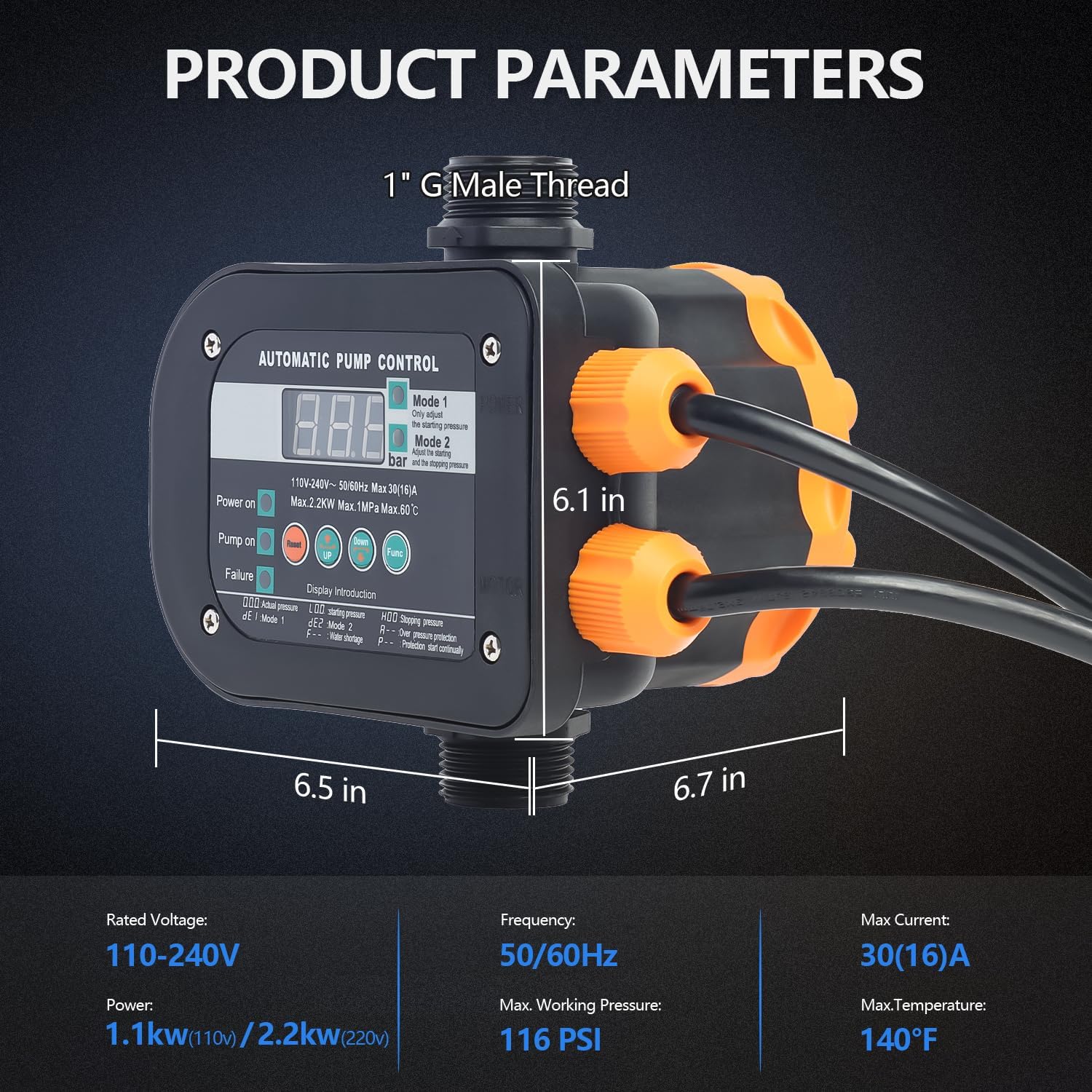

| Spec Name | Spec Value |
|---|---|
| Rated Voltage | 110-240v |
| Frequency | 50-60Hz |
| Max Current | 30(16)A |
| Rated Power | 1.1kw (110v)/2.2kw (220v) |
| Product Weight | 2.48 Pounds |
| Max. Working Pressure | 116 PSI |
| Min. Differential Pressure | 4.35 PSI |
| Max. Differential Pressure | 94.27 PSI |
| Starting Pressure | 7.25-97.18 PSI |
| Stopping Pressure | 11.6-101.53 PSI |
| Max. Working Temperature | 140°F |
| IP Grade | IP65 |

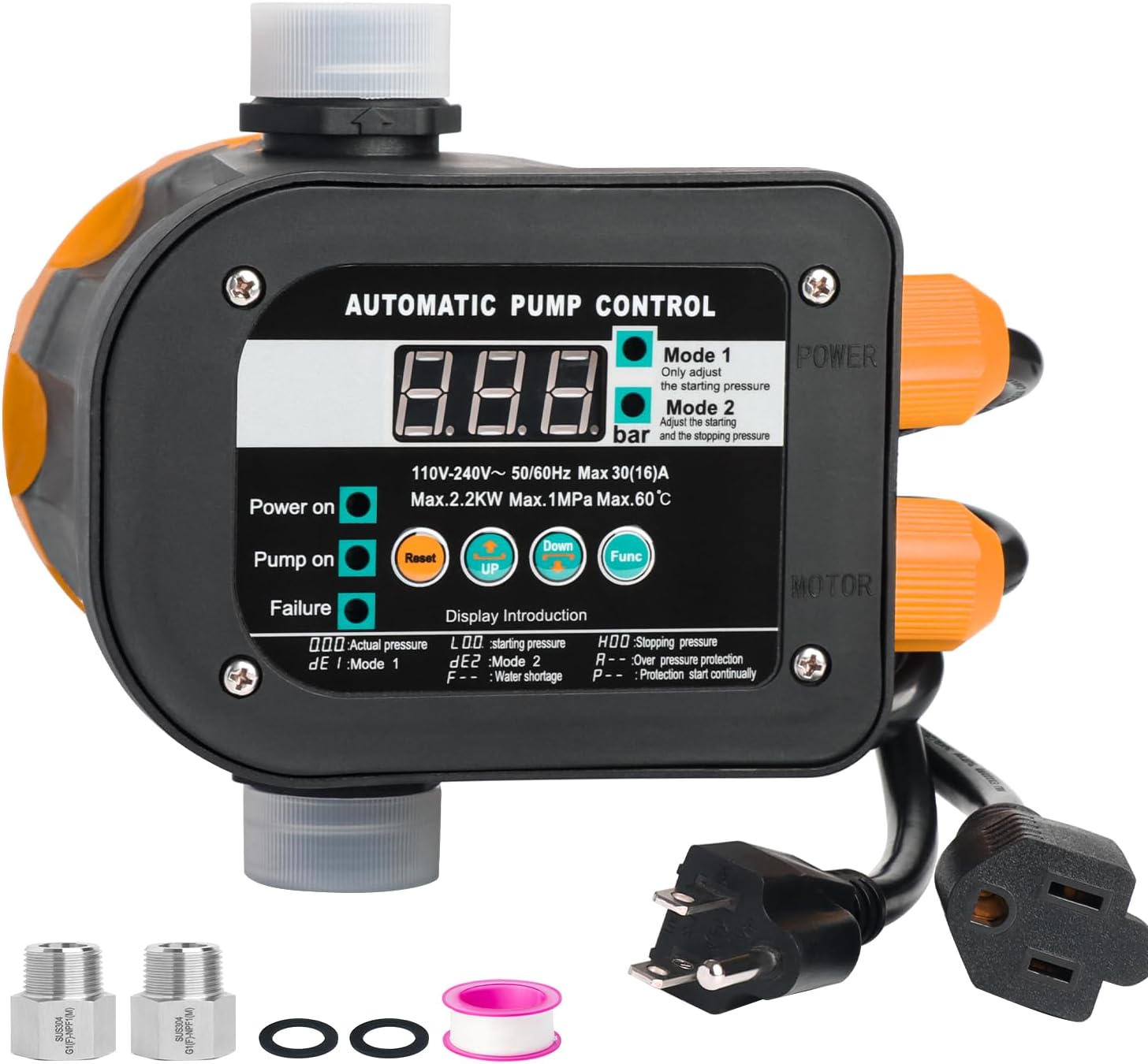

| Package Content | 1 x Water pump automatic controller, 2 x 1'G to 1'NPT adapter, 1 x Instruction manual |
Two Adjustable Operating Modes
Choose the control mode that best fits your application.
Mode 1
- Adjustable start pressure
- Automatic stop when water flow ends
Ideal for most household water supply systems.
Mode 2
- Adjustable start pressure
- Adjustable stop pressure
Provides greater flexibility for specialized pressure systems.
Easy Installation
Designed with standard 1" NPT threaded connections, the controller can be installed either vertically or horizontally and works with most common water pumps.
Compatible with:
- Booster pumps
- Self-priming pumps
- Jet pumps
- Garden pumps
- Centrifugal pumps
Reliable Protection
Built-in intelligent protection helps extend pump life.
Protection functions include:
Dry-run protection
Over-pressure protection
Frequent cycling detection
Automatic recovery after water shortage

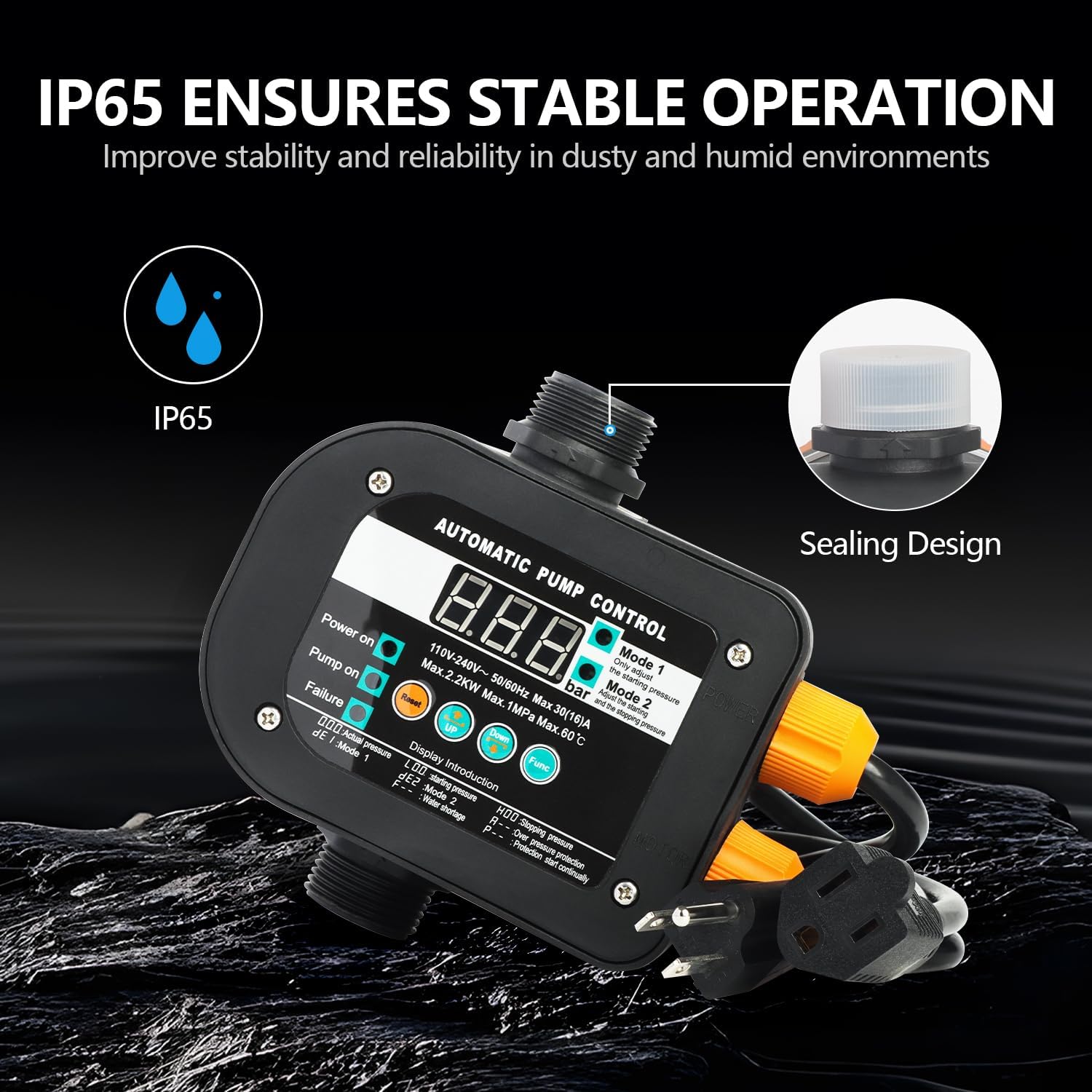

Durable Outdoor Construction
The IP65-rated enclosure protects internal electronics against dust and water splashes, making it suitable for indoor and outdoor installations.
Applications
Perfect for a wide range of water pressure systems, including:
- Residential water supply
- Home booster pump systems
- Garden irrigation
- Lawn watering
- Greenhouses
- Rainwater harvesting
- Rural water systems
- Light commercial water supply
- Water transfer systems
