Description
The WiseWater hot water recirculating pump is designed for residential and light industrial water circulation systems. It features a 304 stainless steel pump head, three-speed operation, and a maximum flow rate of 12.6 GPM. Suitable for radiant floor heating, radiator systems, domestic hot water recirculation, and equipment cooling applications.
|
Model Number |
WW-Stainless Steel-Pump-Green |
Power Source |
Corded Electric |
Flow Rate |
12.6 Gallons Per Minute |
|
Maximum Lifting Height |
20 Feet |
Voltage |
110 Volts |
Color |
Green |
|
Material |
Stainless Steel |
Product Dimensions |

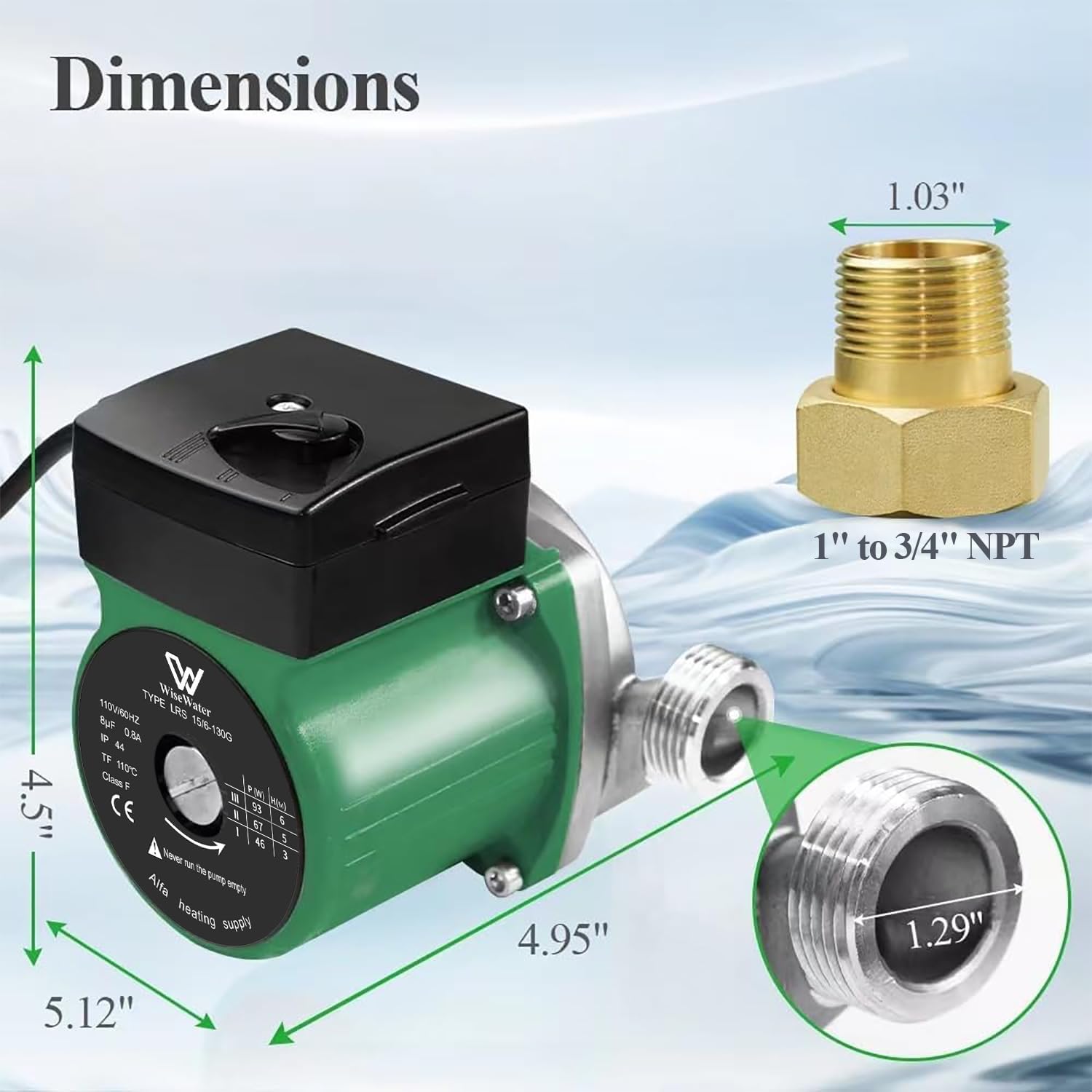

5.11"L x 4.94"W x 4.49"H |
Item Weight |
5.3 Pounds |
Features
Durable Material Construction

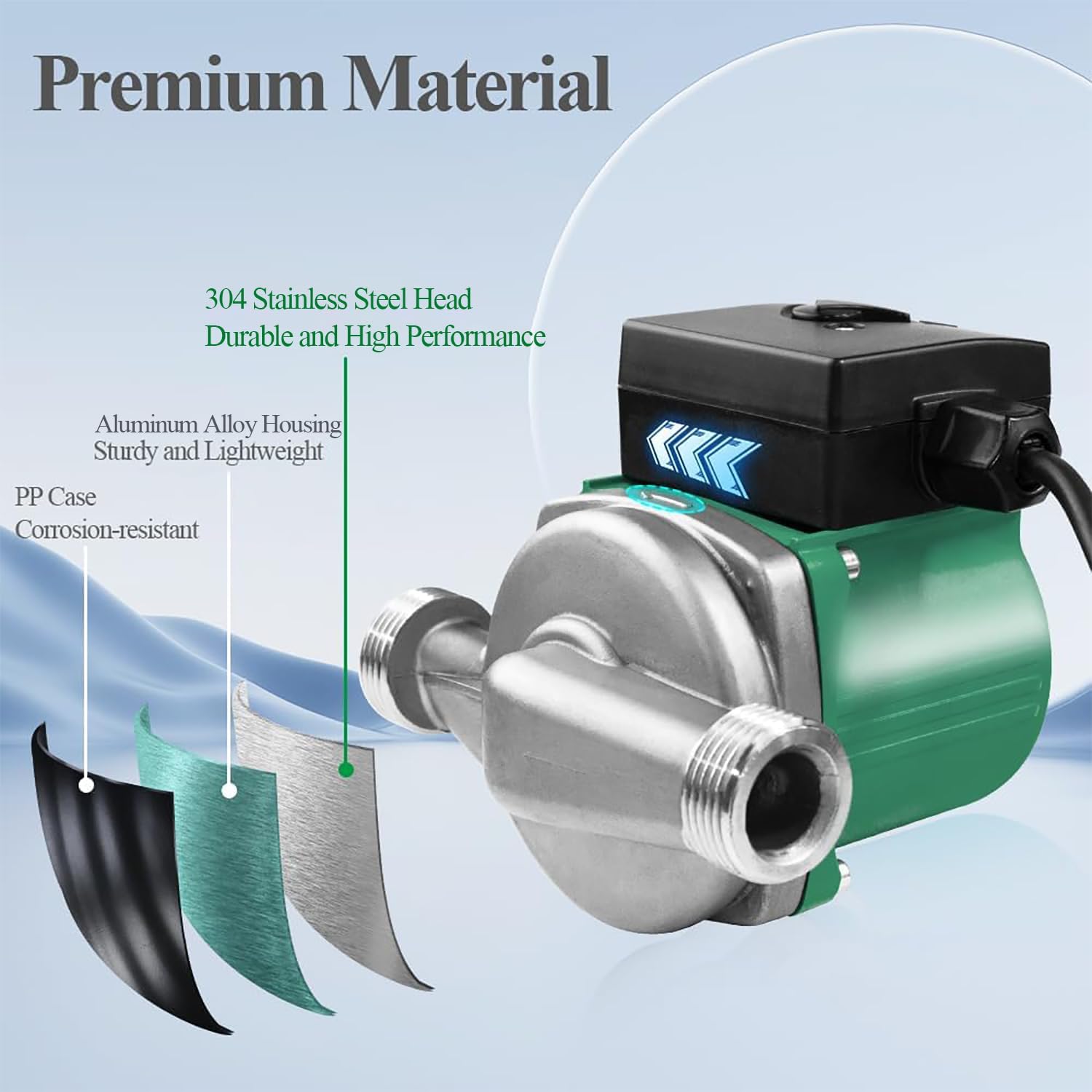

The pump head is made from 304 stainless steel for resistance to corrosion and high-temperature water exposure. The aluminium alloy housing provides structural durability, while the PP impeller and ceramic bearings support stable long-term operation in circulating water systems.
Three-Speed Operation

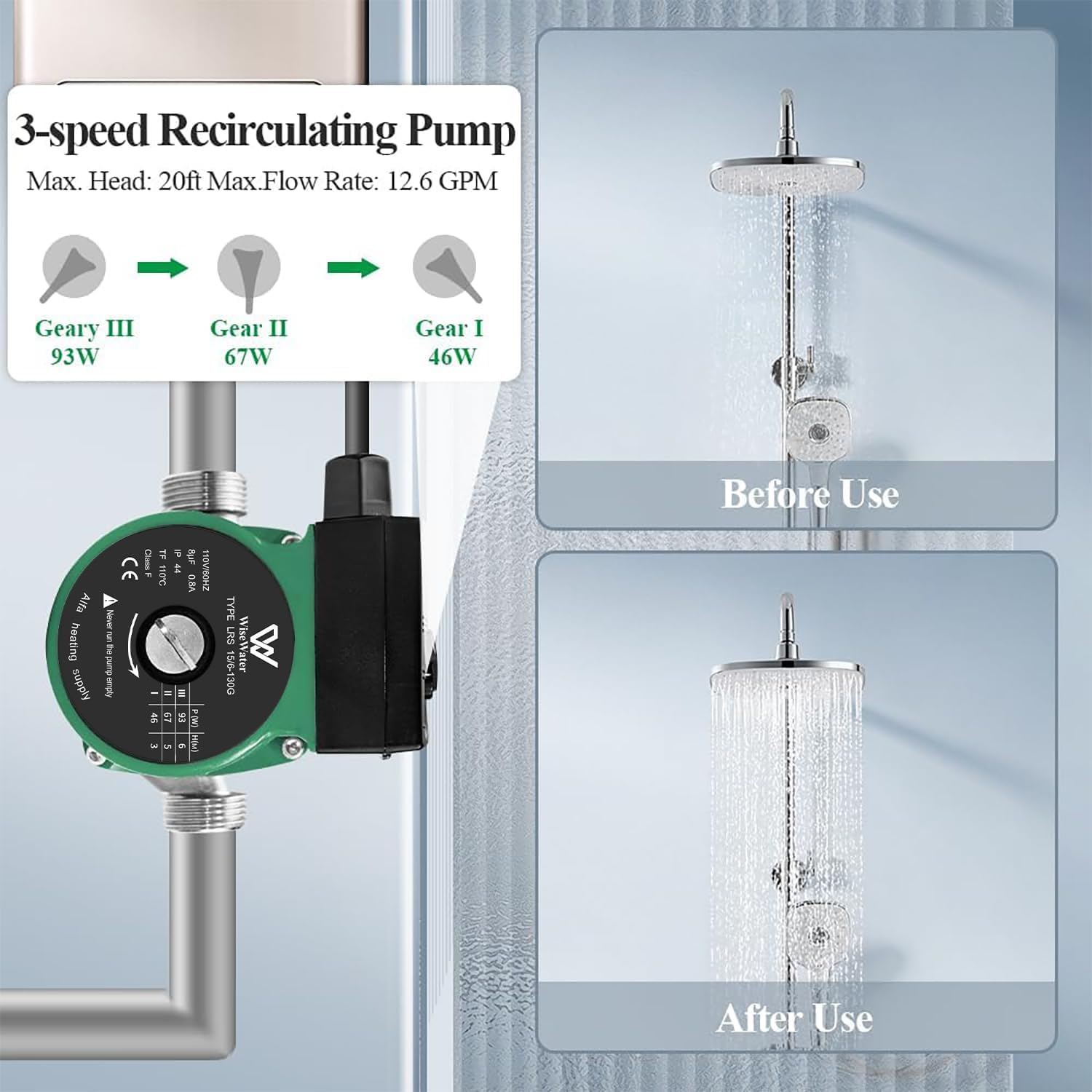

The pump includes three selectable speed settings to accommodate different circulation requirements. Users can adjust the operating power according to system size and flow demand.
Stable Water Circulation Performance
Designed with a high-precision rotor, the pump delivers a maximum flow rate of 12.6 GPM and a maximum head of 20 ft for hydronic circulation applications.
Low Operating Noise
The pump operates at approximately 30 dB under standard working conditions, making it suitable for indoor residential heating systems.
Standard Pipe Compatibility

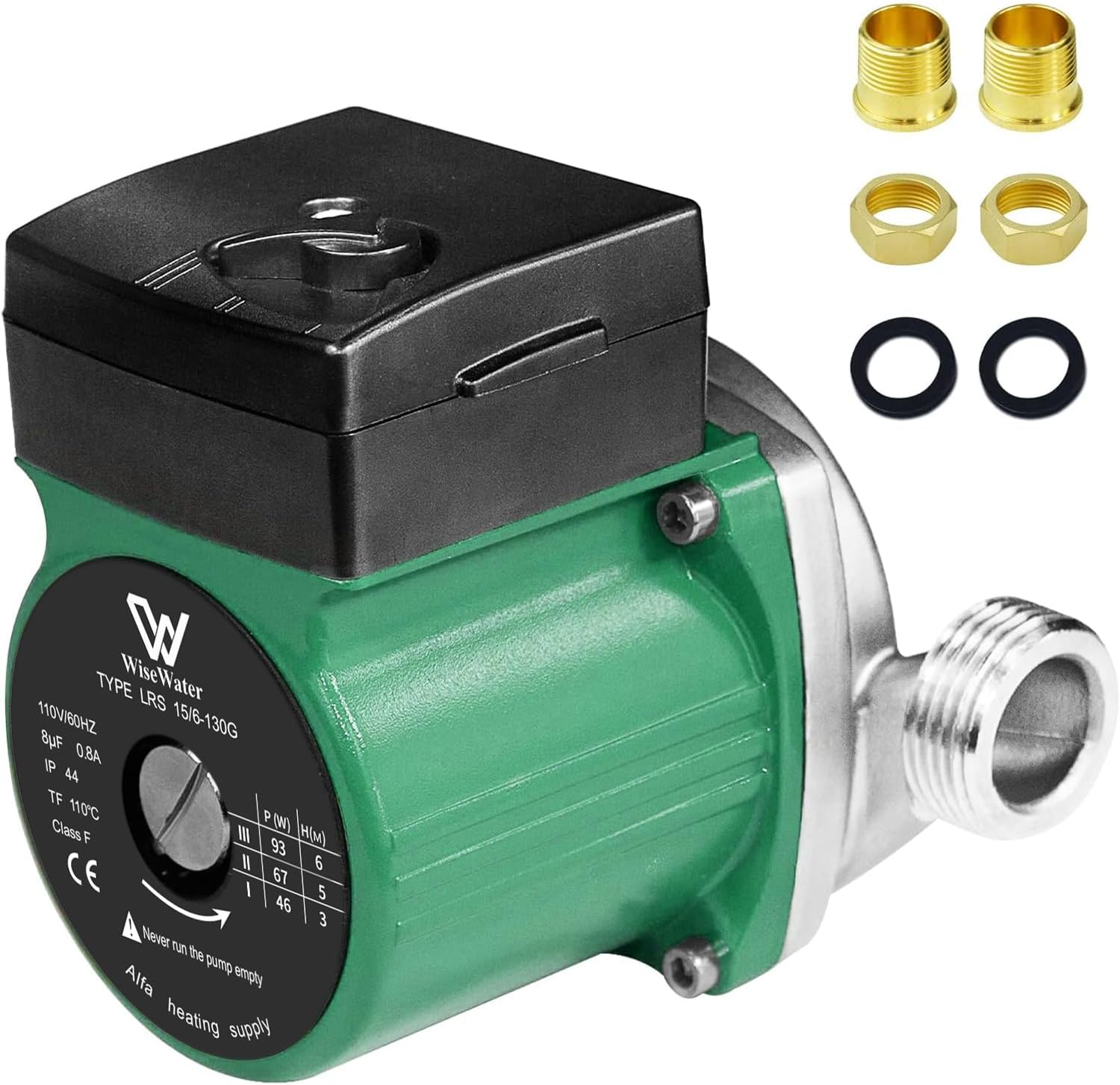

A pair of 1" to 3/4" NPT adapters with rubber gaskets is included for compatibility with common residential piping connections.
Suitable Applications
- Radiant floor heating systems
- Hydronic heating loops
- Radiator circulation systems
- Domestic hot water recirculation
- Small furnace water circulation
- Equipment cooling systems
- Plastic injection cooling circulation
Installation Notes
- Designed for closed-loop water circulation systems
- Recommended for clean water applications
- Install in the correct flow direction indicated on the pump body
- Ensure the system is fully filled and vented before operation
- Indoor installation is recommended
