Description

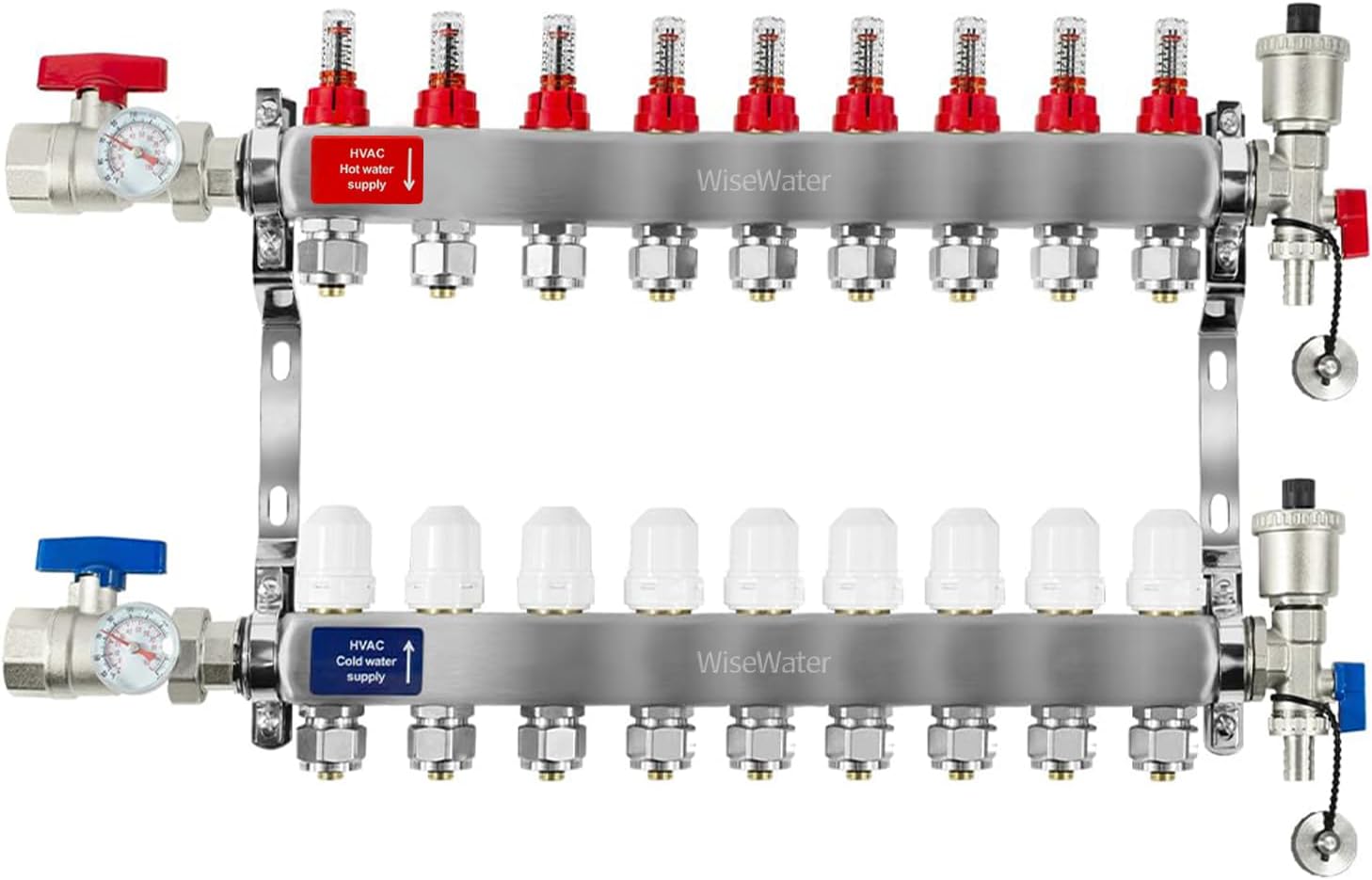

This 9 loop radiant heat manifold is designed for hydronic radiant floor heating systems using PEX tubing. The manifold assembly includes supply and return trunks, flow meters, balancing valves, shut-off components, air vent, drain valves, and mounting brackets for system installation and loop management.
The manifold body is constructed from stainless steel for corrosion resistance and compatibility with closed-loop heating applications.
This product has a 1-year warranty against manufacturer's defects.
Main Features
9 Loop Configuration:
Designed to support up to 9 heating circuits in radiant floor heating systems.
Stainless Steel Construction:
The manifold body and brackets are made from stainless steel for long-term use in hydronic heating environments.
Integrated Flow Control:
Each loop includes an individual flow meter and balancing valve to assist with system adjustment and loop balancing.
Pre-Assembled Design:
The manifold comes assembled with supply and return components to simplify installation.
Wall Mount Installation:
Includes stainless steel mounting brackets for wall installation.
PEX Compatible Connections:
Compatible with 1/2" PEX tubing using the included adapters. The manifold can also support 3/4" adapters if required (not included).

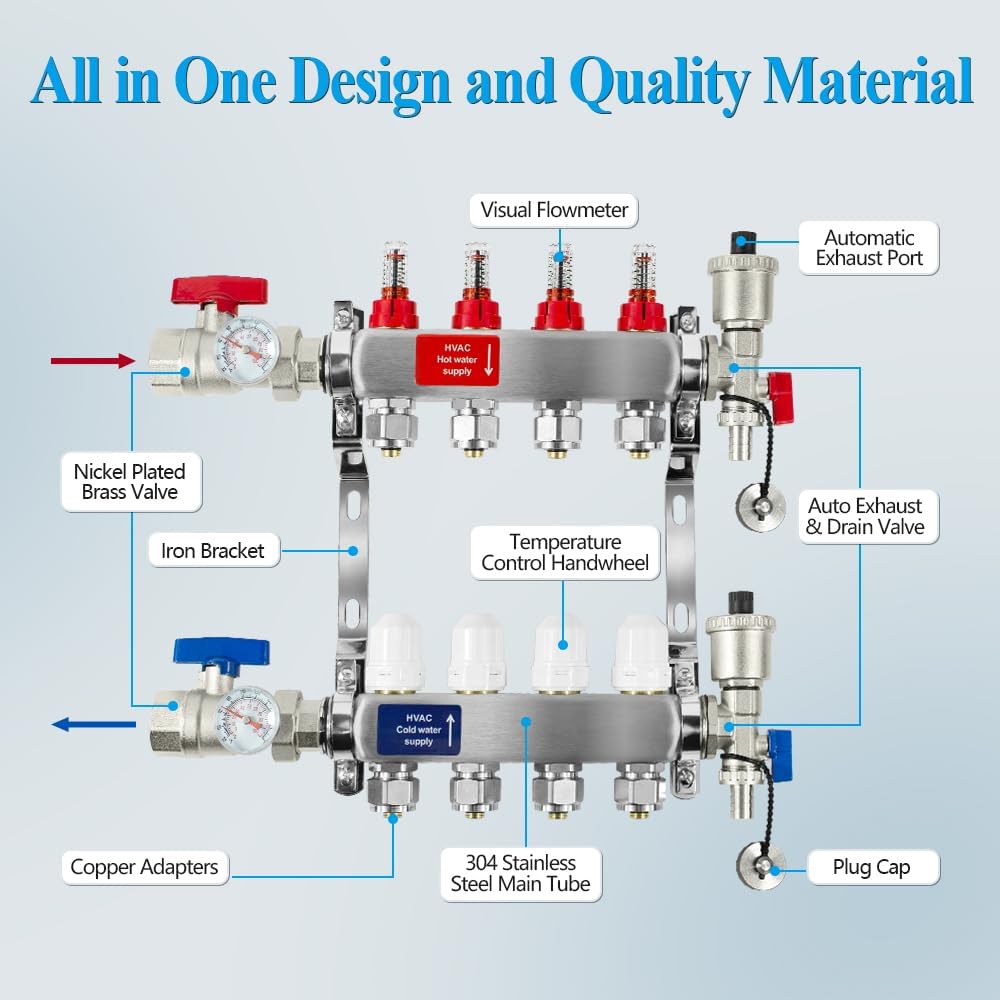

Included Components
- Stainless steel supply manifold
- Stainless steel return manifold
- Flow meters
- Balancing valves/manual adjustment wheels
- Automatic air vent
- Shut-off valves
- Drain valves with caps

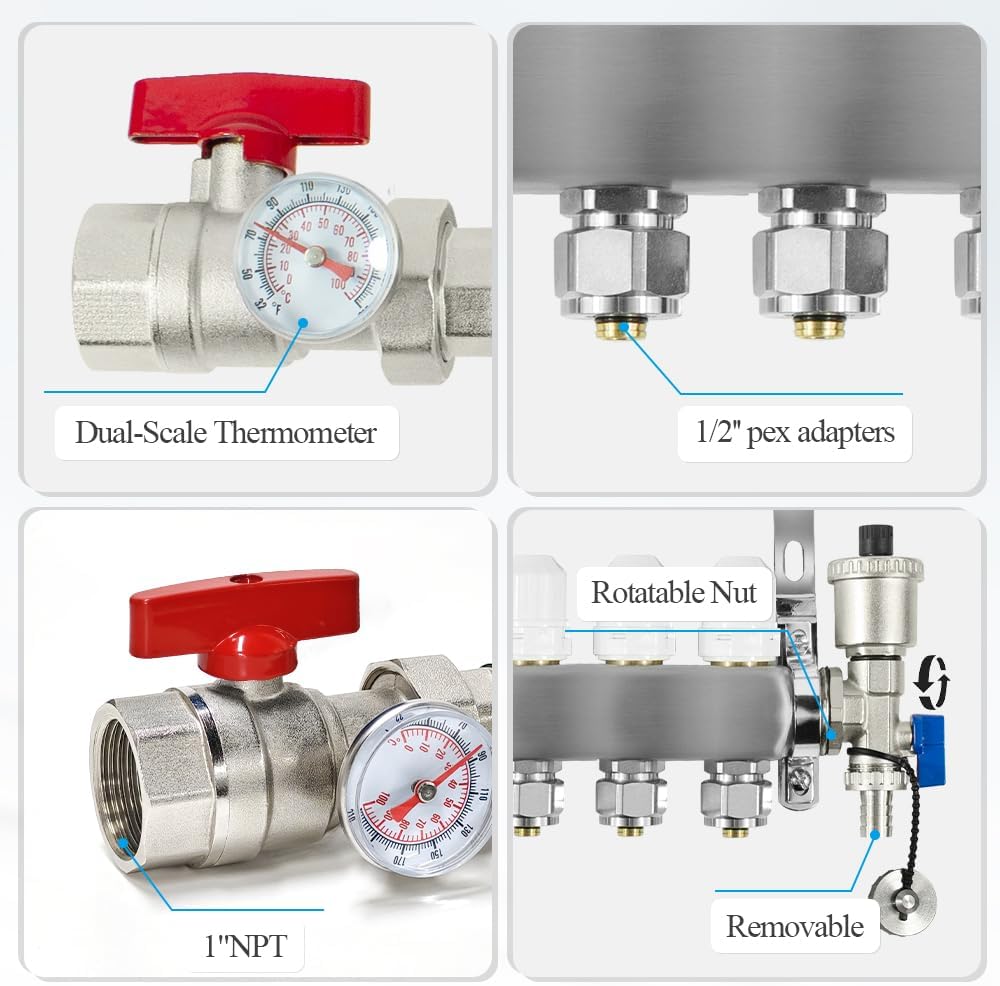

- Temperature gauge
- Mounting brackets

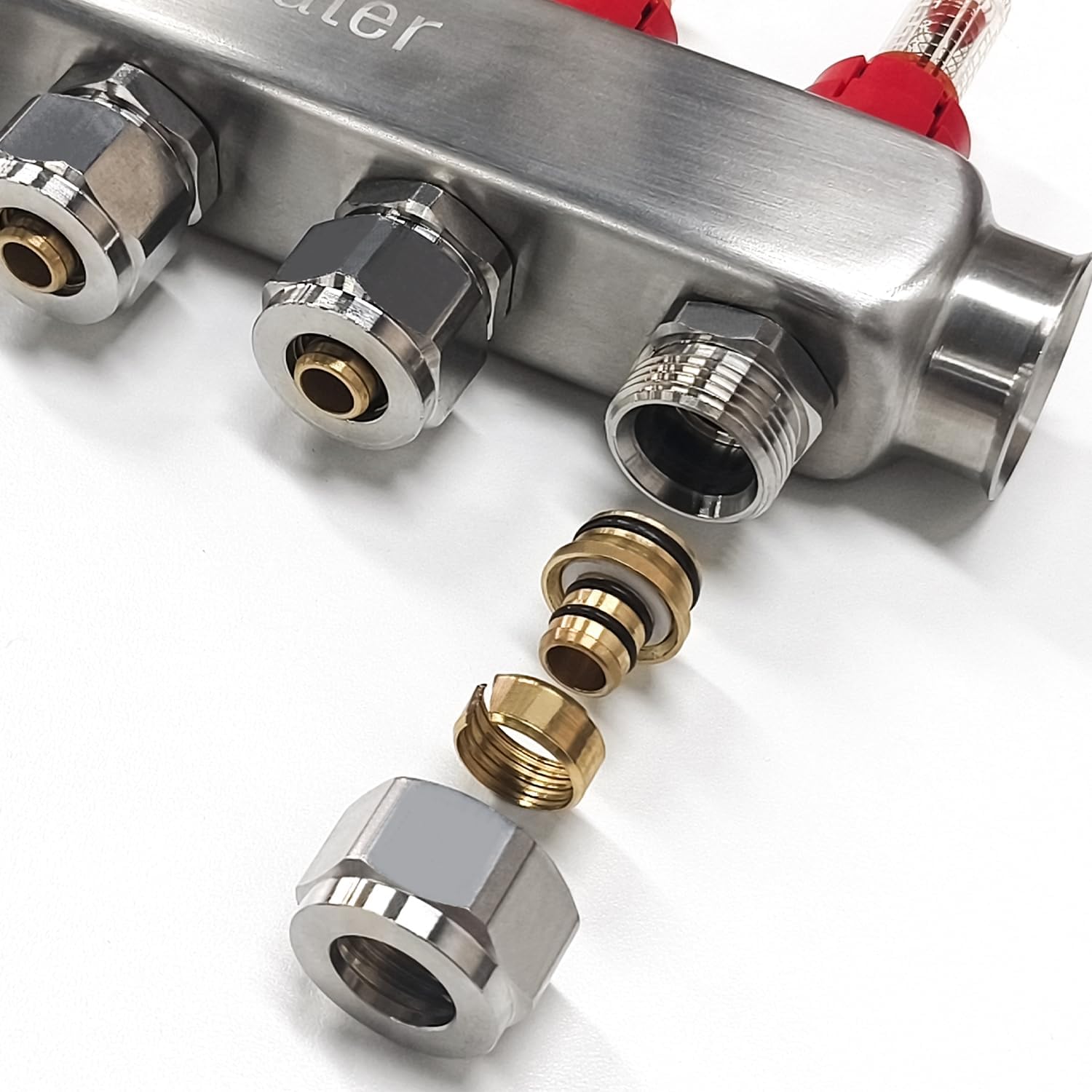

- 1/2" PEX adapters
Product Information
|
Loops/Ways |
9 | Connection Size (Supply / Branch outlet) |
1" NPT / 1/2" NPT |
| Flow Rate |
Up to 1.6 GPM |

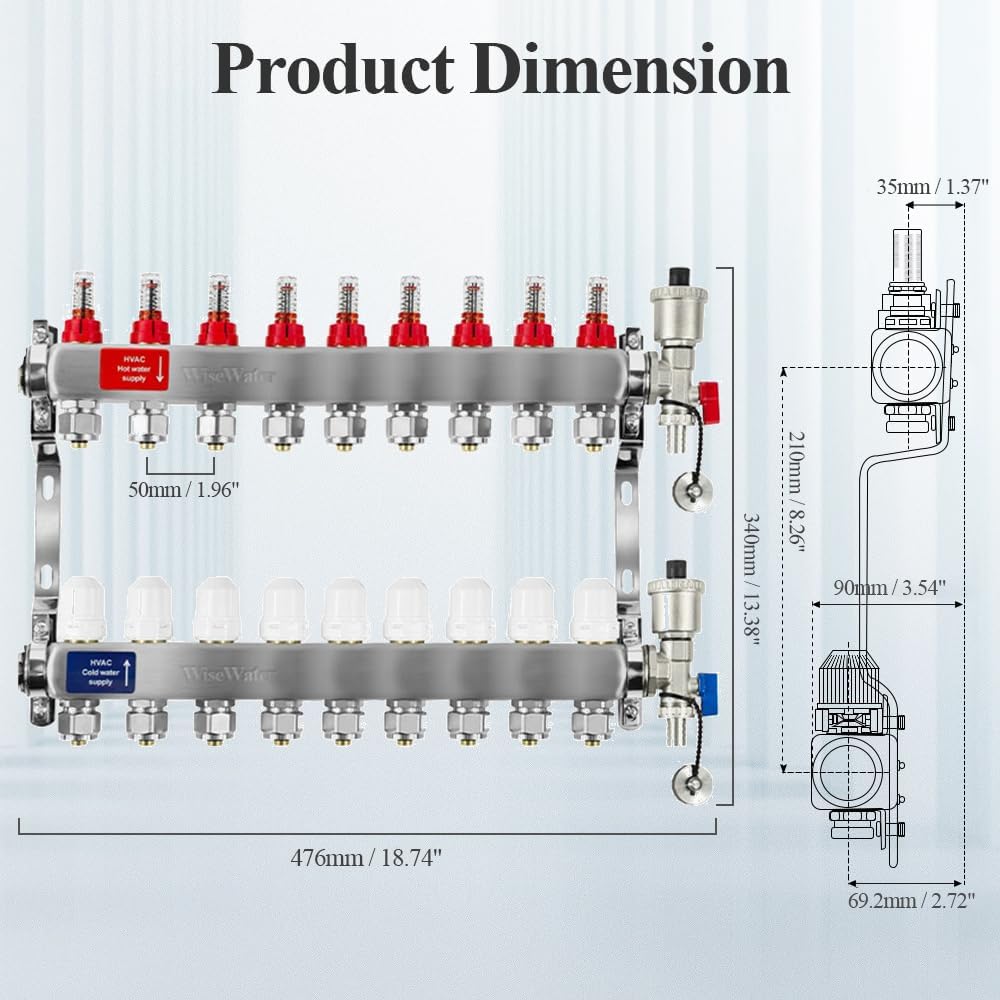

Branch outlet-outlet distance |
1.96" |
| Materials |
Brass, Nickel (plating for valves) |
Installation Notes

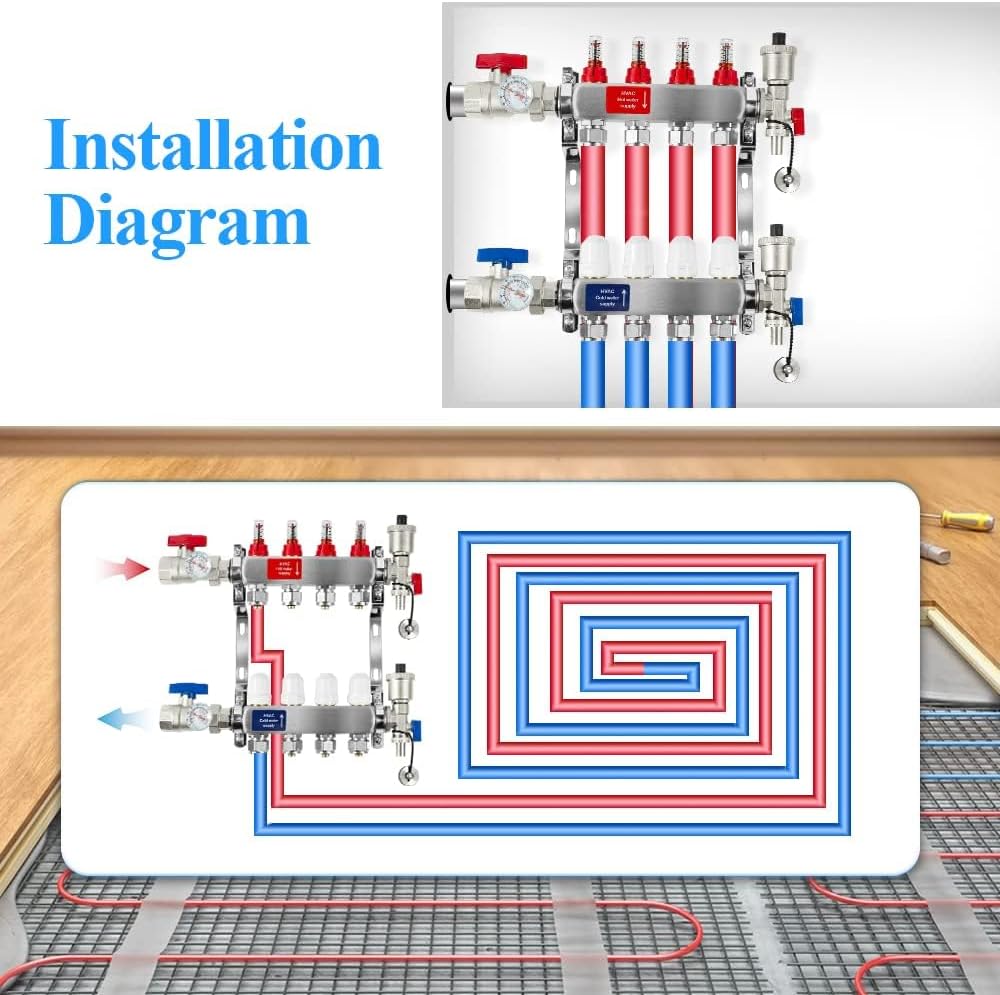

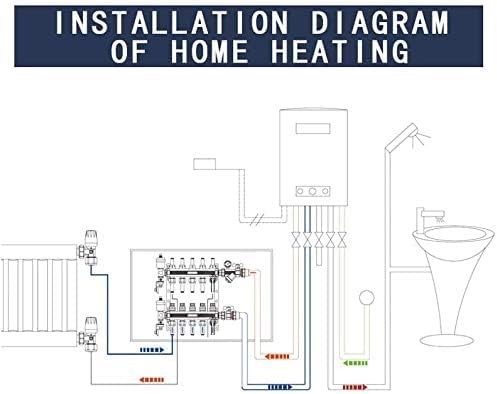

- Designed for closed-loop hydronic radiant heating systems.
- Pressure tested before shipment.
- Standard adjustable wrenches or pliers can be used for PEX adapter installation.
- Ensure proper system pressure testing after installation.
- Installation should follow local plumbing and heating codes.
Typical Applications
- Residential radiant floor heating
- Hydronic heating zones
- Basement floor heating
- Garage radiant heating
- Multi-zone underfloor heating systems
Radiant Manifold Instruction Manual.pdf
Maintenance Recommendations
- Periodically inspect connections and valves for leaks.
- Check flow meters during system operation to confirm proper circulation.
- Drain and flush the system as part of regular hydronic system maintenance when required.
- Use compatible antifreeze solutions if installed in freeze-prone environments.
FAQ and Support
Tips for operation:
Before using your manifold, be sure to release the air in the product by using the air relief valve. This will keep unwanted air out of your water system.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833 328 6888 for help with your heating projects.
