Description

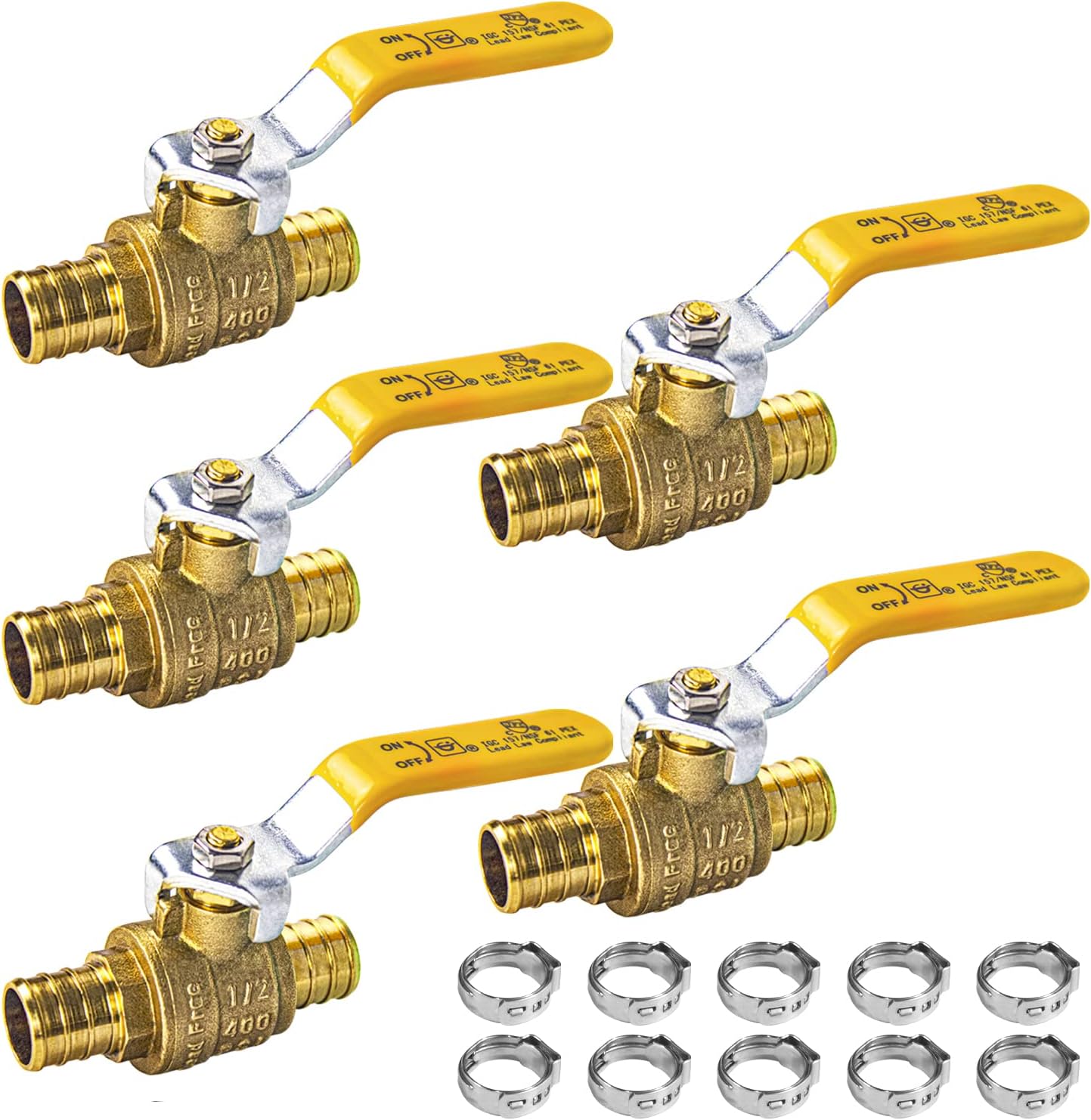

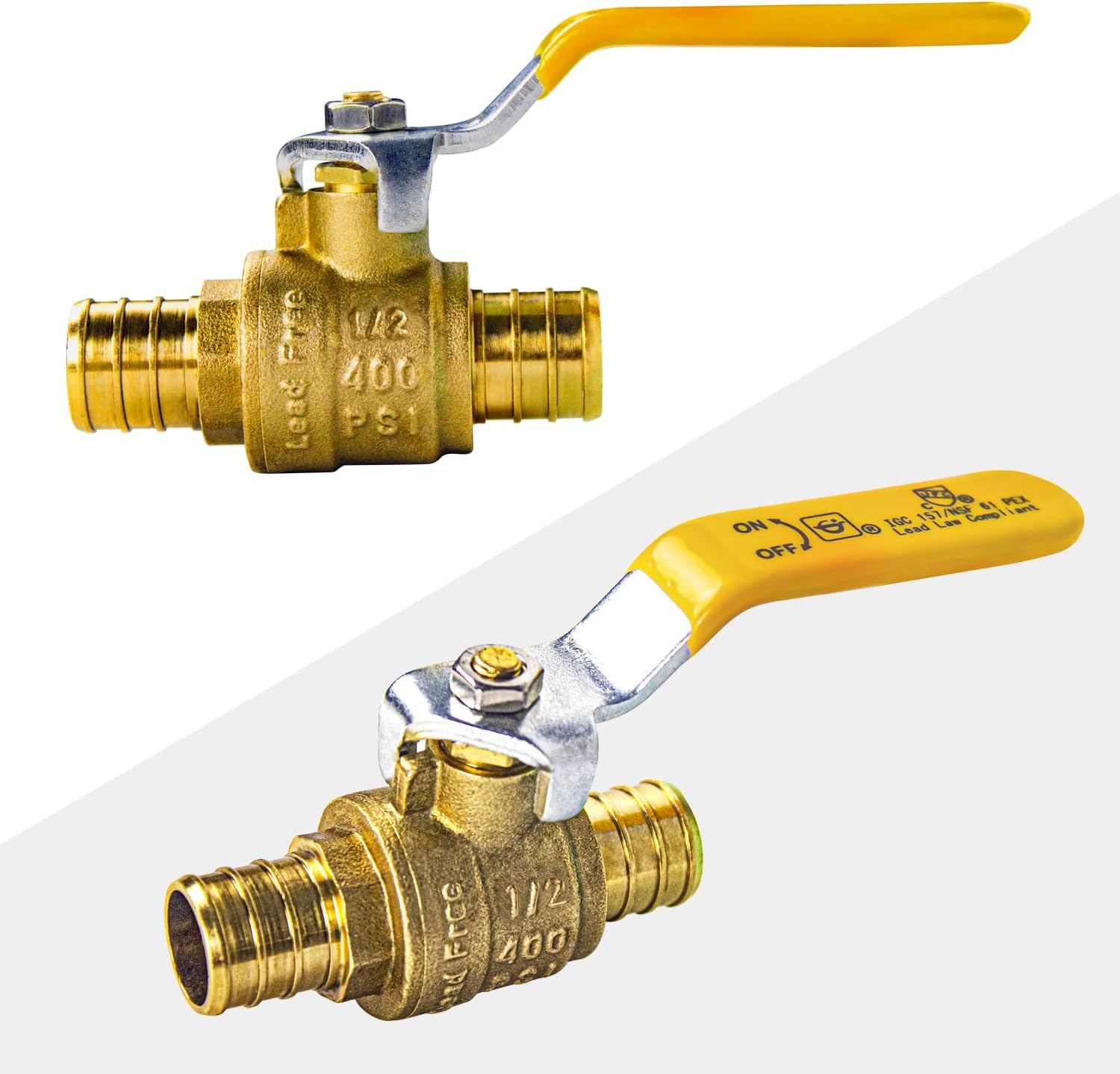

This kit includes five 1/2" full port brass PEX ball valves and ten stainless steel cinch clamp rings for use in PEX water distribution systems. The valves are designed for on/off water flow control and are compatible with standard PEX clamp installation tools.
Constructed from lead-free brass, the valves are UPC certified and comply with NSF/ANSI 61 Section 8 requirements for potable water systems.
| Specification | Value |
|---|---|
| Product Type | PEX Ball Valve |
| Valve Size | 1/2 in |
| Connection Type | PEX × PEX |
| Port Type | Full Port |
| Body Material | Lead-Free Brass |
| Maximum Pressure | 600 Pound per Square Inch |
| Item Dimensions | 2.4 x 1 x 1.7 inches |
| Size | 1/2" 5pcs |
| Material Type | Brass |
| Standard | NSF/ANSI 61 Section 8 |
Features
- Full port design helps minimize flow restriction.

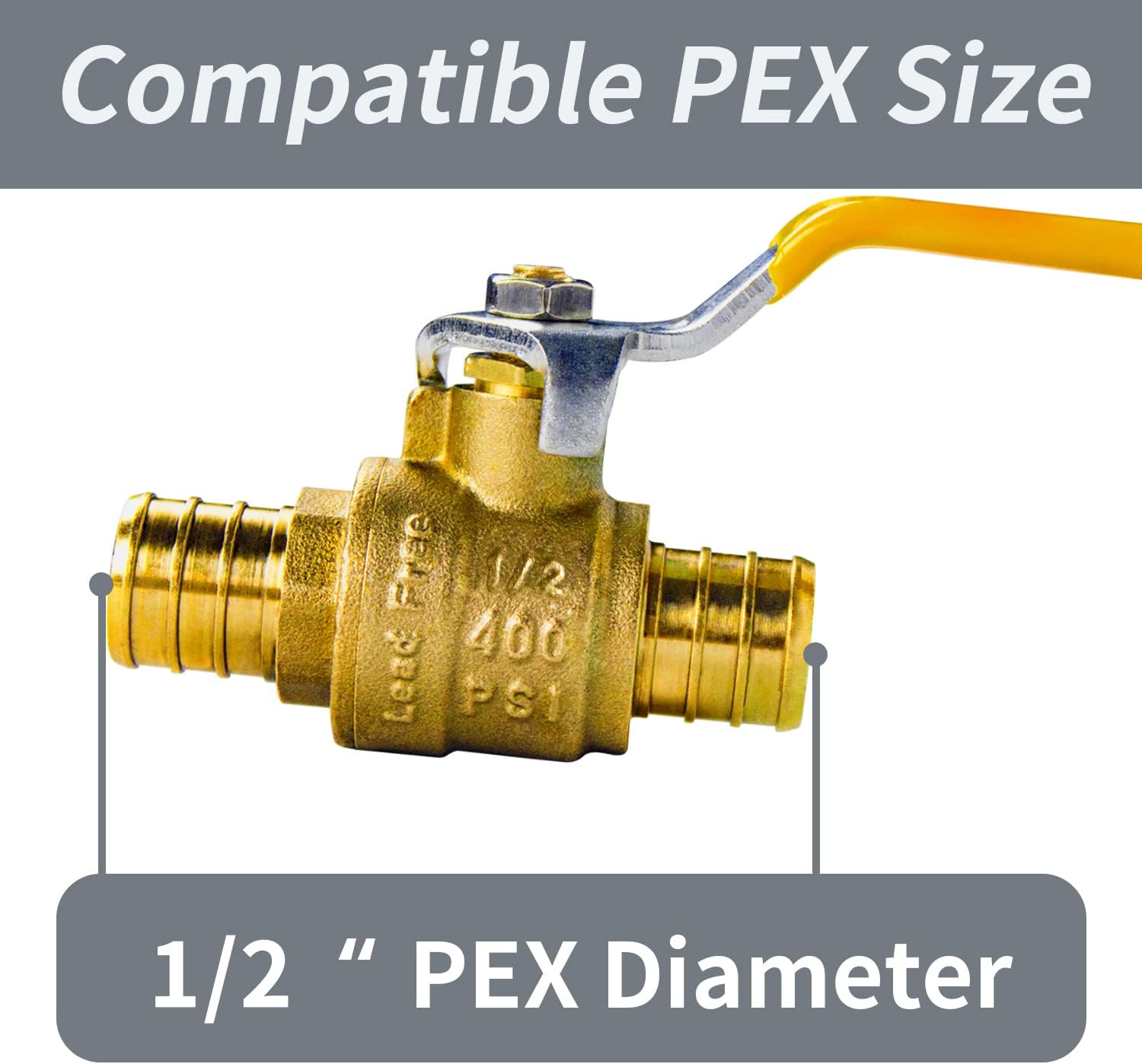

- Compatible with 1/2" PEX tubing.
- Quarter-turn lever handle for quick opening and closing.
- Lead-free brass construction.
- Includes stainless steel cinch clamp rings.
- Installs using standard PEX clamp tools.
- No soldering, flux, glue, or solvents required.
- UPC Certified.
- Complies with NSF/ANSI 61 Section 8.
Construction
Valve Body
- Material: Lead-Free Brass

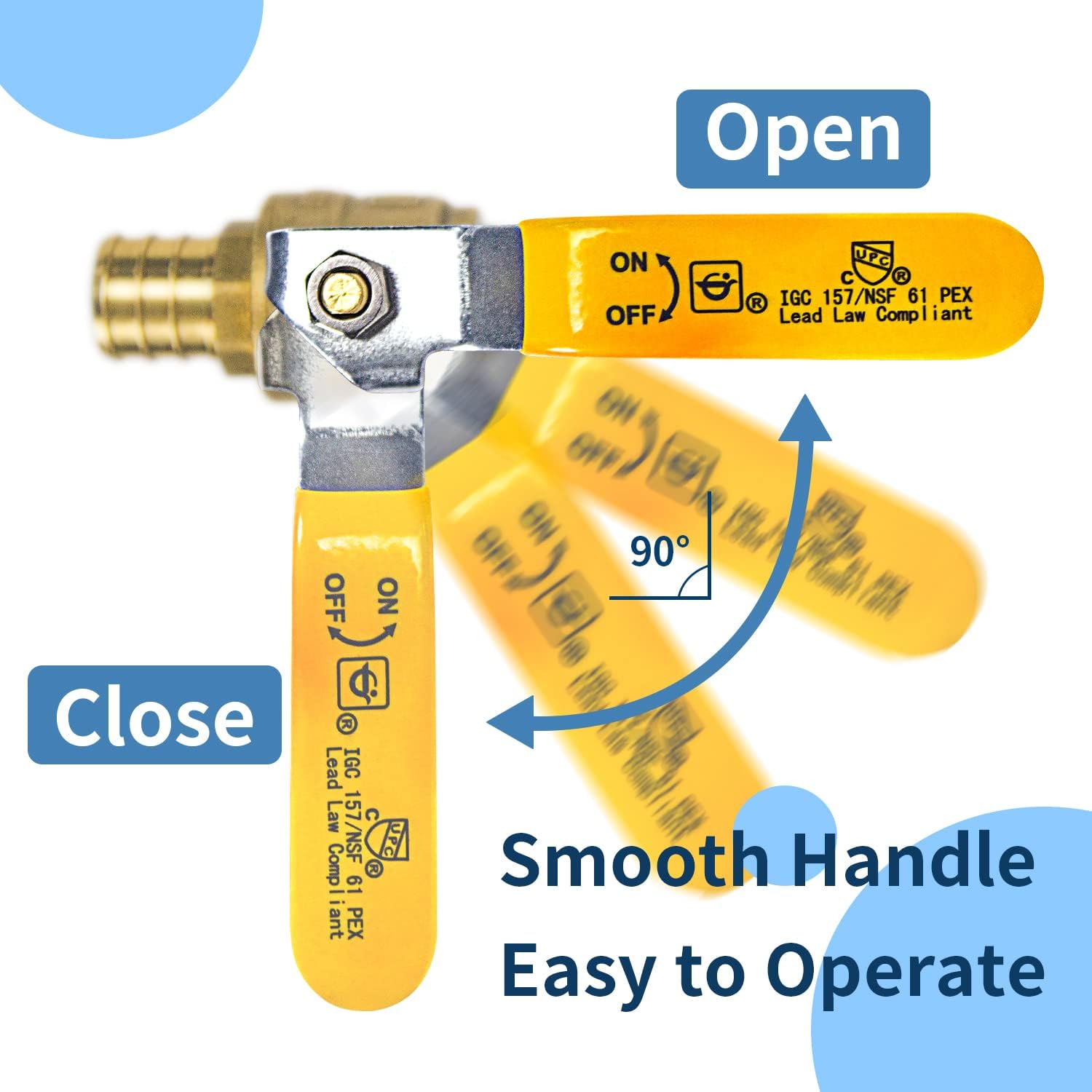

Handle
- Quarter-turn lever handle
- 90° open/close operation
Clamp Rings
- Material: Stainless Steel
Installation
Suitable for use with standard PEX clamp (cinch) tools.
Installation does not require:
- Soldering
- Flux
- Adhesives
- Solvents
Applications
Suitable for residential and commercial potable water systems, including:
- PEX plumbing systems
- Water supply lines
- Shut-off points
- Plumbing repairs
- New plumbing installations
