Evaporator BL26 Plate Heat Exchangers for Evaporation 1" NPT R22 24/24mm

Evaporator BL26 Plate Heat Exchangers for Evaporation 1" NPT R22 24/24mm

$138.00 USD
$138.00 USD
Sale Sold out

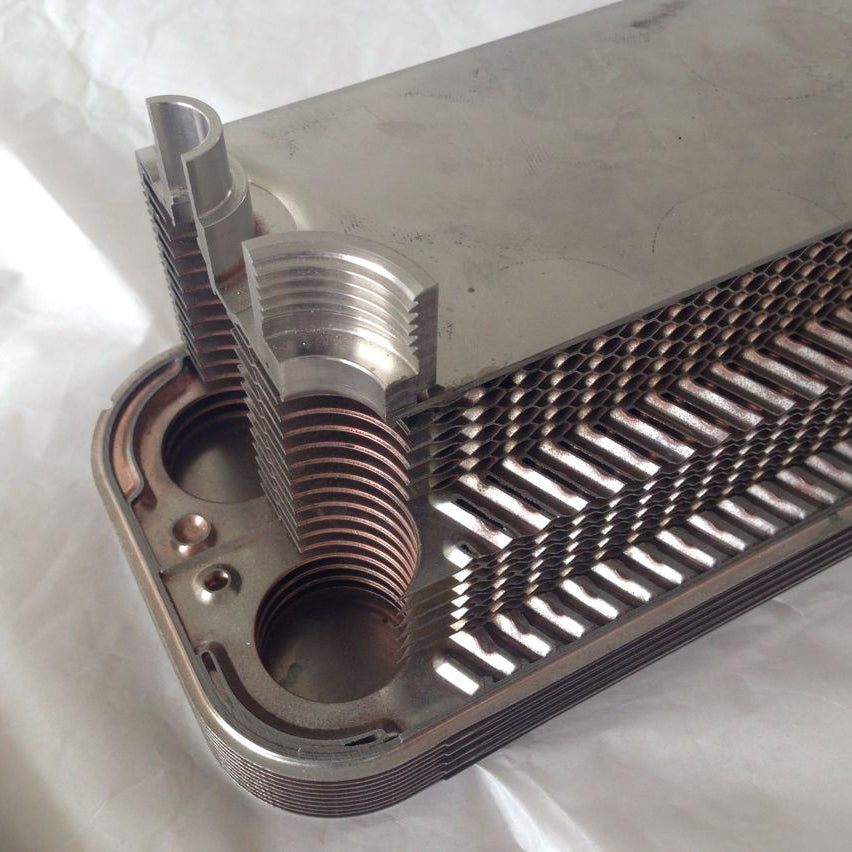

In addition to the compressor and expansion valve, the basic thermal equipment of the refrigeration unit must equip with basic heat exchangers—condensers and evaporators. Wisewater Evaporator device is used in most advantage portable liquid chillers and smaller central liquid chillers. Their space-efficient shape and high efficiency allow for compact machine design. The non-ferrous construction eliminates rusting and alternating plate design makes the brazed plate evaporators less susceptible to freeze damage when compared with shell and tube evaporators.

Specification

  1. Material: Stainless Steel 316L (99.9% Copper brazed)
  2. Evap Capacity: from 2.5kW to 250kW
  3. Max working pressure: 3.0MPa
  4. Test pressure: 4.5 MPa
  5. Water IN/OUT: NPT1"
  6. R22: 24/24mm

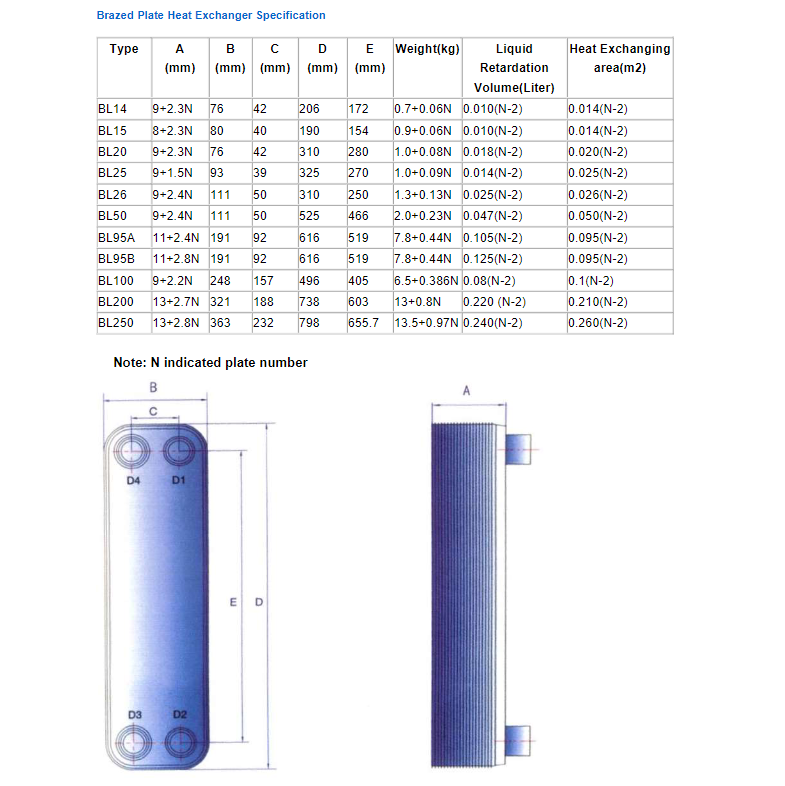

  7. Dimension(BXDXA), N indicated quantity of plate
    For example BL26-16R, N is 16
     Type A(mm) B(mm) D(mm) Liquid Retardation Volume(Liter) Heat Exchanging Area(m2)
    BL26 9+2.4N 111 310 0.025(N-2) 0.026(N-2)

Applications
1.Ground Source Heat Pump
2.Air Conditioning Energy
3.Refrigeration Cycle

*Customization Service

Max working pressure up to 4.5 MPa for R407c

Mounting/support base is available.

Technical calculation support and Temperature sensor port(evaporator) are available.

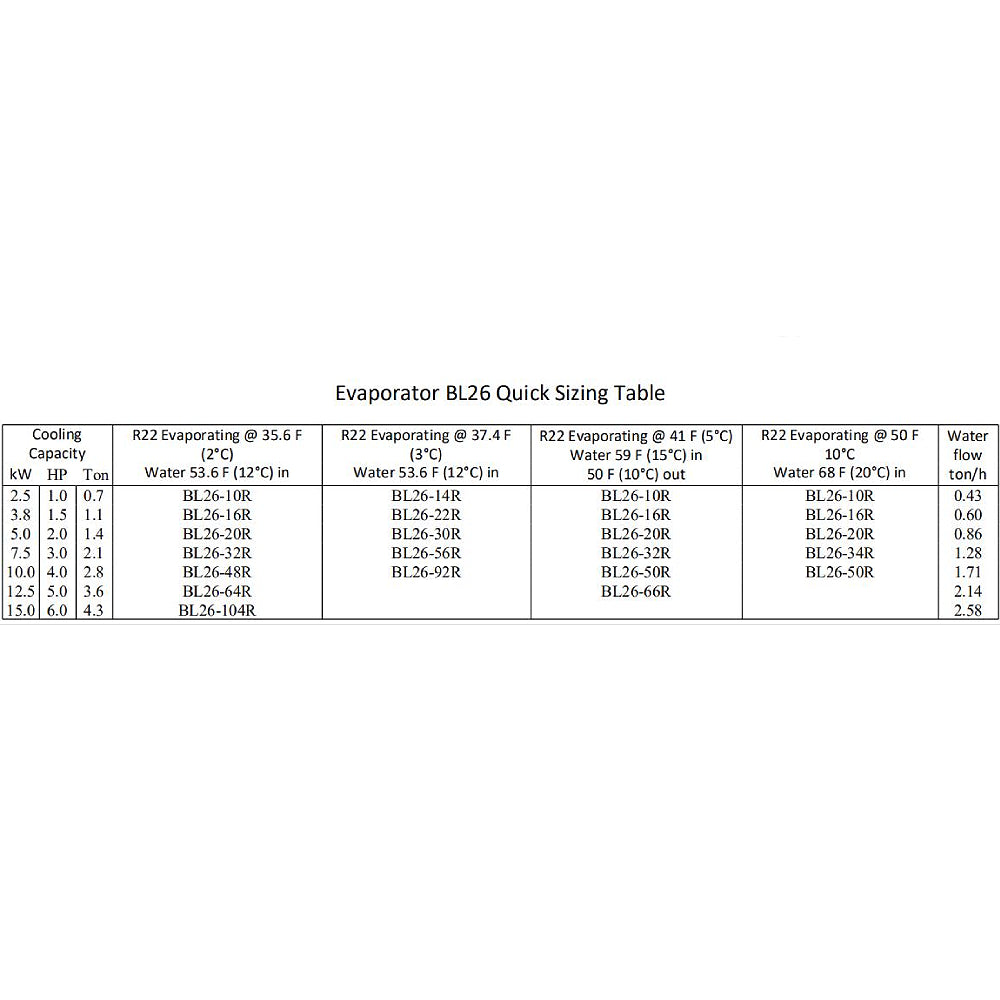

Evaporator Quick Sizing Table.pdf

Heat Exchanger Quote Form Download.pdf

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf



Tips

Please refer to the instruction manual for cleaning, installation, and welding.

Brazed Plate Heat Exchanger Instruction Manual.pdf

We have worked with heating systems for over 10 years, and specialized in the manufacturing, designing and marketing of heat exchangers and oil coolers for industrial and commercial applications. Feel free to contact us if you have any questions.

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
$138.00/ea		 $0.00
$138.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
$168.00/ea		 $0.00
$168.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
$188.00/ea		 $0.00
$188.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.1Ton 7.5kW 3.0HPBL26-32R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.1Ton 7.5kW 3.0HPBL26-32R
$236.00/ea		 $0.00
$236.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.8Ton 10.0kW 4.0HPBL26-48R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.8Ton 10.0kW 4.0HPBL26-48R
$288.00/ea		 $0.00
$288.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 3.6Ton 12.5kW 5.0HPBL26-64R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 3.6Ton 12.5kW 5.0HPBL26-64R
$371.00/ea		 $0.00
$371.00/ea $0.00
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 4.3Ton 15.0kW 6.0HPBL26-104R
R22 Evaporating @ 35.6 F (2°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 4.3Ton 15.0kW 6.0HPBL26-104R
$510.00/ea		 $0.00
$510.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 0.7Ton 2.5kW 1.0HPBL26-14R
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 0.7Ton 2.5kW 1.0HPBL26-14R
$156.00/ea		 $0.00
$156.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.1Ton 3.8kW 1.5HPBL26-22R
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.1Ton 3.8kW 1.5HPBL26-22R
$175.00/ea		 $0.00
$175.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.4Ton 5.0kW 2.0HPBL26-30R
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 1.4Ton 5.0kW 2.0HPBL26-30R
$224.00/ea		 $0.00
$224.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.1Ton 7.5kW 3.0HPBL26-56R
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.1Ton 7.5kW 3.0HPBL26-56R
$338.00/ea		 $0.00
$338.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.8Ton 10.0kW 4.0HPBL26-92R
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 2.8Ton 10.0kW 4.0HPBL26-92R
$470.00/ea		 $0.00
$470.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 3.6Ton 12.5kW 5.0HP
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 3.6Ton 12.5kW 5.0HP
$9,999.00/ea		 $0.00
$9,999.00/ea $0.00
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 4.3Ton 15.0kW 6.0HP
R22 Evaporating @ 37.4 F (3°C) | Water 53.6 F (12°C) in 44.6F (7°C) out / 4.3Ton 15.0kW 6.0HP
$9,999.00/ea		 $0.00
$9,999.00/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
$136.99/ea		 $0.00
$136.99/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
$165.99/ea		 $0.00
$165.99/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
$185.99/ea		 $0.00
$185.99/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 2.1Ton 7.5kW 3.0HPBL26-32R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 2.1Ton 7.5kW 3.0HPBL26-32R
$233.00/ea		 $0.00
$233.00/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 2.8Ton 10.0kW 4.0HPBL26-50R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 2.8Ton 10.0kW 4.0HPBL26-50R
$317.99/ea		 $0.00
$317.99/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 3.6Ton 12.5kW 5.0HPBL26-66R
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 3.6Ton 12.5kW 5.0HPBL26-66R
$384.00/ea		 $0.00
$384.00/ea $0.00
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 4.3Ton 15.0kW 6.0HP
R22 Evaporating @ 41 F (5°C) | Water 59 F (15°C) in in 50 F (10°C) out / 4.3Ton 15.0kW 6.0HP
$9,999.00/ea		 $0.00
$9,999.00/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 0.7Ton 2.5kW 1.0HPBL26-10R
$136.99/ea		 $0.00
$136.99/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 1.1Ton 3.8kW 1.5HPBL26-16R
$165.99/ea		 $0.00
$165.99/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 1.4Ton 5.0kW 2.0HPBL26-20R
$185.99/ea		 $0.00
$185.99/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 2.1Ton 7.5kW 3.0HPBL26-34R
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 2.1Ton 7.5kW 3.0HPBL26-34R
$242.99/ea		 $0.00
$242.99/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 2.8Ton 10.0kW 4.0HPBL26-50R
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 2.8Ton 10.0kW 4.0HPBL26-50R
$317.99/ea		 $0.00
$317.99/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 3.6Ton 12.5kW 5.0HP
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 3.6Ton 12.5kW 5.0HP
$9,999.00/ea		 $0.00
$9,999.00/ea $0.00
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 4.3Ton 15.0kW 6.0HP
R22 Evaporating @ 50 F 10°C | Water 68 F (20°C) in 59F (15°C) out / 4.3Ton 15.0kW 6.0HP
$9,999.00/ea		 $0.00
$9,999.00/ea $0.00
