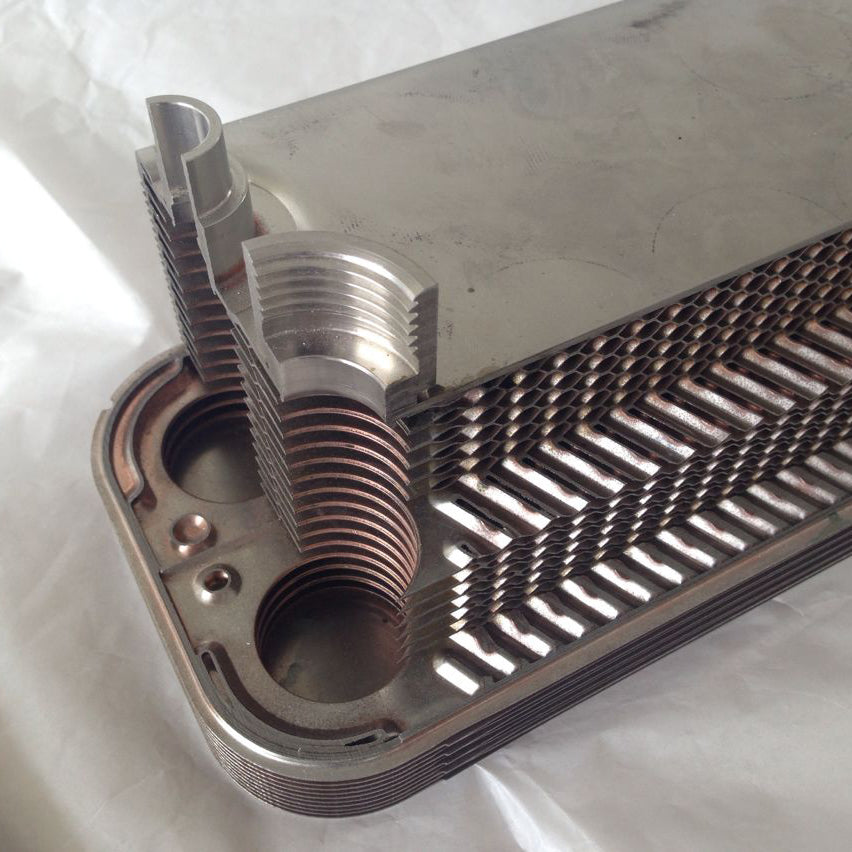

In addition to the compressor and expansion valve, the basic thermal equipment of the refrigeration unit must equip with basic heat exchangers—condensers and evaporators. Wisewater Evaporator device is used in most advantage portable liquid chillers and smaller central liquid chillers. Their space-efficient shape and high efficiency allow for compact machine design. The non-ferrous construction eliminates rusting and alternating plate design makes the brazed plate evaporators less susceptible to freeze damage when compared with shell and tube evaporators.

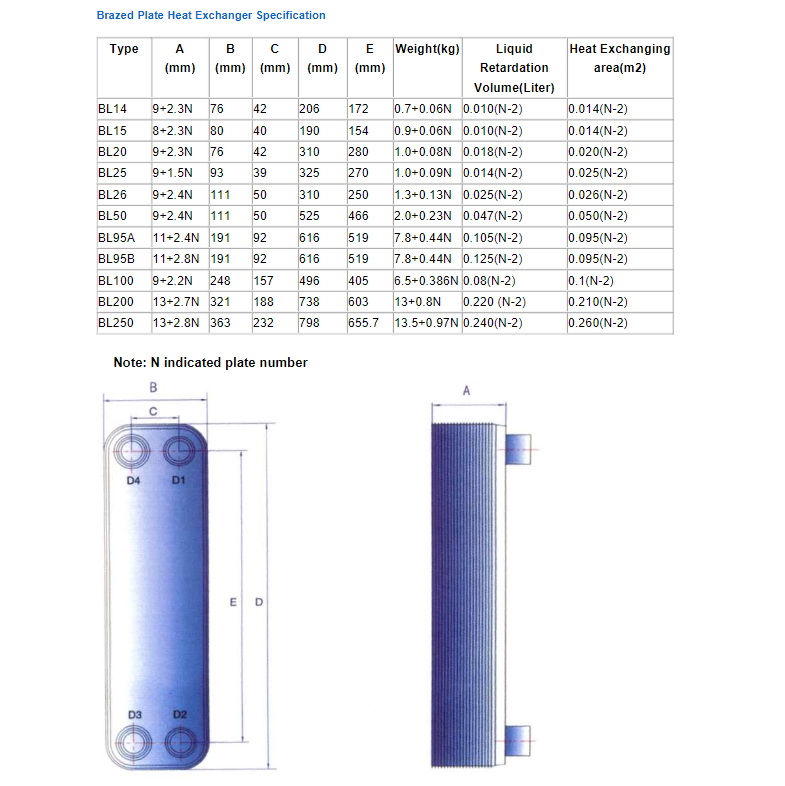

|Type||A(mm)||B(mm)||D(mm)||Liquid Retardation Volume(Liter)||Heat Exchanging Area(m2)|
1.Ground Source Heat Pump
2.Air Conditioning Energy
Max working pressure up to 4.5 MPa for R407c
Mounting/support base is available.
Technical calculation support and Temperature sensor port(evaporator) are available.
Please refer to the instruction manual for cleaning, installation, and welding.
We have worked with heating systems for over 10 years and specialized in the manufacturing, designing and marketing of heat exchangers and oil coolers for industrial and commercial applications. Feel free to contact us if you have any questions.
