$1,100.00

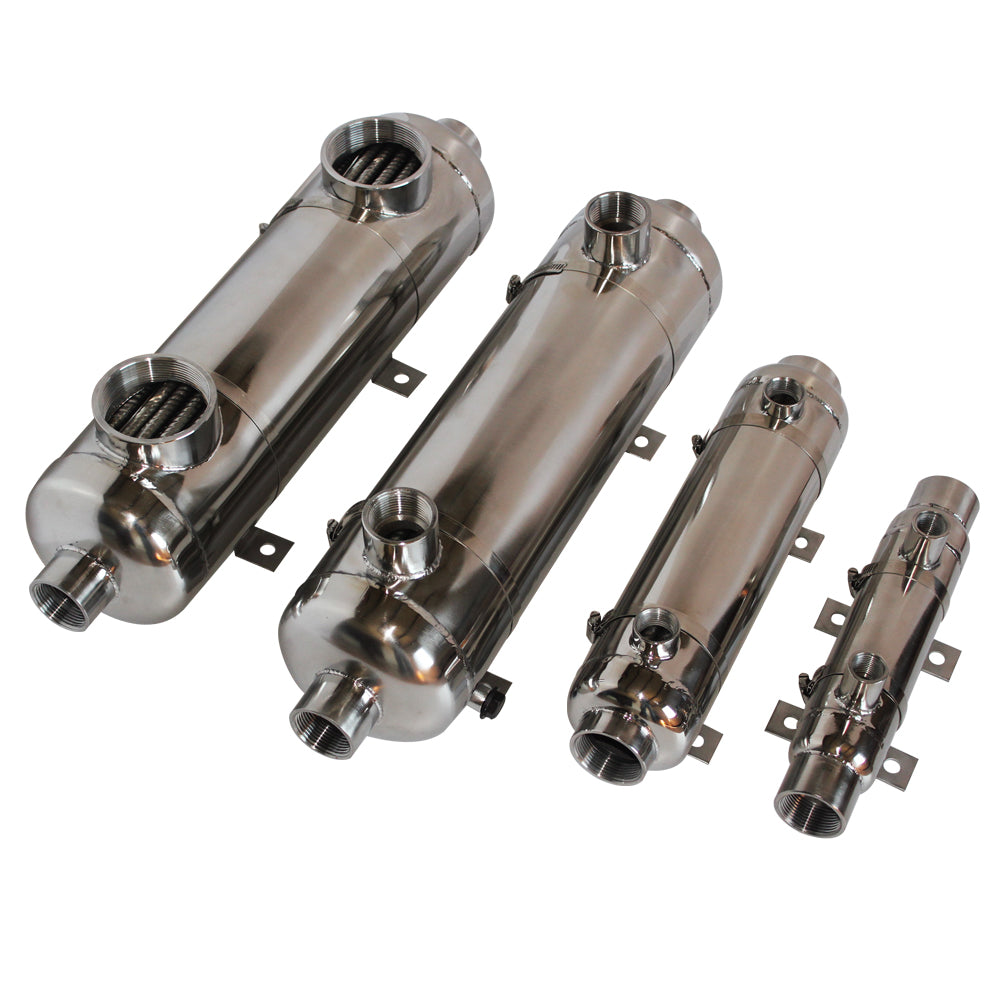

Alfa shell and tube engine oil coolers are suitable for cooling torque converter, automatic transmission and engine oil. Being water-cooled they have the advantage of freedom from accidental damage and also encourage quicker warming up of the oil. Our Ship engine oil coolers adopt thread pipe design, the contact area is larger. The integrated design can avoid the trouble of water and oil mixing. Its material is all stainless steel welded, so it has stronger corrosion resistance. Furthermore, the stainless steel 316L coolers suitable for low-temperature seawater environments(temperature below 15 degrees C).
Specifications
|
Design Parameters |
TUBES (Water) |
SHELL (Oil) |
|
TEMPERATURE |
150°C(300°F) |
150°C(300°F) |
|
PRESSURE1 |
0.3MPa(45PSI) |
2.5MPa(360PSI) |
|
PRESSURE2 |
1.0MPa(145PSI) |
2.5MPa(360PSI) |
|
PRESSURE3 |
1.5MPa(218PSI) |
2.5MPa(360PSI) |
*Customization Service
Mounting brackets are available.
We produce customized applications on different working pressure and temperature.
The more customized designs with floating tube stack, removable head caps, head tank, kettle tube are your options.
*Customized order can not cancel /return in the midway.
Please submit cancellation request within 12 hours after placing the order if necessary.
