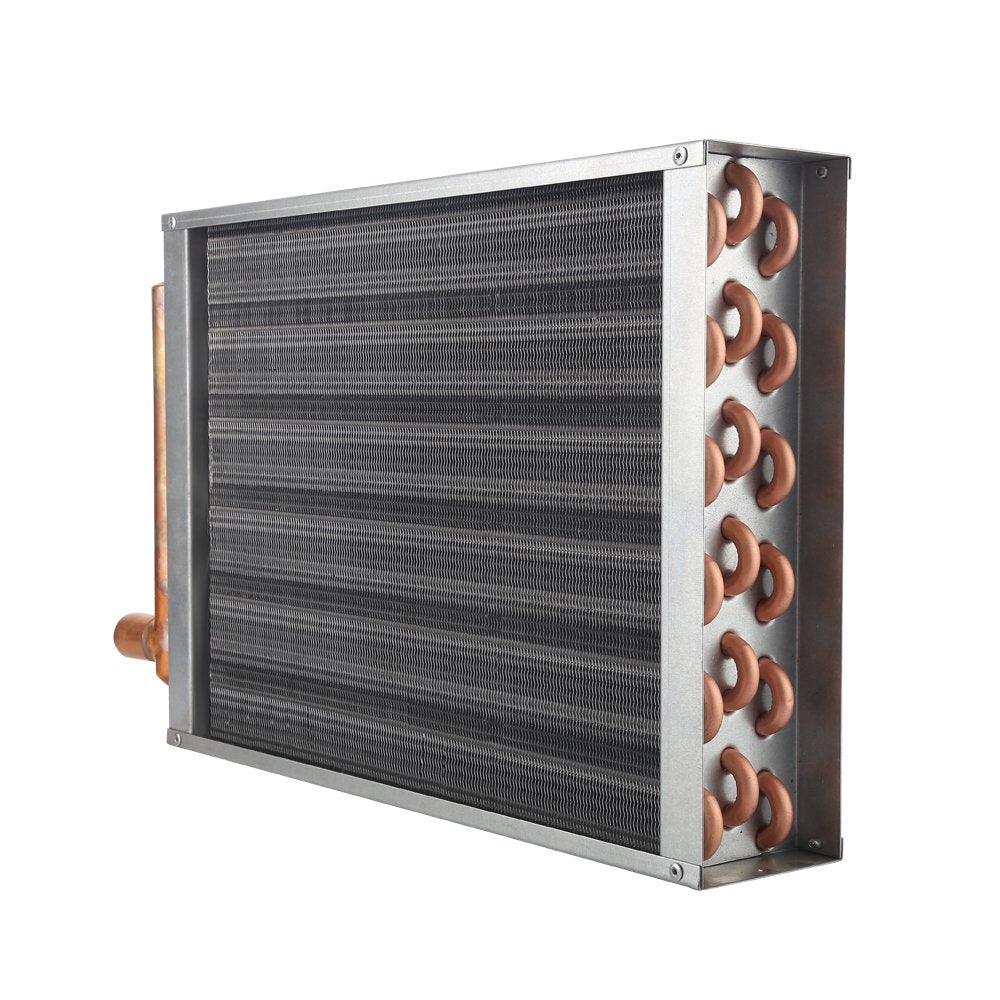

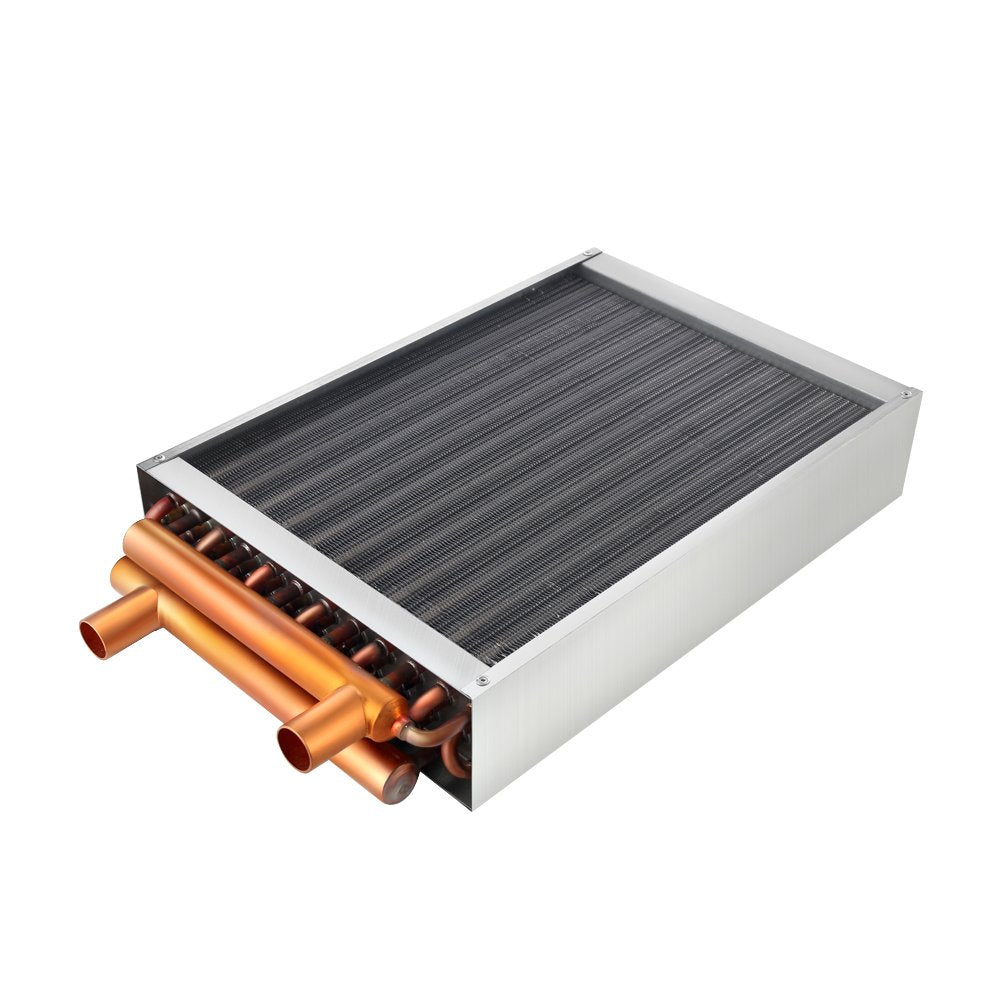

Air to Water Heat Exchanger 12x15 1" Copper Ports

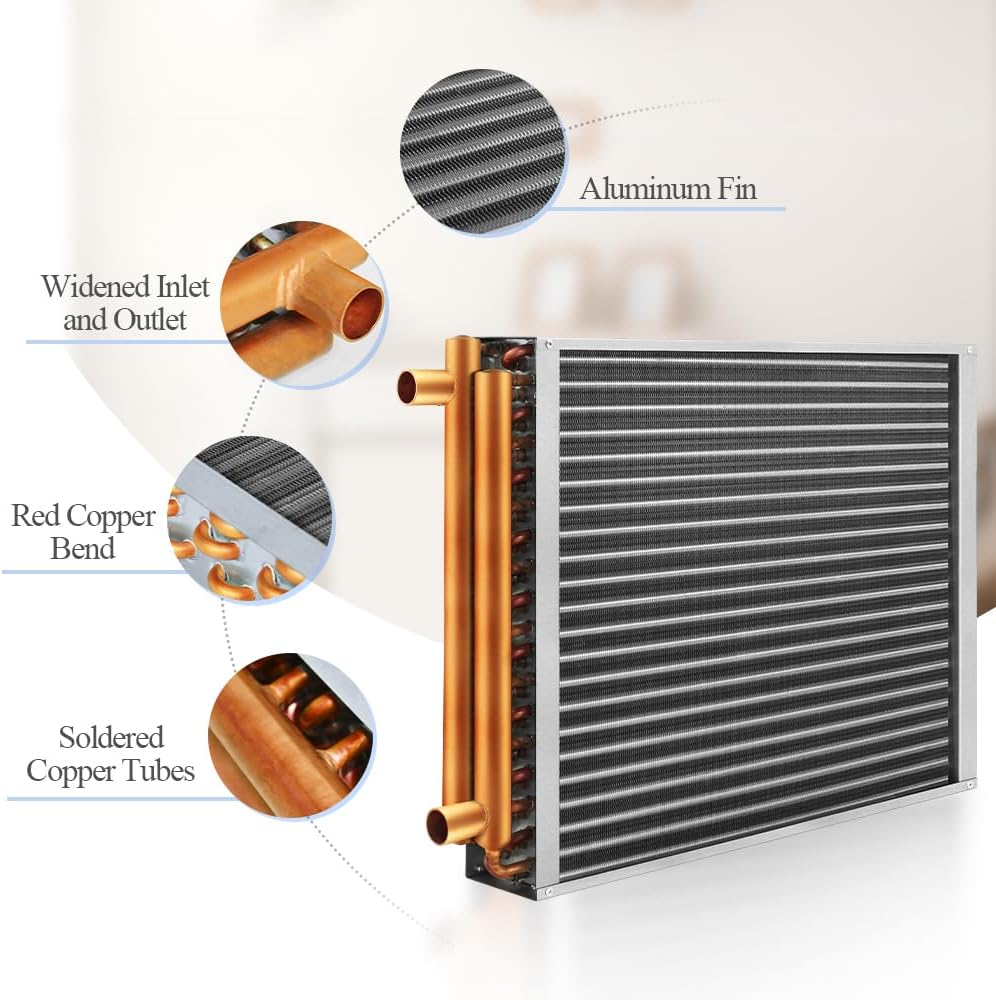

AB Air to Water Heat Exchangers also called Water to Air Heat Exchangers. It's designed with high quality aluminum fins and seamless copper tubes.It is fitted with 12 aluminum fins per inches and the unique design allows for heating loads of 50,000 to 60,000 Btu per square foot. Despite a fin density of 12 fins per inch, there is low flow resistance. It's widely application in Residential and Commercial Heating and Cooling, Apartment and Condominiums Heating and Cooling, Forced Air Heating Hybrid Systems, Air Conditioning,  Dehumidification Inverter Cooling.

  • This particular model has 1" ports and a capacity of 65,000 Btu.
  • 1-year warranty against manufacturer's defects and is ETL listed.
  • Flow Rate: 10 Gallons Per Minute,
  • Air Flow Rate: 1200 Cubic Feet Per Minute

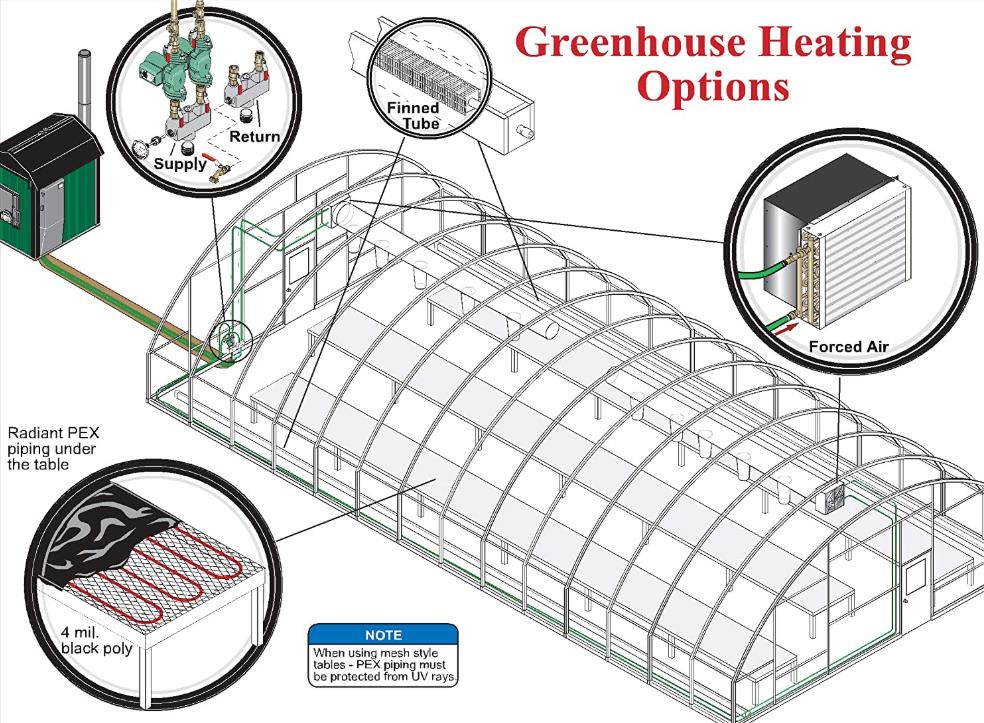

  • Our models ideal for both residential and commercial applications can be used with sources of hot water to create hot air, such as indoor boilers, outdoor wood boilers, natural gas boilers, propane boilers, oil boilers, electric boilers and other hot water heaters or furnace heat exchangers.

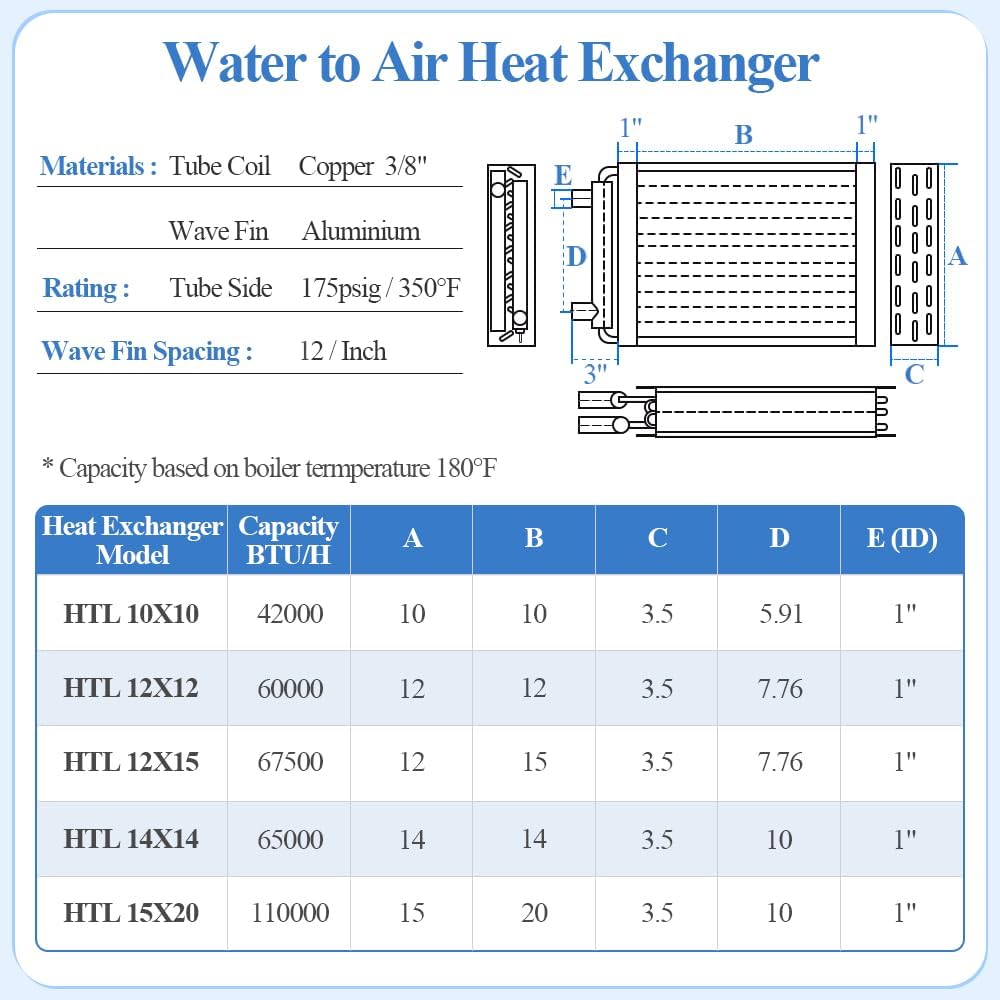

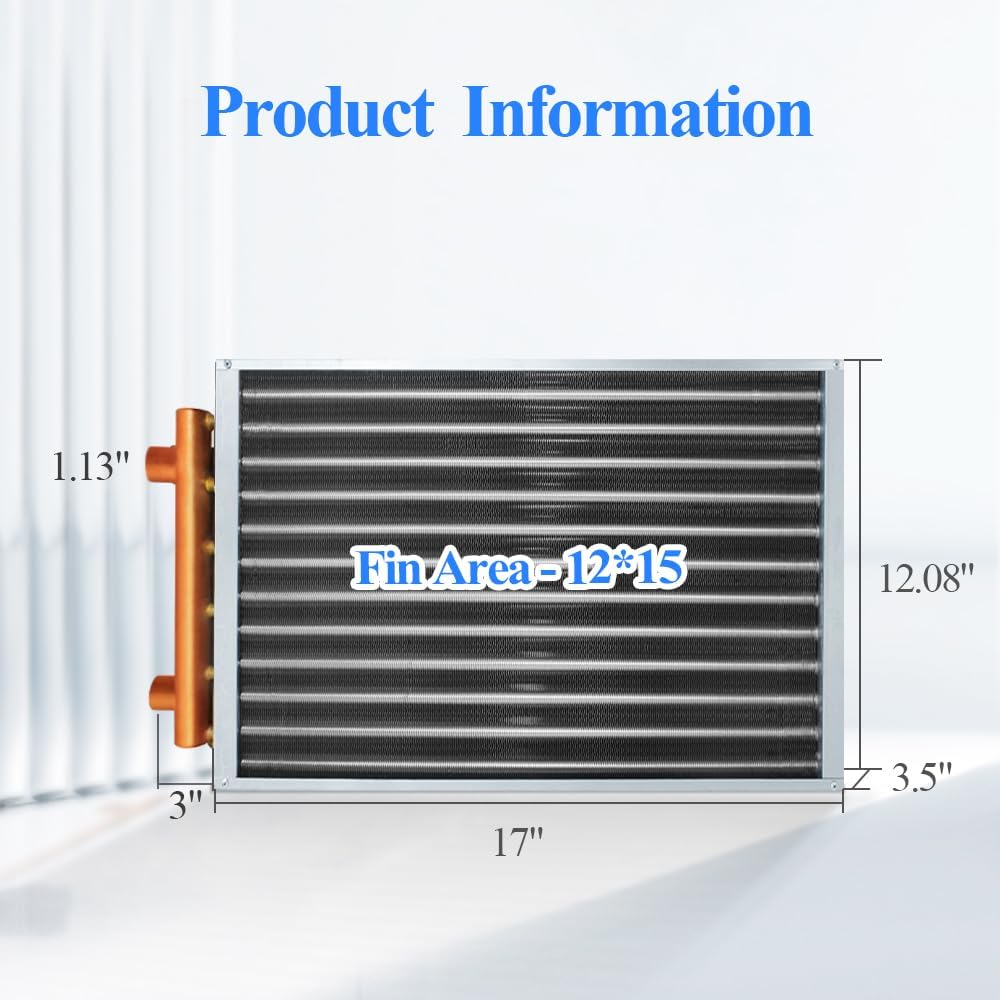

Product Information

Model
HTL12x15 Fitting Size
1"
Design Pressure
175psi
Capacity*
65,000 Btu Rating
175psi @ 350F

Test Pressure


263psi

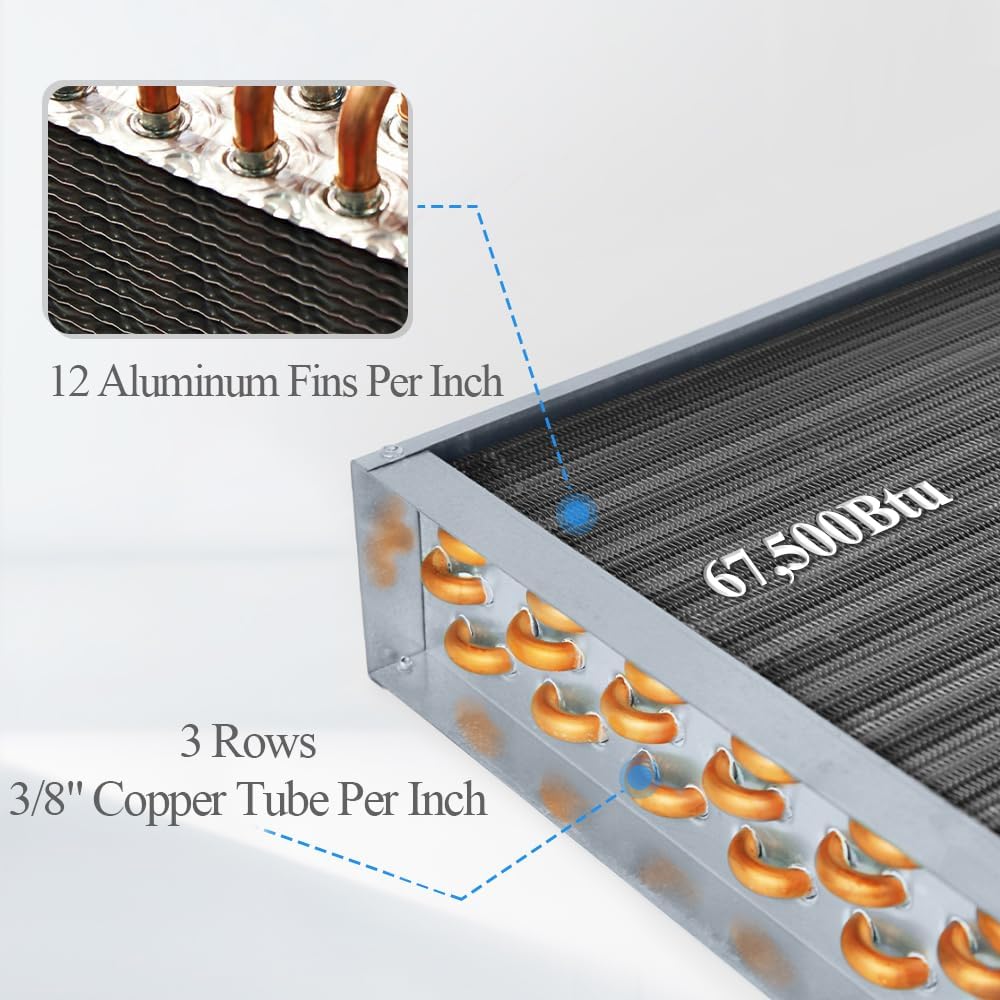

Coils
3 rows of 3/8", copper
Fins


12 per inch, aluminum Materials
Steel, Copper, Aluminum
Min. Operating
Temp.

32F
Max. Operating
Temp.

350F
Dimensions, Weight
12" x 15" x 3.5", 9.1lb

*Note: Capacity is based on 180F boiler output

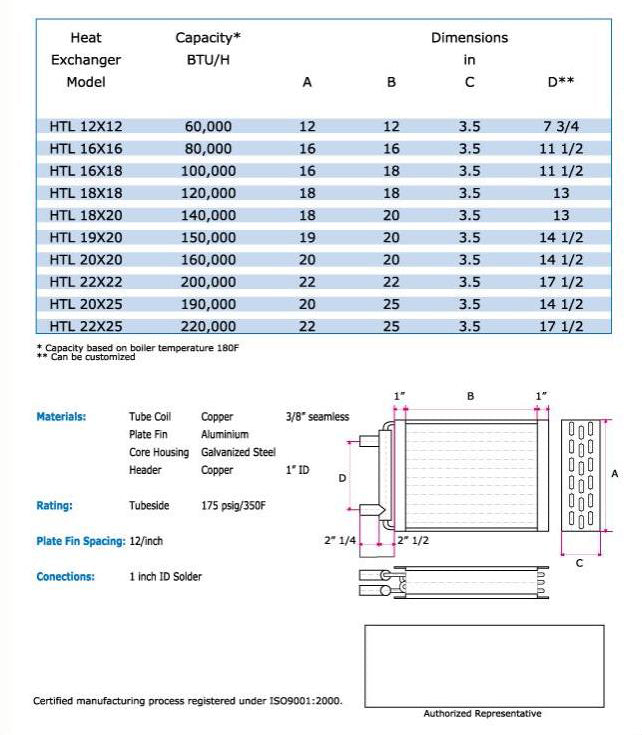

Water to Air Heat Exchanger Size Choosing Guide.pdf

FAQ and Support
Tips for mounting Air to Water Heat Exchanger:
If your air system has an overheat sensor, be sure to install the Air to Water Heat Exchanger far enough away from it so that the heat from the exchanger won't interfere with the sensor's readings.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call 833-328-6888 for help with your heating projects.
