Air to Water Heat Exchanger 16x16 1" Copper Ports

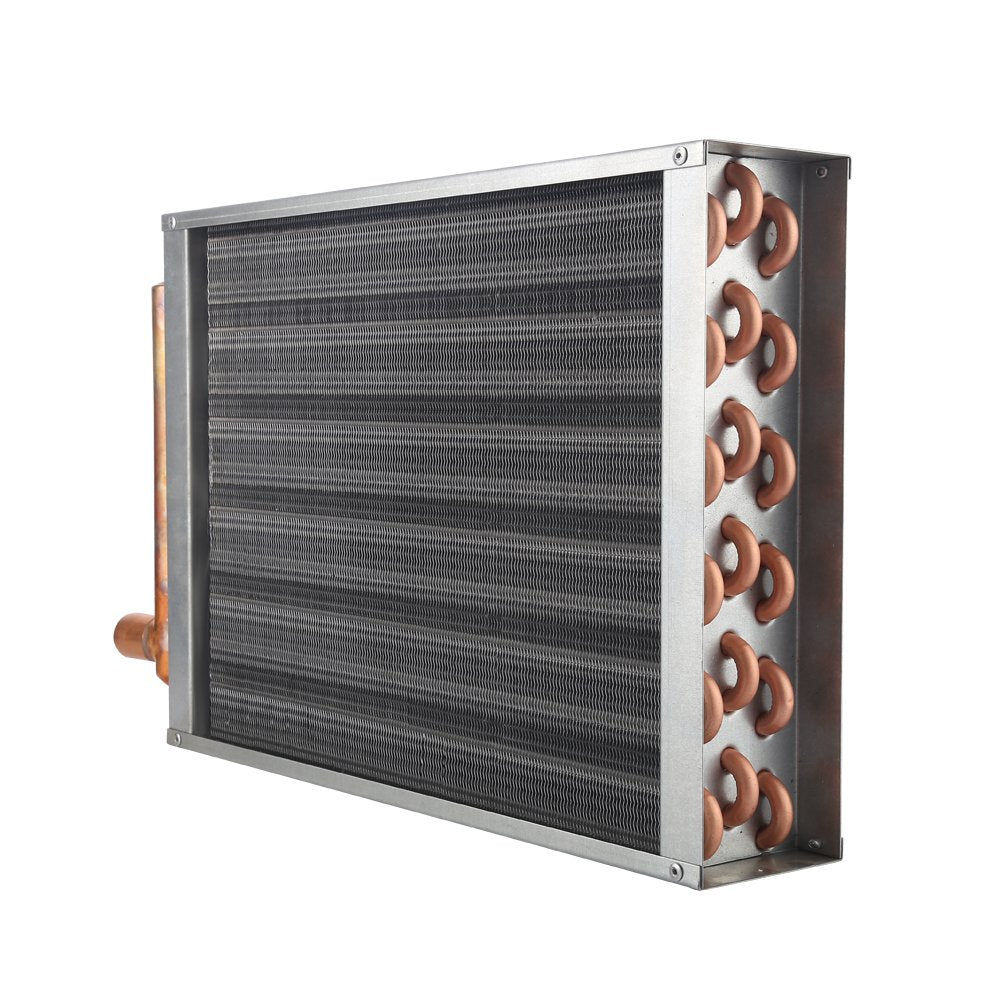

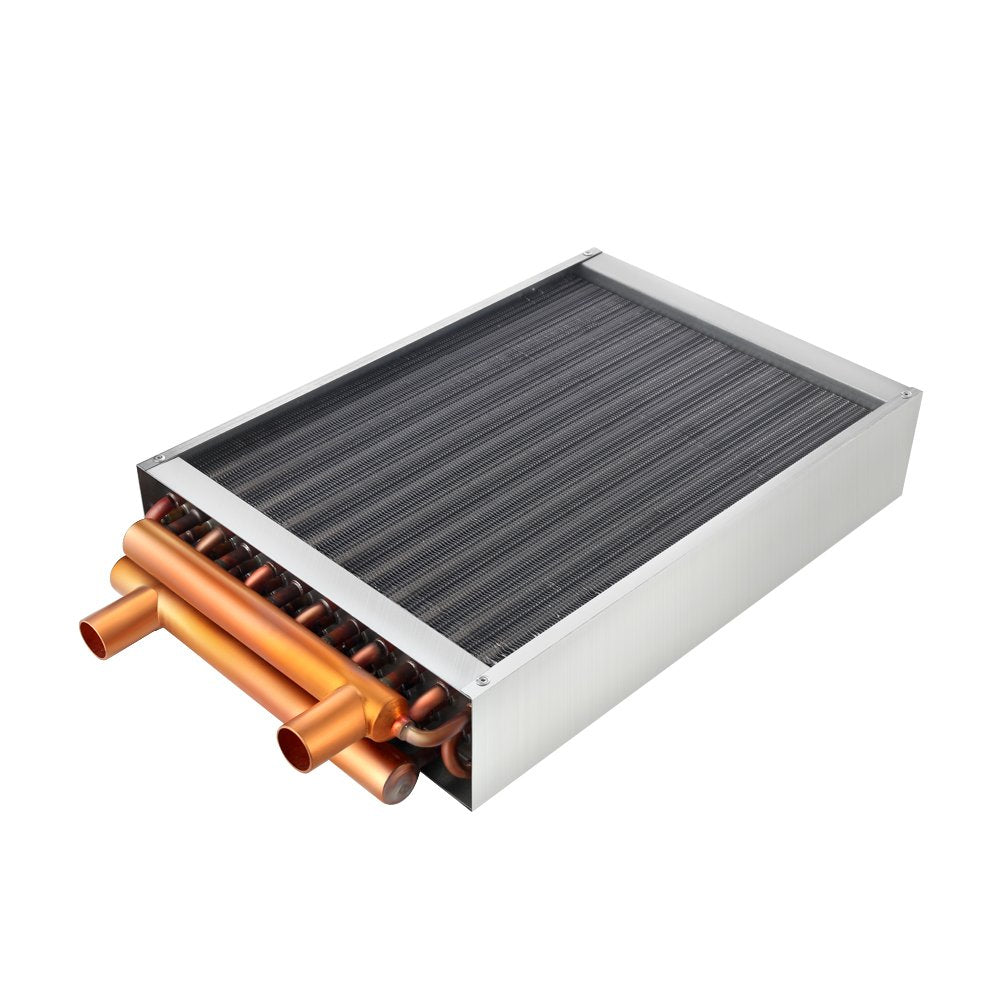

Water to Air Heat Exchangers designed with high-quality aluminum fins and seamless copper tubes. Despite a fin density of 12 fins per inch, there is low flow resistance. Our models, ideal for both residential and commercial applications, can be used with sources of hot water to create hot air, such as indoor boilers, outdoor wood boilers, natural gas boilers, propane boilers, oil boilers, electric boilers and other hot water heaters or furnace heat exchangers. This particular model has 1" ports and a capacity of 160,000 Btu. This product has a 1 year warranty against manufacturer's defects and is ETL listed.

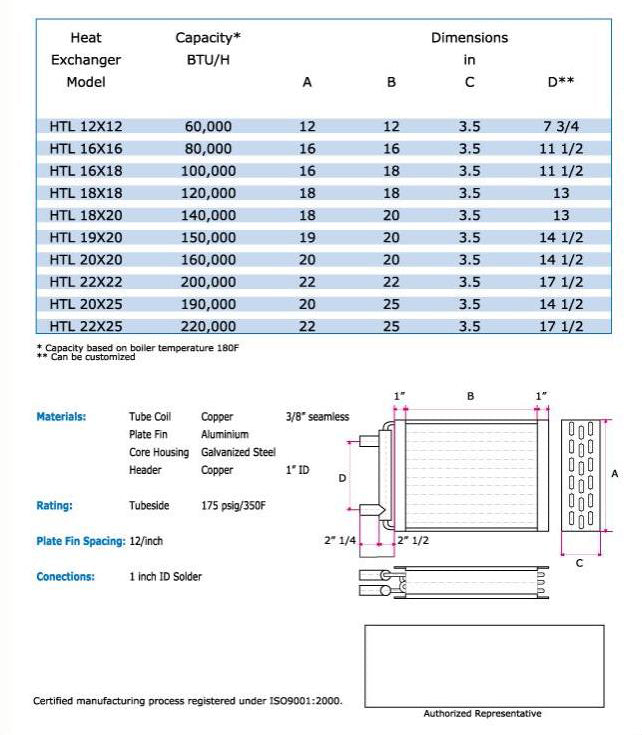

Product Information

Model
HTL16x16 Fitting Size
1"
Design Pressure
175psi
Capacity*
80,000 Btu Rating
175psi @ 350F

Test Pressure


263psi
Coils
3 rows of 3/8", copper
Fins


12 per inch, aluminum Materials
Steel, Copper, Aluminum
Min. Operating
Temp.

32F
Max. Operating
Temp.

350F
Dimensions
16" x 16" x 3.5"

*Capacity is based on 180F boiler output

Applications

•Residential Heating and Cooling
•Apartment Buildings and Condominiums
•Hybrid Systems
•Air Conditioning
•Dehumidification
•Inverter Cooling
•Solar Heat Pumps

Water to Air Heat Exchanger Size Choosing Guide.pdf
FAQ and Support

Tips for mounting Air to Water Heat Exchanger
If your air system has an overheat sensor, be sure to install the Air to Water Heat Exchanger far enough away from it so that the heat from the exchanger won't interfere with the sensor's readings.
