Description
AB 30x30 water to air heat exchanger is designed for hydronic heating and cooling systems that require stable heat transfer performance in a compact coil configuration. It features 3 rows of 3/8" seamless copper tubes combined with high-density aluminum fins to improve thermal exchange efficiency in forced-air applications. The coil structure supports integration with boilers, outdoor wood furnaces, solar-assisted systems, air handlers, and other closed-loop water circulation systems.
Built with a galvanized steel housing and base-brazed contact points, the unit is designed to maintain structural stability under continuous operating conditions. The epoxy-coated aluminum fins help improve surface durability and resistance to wear in long-term heating and cooling environments.
With 1" copper ports for standard hydronic connections, the heat exchanger supports multiple installation methods including direct pipeline connection, welding, and clamp-based mounting depending on system layout requirements.
Product Information
| Model |
HTL30x30 | Fitting Size |
1" copper sweat |
Design Pressure |
175psi |
|
Capacity* |
285,000 Btu | Rating |
175psi @ 350F |
Test Pressure |
263psi |
|
Coils |
3 rows of 3/8", copper | Fins |
12 per inch, aluminum | Materials |
Steel, Copper, Aluminum |
| Min. Operating Temp. |
32F |
Max. Operating Temp. |
350F |
Dimensions |

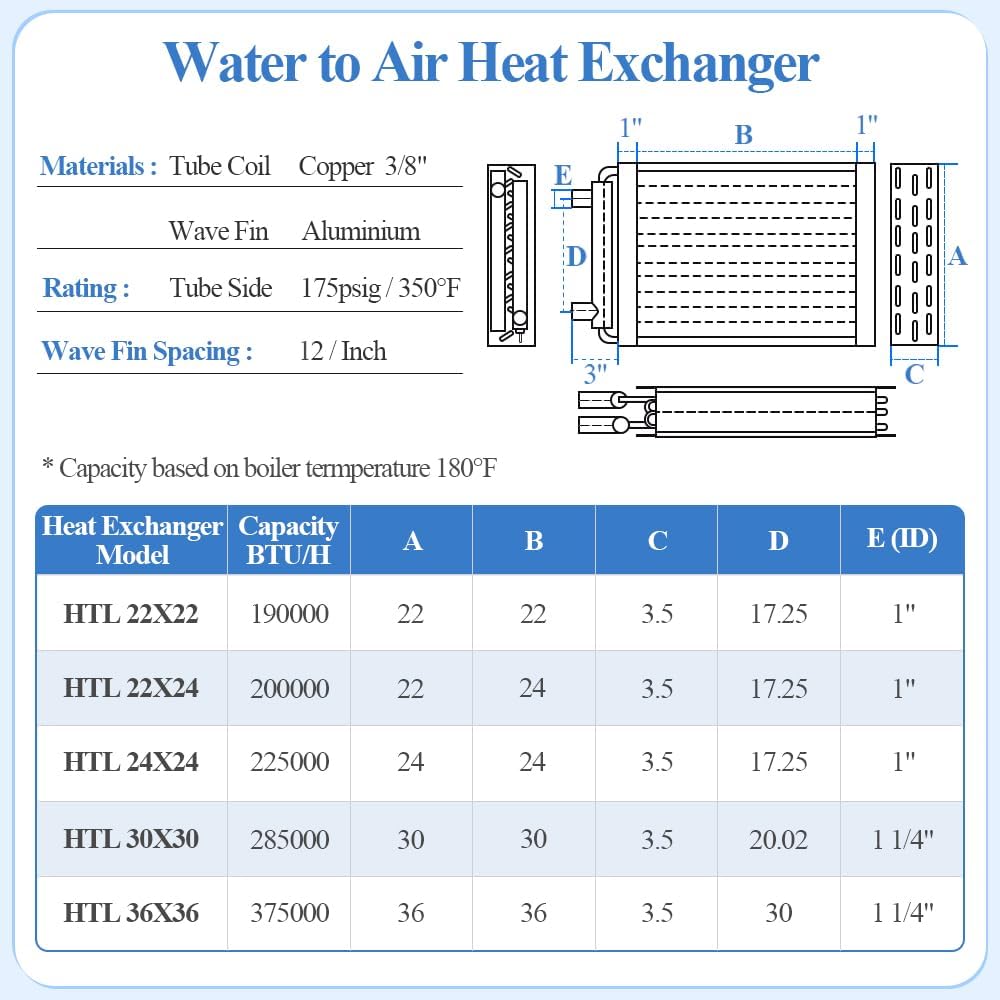

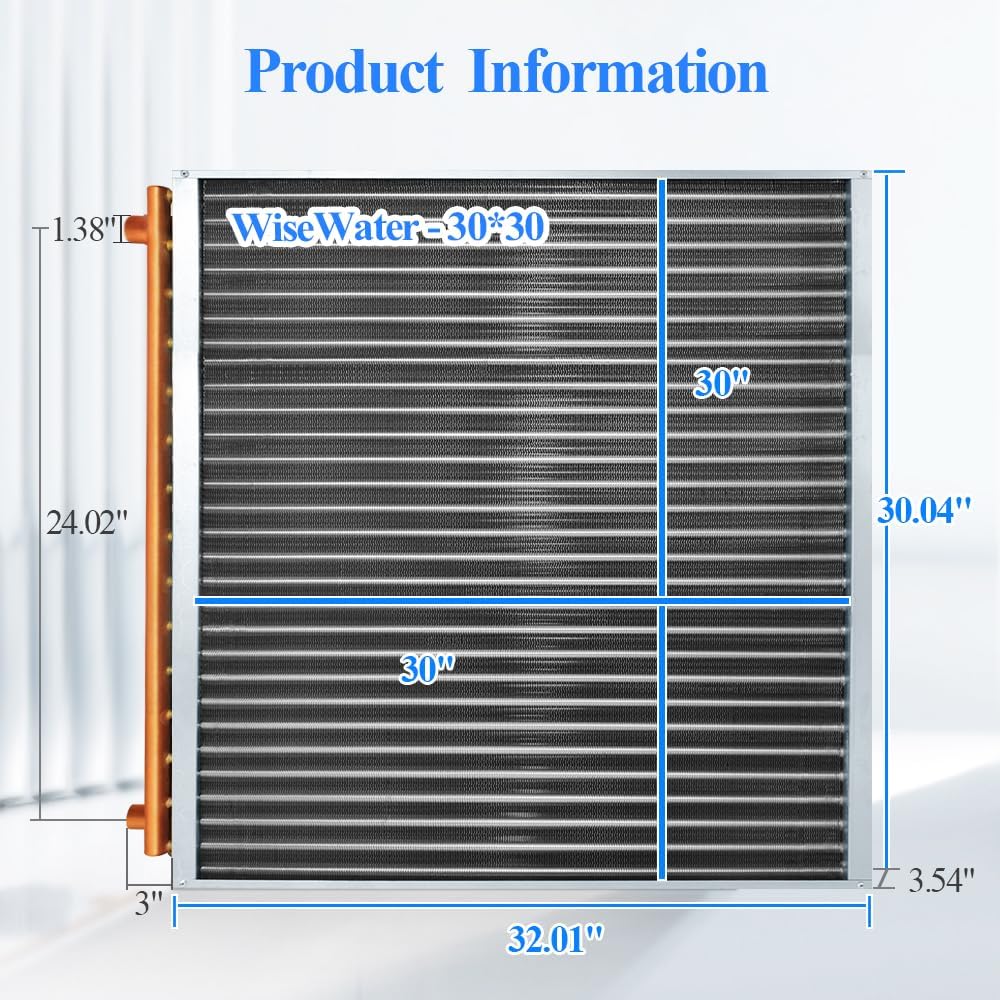

Finned Area30" x 30" x 3.5" |
*Capacity is based on 180F boiler output
Water to Air Heat Exchanger Size Choosing Guide.pdf
Efficient Water-to-Air Heat Transfer Design
The heat exchanger uses a combination of internally conductive copper tubing and closely spaced aluminum fins to support effective thermal transfer between water and airflow. The wavy fin structure increases surface contact area around the tubes, helping improve heat exchange efficiency during operation.
Copper Tube and Aluminum Fin Construction
The coil is manufactured with seamless copper tubes and aluminum fins to balance thermal conductivity and structural practicality. Copper tubing supports efficient fluid-side heat transfer, while the aluminum fins assist with rapid airflow-side temperature exchange.
Reinforced Steel Housing Structure
The outer housing is constructed from galvanized steel with base-brazed edges and contact points to improve rigidity during long-term operation. This construction helps the unit maintain stability in systems exposed to elevated temperature and pressure conditions.
Epoxy-Coated Fin Surface
The aluminum fins are treated with an epoxy coating to improve surface hardness and reduce wear over time. This additional coating layer may also help reduce exposure-related deterioration in demanding installation environments.
Flexible Installation Compatibility
The 1" copper ports allow compatibility with a range of hydronic system configurations. The unit can be installed using direct pipe connections, welded fittings, clamps, or adapter-based mounting methods depending on project requirements and available space.
Suitable for Multiple Hydronic Applications
This water to air heat exchanger can be used in residential and commercial heating or cooling systems, including outdoor wood furnace setups, boiler systems, hybrid heating applications, air handlers, and inverter cooling systems where water-based thermal transfer is required.
