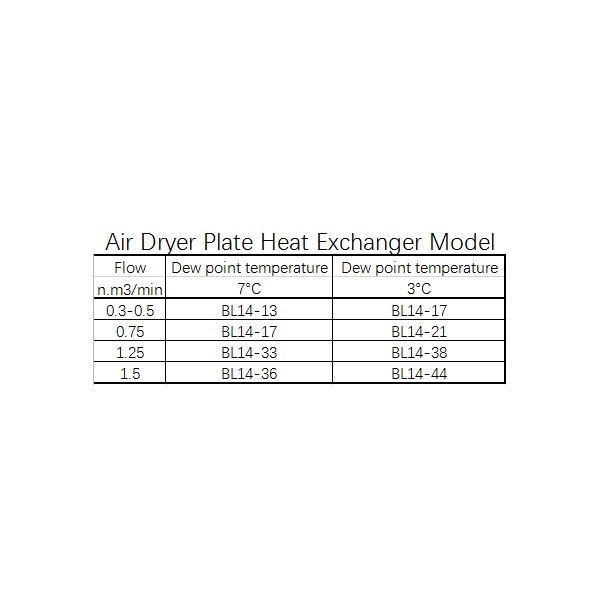

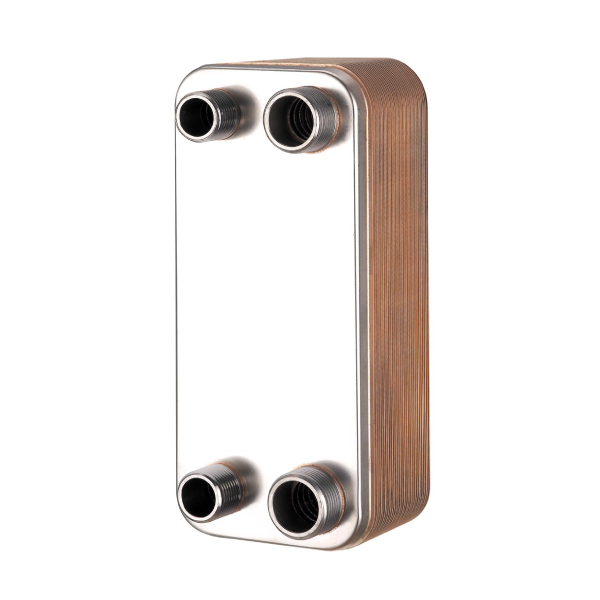

Air Dryer Brazed Plate Heat Exchanger for BL14

The AB Brazed Plate Heat Exchanger is used as an evaporator in the air dryer. Its main role is to recycle the cold capacity carried by the compressed air after being cooled by the evaporator. Meanwhile, use the cold capacity to cooling the higher temperature compressed air which carries a large amount of water vapor down to the dew point temperature, to reduce the heat load of the refrigerating and drying system of the chiller and save energy. And compared with traditional air dryers, it's smaller and easier to install.

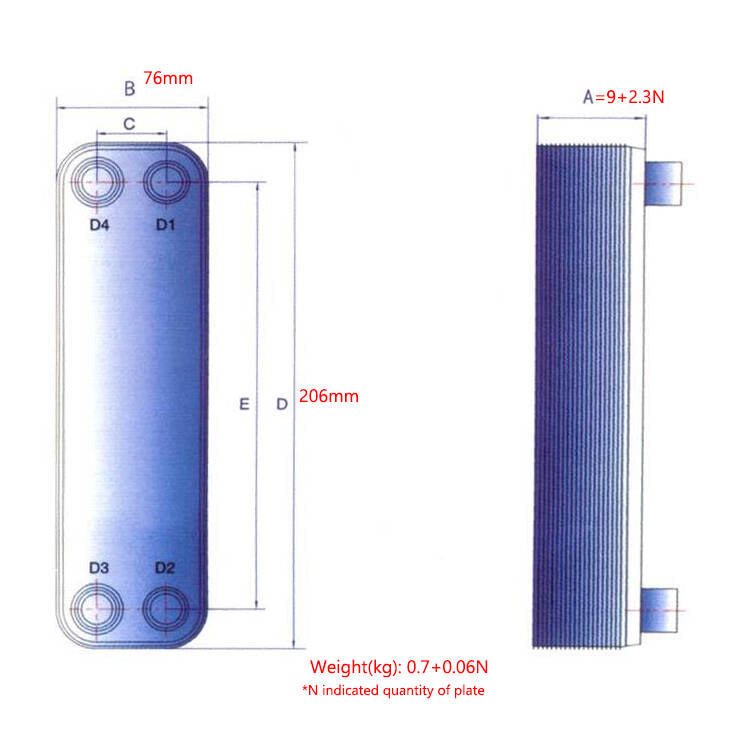

Specification

  1. Material: SS316/Copper brazed
  2. Max working temp: 250 degrees C
  3. Max working pressure: 3.0MPa
  4. Test pressure: 4.5 MPa

*Customization Service

To improve heat transfer efficiency and functioning within your system,we provide customized service if you have special needs.

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf

Tips

Please refer to the Manual for cleaning, installation, and welding.

Brazed Plated Heat Exchanger Manual.pdf

We have worked with heating systems for over 10 years,and specialized in the manufacturing,designing and marketing of heat exchangers and oil coolers for industrial and commercial applications.
