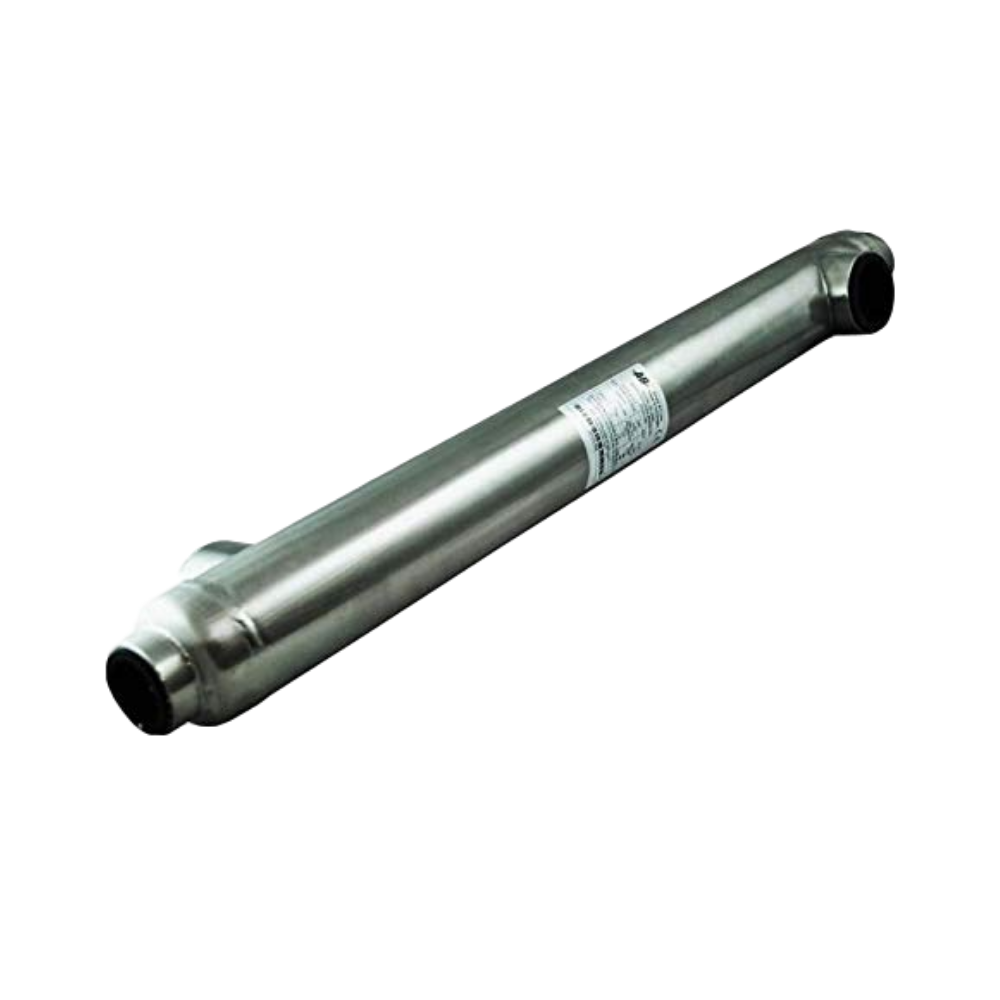

Titanium Pool Heat Exchanger - 360K Opposite Side 2" & 1 1/2" FPT

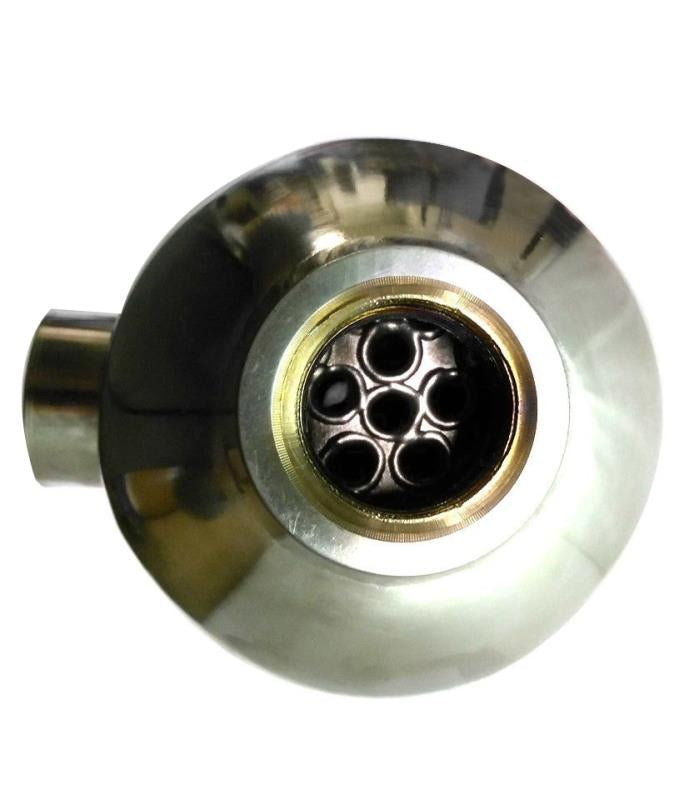

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of titanium and has 2" and 1 1/2" FPT. The capacity of this particular model is 360,000 Btu. This product has a 5 year warrantyagainst manufacturer's defects and is UL listed. We also have this model with same side ports available. Titanium is highly recommended for salt water systems, as it is the only SPHE material that can withstand that type of water.

 Product Information

Model SP-360Kti Capacity 360,000 Btu Pool Capacity
(Gal. @ 1F/hr)
29,000 Gal
Wattage 105kW Heat Transfer Area 9.128 ft2 Shell (Pool) / Tube (Hot)
Connections
2" / 1 1/2"
Hot Water
Flow Volume
12.63 GPM Hot Water
Pressure Drop
0.85psig   Materials Titanium
Cold Water
Flow Volume
94.70 GPM Cold Water
Pressure Drop
2.40psig Dimensions 32.67" x 3.5"
Minimum Temperature -19F Maximum Temperature 406F     Weight 7.8lb
Design Pressure 190psi Test Pressure 285psi

SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf

Instruction Manual.pdf
If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Tips for installation:
This product can be installed either vertically or horizontally. Also, be sure to install it in a way that allows a counter flow pattern for maximum heat efficiency. Click here for a reference picture on how to mount your Swimming Pool Heat Exchanger.
