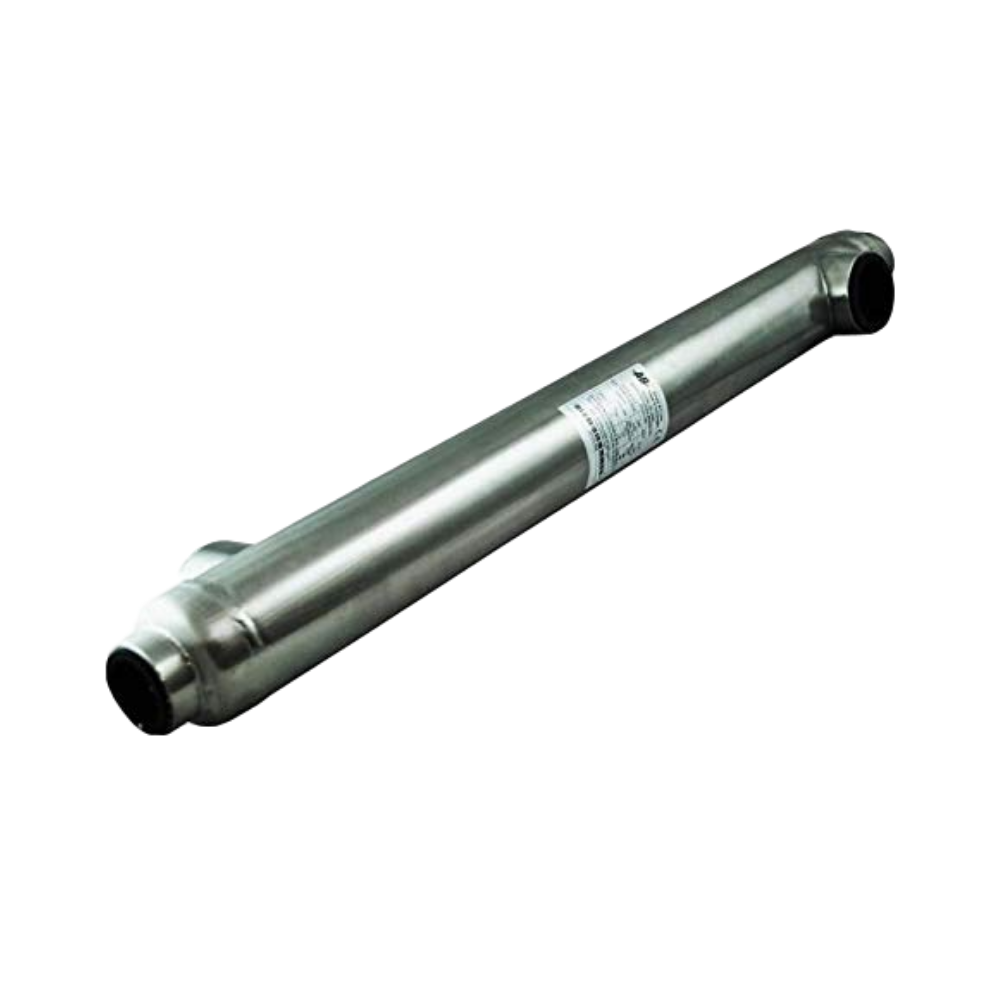

Swimming Pool Heat Exchanger - 600K Titanium Opposite Side 2 1/2" & 2" FPT

Swimming Pool Heat Exchanger - 600K Titanium Opposite Side 2 1/2" & 2" FPT - Alfa Heating Supply

Swimming Pool Heat Exchanger - 600K Titanium Opposite Side 2 1/2" & 2" FPT

Name: Alfa Heating
Address: 7529 Standish Place, Suite340 Derwood, MD, 20855, US
Telephone: 833-328-6888

$1,499.00

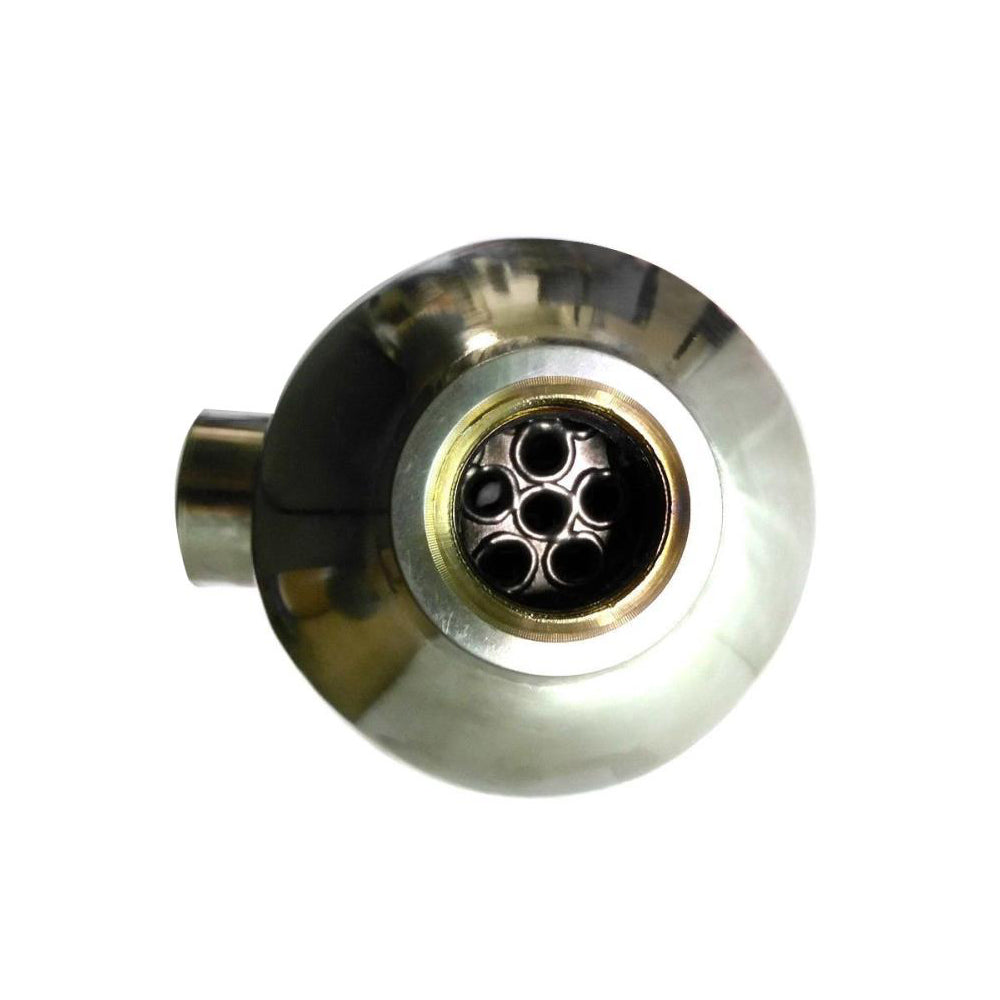

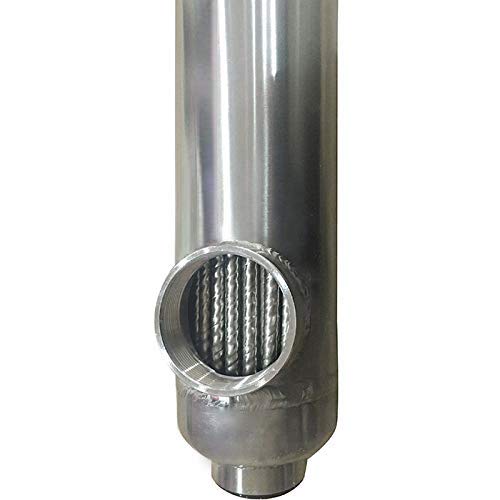

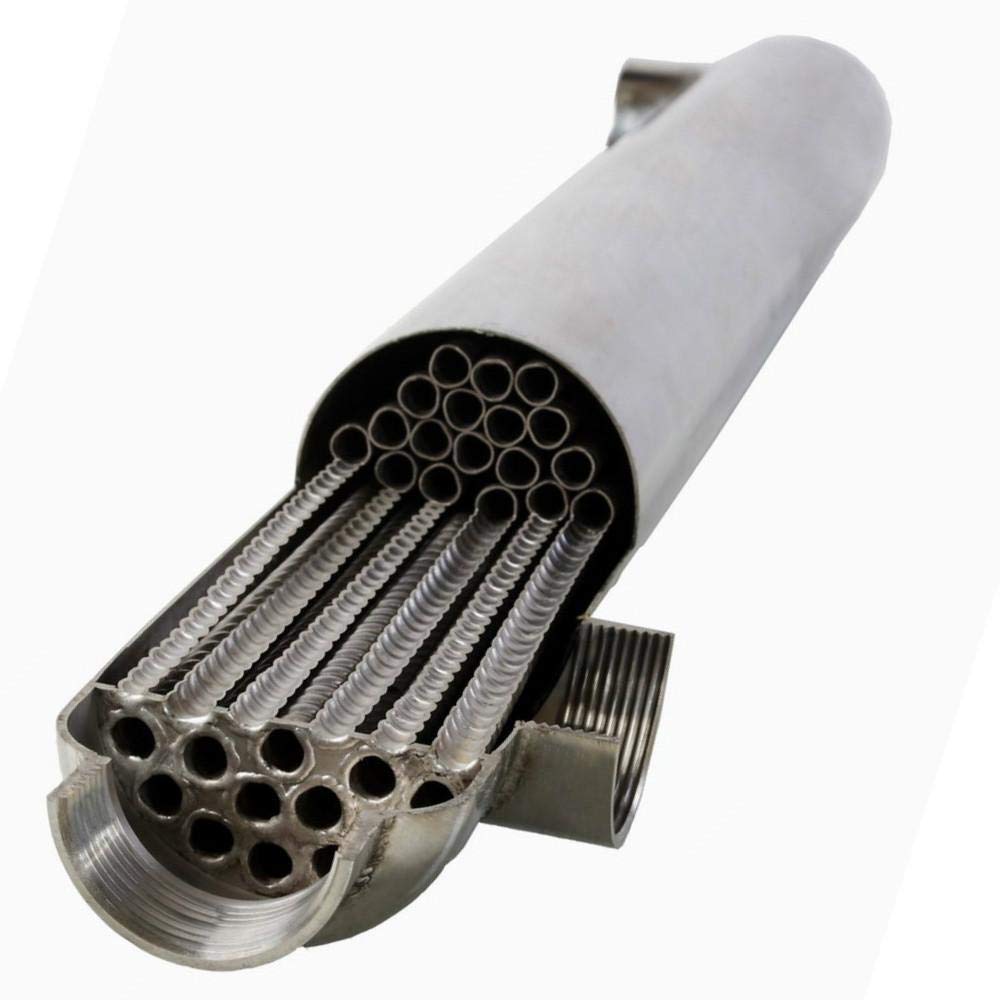

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost-effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. We also have this model with same side ports available. Titanium is highly recommended for saltwater systems, as it is the only SPHE material that can withstand that type of water.

Pool heating capacity up to 47,500 gallons 600 kBtu/hr salt pool based on 140°F (60°C) temperature difference between incoming heating and heated water
2 1/2" FPT opposite side for pool water and 2" FPT for hot water

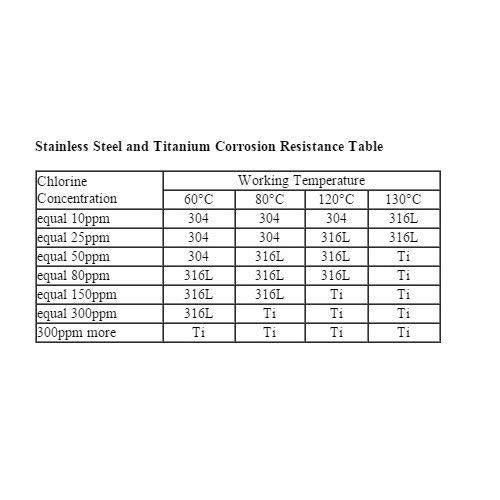

Fully made of anti-corrosion titanium which can work for any high chlorine or saltwater, seawater and chemical solutions
5-year warranty against manufacturer's defects and is UL listed

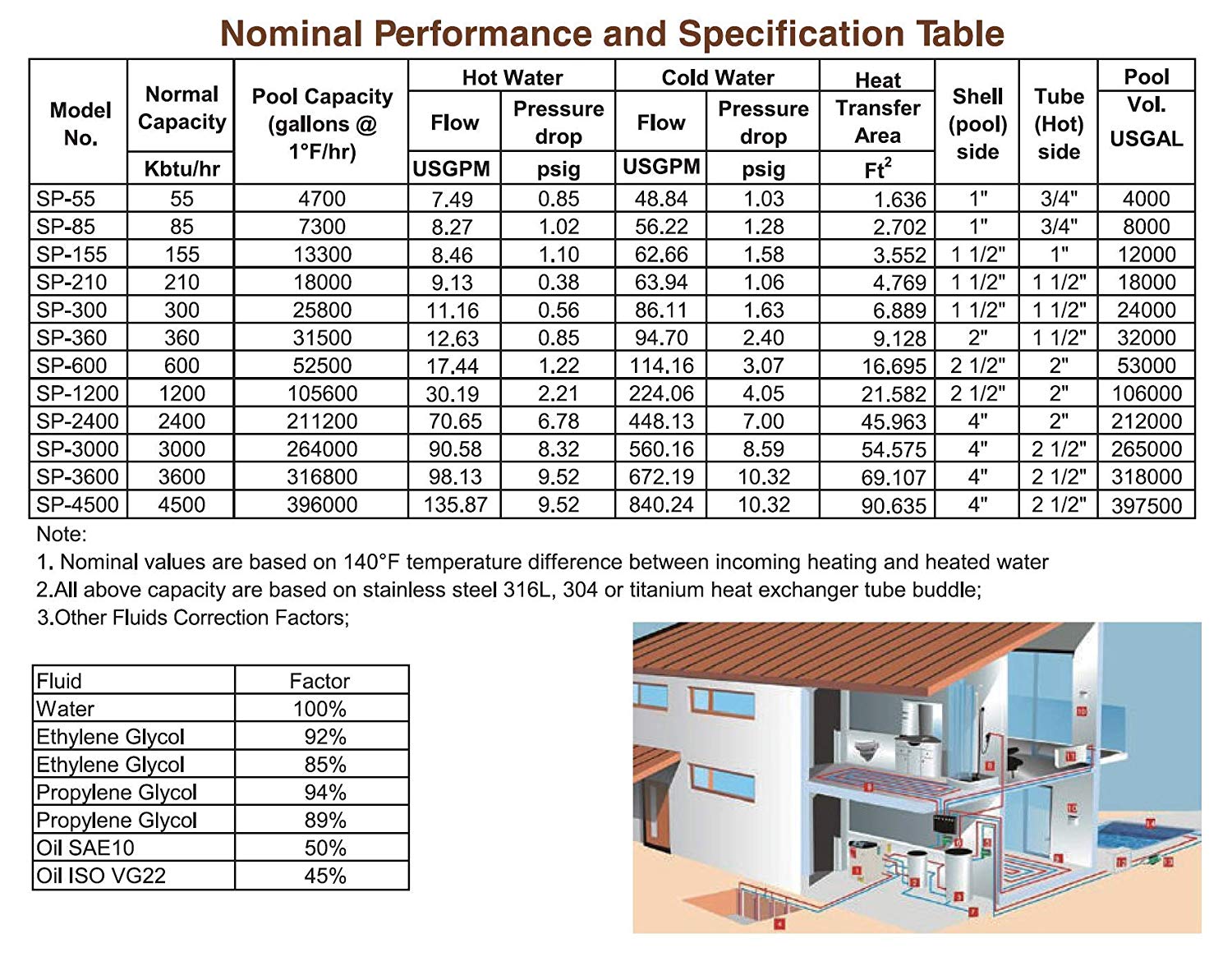

Product Information

Model	SP-600Kti	Capacity	600,000 Btu	Pool Capacity (Gal. @ 1F/hr)	47,500 Gal
Wattage	175kW	Heat Transfer Area	16.695 ft2	Shell (Pool) / Tube (Hot) Connections	2 1/2" / 2"
Hot Water Flow Volume	17.44 GPM	Hot Water Pressure Drop	1.22psig	Materials	Titanium
Cold Water Flow Volume	114.16 GPM	Cold Water Pressure Drop	3.07psig	Dimensions	34.25" x 4.48"
Minimum Temperature	-19F	Maximum Temperature	406F	Weight	12.9lb
Design Pressure	190psi	Test Pressure	285psi

SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf
If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Tips for installation:

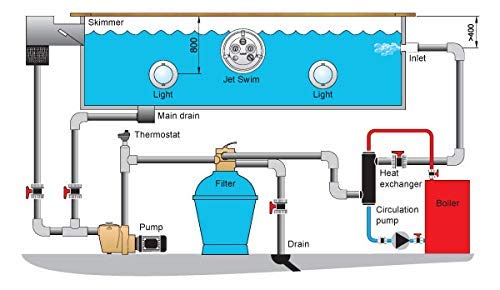

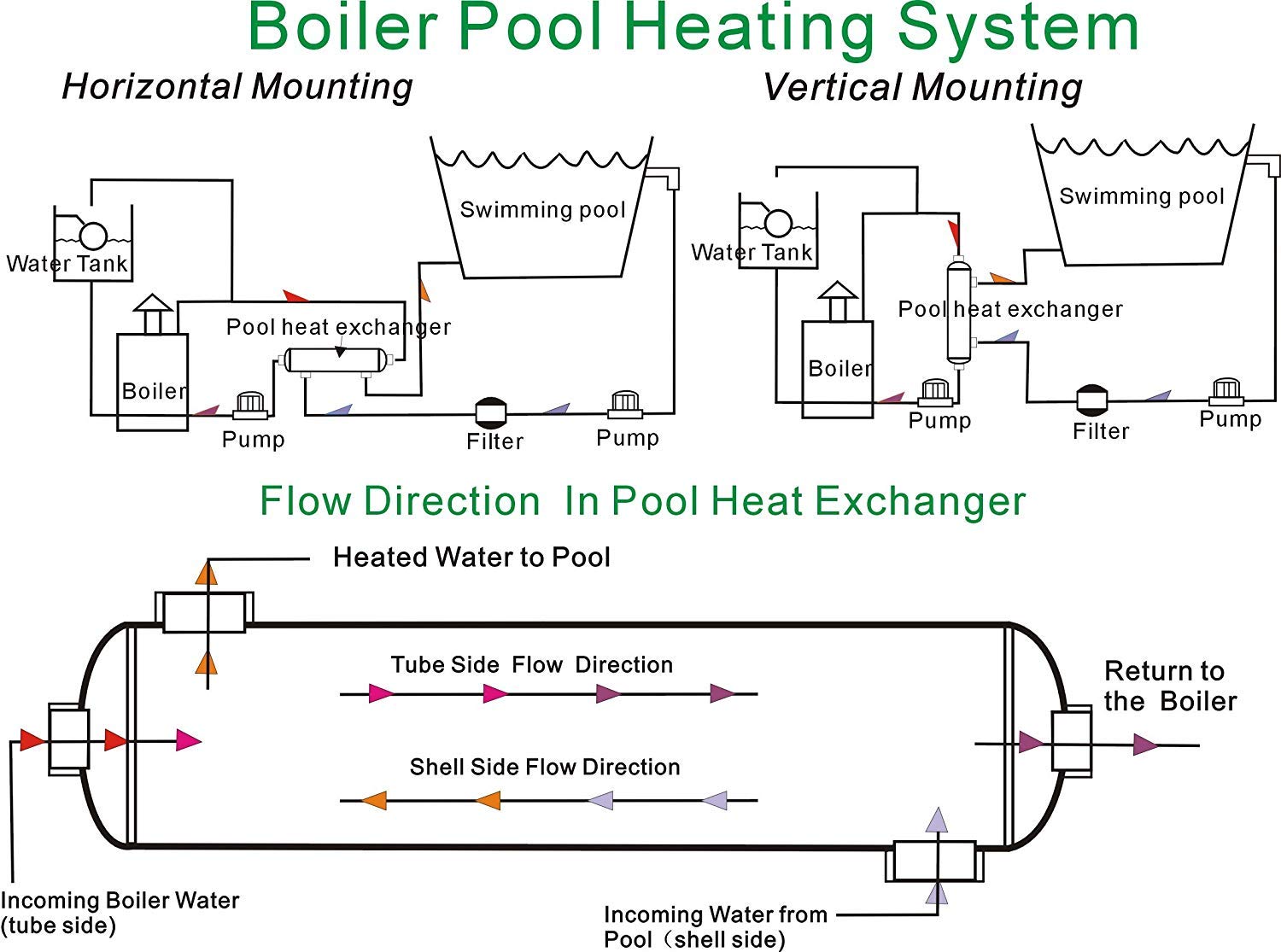

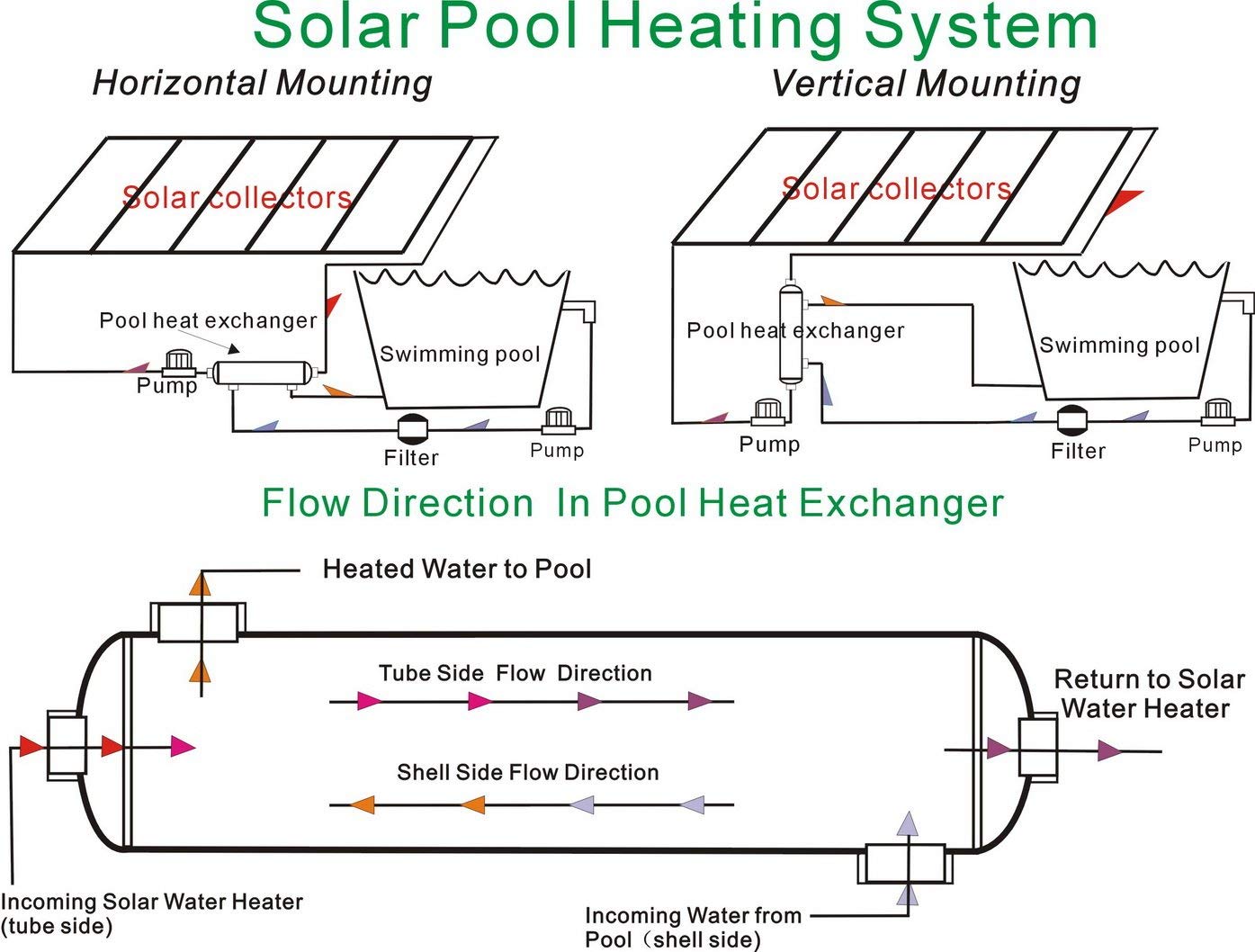

This product can be installed either vertically or horizontally. Also, be sure to install it in a way that allows a counter flow pattern for maximum heat efficiency. Click here for a reference picture on how to mount your Swimming Pool Heat Exchanger.
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at info@alfaheating.com or call us at 833-328-6888 for help with your heating projects.
