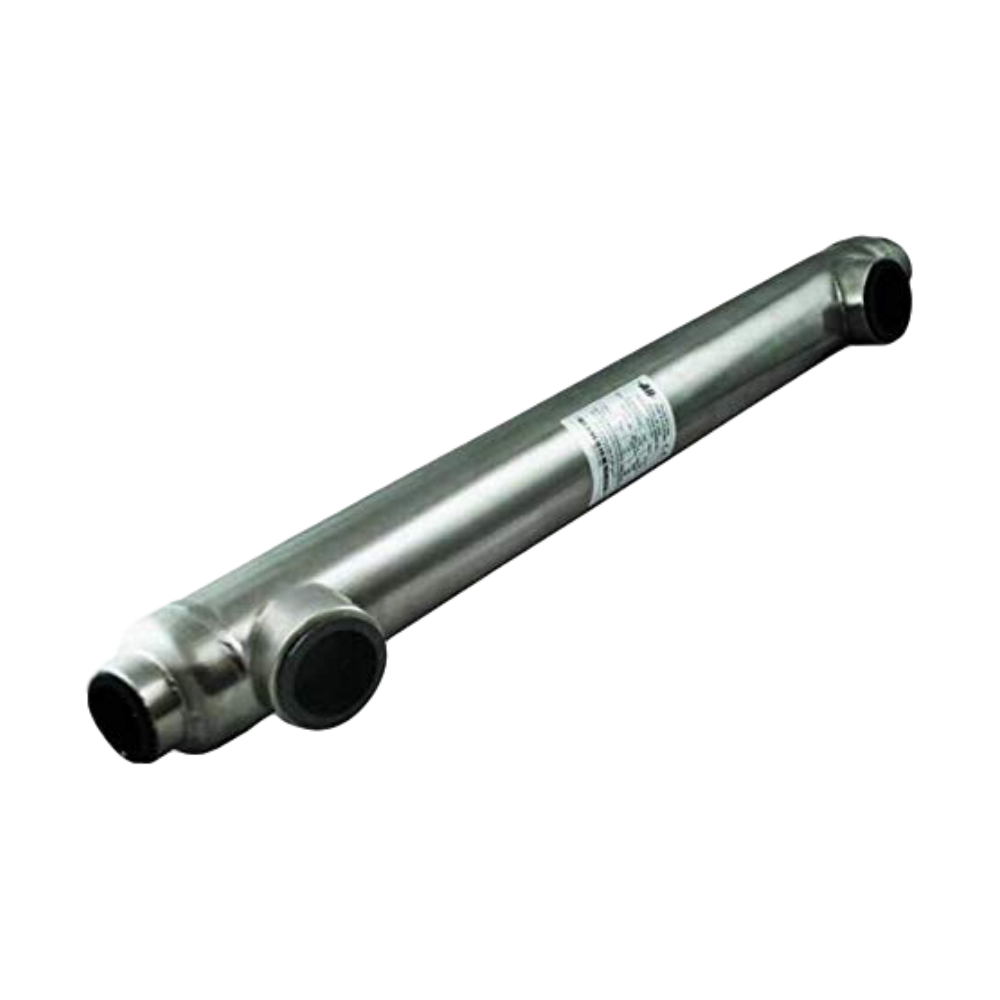

Swimming Pool Heat Exchanger - 85K Titanium Same Side 1 1/2" & 1" FPT

WiseWater Swimming Pool Heat Exchangers have an innovative spiral-twisted corrugated tube design that is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making our Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application. This product is made of titanium and has 1 1/2" and 1" FPT. The capacity of this particular model is 85,000 Btu. This product has a 6 year warrantyagainst manufacturer's defects and is UL listed. We also have this model with opposite side ports available. Titanium is highly recommended for salt water systems, as it is the only SPHE material that can withstand that type of water.

 Product Information

Model SP-85Kti-S-2 Capacity 85,000 Btu Pool Capacity
(Gal. @ 1F/hr)
7,300 Gal
Wattage 25kW Heat Transfer Area 2.702 ft2 Shell (Pool) / Tube (Hot)
Connections
1 1/2" / 1"
Hot Water
Flow Volume
8.27 GPM Hot Water
Pressure Drop
1.02psig   Materials Titanium
Cold Water
Flow Volume
56.22 GPM Cold Water
Pressure Drop
1.28psig Dimensions 19.84" x 2.36"
Minimum Temperature -19F Maximum Temperature 406F     Weight 2.8lb
Design Pressure 190psi Test Pressure 285psi

SPHE Brochure.pdf
Limited Warranty of Heat Exchanger.pdf
Instruction Manual.pdf

If you have any special requirements, please fill the Heat Exchanger Sizing and Quote Form.pdf

FAQ and Support
Damage prevention tips:
Your pool's pH balance should be kept between the ideal levels of 7.4 to 7.6. Do not let the balance fall below 7.2 or go higher than 7.8. Be sure to check the pH levels often.
