Description
The wall mounted aluminum radiator heater is designed for closed-loop hot water heating systems used in residential and light commercial interior spaces. Available in 6, 8, 10, and 12 section configurations, the radiator supports different room heating requirements while maintaining a compact wall-mounted structure suitable for hydronic heating applications.
Constructed from welded aluminum sections with a multi-layer fin design, the radiator supports stable thermal transfer and natural room air circulation. Side ventilation openings assist with airflow movement around the heating surface, helping distribute heat more evenly within the installation area.
The unit is intended for use with hot water circulation systems and is not compatible with steam heating applications. The product includes a 1-year warranty against manufacturing defects.
Product Information
| Form Factor |
Wall-Mounted | Thread Type |
BSPP(Paraller Thread) | Color |
White |
| Body Material | Aluminum | Core Materials |
Stainless Steel |
Power Source | Hot Water |
|---|---|---|---|---|---|
| Max Temperature Setting |
250 Degrees Fahrenheit | Item Type Name | Radiator Heater | Connector Size |
Radiator Instruction Manual.pdf
Section Options and Heating Capacity
Different section configurations provide varying heat output levels for different room sizes and heating loads.
Available Variants
- 6 Sections — Up to 3,461 BTU
- 8 Sections — Up to 4,616 BTU
- 10 Sections — Up to 5,768 BTU
- 12 Sections — Up to 6,922 BTU
Dimensions

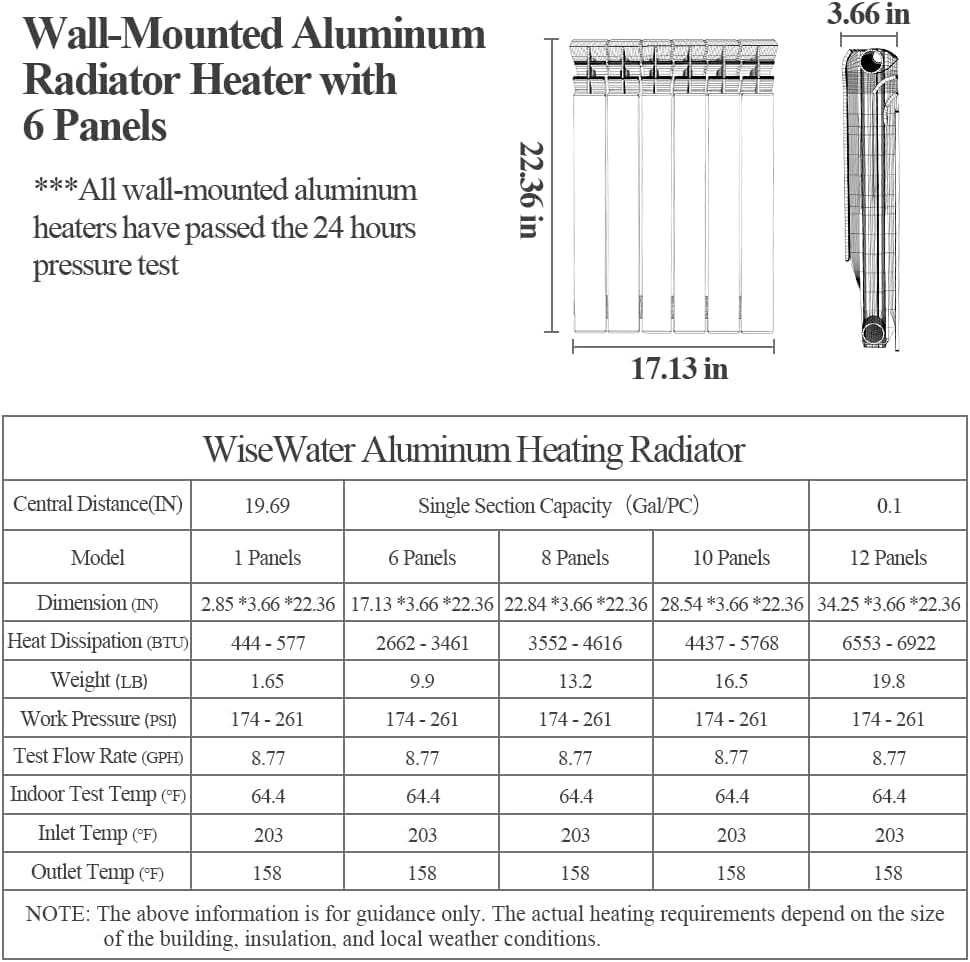

- 6 Sections: 17.13" × 3.66" × 22.36"

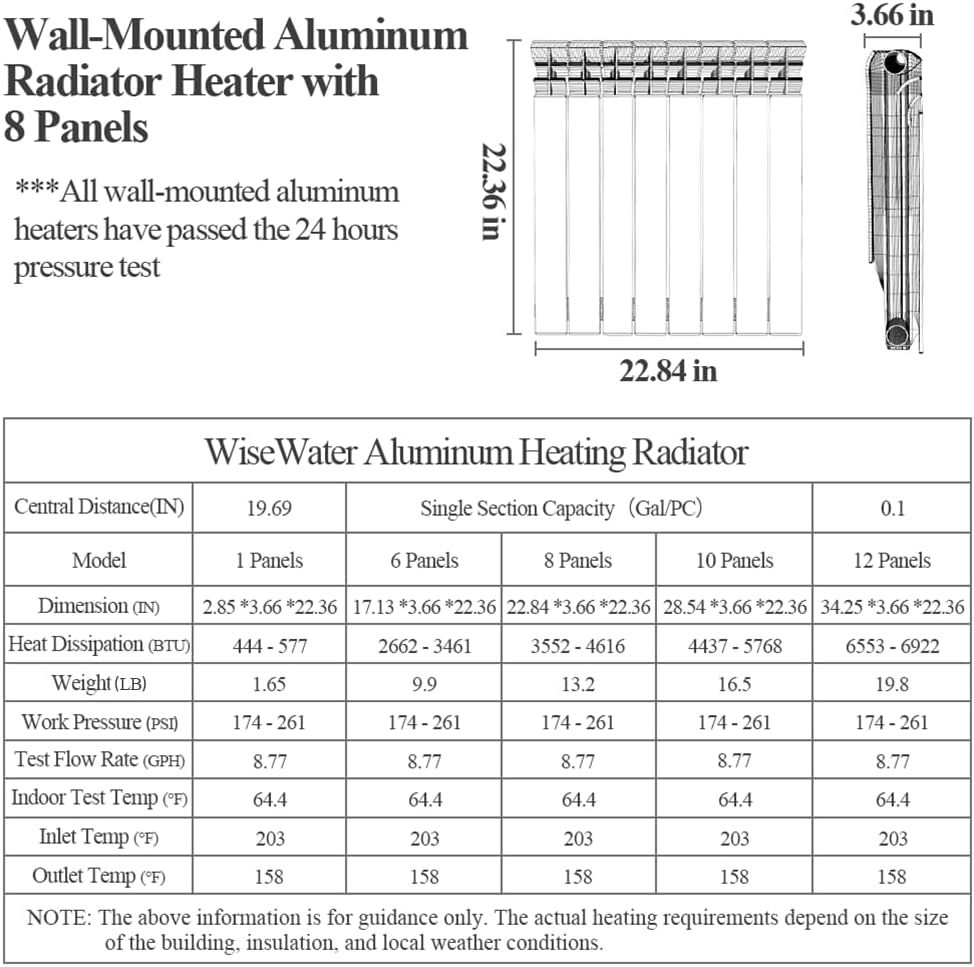

- 8 Sections: 22.84" × 3.66" × 22.36"

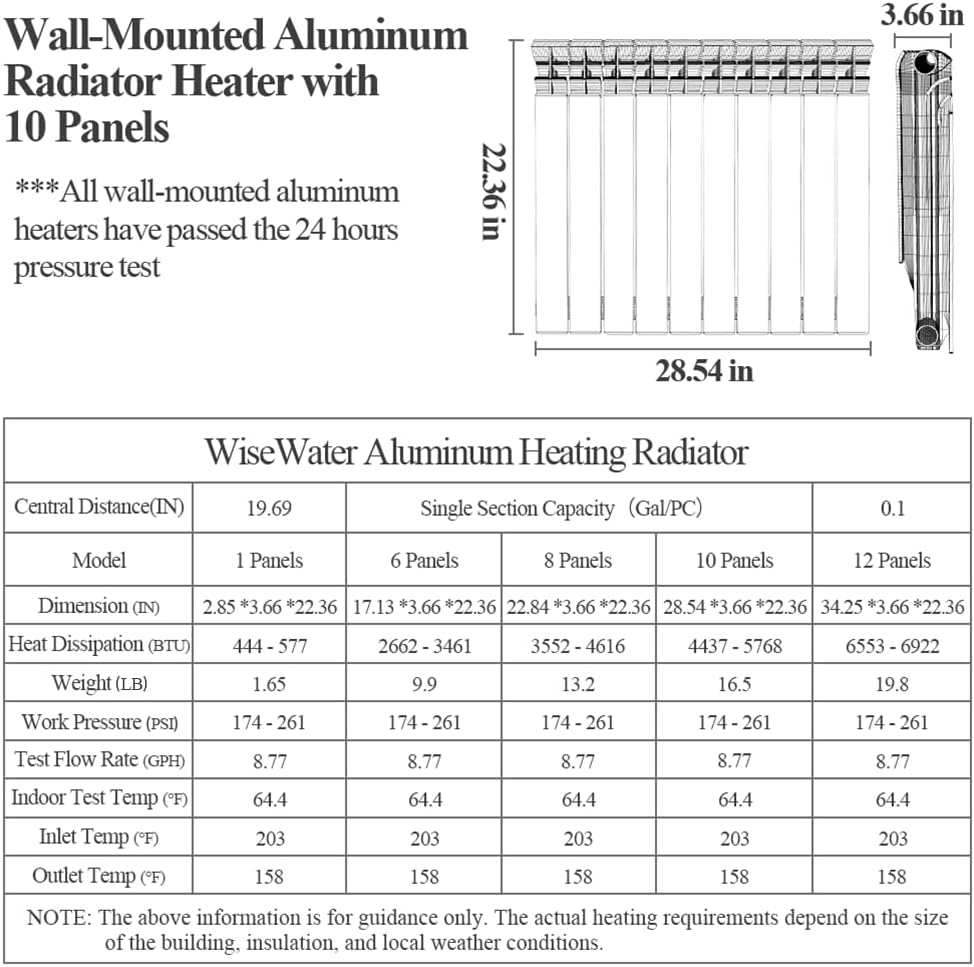

- 10 Sections: 28.54" × 3.66" × 22.36"

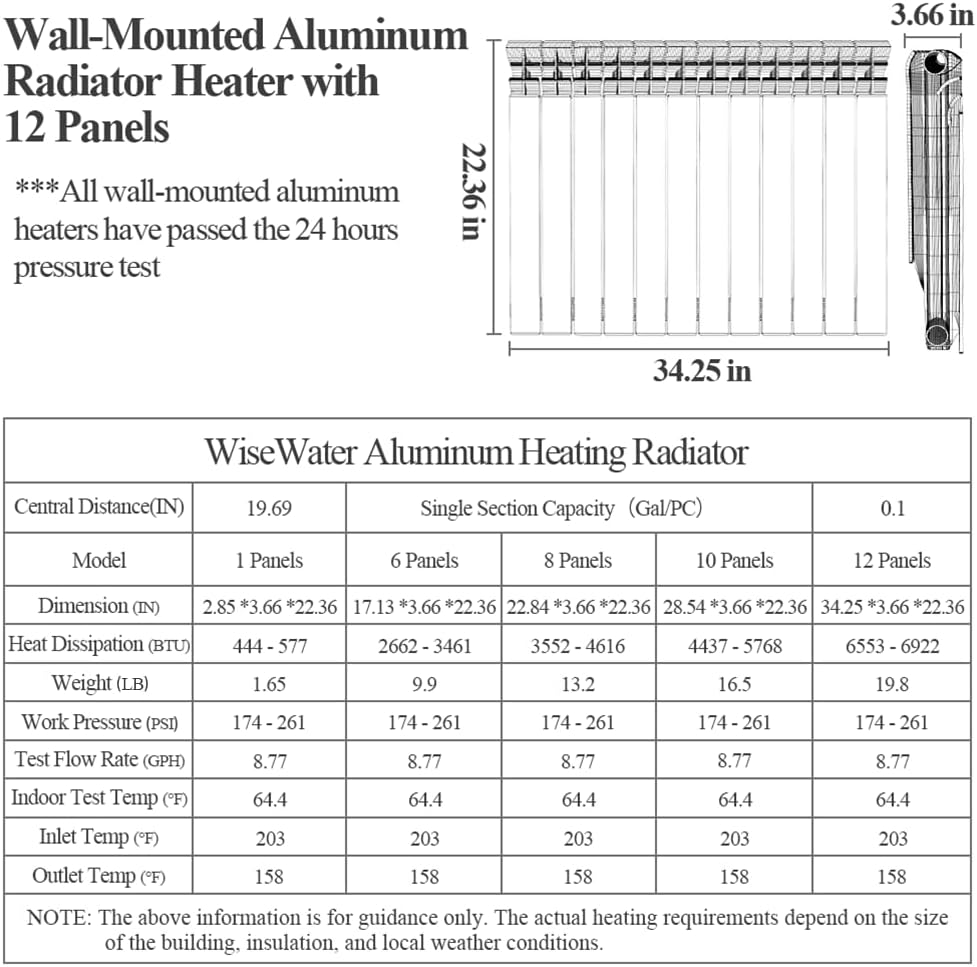

- 12 Sections: 34.25" × 3.66" × 22.36"
Aluminum Heating Structure
The radiator is manufactured using aluminum sections designed for efficient heat conductivity in hot water heating systems. Aluminum construction allows heat to transfer quickly from circulating water to the radiator surface while maintaining a relatively lightweight structure for wall installation.
The multi-layer fin configuration increases surface area exposure to surrounding air, supporting stable heat dissipation during operation.
Hydronic Heating Performance
This radiator is designed for hydronic room heating systems operating with circulated hot water. The system operates without fan-driven airflow, helping maintain low operational noise levels during continuous heating.
The radiator structure is designed to support stable indoor heating without introducing forced dry airflow commonly associated with some air-based heating systems.
Pressure Specifications
- Maximum Pressure: 2.0 MPa
- Recommended Working Pressure: 1.2–1.8 MPa
Each welded radiator assembly undergoes pressure testing prior to use to verify sealing integrity and operational stability.
Surface Coating and Material Protection
The exterior surface is finished with a baked coating layer designed to support corrosion resistance and simplify routine cleaning. The smooth exterior surface helps reduce surface wear and allows basic maintenance using water-based cleaning methods.
The coating structure also helps maintain surface consistency during long-term indoor installation.

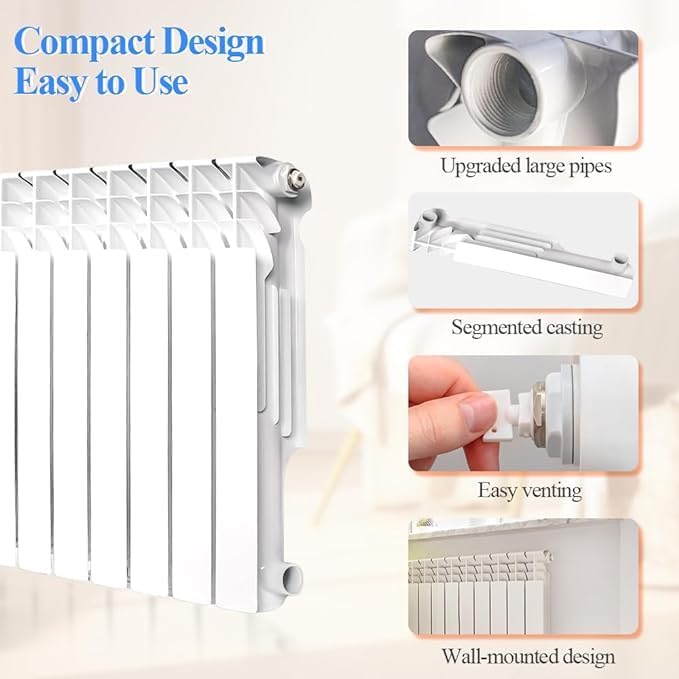

Wall-Mounted Installation Design
The radiator is designed for wall-mounted installation and includes mounting accessories and installation reference points for piping alignment. The compact vertical profile helps reduce floor space usage in residential heating layouts.
Suitable Wall Types
- Load-bearing walls
- Solid brick walls
- Concrete walls
Not Recommended For
- Hollow walls
- Lightweight partition walls
- Gypsum board walls
Application Compatibility
Suitable applications include:
- Residential hydronic heating systems
- Hot water room heating
- Apartment heating systems
- Boiler-based heating systems
- Interior wall-mounted heating installations
- Closed-loop hot water circulation systems
The radiator is intended for indoor use in non-steam hot water heating systems only.
FAQ and Support
We have worked with heating systems for over 10 years and are happy to help you with any questions or concerns that you may have. You can email us at support@alfaheating.com or call 833-328-6888 for help with your heating projects.
