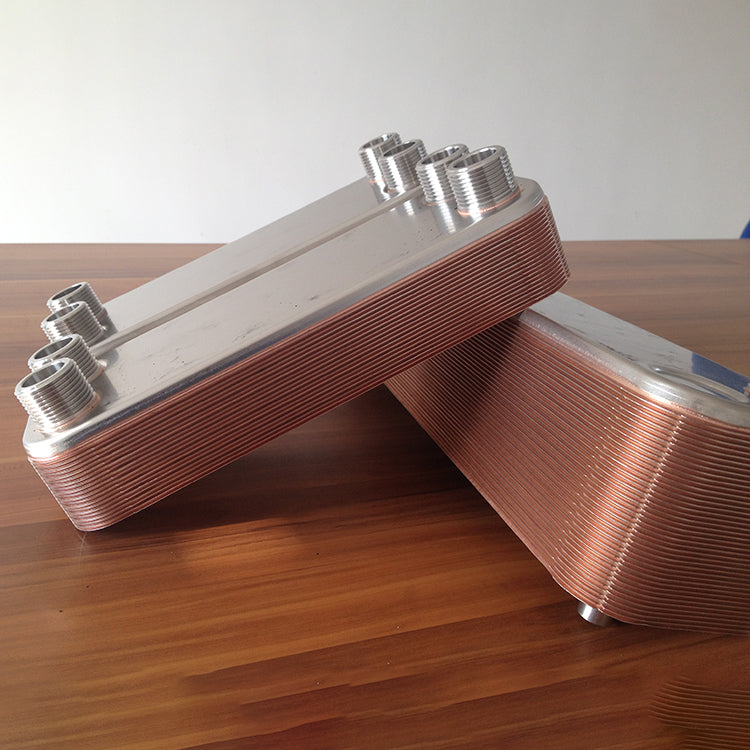

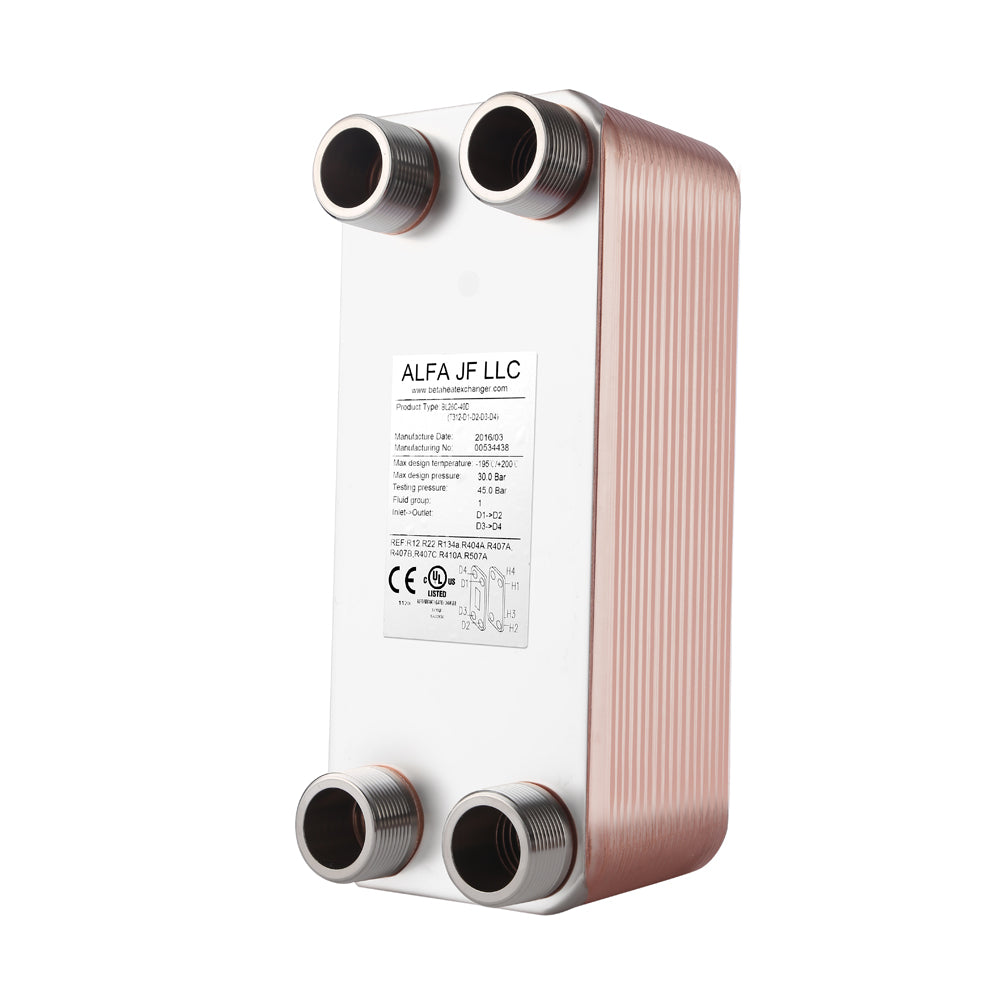

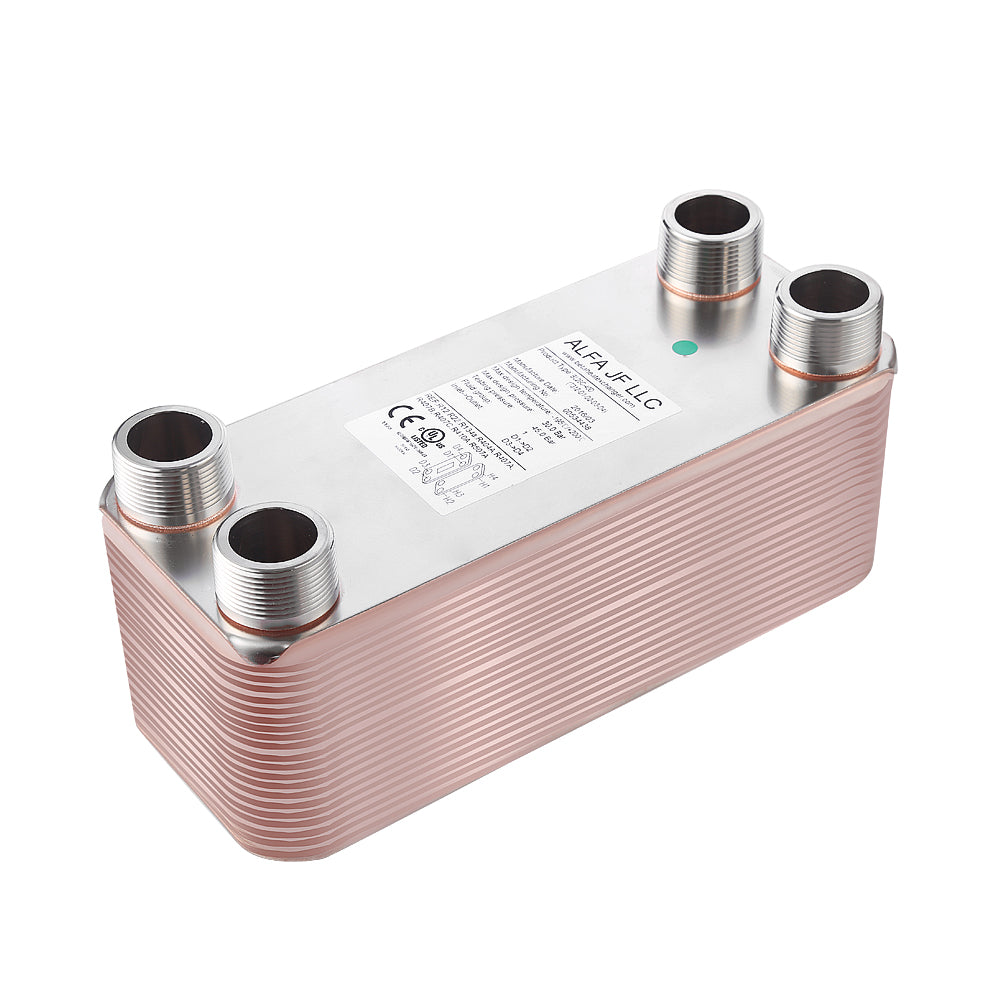

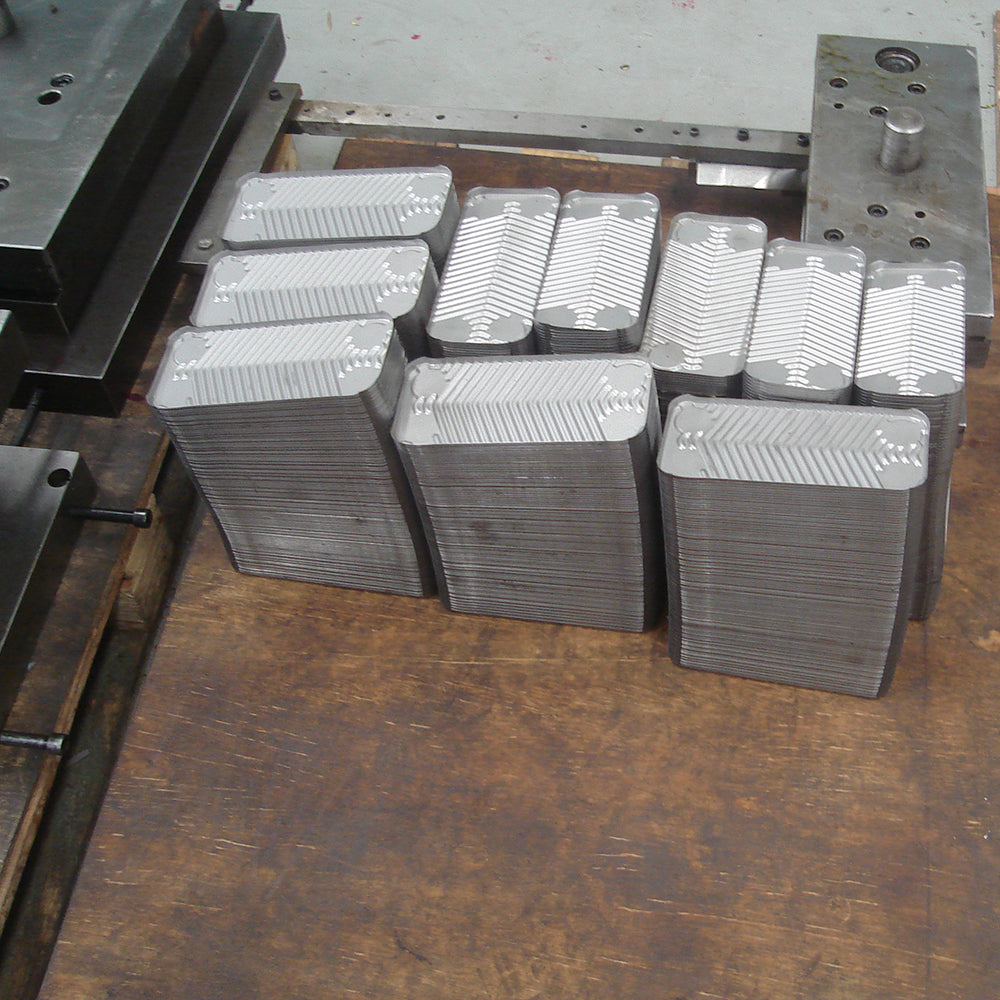

Alfa Plate Oil Cooler is a compact and light-weight cooler. Heat exchanging capacity 2-5 times shell&tube oil coolers despite its small dimensions. It consists of corrugated channel plates enclosed by a back and front cover plate. The channel plates are pressed and vacuum-welded in an automatic procedure subject to strict quality controls. The unique plate design provides highly turbulent flow conditions throughout the cooler, the key to efficient cooling. Turbulences prevent deposits from forming to such an extent, that easy to maintenance. It's widely used in plastic machinery, engineering machinery, mining machinery, automotive, steel, wind power, aerospace applications.
Specification
Material: SS316 (99.9% Copper brazed)
Max working temp: 250 degrees C
Max working pressure: 3.0MPa
Test pressure: 4.5MPa
Oil in/out(Water in/out) Ports: 1" NPT

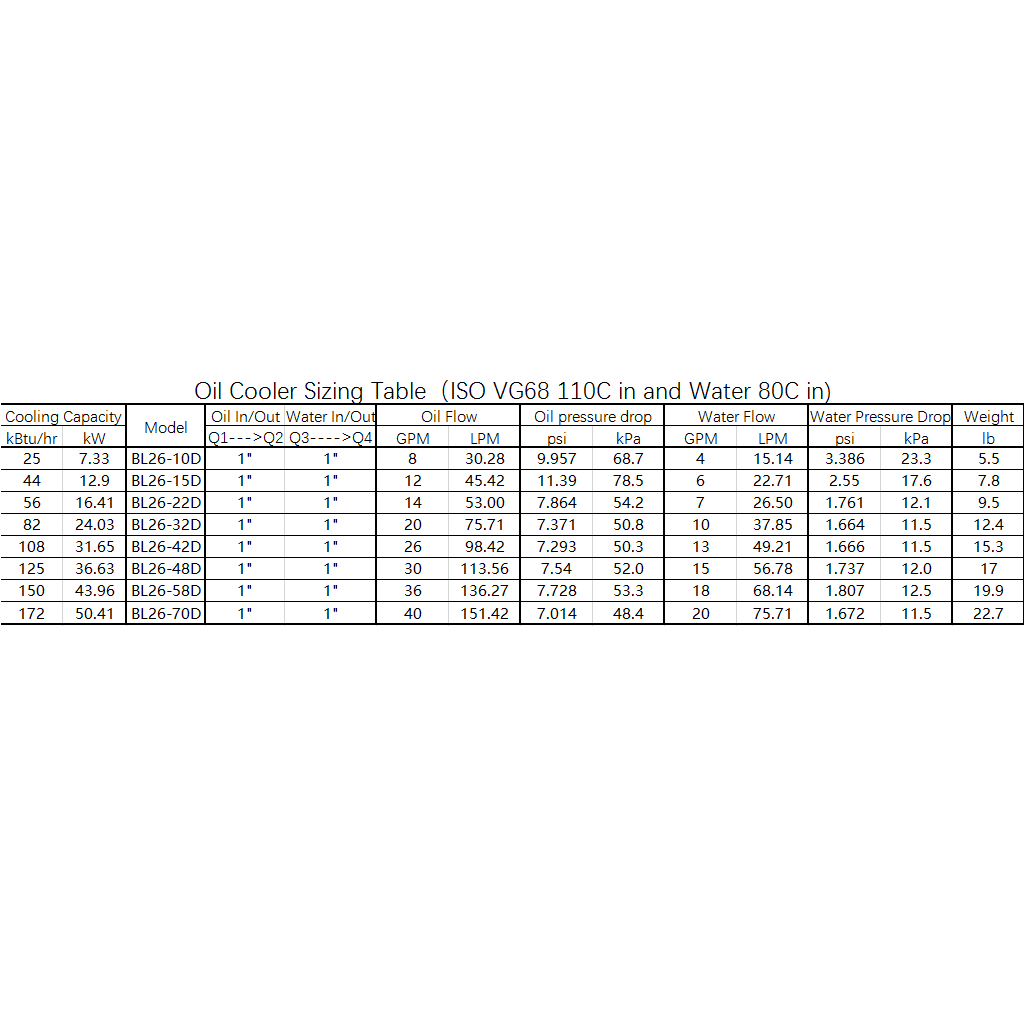

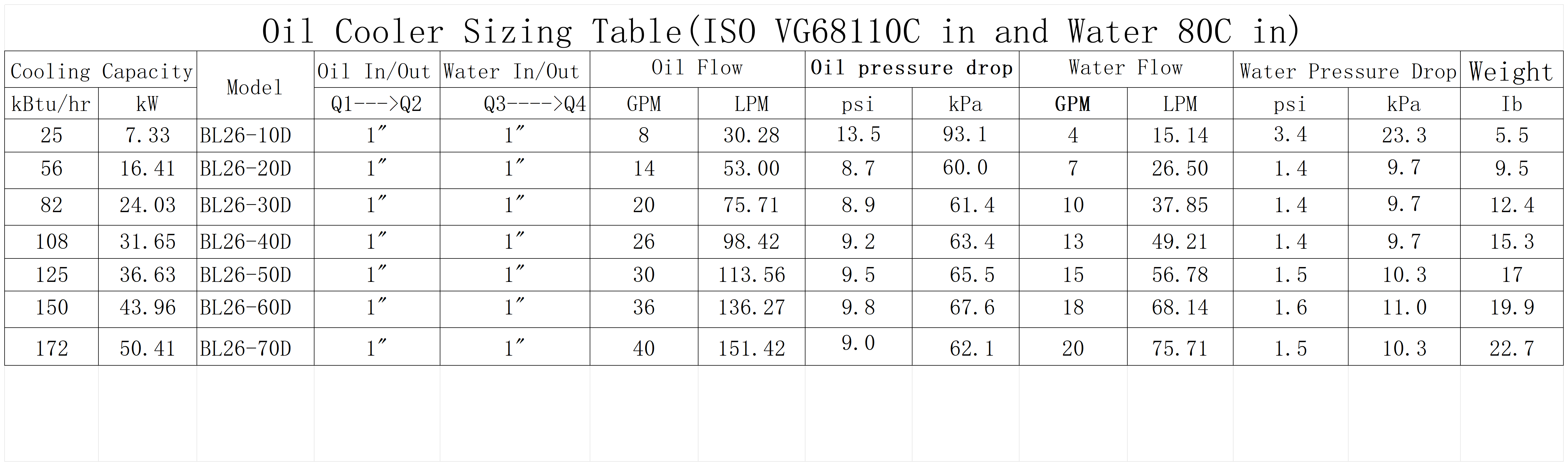

ISO VG68 110C in and Water 80C in
*Customization Service
We produce customized applications on different working pressure and temperature.
We have worked with heating systems for over 10 years and specialized in the manufacturing, designing and marketing of heat exchangers and oil coolers for industrial and commercial applications.
