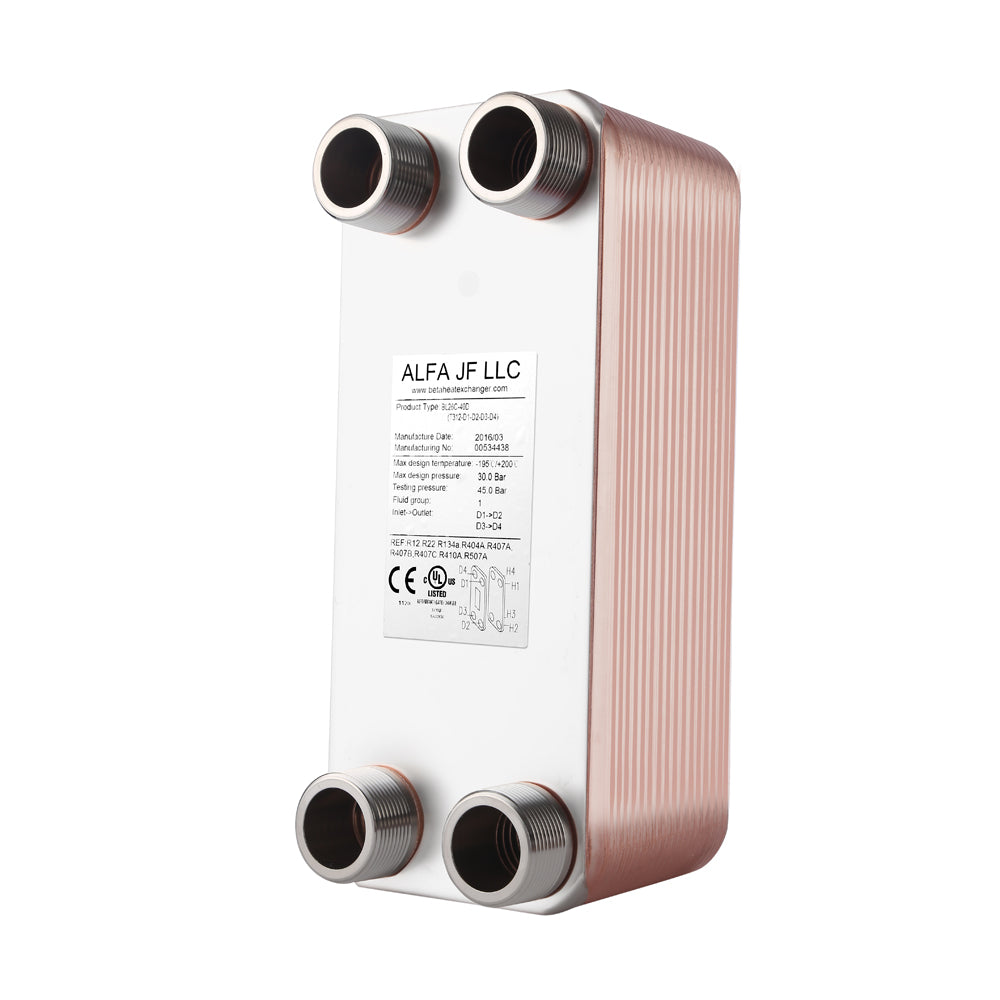

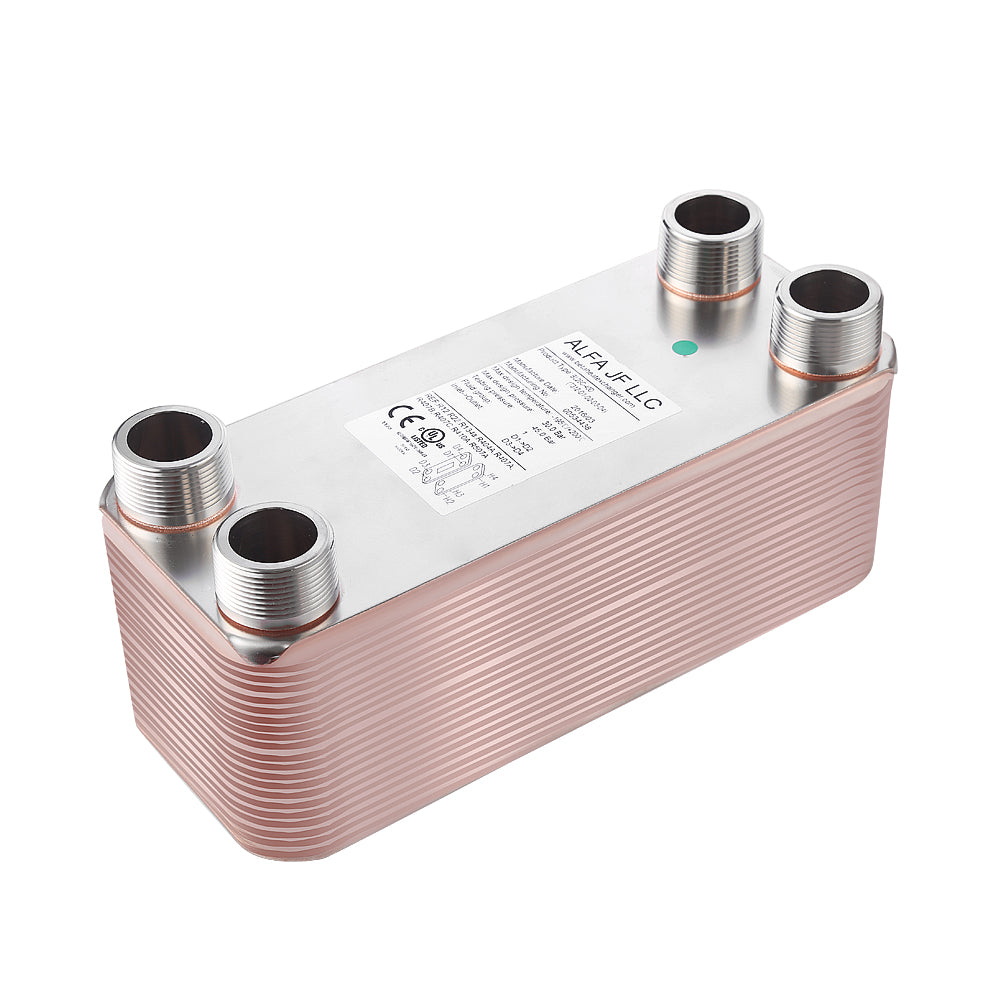

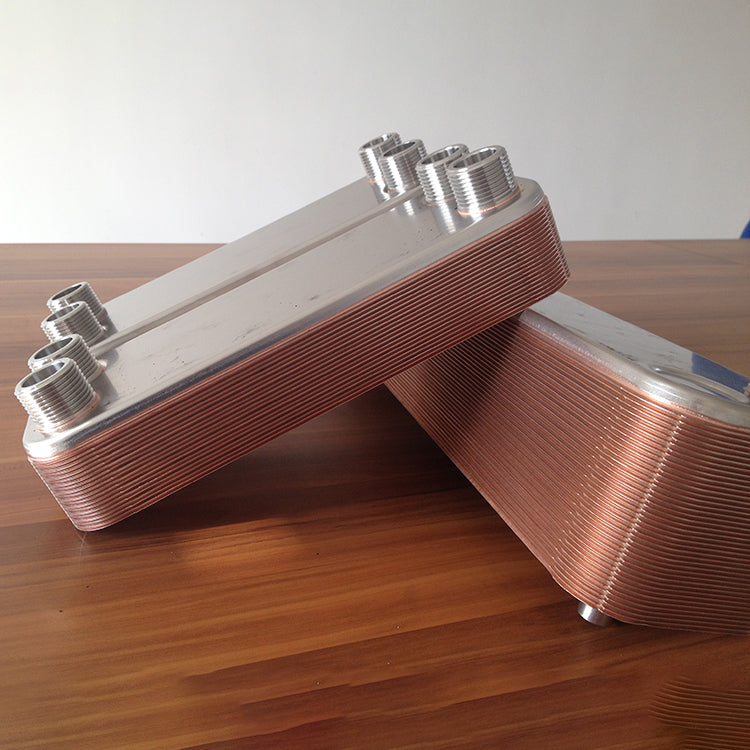

Oil Cooler Water Cooled BL95 BPHE for Lube Oil/ Hydraulic Oil Cooling 2" NPT

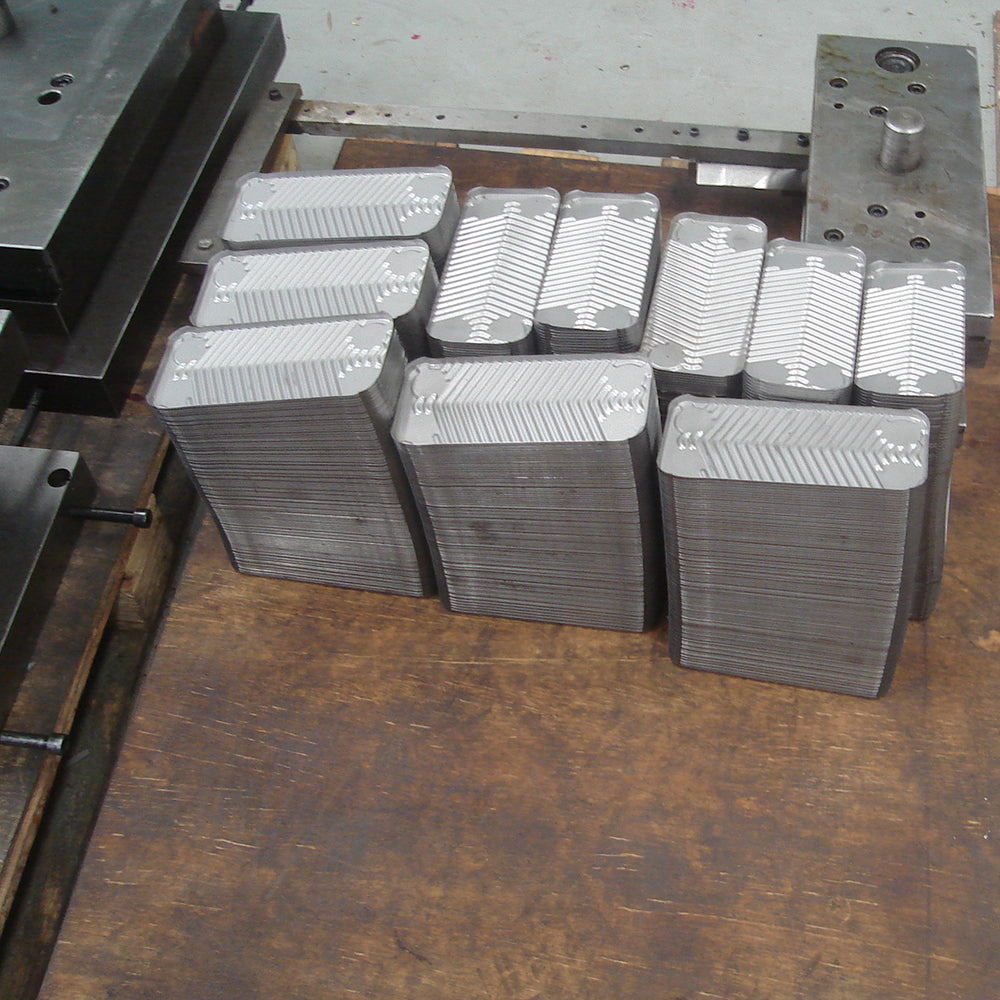

Alfa Plate Oil Cooler is a compact and light-weight cooler. Heat exchanging capacity 2-5 times shell&tube oil coolers despite its small dimensions. It consists of corrugated channel plates enclosed by a back and front cover plate. The channel plates are pressed and vacuum-welded in an automatic procedure subject to strict quality controls. The unique plate design provides highly turbulent flow conditions throughout the cooler, the key to efficient cooling. Turbulences prevent deposits from forming to such an extent, that easy to maintenance. It's widely used in plastic machinery, engineering machinery, mining machinery, automotive, steel, wind power, aerospace applications.

Specification

  1. Material: 304, SS316 (Copper brazed)
  2. Max working temp: 250 degrees C
  3. Max working pressure: 3.0MPa
  4. Test pressure: 4.5MPa
  5. Oil in/out(Water in/out) Ports: 2" NPT
  6. ISO VG68 110C in and Water 80C in

*Customization Service

We produce customized applications on different working pressure and temperature.

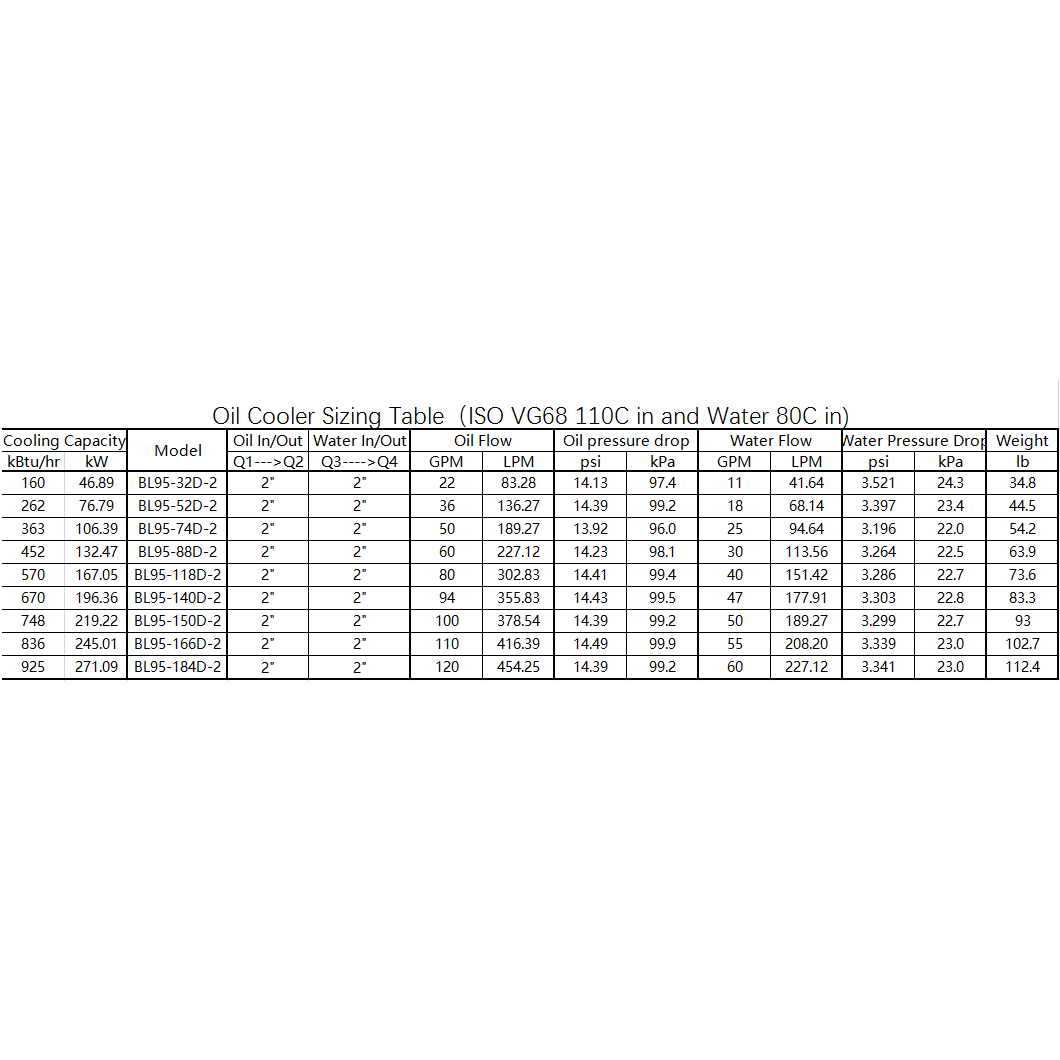

Plate Oil Cooler Quick Sizing Table.pdf

Heat Exchanger Sizing and Quote Form.pdf

Limited Warranty of Heat Exchanger.pdf

BPHE Brochure.pdf

Tips

Please refer to the Manual for cleaning, installation, and welding.

Brazed Plate Heat Exchanger Manual.pdf

We have worked with heating systems for over 10 years and specialized in the manufacturing, designing and marketing of heat exchangers and oil coolers for industrial and commercial applications.
