Description

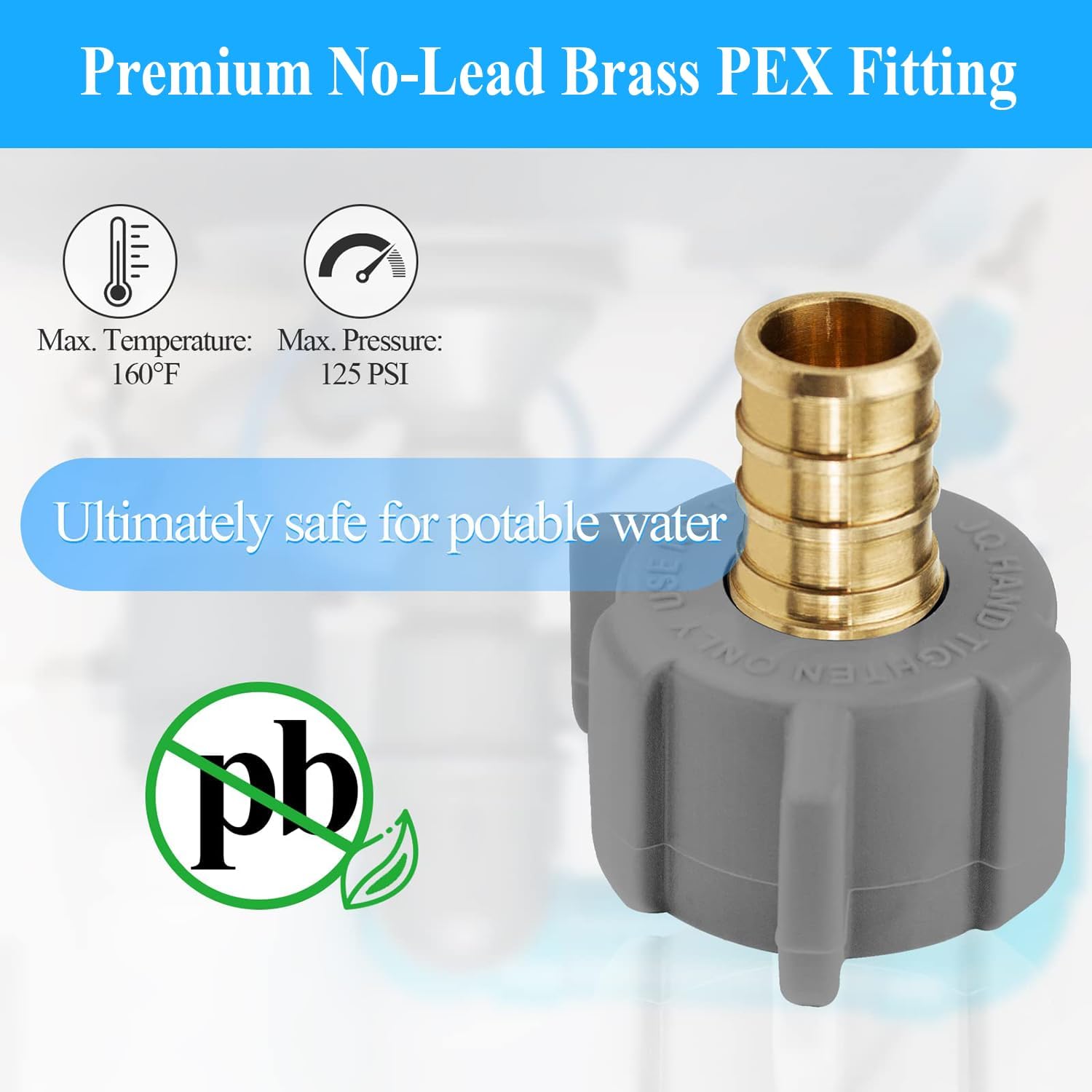

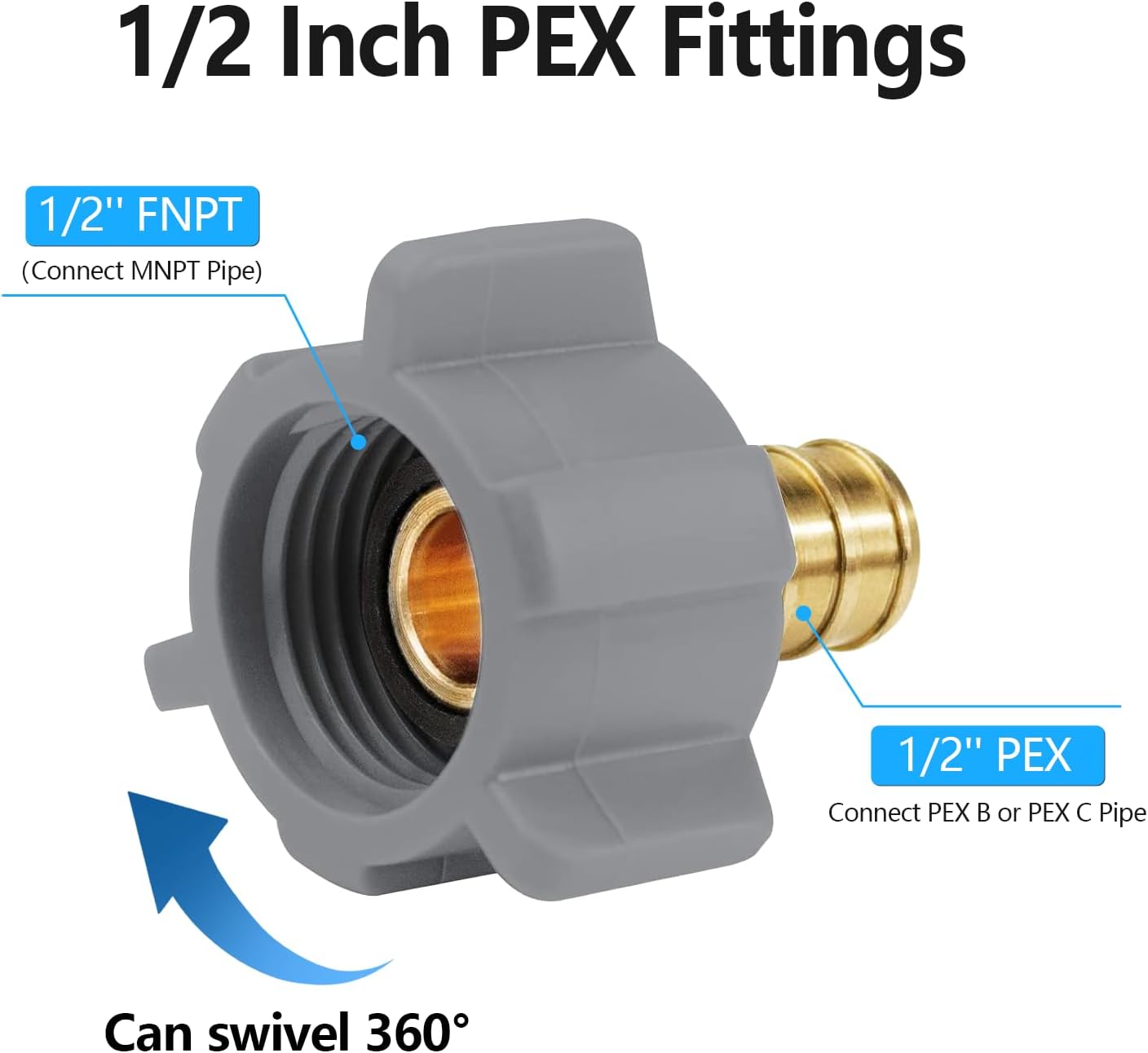

The swivel adapter is designed to provide a reliable transition between PEX tubing and threaded plumbing components. The rotating swivel nut allows the fitting to be tightened without twisting the connected PEX tubing, making installation easier in confined spaces or where pipe alignment is limited.

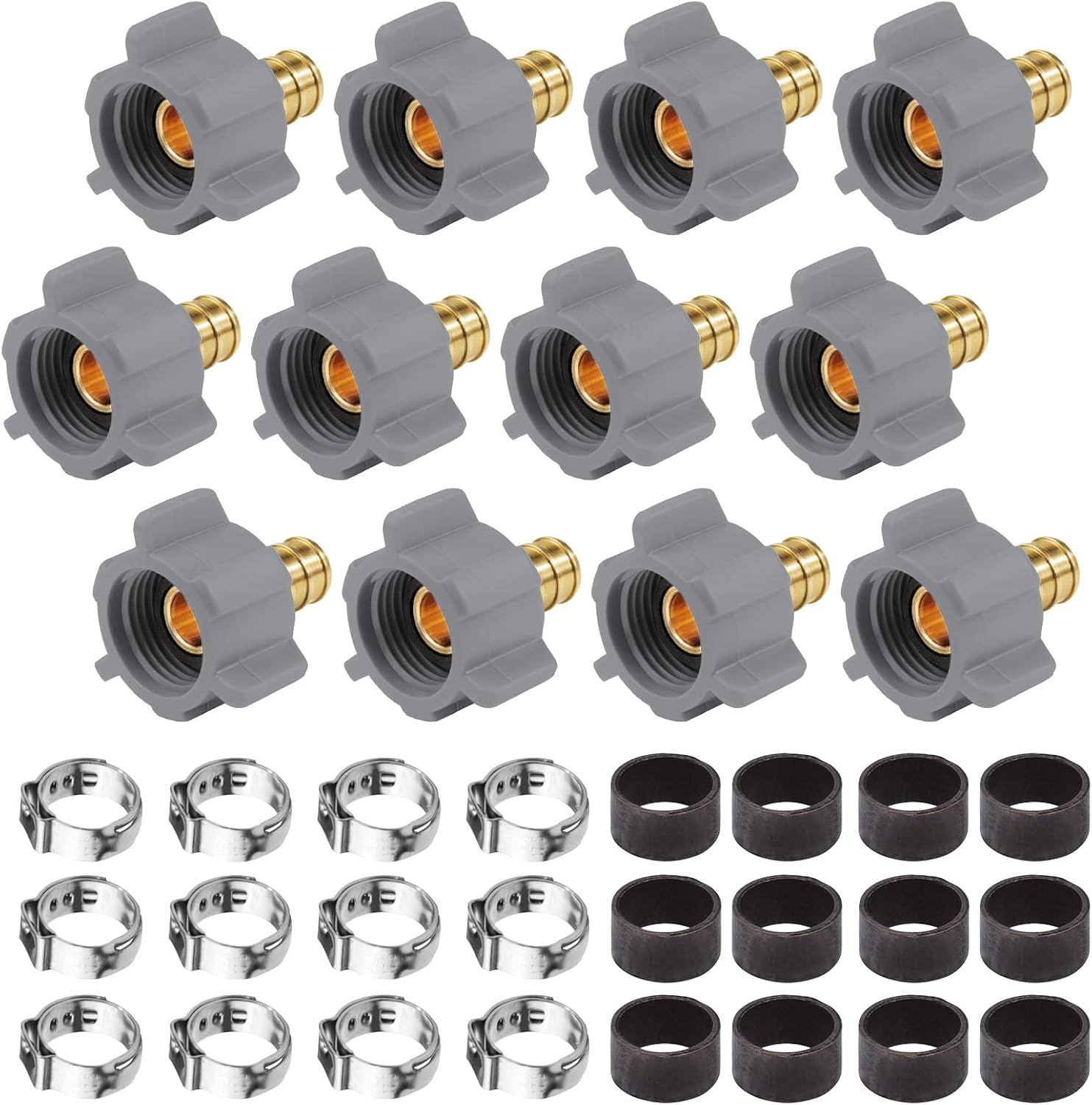

Each fitting features a lead-free DZR brass body for corrosion resistance, a PA66 nylon swivel nut, and an integrated rubber gasket to create a secure seal against compatible male NPT fittings. The kit supports standard PEX-B installation methods using either copper crimp rings or stainless steel clamps.
Suitable for residential potable water systems, water heaters, water softeners, manifold systems, RV plumbing, faucet connections, and toilet supply lines.
Features
- 1/2" PEX x 1/2" Female NPT swivel adapter
- Lead-free DZR brass fitting body
- Certified to NSF/ANSI 61 for potable water applications
- PA66 nylon swivel nut
- Integrated rubber sealing gasket
- Compatible with PEX-B tubing

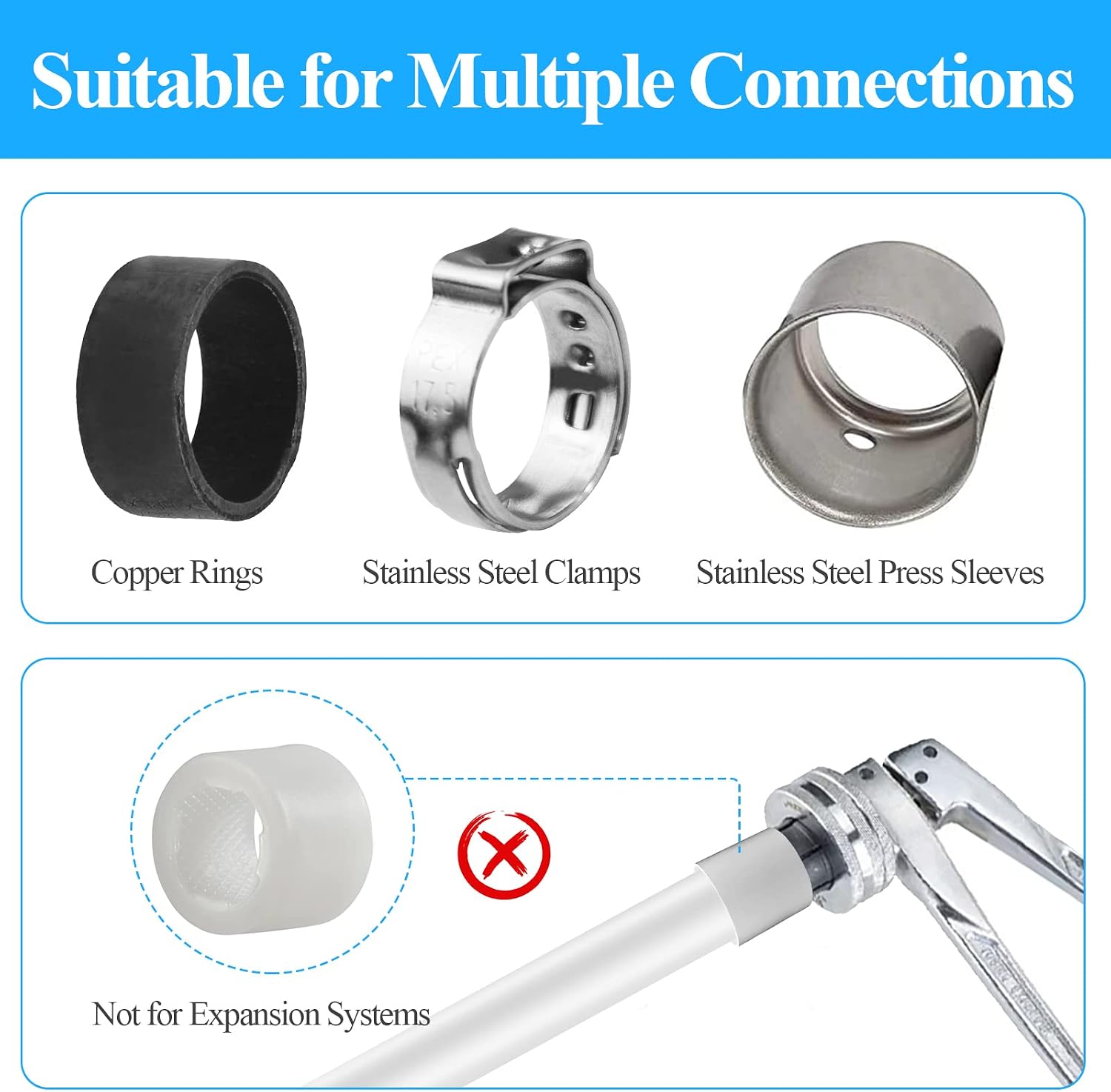

- Installs using standard PEX crimp or clamp tools (tools not included)
- Suitable for hot and cold water systems
- Maximum working temperature: 160°F (71°C)
- Maximum working pressure: 125 PSI

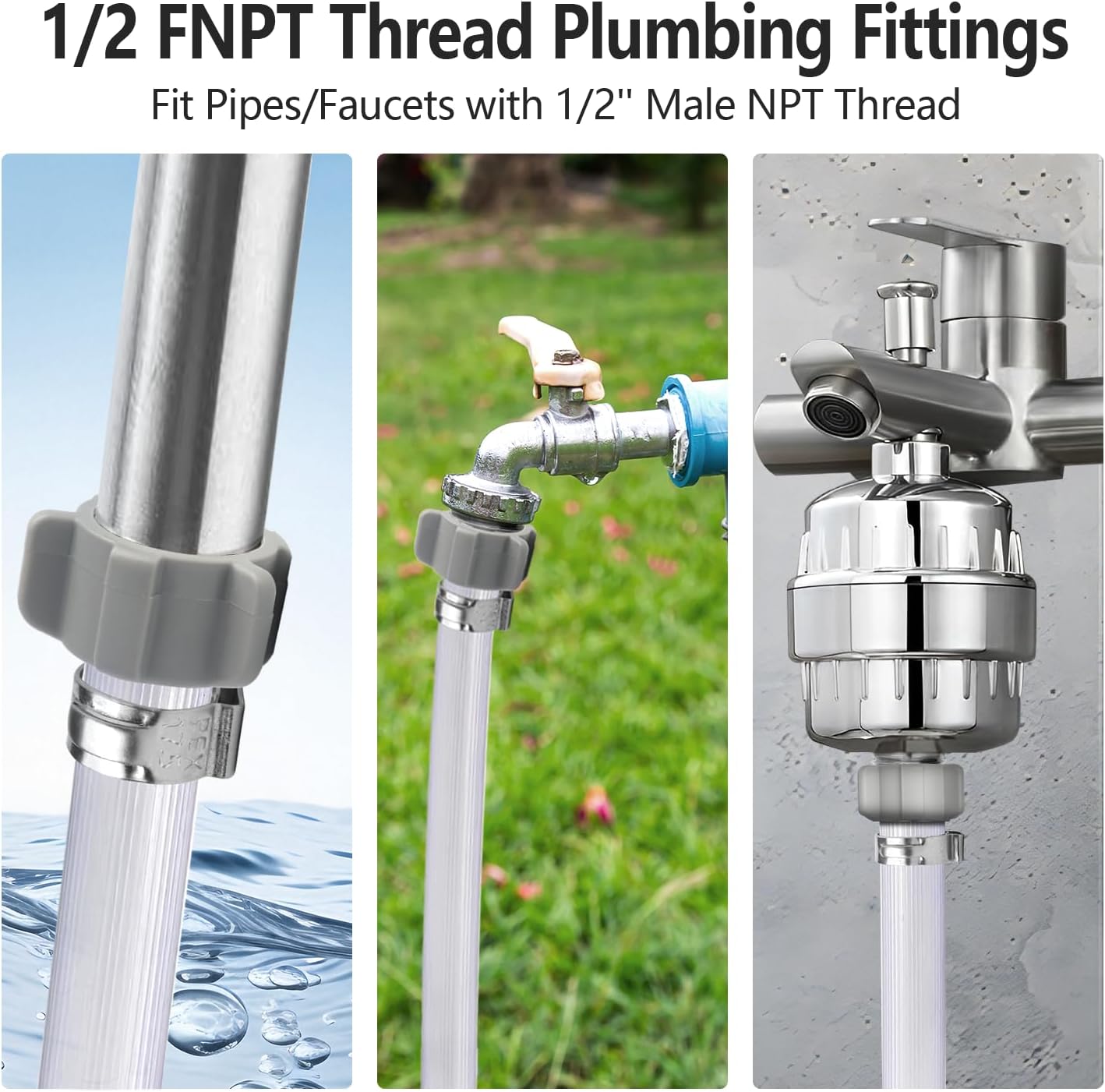

Applications
Suitable for:
- Potable water plumbing
- Faucet connections
- Toilet supply lines
- Sink plumbing
- Water softener connections
- PEX manifold systems
- Residential plumbing
- RV water systems
Installation

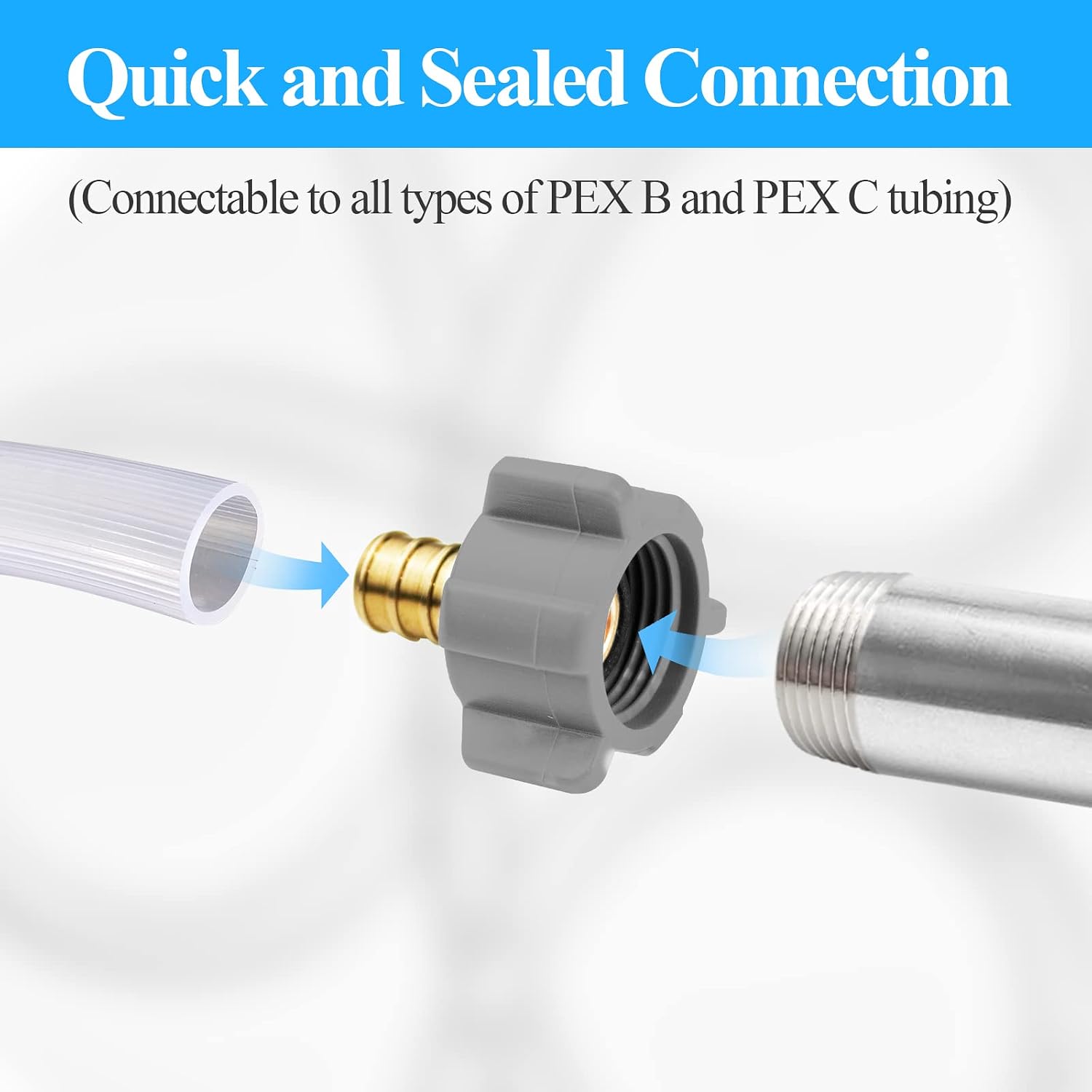

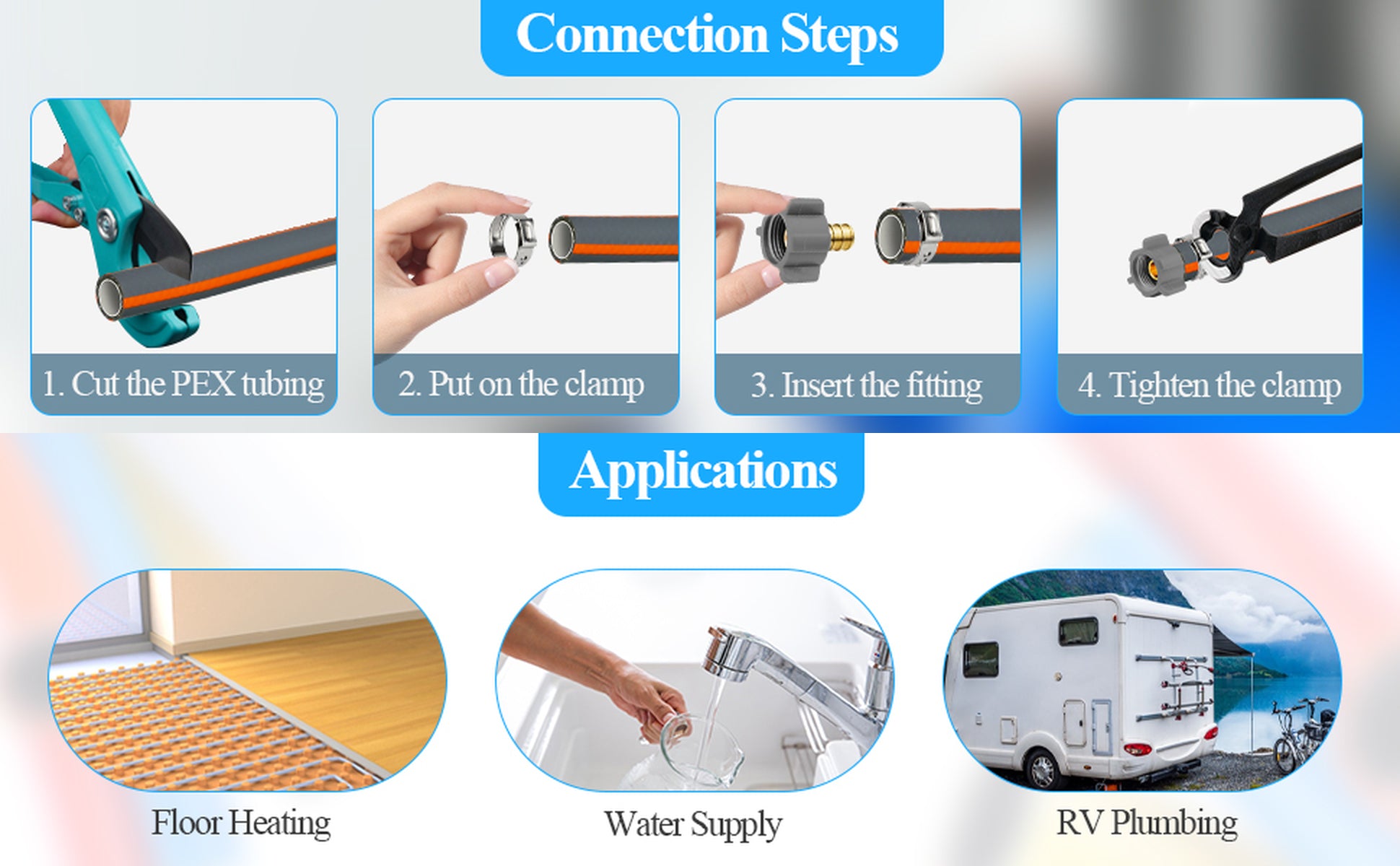

- Slide the copper crimp ring or stainless steel clamp onto the PEX tubing.
- Insert the PEX barb fully into the tubing.
- Secure the connection using a compatible crimp or clamp tool.
- Thread the swivel nut onto a 1/2" male NPT fitting.
- Tighten to the recommended torque.
PEX installation tools are not included.
Compatible Systems
- Residential water supply
- Commercial potable water systems
- Water heater connections
- Water softener installations
- RV plumbing
- Bathroom and kitchen fixtures
- PEX manifold distribution systems
