Everything You Need to Know About Radiant Heat Manifolds

Radiant heating systems are becoming popular for homeowners looking for comfort and efficiency. A key part of these systems is the radiant heat manifold, which ensures proper heat distribution and control. This component is vital in achieving efficient heating, especially for systems like underfloor heating. If you're exploring advanced heating solutions, understanding the basics of radiant heat manifolds will help you make informed decisions.

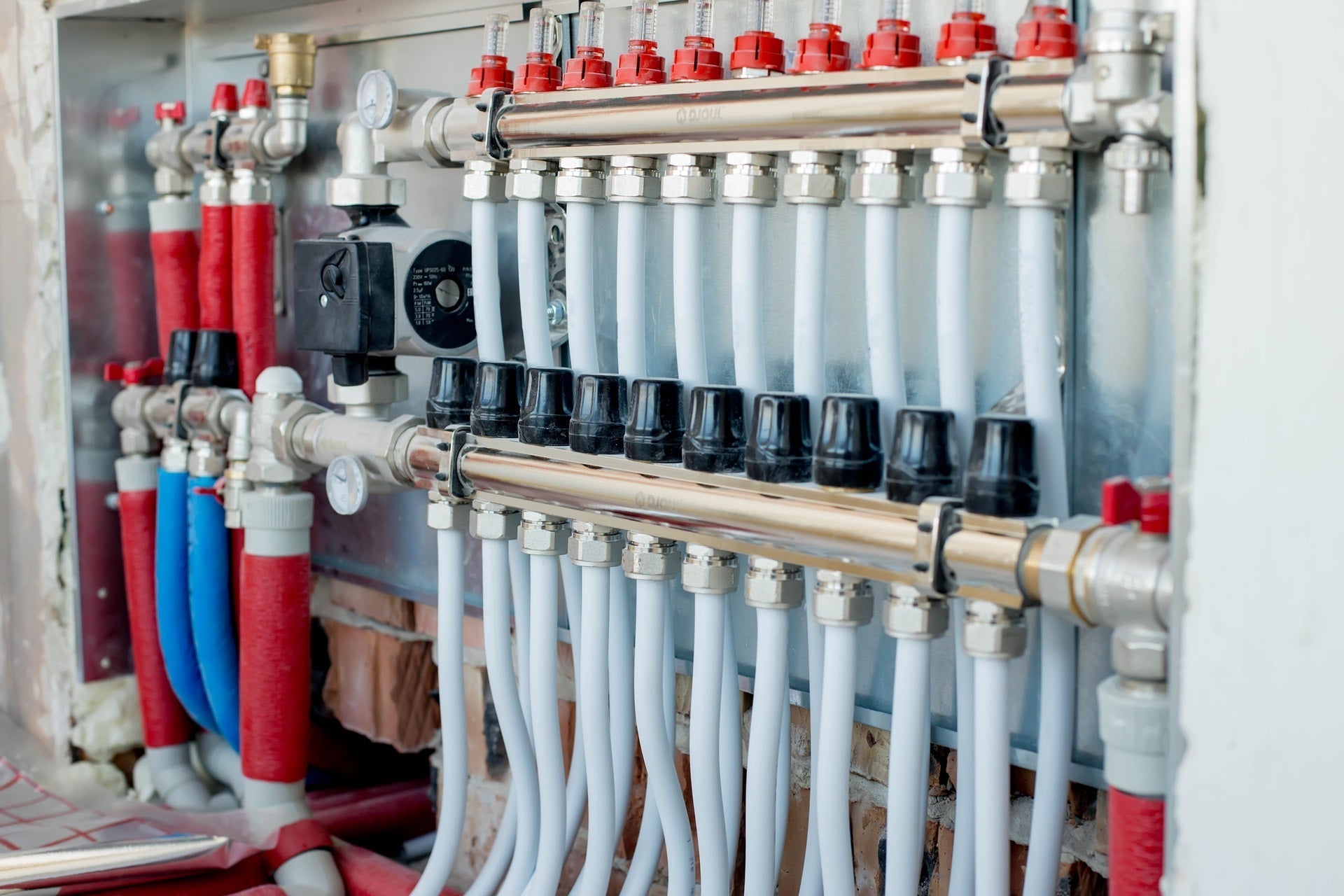

What is a Radiant Heat Manifold?

A radiant heat manifold is a device that distributes heated water from a boiler or other heating source to different areas of your home. It acts as the control center for radiant heating systems, ensuring the right amount of heat is delivered to each room. The manifold usually consists of two sections: a supply manifold, which sends heated water to the circuits, and a return manifold, which collects the cooled water and sends it back to the heat source.

Key Features of Radiant Heat Manifolds:

• Flow meters: Allow you to monitor and control the water flow to each circuit.
• Valves: Enable precise adjustments for different zones in your home.
• Air vents: Remove trapped air, which can hinder system efficiency.

By balancing the heat distribution, a manifold ensures consistent and comfortable temperatures across all areas of your home.

How Do Radiant Heat Manifolds Work?

The operation of a radiant heat manifold is straightforward but highly effective. Heated water enters the manifold from the heating source and is divided into smaller circuits, each leading to a specific area. Flow meters on the manifold let you adjust how much water flows to each zone, while return lines collect cooled water and send it back for reheating. This continuous process ensures that every room gets the right amount of heat.

Benefits of this Mechanism:

• Energy efficiency: No energy is wasted as the system delivers heat only where needed.
• Custom temperature control: Depending on your comfort preferences, you can set different temperatures for different areas.
• Uniform heating: It eliminates cold spots often found in traditional heating systems.

This precision makes radiant heating systems powered by radiant heat manifolds an excellent choice for modern homes.

Benefits of Radiant Heat Manifolds

Adding a radiant heat manifold to your heating system provides significant advantages. It improves efficiency and enhances the overall comfort of your home. Some of the key benefits include:

• Improved energy savings: The manifold reduces energy waste by controlling heat distribution.
• Zoning capabilities: Set specific temperatures for each area or room, making the system highly flexible.
• Durability: High-quality manifolds are built to last, requiring minimal maintenance.
• Better heat distribution: Ensures even warmth across your home, eliminating uneven heating.

Why It’s Important:

Using a radiant heat manifold makes radiant heating systems more effective and adaptable. Whether you want to keep your living room cozy or reduce heating in lesser-used areas, a manifold gives you the control you need for efficient heating.

Types of Radiant Heat Manifolds

Choosing the right radiant heat manifold depends on your specific heating needs. There are different types available, each offering unique features and advantages:

1. Pre-assembled manifolds: These come ready to install and include all necessary components like flow meters and valves.
2. Modular manifolds: Allow customization by letting you add or remove circuits as required.
3. Plastic manifolds: Lightweight and corrosion-resistant, suitable for areas with lower heat demands.
4. Metal manifolds: Ideal for high-temperature systems, offering superior durability.

How to Choose the Right One:

• System size: Larger systems may require modular or metal manifolds for better performance.
• Budget: Plastic manifolds are often more cost-effective while still being functional.
• Specific needs: Look for manifolds with advanced controls and flow meters for precise zoning.

Each manifold type is designed to meet different requirements, so understanding your heating system's demands is key to making the right choice.

Installing a Radiant Heat Manifold

Properly installing a radiant heat manifold is essential for efficiently operating your heating system. While professional installation is recommended, knowing the steps involved can help you understand the process:

General Steps for Installation:

1. Choose the location: Position the manifold near the heat source and centrally within the home for balanced pipe lengths.
2. Secure the manifold: Use a bracket to mount it on a wall or another accessible area.
3. Connect the pipes: Attach the supply, return the pipes to the manifold, and secure them tightly.
4. Balance the flow: Adjust the flow meters to ensure even heat distribution across all zones.
5. Test the system: Check for leaks and ensure the manifold operates correctly.

Correct installation ensures your system runs smoothly and provides the desired comfort and energy savings.

Maintaining Your Radiant Heat Manifold

Maintaining a radiant heat manifold helps keep your system running efficiently and prolongs its lifespan. Here are some tips to maintain your manifold:

• Check connections regularly: Inspect for leaks or loose fittings that can reduce efficiency.
• Clean flow meters: Remove debris or buildup to ensure accurate readings.
• Flush the system: Periodically clear out sediment or blockages in the pipes.
• Monitor system pressure: Ensure that the water pressure remains within recommended levels.

Benefits of Maintenance:

Proper upkeep reduces repair costs and ensures that your underfloor heating or other radiant heating systems operate effectively for years to come.

Is a Radiant Heat Manifold Right for You?

If you're considering upgrading your heating system, a radiant heat manifold is a worthwhile investment. It improves the efficiency and functionality of underfloor heating and other radiant systems, making them a practical choice for modern homes.

Key Reasons to Choose a Manifold:

• Efficient heating: Optimizes energy use, saving money on utility bills.
• Customizable zones: Allows precise temperature control in different areas of your home.
• Enhanced comfort: Provides consistent warmth, making your home more enjoyable during colder months.

By choosing the right radiant heat manifold for your needs, you can enjoy the benefits of advanced heating solutions that are both reliable and comfortable.
